YZAQA-ZBQI-W0NKP44 PORT ADSL2+ DSL GATEWAY/ROUTER/WIFI

MSW41p4 ADSL2+ UserManual 1. Overview 1.1 About MSW41p4 MSW41p4 is a high quality multifunction internet access device offering ADSL, WiFi, USB device and LAN switch. The advanced QoS ensures high quality in the bandwidth*consuming services like IPTV, IP Camera and so on. It simply enables the user to build their wireless network upon LAN network and play a role in the overall management and coordination to provide users with convenience. 1.2 Advanced features and benefits 1. Support IEEE 802.11b/g WiFi, simply enables user to build a wireless network upon LAN network, and access internet through high speed ADSL router. 2. Support ADSL2+（maximum downstream 24Mbps and upstream 1Mpbs） 3. Support Advanced QoS (Quality of Service) feature. It ensures high quality with smooth connection for any type of data. Particularly latency*sensitive and bandwidth*consuming applications such as IPTV etc. 4. Support TR*069 remote management: configuration, software upgrade, troubleshooting etc. 1.3 Features and Technical Specifications ADSL
ANSI T1.413 issue 2 compliant
ITU*T G.992.1(G.DMT) compliant: Up to 8Mbps downstream and 896Kbps upstream
ITU*T G.992(G.lite) compliant: supports splitter*less implementation.
ITU G.992.3/4(ADSL2) compliant: enhanced performance on long lines
ITU G.992.5(ADSL2+) compliant:(up to 24Mbps downstream and 1Mbps upstream)
PVCs：16
PVC supported model： PPPoE/PPPoA/DHCP/Static/Bridge IP
NAT/NAPT
Firewall，support SPI(stateful packet inspection)
DHCP server
Port forwarding(support DMZ)
IP filtering，bridge filtering，Web filtering
Static routing
Dynamic routing(RIP and RIP2)
SNTP
VPN, support PPTP and IPSec VPN
Multicast：IGMP Proxy/IGMP Snooping
ALG
UPnP Ethernet
IEEE 802.3
4 port Ethernet: 10/100M Ethernet Auto MDI*X WiFi
IEEE 802.11b/g compliance
Security：WEP 64/124/256 bits、WPA/WPA2
WMM QoS
WDS wireless AP
Multiple SSID configuration
RF power : 20dBm
Antenna type : Outside Omni*directional Antenna
RF on/off
ACS(Automatic channel selection)
MAC address white*black filter Operation and Management (OAM)
Support Web based management
Support SNMP v1/v2/v3
UPnP
Telnet/SSH
Software upgrade through HTTP/TFTP/FTP
TR069（CPE management through WAN interface） QoS
Support input rate limit
IP QoS：base on source IP address, source and destination port, protocol and DSCP
ATM QoS：support CBR，UBR，nrt*VBR，rt*VBR USB
Support one USB device 2. Specification 2.1 Interface introduction 2.1.1 Interface & Indicator Light Introduction Item Label Description Indicator Light Power ON：MODEM power on OFF：MODEM power off USB ON: MODEM linked to PC via USB interface Flash: MODEM sending/receiving data via USB interface OFF：No connection LAN1* LAN4 ON：Ethernet is connected BLINK：Ethernet Traffic flows OFF：Ethernet is disconnected Internet ON: in Router mode and ADSL connected, can transmit IP packets OFF: in Bridge mode or ADSL disconnected Flash: Data transmitting via LAN interface ADSL BLINK Slowly：MODEM idle BLINK Quickly：MODEM training, but not synchronized ON：MODEM synchronized to the DSLAM WLAN OFF：WLAN is disable ON：WLAN is enable BLINK: WLAN Traffic flows Interface Introduction Antenna Sending & receiving wireless signal ADSL Connect to the ADSL line or the MODEM port of Splitter LAN1* LAN4 LAN interface for connecting to computer USB Connect to PC USB port Reset Restore to factory default settings Power For 12V DC power adaptor Power switch Notice: the LAN port support 10M/100M, AUTO MDI-X. 2.1.2 Interface of splitter Label Introduction LINE Connect to the ADSL line MODEM Connect to ‘DSL’ port of the MODEM PHONE Connect to the phone 2.1.3 Package checking Router is shipped with the following items: Item Quantity Remark Power Adapter 1 Phone line 2 RJ45 Network Line 1 MODEM 1 Splitter 1 2.2 Hardware Connection Introduction： 1、 Use a telephone cord to connect the LINE port of the splitter with the RJ*11 port (the phone jack) on the wall. 2、 Use another telephone cord to connect the ADSL port of the splitter with the LINE port of the ADSL Modem. 3、 Use another telephone cord to connect the telephone set with the PHONE port of the splitter. 4、 Connect Ethernet port of the ADSL MODEM with 10/100BASE*T port of the computer using the network cable that comes with the modem. 5、 Plug in the power cord, and turn on the power. If you do not want Internet services and telephone voice services simultaneously, please just connect the LINE port of the ADSL Modem with the RJ*11 port (the phone jack) on the wall using a telephone cord. In this case, the splitter is not necessary. 2.3 Layout Notice： ：： ： PC connects to ADSL LAN port for internet access; Laptop (integrate WiFi) can access internet via WiFi wireless connection; STB (set top box) connect to LAN port for IPTV application. Wireless ADSL router provides 4 Ethernet cable ports LAN0~LAN3 in support of 10M/100M, AUTO MDI*X, user can connect 4 PCs via 4 cable lines, no extra HUB or SWITCH is needed. Warning： ：： ：If the phone line is previously in-bridged with other phones, please make sure every phone set is connected behind the splitter or installed a splitter before every phone set, otherwise interruptions will be caused on line and ADSL connection may be unstable. 3. Configuration Guide 3.1 Default Configuration ADSL MODEM has pre*configured with the VCI/VPI which is in common use, mode is bridge encapsulation. For bridge mode, no need to configure any more parameter. 3.2 Computer Configuration The default IP address for ADSL MODEM is: 192.168.2.1; The Subnet Mask is： 255.255.255.0. Users can configure ADSL MODEM through an Internet browser. ADSL MODEM can be used as gateway and DNS server; users need to set the computer’s TCP/IP protocol as follow: 1、 Set the computer IP address at same IP range of ADSL MODEM, such as set the IP address of the network card to one of the “192.168.2.2” 2、 Set the computer’s gateway the same IP address as the ADSL Modem’s. 3、 Set computer’s DNS ser…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Global411 Internet Services, LLC ___________________________________________________________ 2-18-2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Global411 Internet Services, LLC hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Wireless Router DSL Gateway MSW41p4 model name: MSW41p4 ( FCC ID : YZAQA-ZBQI-W0NKP4) We af firm that between SIEMIC and Global411 Internet Services, LLC , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, ERICK BOSTROM PART68@GLOBAL411. NET 208-899-4658

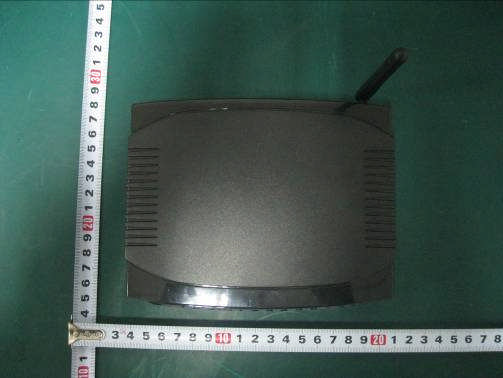

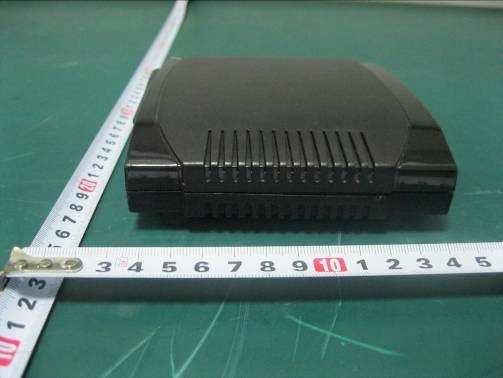

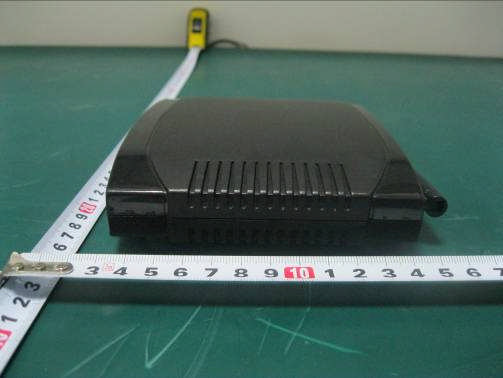

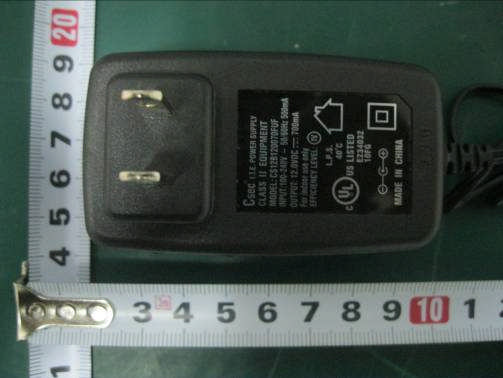

Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:18of43 www.siemic.com.cn Annex B.EUT ANDTESTSETUPPHOTOGRAPHS Annex B.i.Photograph: EUTExternalPhoto TopView of EUT BottomView of EUT Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:19of43 www.siemic.com.cn FrontView ofEUT RearView ofEUT Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:20of43 www.siemic.com.cn LeftView ofEUT Right View of EUT Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:21of43 www.siemic.com.cn Front View of Power Adapter Rear View of Power Adapter

Global411 Internet Services, LLC Made in China Rating: 700mA, DC 12V Model: MSW41p4 Complies with FCC Part 68 Rules US: HBTDL01BMSW41P4 Jack Type: RJ11C REN: 0.1B FCC Reg NO.: 0020330262 FCC ID：YZA QA-ZBQI-W0NKP4 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. label location

Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:22of43 www.siemic.com.cn Annex B.ii.Photograph: EUTInternalPhoto Front View of PCBBoard Rear View of PCBBoard

Global411 Internet Services,LLC WirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 31March,2011 ReportNo.:1105010-E (This report supersedesNONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: PeterCai TestEngineer Spring Zhou Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:2of43 www.siemic.com.cn Laboratory Introduction ATION SIEMIC,headquartered in the heart of Silicon Valley, with superior facilities in US andAsia, is one of the leading independent testing and certification facilities providingcustomers withone-stop shop servicesfor Compliance Testing and Global Certifications. In addition totestingandcertification, SIEMIC provides initial design reviews andcompliance managementthrough out a project. Our extensive experience withChina,Asia Pacific,North America, European, and internationalcompliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for theglobal markets. Accreditations for Conformity Assessment Country/RegionAccreditation BodyScope USAFCC, A2LAEMC , RF/Wireless, Telecom CanadaIC, A2LA, NISTEMC,RF/Wireless, Telecom TaiwanBSMI ,NCC , NISTEMC, RF, Telecom , Safety Hong KongOFTA , NISTRF/Wireless,Telecom AustraliaNATA, NISTEMC, RF, Telecom , Safety KoreaKCC/RRA, NISTEMI, EMS, RF , Telecom, Safety JapanVCCI, JATE, TELEC,RFTEMI,RF/Wireless, Telecom MexicoNOM, COFETEL,CanietySafety,EMC , RF/Wireless, Telecom EuropeA2LA, NISTEMC, RF, Telecom , Safety Accreditations for Product Certifications CountryAccreditation BodyScope USAFCCTCB, NISTEMC , RF , Telecom CanadaICFCB, NISTEMC , RF , Telecom SingaporeiDA, NISTEMC , RF , Telecom EUNBEMC & R&TTE Directive Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:3of43 www.siemic.com.cn This page has been left blank intentionally. Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:4of43 www.siemic.com.cn CONTENTS 1EXECUTIVE SUMMARY &EUT INFORMATION.............................................................................................................5 2TECHNICAL DETAILS..................................................................................................................................................6 3MODIFICATION............................................................................................................................................................7 4TEST SUMMARY..........................................................................................................................................................8 5MEASUREMENTS, EXAMINATION AND DERIVED RESULTS........................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD.........................................................................................................................15 ANNEX B.EUT AND TEST SETUP PHOTOGRAPHS...........................................................................................................18 ANNEX C.TEST SETUP AND SUPPORTING EQUIPMENT...................................................................................................25 ANNEXD.USER MANUAL / BLOCKDIAGRAM / SCHEMATICS/ PART LIST.......................................................................29 ANNEXE.SIEMIC ACCREDITATIONCERTIFICATES..........................................................................................................30 Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:5of43 www.siemic.com.cn 1Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of theGlobal411InternetServices, LLC,WirelessRouterDSLGatewayMSW41p4, and model:MSW41p4against the current Stipulated Standards. TheWirelessRouterDSLGatewayMSW41p4hasdemonstrated compliance with theFCC Part15B:2010. EUT Information EUT Description : WirelessRouterDSLGatewayMSW41p4 Model No :MSW41p4 Serial No :N/A Input Power :Rating: 700mA, DC 12V Classification Per Stipulated Test Standard : Class BEmission Product Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:6of43 www.siemic.com.cn 2TECHNICAL DETAILS Purpose Compliance testing ofWirelessRouterDSLGatewayMSW41p4 with stipulated standard Applicant / Client Global411InternetServices,LLC 10400WOverlandRd#371Boise,Idaho83709USA Manufacturer FujianStar-NetCommunication,CO,LTD 20-22#Building,Star-NetPlaza, JuyuanZhou,618JinshanRr,Fuzhou,Fujian,PR.China Laboratory performing the tests SIEMIC Nanjing(China)Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number1105010-E Date EUT received21March,2011 Standard appliedFCCPart15B:2010 Dates of test (from–to)21Marchto31March,2011 No ofUnits:#1 Equipment Category:ITE Trade Name:MSW41p4，ADSL2+DSL Gateway/Router/Wifi Model :MSW41p4 Power: Rating: 700mA, DC 12V Ports :Power Port, Ethernet Port, DSL Port FCC ID :YZAQA-ZBQI-W0NKP4 Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:7of43 www.siemic.com.cn 3MODIFICATION NONE Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:8of43 www.siemic.com.cn 4TEST SUMMARY The product was tested in accordance with the following specifications. Alltesting has been performed according to below produ…

Text truncated - open the document above for the full version.

Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:23of43 www.siemic.com.cn Annex B.iii.Photograph: Test Setup Photo Front View of Conducted EmissionsTestSetup Side View of Conducted EmissionsTest Setup Title:EMCTest Report forWirelessRouterDSLGatewayMSW41p4 Model:MSW41p4 To:FCCPart15B:2010 Serial#:1105010-E Issue Date:31March,2011 Page:24of43 www.siemic.com.cn Front View of Radiated EmissionsTest Setup Rear View of Radiated EmissionsTest Setup
