YZAQA-ZBQI-W0NKQQMS41p1 Adsl2+ Modem

Quick Installation Guide For MS41p1 Contents Table Contents Table ........................................................................................ 1 Chapter I Introduction .......................................................................... 2 1.1 Overview ............................................................................................................................. 2 1.2 Features ............................................................................................................................... 2 Chapter II Hardware setup ................................................................... 3 2.1 Interface & Indicator Light Introduction ............................................................................. 3 2.1.1 MODEM Indicator Light & Interface Introduction ............................................. 3 2.1.2 Interface of splitter ................................................................................................ 4 2.2 Package checking ................................................................................................................ 4 2.3 Layout ................................................................................................................................. 4 Chapter III Configuration Instructions ................................................ 5 3.1 Before Configuration: ......................................................................................................... 5 3.2 Instructions to Configure Router Through Web Interface ................................................... 5 3.2.1 Web Log"In ............................................................................................................ 5 3.2.2 WEB Interface Descriptions ................................................................................ 6 3.3 Instructions on the Application of Common-use Function Modules ................................... 7 3.3.1 Save & Reboot ...................................................................................................... 7 3.3.2 LAN Setting ........................................................................................................... 7 3.3.3 DHCP Setting ........................................................................................................ 8 3.3.4 User Management Setting .................................................................................. 8 Chapter IV Typical Application Cases .................................................. 9 4.1 Single-user Log-on (supported both by Modem version and Router version) .................... 9 4.1.1 Dialing Mode (Dynamic IP) ................................................................................. 9 4.1.2 Special Line Mode (Static IP) .............................................................................. 9 4.2 Multi-user Log-on (supported only by Router version via its router feature) ................... 10 4.2.1 Dialing Mode (Dynamic IP) ............................................................................... 10 4.2.2 Special Line Mode (Static IP) ............................................................................ 13 Chapter I Introduction 1.1 Overview The MS41p1 supports ADSL, ADSL2 and ADSL2+ over the existing copper lines, with downstream transmission rate up to 24Mbps (ADSL2+) and upstream transmission rate up to 1.024 Mbps. They can support PPPoA (RFC 2364 " PPP over AAL5), PPPoE (RFC 2516 – PPP over Ethernet) and RFC 1483 encapsulation over ATM (bridged or routed). 1.2 Features Standards Compliance ◆ ANSI T1.413 Issue 2 compliant ◆ ITU"T G.992.1 (G.DMT) compliant: Up to 8Mbps downstream and 896Kbps upstream data rate ◆ ITU"T G.992.2 (G.lite) compliant: Supports splitter"less implementation and up to 1.5M downstream and 512Kbps upstream data rate ◆ ITU"T G.992.3 compliant: Better performance on long lines, and improve interoperability between chipset suppliers ◆ ITU"T G.992.5 Annex A compliant: Up to 24Mbps downstream and 1Mbps up stream data rate ◆ ITU"T G.992.5 Annex M compliant: Up to 24Mbps downstream and 3Mbps up stream data rate. Hardware Features ◆ Compatible with various local telecom equipments: Huawei, ZTE, DTT, Alcatel, Lucent, Ericsson and so on. ◆ Stable transmission speed even at a transmission distance of 5KM ◆ Supports 8 PVCs Software Features ◆ Supports RFC 1483 protocol (MPOA), RFC 1577 protocol (IPOA),RFC 2364 protocol (PPP over ATM) ,and RFC 2516 protocol ◆ Firmware upgrade and configuration over WEB Operating Environment ◆ Operating: ＋0 ~ ＋50 ◆ Non"operating: －40 ~ ＋85 Humidity ◆ Operating: 10%~95% RH ◆ Non"operating: 10%~95% RH Standard Approval ◆ CE CLASS B. ◆ FCC PART 15 CLASS B ◆ FCC PART 68 ◆ UL 1950 Chapter II Hardware setup 2.1 Interface & Indicator Light Introduction 2.1.1 MODEM Indicator Light & Interface Introduction Item Label State Introduction Indicator Light DSL ON：MODEM synchronized to the DSLAM Flash: MODEM not synchronized Internet OFF: in Bridge mode or ADSL disconnected ON: in Router mode and ADSL connected, can transmit IP packets Ethernet ON： linked to network card of PC Power ON：MODEM power on Interface Introduction DSL Connect to the ADSL line or the ‘MODEM’ port of Splitter Ethernet Connect to the NIC with a crossed network line PWR Connect to power adapter enclosed in the package Reset Restore default settings Power switch 2.1.2 Interface of splitter Label Introduction LINE Connect to the ADSL line MODEM Connect to ‘ADSL’ port of the MODEM PHONE Connect to the phone 2.2 Package checking First of all, please check out if the articles listed below present. Item Quantity Remark Power Adapter 1 Phone line 2 RJ45 Network Line 1 MODEM 1 Splitter 1 2.3 Layout ADSL Line Note: Splitter is needed to: -Filter out line noise, i.e. - Prevent line noise when there is incoming / outgoing call; - Prevent connection speed drop when using modem. DSLAM Internet Splitter Telephone / Fax Machine RJ-45 Cable connect to NIC MS41p1…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 FCC ID: YZAQA-ZBQI-W0NKQQ SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Global411 Internet Services, LLC ___________________________________________________________ December 15, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Global411 Internet Services, LLC hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): MS41p1 Adsl2+ Modem, MS41p1 We affirm that between SIEMIC and Global411 Internet Services, LLC , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Erick Bostrom Owner Global411 Internet Services, LLC 10400 W Overland Rd #371 Boise, Idaho 83709 Tel：208-899-4658 [email protected]

2206 Ringwood Avenue, San Jose, CA 95131, USA Tel: +1(408) 526 1188, Fax: +1(408) 526 1088, Email: [email protected], URL: www.siemic.com Dec 23, 2010 To: FCC From: SIEMIC, INC. RE: Applicant: Airaya, Corp., FCC ID: YZAQA-ZBQI-W0NKQQ, Request to correct FCC ID and supercede of test report and Authorization letter Per customer’s request, the correct FCC ID shall be YZAQA-ZBQI-W0NKQQ instead of YZAQA-ZBQI-WONKQQ, the FCC ID information need to be correct in FCC test report and authorization letter. Therefore, we are asking to kindly replace the test report , authorization letter and correct the FCC ID. You can find the changes on FCC test report page 6 and authorization letter page 2. Thank you, Choon Sian Ooi SIEMIC, INC. 2206 Ringwood Ave., San Jose, CA 95131 Tel: 408-526-1188 Ext 209 Fax: 408-526-1088

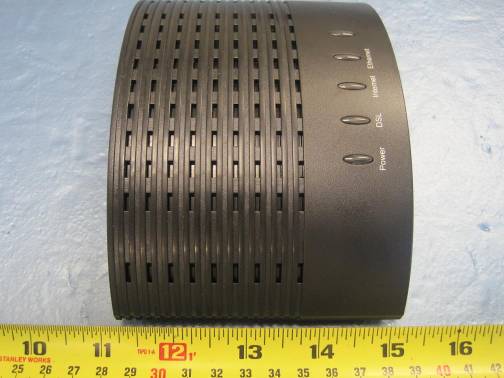

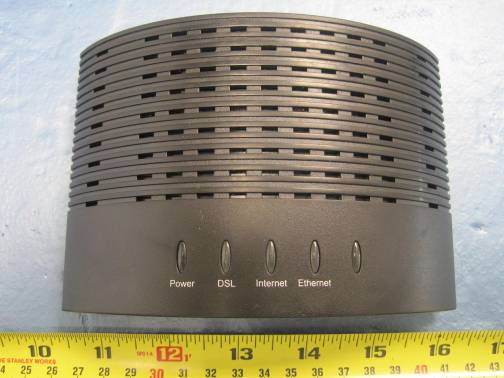

Title: RF Test Report for MS41p1 Adsl2+ Modem Model: MS41p1 To: FCC Part 15B: 2010 Serial#: 1005024-E Issue Date: 18 November 2010 Page: 17 of 41 www.siemic.com Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph: EUT External Photo Top View of EUT Bottom View of EUT Title: RF Test Report for MS41p1 Adsl2+ Modem Model: MS41p1 To: FCC Part 15B: 2010 Serial#: 1005024-E Issue Date: 18 November 2010 Page: 18 of 41 www.siemic.com Front View of EUT Rear View of EUT Title: RF Test Report for MS41p1 Adsl2+ Modem Model: MS41p1 To: FCC Part 15B: 2010 Serial#: 1005024-E Issue Date: 18 November 2010 Page: 19 of 41 www.siemic.com Left View of EUT Right View of EUT

Global411 Internet Services, LLC Made in China Rating: 12VDC 500mA Model: MS41p1 Complies with FCC Part 68 Rules US:HBTDL03BMS41P1 Jake Type:RJ11C REN:03B FCC Reg NO.: 0020330262 FCC ID：YZAQA-ZBQI-W0NKQQ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

Label Location

Title: RF Test Report for MS41p1 Adsl2+ Modem Model: MS41p1 To: FCC Part 15B: 2010 Serial#: 1005024-E Issue Date: 18 November 2010 Page: 20 of 41 www.siemic.com Annex B.ii. Photograph: EUT Internal Photo Front View of mainboard PCB Rear View of mainboard PCB

The input is 12V DC, after filtering, it provides to three-way DC-DC chips and each way is 34063. A buck circuit is constituted by the three-way 34063; the output voltages are three branches, namely, 5V, 1.2V and 3.3V. The 5V voltage is provided to the line driver chip BCM6301; the 1.2V voltage is provided to the BCM6332 as core voltage; the 3.3V voltage on the one hand is provided to the BCM6332 as I / O interface voltage, and it is as well as the SDRAM operating voltage. BCM6332 is a high performance, single-chip ADSL2 + chip, and it has integrated ADSL2 + transceiver and AFE module. The main parameters of BCM6332 are as follows:  240MHz MIPS32 R4KC processor, with 24KB cache；  Integrated Support ADSL / 2 / + / RE standard transceiver and AFE module; support Annex A, B, C, I, JK, L, M; support the ADSL connection which is full-rate, and in line with the ITU and ANSI, including: ITU T G.994 ITU T G.992.1 (G.dmt), support Annex A and Annex C； ITU T G.992.2 (G.lite), support Annex A and Annex C； ANSI T1.413； ITU T G.992.3(ADSL2)； ITU T G.992.5 (ADSL2+)； ● With 10/100 Mbps Ethernet PHY and MAC，support Auto-MDIX; ● 120MHz，16bits SDRAM port； ● With SPI port，support serial FLASH start； ● Built in 2.5V and 1.2V voltage regulator； ● 256-pin PBGA package. BCM6301 is a Line Driver chip, and uses 5V power supply, and provides drive voltage for ADSL lines. Front-end circuits include a RX filter, a TX filter and a Hybrid circuit part. It completes the D / A & A / D connection of signal between the telephone line and the DSP.

Global411 Internet Services,LLC MS41p1 Adsl2+ Modem Model: MS41p1 18 November 2010 Report No.: 1005024-E (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Peter Cai Test Engineer Will yang Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for MS41p1 Adsl2+ Modem Model: MS41p1 To: FCC Part 15B: 2010 Serial#: 1005024-E Issue Date: 18 November 2010 Page: 2 of 41 www.siemic.com Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/RegionAccreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom Title: RF Test Report for MS41p1 Adsl2+ Modem Model: MS41p1 To: FCC Part 15B: 2010 Serial#: 1005024-E Issue Date: 18 November 2010 Page: 3 of 41 www.siemic.com This page has been left blank intentionally. Title: RF Test Report for MS41p1 Adsl2+ Modem Model: MS41p1 To: FCC Part 15B: 2010 Serial#: 1005024-E Issue Date: 18 November 2010 Page: 4 of 41 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION.............................................................................................................5 2 TECHNICAL DETAILS..................................................................................................................................................6 3 MODIFICATION............................................................................................................................................................7 4 TEST SUMMARY..........................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS........................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD........................................................................................................................14 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS...........................................................................................................17 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT...................................................................................................23 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST.......................................................................27 ANNEX E. SIEMIC ACCREDITATION CERTIFICATES..........................................................................................................28 Title: RF Test Report for MS41p1 Adsl2+ Modem Model: MS41p1 To: FCC Part 15B: 2010 Serial#: 1005024-E Issue Date: 18 November 2010 Page: 5 of 41 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Global411 Internet Services, LLC, MS41p1 Adsl2+ Modem, and model: MS41p1 against the current Stipulated Standards. The MS41p1 Adsl2+ Modem has demonstrated compliance with the FCC Part 15B: 2010. EUT Information EUT Description : MS41p1 Adsl2+ Modem Model No : MS41p1 Serial No : N/A Input Power : POWER SUPPLY INPUT: 100-240VAC OUTPUT: 12.0VDC 500mA Classification Per Stipulated Test Standard : Class B Emission Product YZAQA-ZBQI-W0NKQQ Title: RF Test Report for MS41p1 Adsl2+ Modem Model: MS41p1 To: FCC Part 15B: 2010 Serial#: 1005024-E Issue Date: 18 November 2010 Page: 6 of 41 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of MS41p1 Adsl2+ Modem with stipulated standard Applicant / Client Global411 Internet Services, LLC 10400 W Overland Rd #371 Boise, Idaho 83709 USA Manufacturer Fujian Star-Net Communication,CO,LTD 20-22#Building,Star-Net Plaza, Juyuan Zhou, 618 Jinshan Rr, Fuzhou, Fujian, PR.China Laboratory performing the tests SIEMIC Laboratories Test report reference number 1005024-E Date EUT received 10 November 2010 Standard applied FCC Part 15B: 2010 Dates of test (from – to) 11 November to 17 November 2010 No of Units : #1 Equipment Category : ITE Trade Name : MS41p1 Model : MS41p1 Power : POWER SUPPLY INPUT: 100-240VAC OUTPUT: 12.0VDC 500mA Ports : Power Port, Ethernet Port, DSL Port FCC ID : Title: RF Test Report for MS41p1 Adsl2+ Modem Model: MS41p1 To: FCC Part 15B: 2010 Serial#: 1005024-E Issue Date: 18 November 2010 Page: 7 of 41 www.siemic.com 3 MODIFICATION NONE Title: RF Test Report for MS41p1 Adsl2+ Modem Model: MS41p1 To: FCC Part 15B: 2010 Serial#: 1005024-E Issue Date: 18 November 2010 Page: 8 of 41 www.siemic.com 4 TEST SUMMARY The product was tested in accordance with the following specifications. All testing has been performed according to below product classification: Class B Emission Product Test Results Summ…
