YZG-DDABVIn-dash multimedia

DD-806W 1 Contents Thank you for purchasing a Valor Multimedia unit. We hope you will find the instructions in this user manual clear and easy to follow. If you take a few minutes to look through it, you will learn how to use all the features of your new unit for your maximum enjoyment. After you have finished reading the instructions, please keep this manual in a safe place for future reference. Precautions···································································································1 On Safety·································································································1 Display Brightness······················································································1 DISC Care································································································1 Playable Discs···························································································1 DVD Region Management············································································2 Preparations··································································································3 Features···································································································3 Tools and Supplies·····················································································3 Warning···································································································3 Disconnecting the Battery·············································································3 Controls and Indicators···················································································5 Button Operation························································································5 Key Areas for the Touch Screen····································································6 Remote Control······························································································7 Remote Control Functions············································································7 TFT Monitor Operation····················································································9 Rear Camera Mode····················································································9 Screen Adjustment·····················································································9 Screen Adjustment Procedure·······································································9 Parking Brake····························································································9 Operating Instructions···················································································10 Setting Password······················································································10 Power On / Off·························································································10 Source Selection······················································································10 Volume Adjustment···················································································10 Equalizer Setting······················································································10 System Reset··························································································10 Mute······································································································11 Standby··································································································11 Setup Menu··································································································12 Main Menu······························································································12 Screen Setting·························································································12 Date Setting····························································································14 DVD Setting····························································································15 System Setting·························································································15 Steering Wheel Control Setting····································································16 Basic Settings··························································································17 Other Settings··························································································18 Tuner (AM/FM) Operation···············································································20 Tuner Display··························································································20 Switch to Radio/Tuner Source····································································20 Select AM/FM Band··················································································20 Auto Tuning·····························································································20 Manual Tuning·························································································20 Using Preset Stations················································································20 Saving a Station·······················································································20 Select a Station························································································20 2 Auto Store (AS) ·······················································································21 Program Scan (PS) ··················································································21 DX and LOC Stations Signals······································································21 DVD Player Operation····················································································22 Insert/Eject Disc·······················································································22…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Shenzhen Autone-Tronic Technology Co.,Ltd August 1, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Shenzhen Autone-Tronic Technology Co.,Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): In-dash multimedia DD-806W We affirm that between SIEMIC and Shenzhen Autone-Tronic Technology Co.,Ltd. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title Gejin General Manager Contact information / address :Fl4, Building 21, Changxing Technology Park,Shayi Village, Shajin Town, Baoan District,Shenzhen City,China

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Shenzhen Autone-Tronic Technology Co.,Ltd August 1, 2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YZG-DDABV We hereby request confidential treatment of information accompanying this application as outlined below: - Block - Circuit - Circuit Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Gejin General Manager Contact information / address :Fl4, Building 21, Changxing Technology Park,Shayi Village, Shajin Town, Baoan District,Shenzhen City,China

Label Size: L123mmW50mm

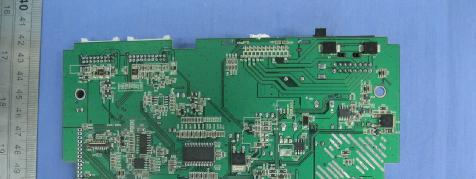

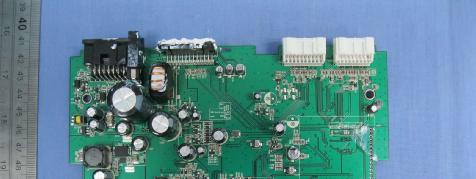

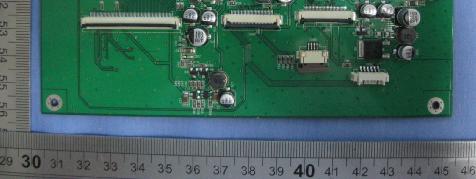

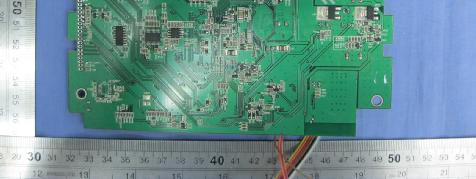

Internal Photos

RF Exposures Evaluation For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the EUT of tested model NAR, the measured maximum field strength measured (FS) was 84.3 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 0.081mW The power density at 20 cm from the antenna = EIRP / = 1.61*10 -5 mW cm -2 In the frequency range of 2.4-2.4835GHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.”

Report No. : EESZD6230008 Page 1 of 45 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION Product Name : In-dash multimedia Model Number : DD-806W Trade Name : Valor FCC ID : YZG-DDABV Report Number : EESZD06230008 Date : July 26, 2011 Prepared for: Shenzhen Autone-Tronic Technology Co.,Ltd. Fl4, Building 21,Changxing Technology Park, Shayi Village, Shajin Town, Baoan District, Shenzhen City China Prepared by: CENTRE TESTING INTERNATIONAL Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Check No.: 11511337 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL (SHENZHEN) CORPORATION Standards Results 47 CFR FCC Part 15 Subpart C 15.247:2010 PASS Report No. : EESZD6230008 Page 2 of 45 TABLE OF CONTENTS Description Page 1. CERTIFICATION INFORMATION...........................................................................................................4 2. TEST SUMMARY...................................................................................................................................5 3. MEASUREMENT UNCERTAINTY..........................................................................................................5 4. PRODUCT INFORMATION....................................................................................................................5 5. SYSTEM TEST CONFIGURATION..........................................................................................................6 6. TEST EQUIPMENT LIST........................................................................................................................7 7. SUPPORT EQUIPMENT LIST................................................................................................................7 8. 20DB BANDWIDTH MEASUREMENT...................................................................................................8 8.1. LIMITS...........................................................................................................................................8 8.2. BLOCK DIAGRAM OF TEST SETUP..............................................................................................8 8.3. TEST PROCEDURE.......................................................................................................................8 8.4. TEST RESULT...............................................................................................................................8 9. CARRIER FREQUENCY SEPARATION...............................................................................................11 9.1. LIMITS.........................................................................................................................................11 9.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................11 9.3. TEST PROCEDURE.....................................................................................................................11 9.4. TEST RESULT.............................................................................................................................11 10. NUMBER OF HOPPING FREQUENCY............................................................................................14 10.1. LIMITS.........................................................................................................................................14 10.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................14 10.3. TEST PROCEDURE.....................................................................................................................14 10.4. TEST RESULT.............................................................................................................................14 11. TIME OF OCCUPANCY (DWELL TIME)...............................................................................................15 11.1. LIMITS.........................................................................................................................................15 11.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................15 11.3. TEST PROCEDURE.....................................................................................................................15 11.4. TEST RESULT.............................................................................................................................15 Report No. : EESZD03070002-1 Page 3 of 45 12. MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT............................................19 12.1. LIMITS.........................................................................................................................................19 12.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................19 12.3. TEST PROCEDURE.....................................................................................................................19 12.4. TEST RESULT.............................................................................................................................19 13. BAND EDGE EMISSION MEASUREMENT......................................................................................21 13.1. LIMITS.........................................................................................................................................21 13.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................21 13.3. TEST PROCEDURE.....................................................................................................................21 13.4. TEST RESULT.........................................................................................…

Text truncated - open the document above for the full version.

TEST PHOTO
