YZH-VB1000XMTRVB-1000 Wireless Audio System

Raffel Systems ~ N112W14600 Mequon Rd ~ Germantown, WI 53022 ~ (262)502-1011~ (262)502-1010 Fax www.raffel.com www.comfort-ease.com ©2010 by Raffel Systems, LLC 1 | P a g e VB-1000 Wireless Audio System User Manual Features • Multifunction Audio and Massage System o Listen to audio o Relax to a vibration massage o Synchronize massage to the beat of the bass produced off of MP3s, iPODs, CDs, DVDs, Video games and Home Theater Equipment. • Hi/Lo/Off Massage function with or without audio • Volume and Bass controls • Simple installation • User friendly • Entire System is Low Voltage and Thermal Protected. • Wireless Audio from MP3s, iPODs, CDs, DVDs, Video games, Stereo, TV, and Home Theater Equipment. Raffel Systems ~ N112W14600 Mequon Rd ~ Germantown, WI 53022 ~ (262)502-1011~ (262)502-1010 Fax www.raffel.com www.comfort-ease.com ©2010 by Raffel Systems, LLC 2 | P a g e VB-1000 Wireless Audio System User Manual Accessories Supplied with VB-1000 Audio System 1. Wireless Console. 2. Wall Power Supply. 3. Mid Range Speakers. 4. Clam Shell Vibration Motors 5. Sub Woofer Speaker. 6. Wireless Transmitter. 7. RCA Stereo to 3.5mm stereo plug cable. Raffel Systems ~ N112W14600 Mequon Rd ~ Germantown, WI 53022 ~ (262)502-1011~ (262)502-1010 Fax www.raffel.com www.comfort-ease.com ©2010 by Raffel Systems, LLC 3 | P a g e VB-1000 Wireless Audio System User Manual TX / RX specification: 1. TX Power supply 3V DC 2. TX Current 40mA 3. RX Current 20mA 4. RX Transmission distance: ＜100 ft (No Buildings or other barriers) 5. Environmental temperature -10
~70 6. Modulation mode: FSK 7. TX Work frequency 914, 914.5,915MHz 8. RX Work frequency 914, 914.5,915MHz 9. TX Power ＜10dBM 10. RX Sensitivity:-100dBM 11. RX frequency range 50Hz~13KHz 12. Second harmonic suppression: -40dB 13. Band quantity: 3 channels FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Raffel Systems ~ N112W14600 Mequon Rd ~ Germantown, WI 53022 ~ (262)502-1011~ (262)502-1010 Fax www.raffel.com www.comfort-ease.com ©2010 by Raffel Systems, LLC 4 | P a g e VB-1000 Wireless Audio System User Manual Interconnect Wiring of the Audio System with Wireless Receiver. Raffel Systems ~ N112W14600 Mequon Rd ~ Germantown, WI 53022 ~ (262)502-1011~ (262)502-1010 Fax www.raffel.com www.comfort-ease.com ©2010 by Raffel Systems, LLC 5 | P a g e VB-1000 Wireless Audio System User Manual Operation: POWER: 1. Plug wall adaptor into wall outlet. 2. Press Power button to activate the massage. 3. Turn the Volume button Clockwise to turn the audio function ON. SOUND FUNCTIONS: Plug in supplied cable from the Console box then into the source of the audio device used. If this unit is a wireless unit, Plug in the Audio Signal into the transmitter input as shown above. Then slide power switch to the ON position on the transmitter. Make sure Band 1 is selected on the transmitter. MASSAGE FUNCTIONS: Press Massage once (green LED) for low intensity, twice (red LED) for high intensity, and again to turn function massage off. SYNCHRONIZATION FOR MASSAGE: Press Sync once to sync audio to massage, press Sync twice to turn off sync function. NOTES: • Intensity of massage can be increased by turning up the volume on audio source. • Power Audio off by turning the volume control knob fully Counter-Clockwise. • Volume and Bass buttons control speakers and subwoofer. Raffel Systems ~ N112W14600 Mequon Rd ~ Germantown, WI 53022 ~ (262)502-1011~ (262)502-1010 Fax www.raffel.com www.comfort-ease.com ©2010 by Raffel Systems, LLC 6 | P a g e VB-1000 Wireless Audio System User Manual WARRANTY PAGE Limited Warranty Raffel Systems, LLC warrants this product (including any accessories) against defects in material and workmanship for a period of 12 months from the date of the first consumer purchase. This warranty is enforceable only by the original purchaser only. ALL DAMAGED OR MISSING PARTS MUST BE REPORTED WITHIN 14 DAYS OF PURCHASE. This warranty covers all defects in material and workmanship in this product, but DOES NOT COVER the following. 1. Damage, deterioration or malfunction resulting from: • Acts of God, accident, misuse, abuse, negligence, improper installation, maintenance, improper operation, or failure to follow the instructions contained in this Owner’s Manual. • Any damage in the shipment of the products.(Claims must be presented to the carrier) Repair, attempted repair, or modifications done by anyone other than Raffel System technicians. • Any unit which has been modified of attempted to be mod…

Text truncated - open the document above for the full version.

Raffel Systems ~ N112W14600 Mequon Rd ~ Germantown, WI 53022 ~ (262)502-1011~ (262)502-1010 Fax www.raffel.com www.comfort-ease.com ©2010 by Raffel Systems, LLC 1 | P a g e AUTHORIZATION LETTER FCC ID: YZH-VB1000XMTR Date: October 22, 2010 To whom it may concern: We, the undersigned, hereby authorize Intertek Shanghai of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Intertek Shanghai within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. Thank you. Sincerely, Edward A. Nowak Senior Electrical Design Engineer-Team Lead Raffel Systems, LLC N112 W14600 Mequon Rd Germantown, WI 53022 Email: [email protected] Phone: 262.502.1011 ext. 1013 Fax: 262.502.1010

Raffel Systems ~ N112W14600 Mequon Rd ~ Germantown, WI 53022 ~ (262)502-1011~ (262)502-1010 Fax www.raffel.com www.comfort-ease.com ©2010 by Raffel Systems, LLC 1 | P a g e CONFIDENTIALITY REQUEST FCC ID: YZH-VB1000XMTR Pursuant to Sections 0.457 and 0.459 of the Federal Communications Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1) Schematic diagram 2) Block diagram 3) Operational description Thank you Sincerely, Edward A. Nowak Senior Electrical Design Engineer-Team Lead Raffel Systems, LLC N112 W14600 Mequon Rd Germantown, WI 53022 Email: [email protected] Phone: 262.502.1011 ext. 1013 Fax: 262.502.1010

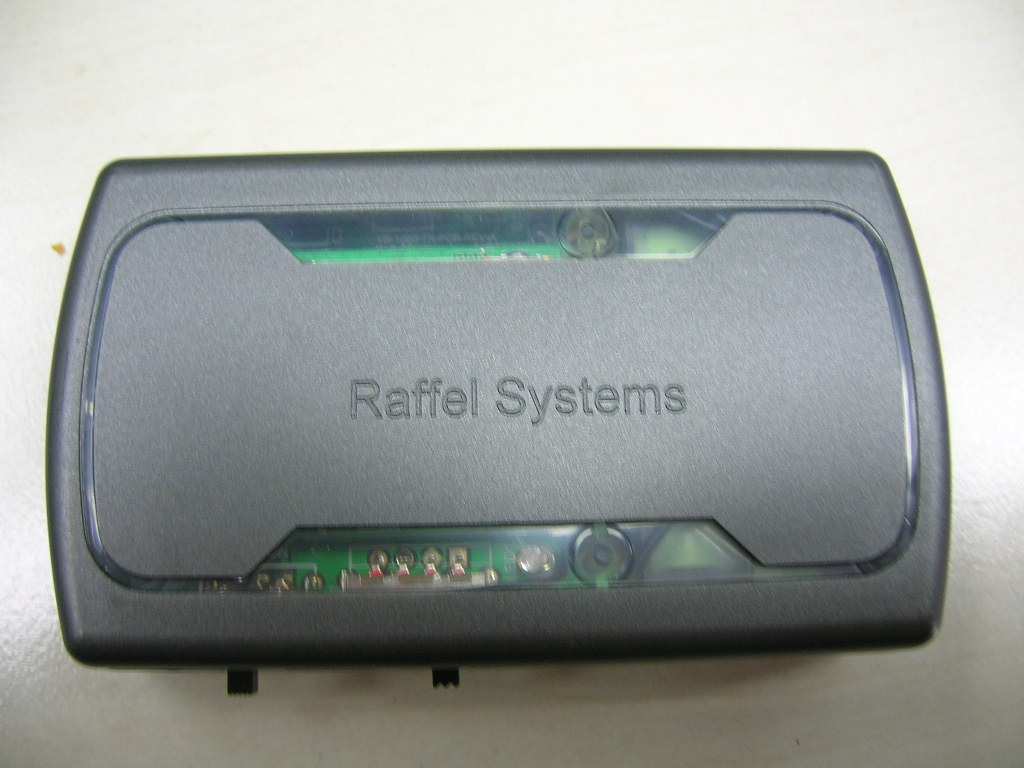

FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 1 of 3 External Picture FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 2 of 3 FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 3 of 3

Raffel Systems ~ N112W14600 Mequon Rd ~ Germantown, WI 53022 ~ (262)502-1011~ (262)502-1010 Fax www.raffel.com www.comfort-ease.com ©2010 by Raffel Systems, LLC 1 | P a g e FCC ID Label for Transmitter FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MODEL NO.: V-XMTR ( Transmitter ) FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 1 of 4 Internal Picture FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 2 of 4 FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 3 of 4 FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 4 of 4

FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 1 of 19 EMC TEST REPORT No. SH10091192-001 Applicant : Raffel Systems, LLC N112 W14600 Mequon Road, Germantown, Wisconsin, 53022, United States Manufacturer : Raffel Systems, LLC N112 W14600 Mequon Road, Germantown, Wisconsin, 53022, United States Equipment : VB-1000 Wireless Audio System Type/Model : V-XMTR (Transmitter) SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2009): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 7 (June 2007): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 2 (June 2007): General Requirements and Information for the Certification of Radiocommunication Equipment Date of issue: Nov 23, 2010 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 2 of 19 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 3 of 19 Content SUMMARY ..........................................................................................................................................................1 DESCRIPTION OF TEST FACILITY..........................................................................................................................2 1. GENERAL INFORMATION.............................................................................................................................4 1.1 Applicant Information ......................................................................................................4 1.2 Identification of the EUT .................................................................................................4 1.3 Technical specification.....................................................................................................5 1.4 Mode of operation during the test / Test peripherals used ..............................................5 2. TEST SPECIFICATION...................................................................................................................................6 2.1 Instrument list...................................................................................................................6 2.2 Test Standard....................................................................................................................6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION....................................8 3.1 Test limit...........................................................................................................................8 3.2 Test Configuration ...........................................................................................................9 3.3 Test procedure and test setup ...........................................................................................9 3.4 Test protocol...................................................................................................................10 4. DEACTIVATING TIME.................................................................................................................................11 4.1 Test limit.........................................................................................................................11 4.2 Test Configuration .........................................................................................................12 4.3 Test procedure and test setup .........................................................................................12 4.4 Test protocol...................................................................................................................12 5. POWER LINE CONDUCTED EMISSION.........................................................................................................13 5.1 Limit ...............................................................................................................................13 5.2 Test configuration ..........................................................................................................13 5.3 Test procedure and test set up ........................................................................................14 5.4 Test protocol...................................................................................................................15 6. EMISSION BANDWIDTH..............................................................................................................................16 6.1 Test limit.........................................................................................................................16 6.2 Test Configuration .........................................................................................................16 6.3 Test procedure and test setup .........................................................................................16 6.4 Test protocol...................................................................................................................17 7. OCCUPIED BANDWIDTH.............................................................................................................................18 7.1 Test limit.........................................................................................................................18 7.2 Test Configuration .........................................................................................................18 7.3 Test procedure and test setup .........................…

Text truncated - open the document above for the full version.

FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 1 of 10 Test Data FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 2 of 10 1. Radiated Emission Horizontal, low channel 0 10 20 30 40 50 60 70 80 90 Level [dB礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x MES Mass_TX_H1_red MES Mass_TX_H1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 3 of 10 Horizontal, middle channel 0 10 20 30 40 50 60 70 80 90 Level [dB礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x MES Mass_TX_H2_red MES Mass_TX_H2_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 4 of 10 Horizontal, high channel 0 10 20 30 40 50 60 70 80 90 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x MES Mass_TX_H3_red MES Mass_TX_H3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 5 of 10 Vertical, low channel 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x MES Mass_TX_V1_red MES Mass_TX_V1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 6 of 10 Vertical, middle channel 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x MES Mass_TX_V2_red MES Mass_TX_V2_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 7 of 10 Vertical, high channel 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x MES Mass_TX_V3_red MES Mass_TX_V3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 8 of 10 2. Emission bandwidth Low channel FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 9 of 10 High channel FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 10 of 10 3. Occupied bandwidth

FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 1 of 3 Test Setup FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 2 of 3 1. Radiated Emission 30MHz-1000MHz FCC ID: YZH-VB1000XMTR IC: 9314A-1000XX Page 3 of 3 Higher than 1GHz
