Z27HTS5A433TPMS Sensor

User Manual 1、Sensor Overview The sensors use a tire pressure monitoring system (TPMS), to form a system with the car's tire pressure receiving unit, you need to install the tire wheels (as shown). 2. Instructions for use In stationary mode, the pressure and acceleration are measured about every 30 second and emission of RF frames occurs only if pressure variation, higher than a threshold, is detected (leakage detection). When the vehicle starts moving, the Tire Guard transmitter enters the driving mode. Then the wheel unit measures and transmits data every 60 seconds. If, during any measurement period in driving mode, the pressure leakage is detected (difference compared to the last transmitted pressure value), a alarm signal will occur taking in account the latest pressure value emitted as reference value. If the pressure continues changing, an additional transmission will be sent. 3. Technical Description Carrier frequency: 433 MHz Number of channels: 1 Method of frequency generation: PLL Type of modulation: ASK or FSK Rated Output Power: < 10 mW Antenna: External (Valve antenna) Voltage supply: Lithium battery 3V Voltage supply range : 2.1V up to 3.3V 4. Warning Statement FCC &IC Warning This device complies with part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard（s）. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by party responsible for compliance could void the user`s authority to operate the equipment. Cet appareil est conforme à Industrie Canada une licence standard RSS exonérés (s). Son fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne doit pas provoquer d'interférences 2. Cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant provoquer un fonctionnement indésirable de l'appareil.

TPMS Sensor LF 125KHz MCU OSCILLATOR 26MHz ANTENNA 433MHz BATTERY 3V Tyre pressure monitoring Temperature survey Acceleration measurement Electrical measurement RF LF test

Date: 2014-5-14 Columbia, MD 21046 Manager Hangzhou Hamaton Tyre Valves Co.,Ltd. Add: 12 East Zhenxing Road, Linping, Yuhang, Hangzhou, China Tel: 0571-86159905 Fax: 0571-86159905 FCC Authorization FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Subject: Agent Authorization To whom it may concern: We, Hangzhou Hamaton Tyre Valves Co.,Ltd. , the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Xuhua Wang

Hangzhou Hamaton Tyre Valves Co.,Ltd. Add: 12 East Zhenxing Road, Linping, Yuhang, Hangzhou, China Tel: 0571‐86159905 Fax: 0571‐86159905 DECLARATION OF SIMILARITY Date : 2014-5-14 To: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulong Village Puxinhu Industry Zone Tangxia, Dongguan, China http://www.baclcorp.com Dear Sir or Madam: We , Hangzhou Hamaton Tyre Valves Co.,Ltd., hereby declare that product: TPMS SENSOR, model: Eupro3001、 DVT‐1003A、PRO1003A is electrically identical with the same electromagnetic emissions and electromagnetic compatibility characteristics as model name: Eupro3001 that was tested by BACL. Eupro3001、DVT‐1003A、PRO1003A, are different in below items: 1. Model names; 2. Housing color; DVT-1003A and PRO1003A are the same time intervals of RF transmission signal. The time intervals of RF transmission signal of Eupro3001is different from DVT-1003A and PRO1003A. Please contact me should there be need for any additional clarification or information. Best Regards, Xuhua Wang Manager

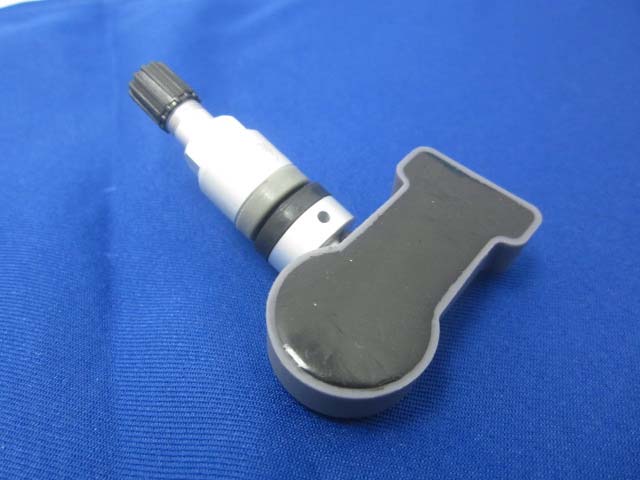

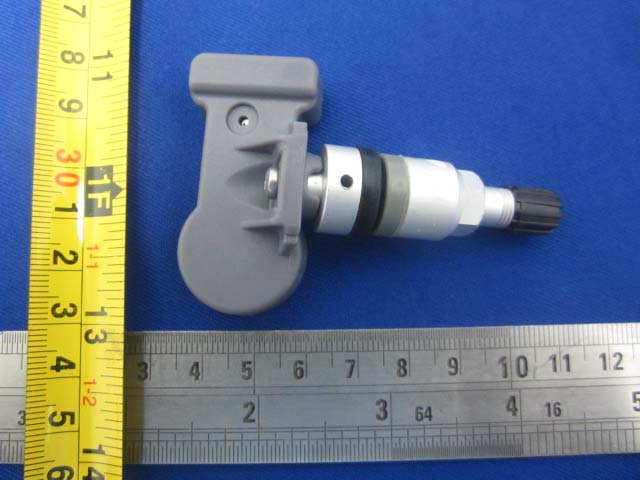

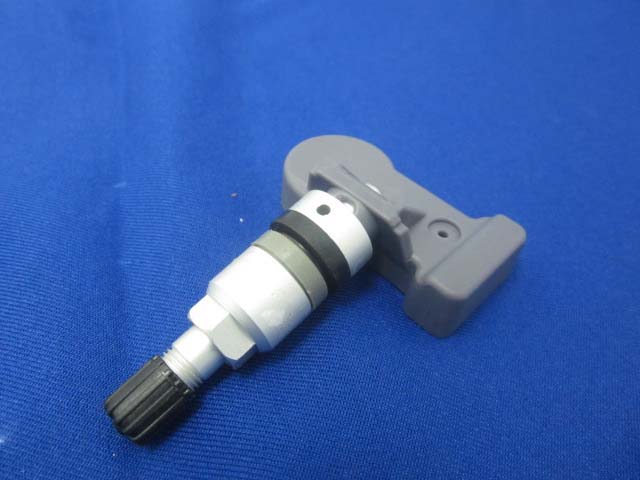

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT– Top View EUT– Bottom View EUT– Right Side View EUT– Left Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncover View EUT - Main Board Top View EUT - Main Board Bottom View EUT - RF Chip View EUT - Antenna View

Sensor circuit description: TPMS Sensor composed by the temperature, pressure, acceleration sensor, and a signal processing unit, the controller MCU unit, an RF transmitter and a power supply unit. TPMS Sensor is powered by a DC 3V dedicated button batteries, Temperature, air pressure and acceleration sensors to obtain the temperature, pressure and acceleration parameters MCU controller input after processing by the signal processing circuit. RF transmitter module launched out according to certain communication protocols 。 The Sensor LF is responsible for receiving the low-frequency signal. The MCU may be different from the low frequency signal according to the received work accordingly.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 8-May-2014 Sheet of File: E:\FCC CE 认认 \sensor_sch\sensor_sch.DdbDrawn By: NC 1 NC 2 PTA2 3 PTA1 4 PTA0 5 RESET 6 VSS 7 NC 8 NC 9 VDD 10 AVDD 11 AVSS 12 VREG 13 RVSS 14 RF 15 NC 16 NC 17 X1 18 X0 19 BKGD 20 LFB 21 LFA 22 PTA3 23 NC 24 NC 25 NC 26 NC 27 NC 28 NC 29 NC 30 NC 31 NC 32 U1MPXY8600 RESET BT 3V Battery VCC Y126Mhz C0910pFC128.2pF BKGD C10 220pF R110K L017.2mH C0122uF C02100pF C05470nF L0327nH L0247nH C032.2pF C0415pF C0722pF ANTENNA C0815pF C0612pF SENSOR_8600
