Z2B-AFM2802.11 ABGN Module Boradband Digital Transmission System

Quick Install Guide ARCFlex™ 802.11abgn Module Operation The ARCFlex™ 802.11abgn Module is a high power wireless module board designed to be integrated into indoor and outdoor wireless systems. Please follow the following instruction while using this module. This module is meant to be operated (and used) by system integrators who are aware of the regulatory requirements in the area it is being used. The following instructions need to be followed while using the module: •Before inserting the module in a host board, please power down the host board first. •The antenna port (u.fl connector) should be connected to the appropriate load or antenna before powering up the host board. Lack of Antenna (or load) while the module is powered up may cause damage to the card. •Please make sure any person handling the card with bare hands follows proper ESD precautions. Improper handling could cause ESD damage. •The card should not be tampered or modified in any way. Tampering or modification could cause the module to fail standard tests. Note: This card is designed to be installed, operated, and used by system integrators and/or professional installers. As such, the product is required to comply with all applicable FCC equipment authorization regulations, requirements and equipment functions not associated with the transmitter module. The OEM is responsible for demonstration of compliance to regulations for non-transmitter components within the host product to requirements for unintentional radiators (Part 15B), such as digital devices and to additional authorization requirements for the non-transmitter functions of the transmitter module (i.e., Verification, or Declaration of Conformity) (e.g., Bluetooth and WiFi transmitter modules). FCC Information Electronic Emission Notices This device complies with CFR 47 Part 15 of the FCC rules. Operation is subject to the following two conditions: •This device may not cause harmful interference. •This device must accept any interference received, including interference that may cause undesired operation. FCC Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to CFR47 Part 15. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment, not withstanding use in commercial, business and industrial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from where the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the userʼs authority to operate the equipment. FCC Radiation Exposure Statement To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 5.4 inches is required between the antenna and all occupational persons, and a minimum separation distance of 11.8 inches is required between the antenna and all public persons. Antenna Installation WARNING: It is installerʼs responsibility to ensure that when using the authorized antennas in the United States (or where FCC rules apply), only those antennas certified with the product are used. The use of any antenna other than those certified with the product is expressly forbidden in accordance to FCC rules CFR47 part 15.204. The installer should configure the output power level of antennas, according to country regulations and per antenna type. Professional installation is required of equipment with connectors to ensure compliance with health and safety issues. Antenna Compliance The ARCFlex™ 802.11abgn Module has been tested and certified with the following antennas: •18dBi, 2.4GHz dual polarity panel antenna •24dBi, 5GHz dual polarity panel antenna Any antenna of same make and lower gain than those listed above may be used in compliance with certification. FCC Caution To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Labeling Compliance The exterior of the final device must be labeled with “Contains FCC ID: Z2B-AFM2”.

November 29, 2011 Federal Communications Commission Equipment Approval Services P. O . B o x 3 5 8 1 5 Pittsburgh, PA 15251-3315 Applicant: ARC Wireless LLC 6330 N. Washington St., Unit 13 Denver, CO 80216 Equipment: ARCFlex 802.11abgn Module FCC ID: Z2B-AFM2 Re: DoC Attestation Commitment To whom it may concern The undersigned does hereby attest ARC Wireless LLC will continue to apply processes and procedures ensuring compliance with CFr47 paragraph 2 requirements. Including compliance as directed for Declaration of Conformity procedures for Class B digital equipment and peripherals as applicable. Sincerely, Harold Bledsoe President/CTO ARC Wireless LLC 6330 N. Washington St. Unit 13, Denver, CO 80216 303.421.4063 www.antennas.com

November 29, 2011 Federal Communications Commission Industry Canada Equipment Approval Services Head, Equipment Approval Unit P. O . B o x 3 5 8 1 5 D e p a r t m e n t o f C o m m u n i c a t i o n s Pittsburgh, PA 15251-3315 1241 Clyde Avenue Ottawa, Ontario K2C 1Y3 Applicant: ARC Wireless LLC 6330 N. Washington St., Unit 13 Denver, CO 80216 Equipment: ARCFlex 802.11abgn Module FCC ID: Z2B-AFM2 CFR Rules: Part 2 and 15.247 (Modular Transmitter) Re: Limited Modular transmitter approval Gentlemen: As required in CFR 47 15.212 and Industry Canada RSS-GEN regarding unlicensed modular transmitter approval, the following information has been addressed. The transmitter module is a complete RF transmitter containing its own reference oscillator, antenna etc. The connections available on the module are for power and data interface only. Below please find information, addressing each requirement from RSS-GEN and CFR 47 15.212. Per RSS-GEN (a) The module must be a complete radio transmitter with its own reference oscillator, antenna, etc. The only connectors to the module, if any, are power supply and modulation/data inputs. Clarification: The ARCFlex 802.11abgn Module offers connection for power supply and modulation/data inputs only. (b) The module has its own RF shielding. Clarification: The ARCFlex 802.11abgn Module is not produced with a permanently attached RF shield during production. However, this module is ONLY used by ARC Wireless LLC as part of a complete unit that is not accessible to the end-user (sealed enclosure). (c) The module must have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with RSS-210 requirements under conditions of excessive data rates or over-modulation. Clarification: The ARCFlex 802.11abgn Module buffers the modulation and data inputs ensuring compliance with regulations. (d) The module has its own power supply regulation. This is to ensure that the module will comply with RSS-210 requirements regardless of the design of the power supplying circuitry in the host device, which houses the module. Clarification: The ARCFlex 802.11abgn Module incorporates regulators to ensure operation in specified range. (e) The certification submission contains a detailed description of the configuration of all antennas that will be used with the module. Clarification: The ARCFlex 802.11abgn Module incorporates unique antenna connector compliant with regulations. ARC Wireless LLC 6330 N. Washington St. Unit 13, Denver, CO 80216 303.421.4063 www.antennas.com Per CFR 47 15.212 (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Clarification: The ARCFlex 802.11abgn Module is not produced with a permanently attached RF shield during production. However, this module is ONLY used by ARC Wireless LLC as part of a complete unit that is not accessible to the end-user (sealed enclosure). (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Clarification: The ARCFlex 802.11abgn Module buffers the modulation and data inputs ensuring compliance with regulations. (iii) The modular transmitter must have its own power supply regulation. Clarification: The ARCFlex 802.11abgn Module incorporates regulators to ensure operation in specified range. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204 (c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Clarification: The ARCFlex 802.11abgn Module incorporates compliant unique antenna connector and/or integral antenna system. (v) The modular transmitter must be tested in a stand-alone configuration. i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see § 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see § 15.31(i)). Clarification: The ARCFlex 802.1abgn Module was tested in a stand-alone configuration (placed on development/interface fixture) without enclosure. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Clarification: The ARCFlex 802.11abgn Module has required labeling placed on the module and instruction for placement on exterior of end product. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to complete transmitter and manufacturer must provide adequate instructions along with module to explain any such requirements. Clarification: The ARCFlex 802.11abgn Module complies with all specific applicable rules and regulatory precautions are addressed in manual. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Clarification: The ARCFlex 802.11abgn Module complies with …

Text truncated - open the document above for the full version.

December 5, 2011 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: ARC Wireless LLC 6330 N. Washington St., Unit 13 Denver, CO 80216 Re: Confidentiality for submittal information regarding FCC ID number Z2B-AFM2 PRODUCT: Z2BAFM2 802.11bgn Module Dear Sirs: ARC Wireless LLC requests that the material in the Schematic, block diagram, and Operational Description is withheld from public disclosure Pursuant to Sections 0.457 & 0.459 of the Commission’s Rules following grant of the application. In support of this request, ARC Wireless LLC submits the following: Long Term Confidential Files Include Schematics File Name Conf Schem Z2BAFM2.pdf Block diagram File Name Conf BlkDia Z2BAFM2.pdf Operational Description File Name Conf OpDes Z2BAFM2.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: Z2B-AFM2 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, (schematic diagrams) and any detail Parts List. As such, this material is treated as highly confidential business information. 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of ARC Wireless LLC engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to ARC Wireless LLC. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by ARC Wireless LLC and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

September 21, 2011 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Pursuant to 47 CFR 2.911, ARC Wireless LLC has authorized Mr. Scot Rogers, of Rogers Labs, Inc. to act on ARC Wireless LLC behalf for the sole and express purpose of processing applications for equipment authorization. As such, Mr. Rogers is authorized to sign forms, letters of application, request confidentiality, and exchange data and information relating to these matters and submittals. Rogers Labs, Inc. is authorized to receive and exchange data between our company and the authorizing agency. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by regulation still resides with ARC Wireless LLC. This Authorization is in effect until notified to the contrary by ARC Wireless LLC. Harold Bledsoe President/CTO ARC Wireless LLC Sincerely, Harold Bledsoe President/CTO ARC Wireless LLC 6330 N. Washington St. Unit 13, Denver, CO 80216 303.421.4063 www.antennas.com

November 29, 2011 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Pursuant to 47 CFR 2.911, ARC Wireless LLC has authorized Mr. Scot Rogers, of Rogers Labs, Inc. to act on ARC Wireless LLC behalf for the sole and express purpose of processing applications for equipment authorization. As such, Mr. Rogers is authorized to sign forms, letters of application, request confidentiality, and exchange data and information relating to these matters and submittals. Rogers Labs, Inc. is authorized to receive and exchange data between our company and the authorizing agency. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by regulation still resides with ARC Wireless LLC. This Authorization is in effect until notified to the contrary by ARC Wireless LLC. Harold Bledsoe President/CTO ARC Wireless LLC Sincerely, Harold Bledsoe President/CTO ARC Wireless LLC 6330 N. Washington St. Unit 13, Denver, CO 80216 303.421.4063 www.antennas.com

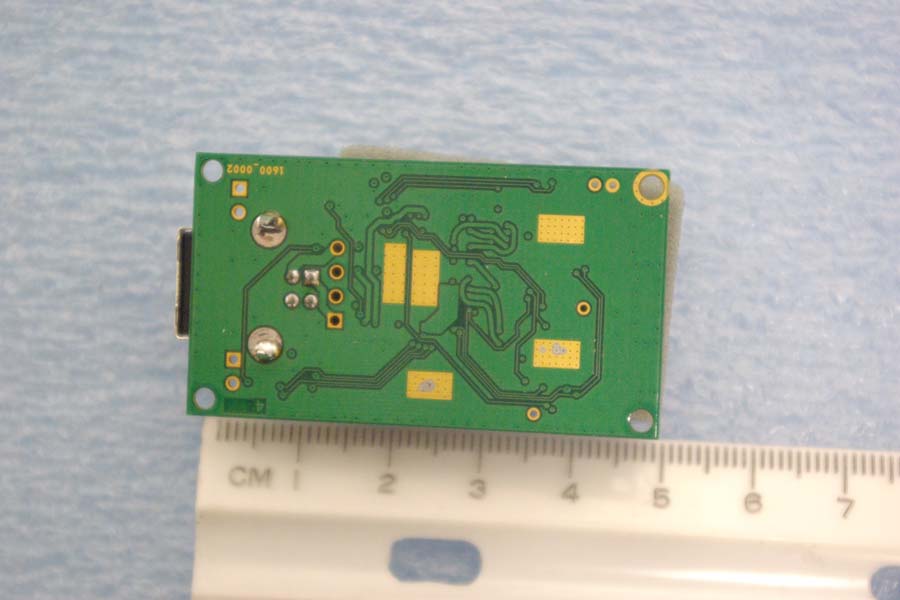

Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: ExtPho Z2BAFM2 Page 1 of 1 External photographs of equipment under test EUT module front EUT module back

Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: LabelSmp Z2BAFM2 Page 1 of 1 FCC/IC ID label and location Label Placement

Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: IntPho Z2BAFM2 Page 1 of 1 Internal photographs of equipment under test

Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: TunPro Z2BAFM2 Page 1 of 1 The unit has no provisions for tuning. It is produced and tested during production with a pass on pass operation.

Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: RFExp Z2BAFM2 Page 1 of 2 Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: RFExp Z2BAFM2 Page 2 of 2

NVLAP Lab Code 200087-0 Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: ARC Wireless ARCFlex TstRpt 111109A Page 1 of 112 SUBMITTAL APPLICATION REPORT FOR GRANT OF CERTIFICATION FOR Model: ARCFlex 802.11 abgn Module Broadband Digital Transmission System 2412-2462 MHz, 2422-2452 MHz (802.11n Mode), 5745-5825 MHz, 5755-5805 (802.11n Mode) FCC ID: Z2B-AFM2 FOR ARC WIRELESS LLC 6330 N. Washington St., Unit 13 Denver, CO 80216 Test Report Number: 111109A Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: ARC Wireless ARCFlex TstRpt 111109A Page 2 of 112 Engineering Test Report For Grant of Certification Application FOR CFR 47, PART 15C - Intentional Radiators CFR 47 Paragraph 15.247 License Exempt Intentional Radiator For ARC WIRELESS LLC 6330 N. Washington St., Unit 13 Denver, CO 80216 Model: ARCFlex 802.11 abgn Module Frequency Range 2412-2462 MHz, 2422-2452 MHz (802.11n mode) 5745-5825 MHz, 5755-5805 MHz (802.11n Mode) FCC ID#: Z2B-AFM2 Test Date: November 9, 2011 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: ARC Wireless ARCFlex TstRpt 111109A Page 3 of 112 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 FORWARD ..................................................................................................................... 9 OPINION / INTERPRETATION OF RESULTS ............................................................... 9 ENVIRONMENTAL CONDITIONS.................................................................................. 9 EQUIPMENT TESTED .................................................................................................... 9 APPLICATION FOR CERTIFICATION ......................................................................... 10 APPLICABLE STANDARDS & TEST PROCEDURES ................................................ 11 EQUIPMENT FUNCTION AND CONFIGURATION ...................................................... 11 Equipment Configuration.................................................................................................................................. 12 TEST SITE LOCATIONS .............................................................................................. 12 UNITS OF MEASUREMENTS ...................................................................................... 12 TEST PROCEDURES ................................................................................................... 13 AC Line Conducted Emission Test Procedure ................................................................................................ 13 Radiated Emission Test Procedure ................................................................................................................... 13 LIST OF TEST EQUIPMENT ........................................................................................ 14 INTENTIONAL RADIATORS ........................................................................................ 15 Antenna Requirements ...................................................................................................................................... 15 Restricted Bands of Operation .......................................................................................................................... 15 Radiated Emissions in Restricted Bands Data (General Emission both configurations) ................................... 15 Radiated Emissions in Restricted Bands Data (2.4 GHz Transmit configuration) ............................................ 16 Radiated Emissions in Restricted Bands Data (5 GHz Transmit configuration) ............................................... 16 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 17 AC Line Conducted Emissions Procedure ....................................................................................................... 17 Figure 1 AC Line Conducted Emissions Line 1 (CPU/EUT 1) ......................................................................... 18 Figure 2 AC Line Conducted Emissions Line 2 (CPU/EUT 1) ......................................................................... 18 AC Line Conducted Emissions Data ................................................................................................................. 19 NVLAP Lab Code 200087-0 Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: ARC Wireless ARCFlex TstRpt 111109A Page 4 of 112 Summary of Results for AC Line Conducted Emissions ................................................................................ 19 General Radiated Emissions Procedure .................…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: TSup Z2BAFM2 Page 1 of 3 Test setup photographs AC Line Conducted Emissions Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: TSup Z2BAFM2 Page 2 of 3 Radiated emissions Rogers Labs, Inc. ARC Wireless LLC 4405 W. 259th Terrace Model: ARCFlex 802.11 abgn Module SN: ENG1 Louisburg, KS 66053 Test #: 111109A FCC ID#: Z2B-AFM2 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: December 5, 2011 Revision 1 File: TSup Z2BAFM2 Page 3 of 3
