Z3GITA1SENAAITA-1 Sensor AA

Quick Start Guide Model iTA-1 Rev. A iTextAlert, LLC 111 East First Street Geneseo, Illinois 61254 Customer Service: 855-810-2992 www.iTextAlert.com Setup Wizard Power On Install included Li-ion battery into Hub. Connect the included AC power adapter to Hub. 1 Activation Log into www.iTextAlert.com or call 855-810-2992 to activate the system. Once activation has been completed, follow the on-screen instructions. 2 Hub Name Enter a name or identifier for the Hub. This is the identifying name that you (and your designated contacts) will receive SMS (text) messages from on your cell phone. 5 Password You have the option to create a four-digit password that would allow only you to make changes to the system settings. 3 Sensors Connect sensors to the Hub via the provided USB cable and follow on-screen instructions to synchronize the sensors with the Hub. 6 Wi-Fi Connecting to a Wi-Fi network provides a second method for the Hub to transmit alerts to your cell phone. If there is no Wi-Fi network or the network 4 Contacts Enter the name(s) and cell phone number(s) of those persons that are to be notified of any alerts via SMS (text) messaging. 7 REF. DOC. QS-ITA1 REV A, 10/2011 FCC ID: Z3GITA1HUB becomes disabled, the Hub will transmit alerts using the cellular telephone network. The Hub can only connect to one Wi-Fi network. Welcome, Thank you for purchasing the iTA-1 monitoring and alerting system. With this product, you have the ability to monitor up to 8 remote sensing devices using wireless technology and the convenience of your cell phone. The iTA-1 allows you to receive alerts from and to send commands to your Hub via SMS (text) messaging. To begin using your system, please register either logging into www.iTextAlert.com or calling 855-810-2992. Please note that the activation reminder will be present on your Hub until it has been registered. You will not receive SMS alerts to your cell phone until you have completed activation. For customer service or technical support, please call 855-810- 2992 between the hours of 7:00 AM to 7:00 PM Central time zone, Monday through Friday or visit us at www.iTextAlert.com. Activation Per FCC 15.21 changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Per FCC 15.19(a)(3) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Hard Key Functions • Press and hold hard for 5 seconds to place Hub in sleep mode. • Press and release the hard key to wake the Hub from sleep mode. (Note: Do not hold the hard key down.) If the system shuts down, use a paperclip to hit the Reset button on the back side of the Sensor. Push in carefully until the button clicks. Hub Hard Key The hard key is used to put the Hub in sleep mode, wake the Hub up from sleep mode, and reboot the system. The Hub will only power down when the battery pack is depleted. Installing The Sensor’s Battery Remove screw from back battery cover. 1 Slide battery cover to access battery area. 2 3 Insert battery according to diagram. Hub & Sensor Item List 1 - iTextAlert Hub with built-in power Sensor (control panel) 2 - mounting screws 1 - Rechargeable Li-ion battery (3.7V, 1150 mAh, 4.3 Wh) 1 - AC power supply (Input: 110-120V, 50-60 Hz, 0.15A Output: 5V, 1A) 1 - USB cable 1 - USB plug (to protect the port) 1 - wall mount or desk stand bracket 2 - pieces of double-sided tape Quick Start Guide Items included with the optional Sensor packages: 1 - wall mount bracket 1 - USB plug (to protect the port) 2 - mounting screws 1 - AA or AAA battery 2 - piece of double-sided tape Quick Start Guide Open/Close Sensor Temperature Sensor Wet/Dry Sensor Stationary/Move Sensor Wall Mount Installation (Hub and Sensors) Use the mounting bracket as a template to mark pilot holes for the mounting screws. Pilot holes may not be necessary in some materials 1 Sensor wall mountiText Hub wall mount Drill 1/16” pilot holes. Install the mounting bracket using the included screws. 2 Fasten the Hub or Sensor to the bracket. The double-sided tape may be used to fasten the mounting bracket instead of securing with the screws. 3 Installing The Hub’s Battery Slide Hub cover to access battery area. 1 Pull battery tab from battery. 2 Plug in supplied AC power adapter to Hub. 4 Replace battery and cover on Hub. 3 Note: the Hub will not operate without the battery installed. Please install battery prior to operating the device. Note: please push on the power button to access the hard key. Note: Hub must have battery installed and AC adapter plugged in to opterate. Please cut along the dotted lines for a quick reference sheet. Remote Configuration Commands: You can send a SMS command to the Hub. XY Command Sensor 1Y - Disarm 2Y - Arm 3Y - Dismiss ex. Send “25” will Arm Sensor 5 (Kitchen) Sensor Screen Grid Number Reply Commands Sensor List The commands allow you to communicate with your Hub via SMS on your mobile device. 3 or MENU - Option Menu 4 or DISARM - Disarm System 5 or ARM - Arm System 6 - Reply to see Disarmed Sensor List 7 - Reply to see Armed Sensor List 8 or STATUS - Reply Sensor Disarmed/Armed Status 9 or TEST - Send Test SMS to all contacts 11 to 19 - Disarm individual Sensor 21 to 29 - Arm individual Sensor 31 to 39 - Dismiss individual Sensor SMS Notifications Stationary/Move - alerts once the Sensor is physically moved. Open/Close - alerts once the Sensor disconnects/connects. Temperature - alerts once the Sensor has reached its threshold. Wet/Dry - alerts the Sensor has reached the wet/dry level based on its configuration. Power - alerts once the Hub has lost or regained power. Sensor Types SMS signal strength Wi-Fi strength Hub battery level Settings confirmation Incoming SMS Outgoing SMS Entire system Other Grap…

Text truncated - open the document above for the full version.

Northwest EMC TCB Compliance Opinion Rev. 7/1/10 ITEX0001 Information about the Applicant Grantee (Company Name) iTextAlert LLC FCC Contact Person Scott D. Rubins Address 111 East First Street City, State, Zip Geneseo, IL 61245 Job Number ITEX0001 Model ITA-1 Sensor AA FCC ID Z3GITA1SENAA Agent Rick Trueblood Approval Type Original Equipment Class DTS Digital Transmission System Rule Part 15.247 (15C) Overview The model ITA1 Sensor AA is a battery only powered temperature or motion sensor, with a 2.4 GHz DTS transmitter. The transmitter operates in the 2.4 GHz band from 2405 - 2480 MHz. The device will be certified under FCC ID: Z3GTA1SENAA. Confidentiality requested for allowed files. Request is properly addressed and referenced. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 10/31/2011

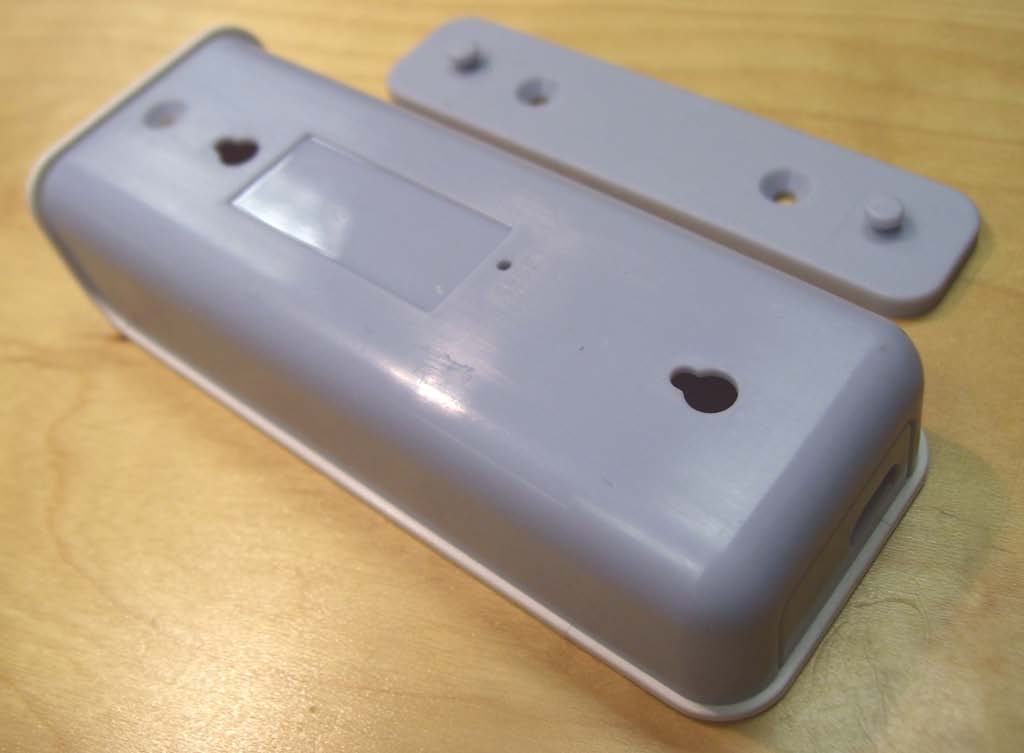

At assembly, rear housing is slightly offset and then slid forward to engage hooks FCC Label goes in this recessed pocket Screw inserted here to finalize assembly Wall mount bracket

At assembly, rear housing is slightly offset and then slid forward to engage hooks FCC Label goes in this recessed pocket Screw inserted here to finalize assembly Wall mount bracket

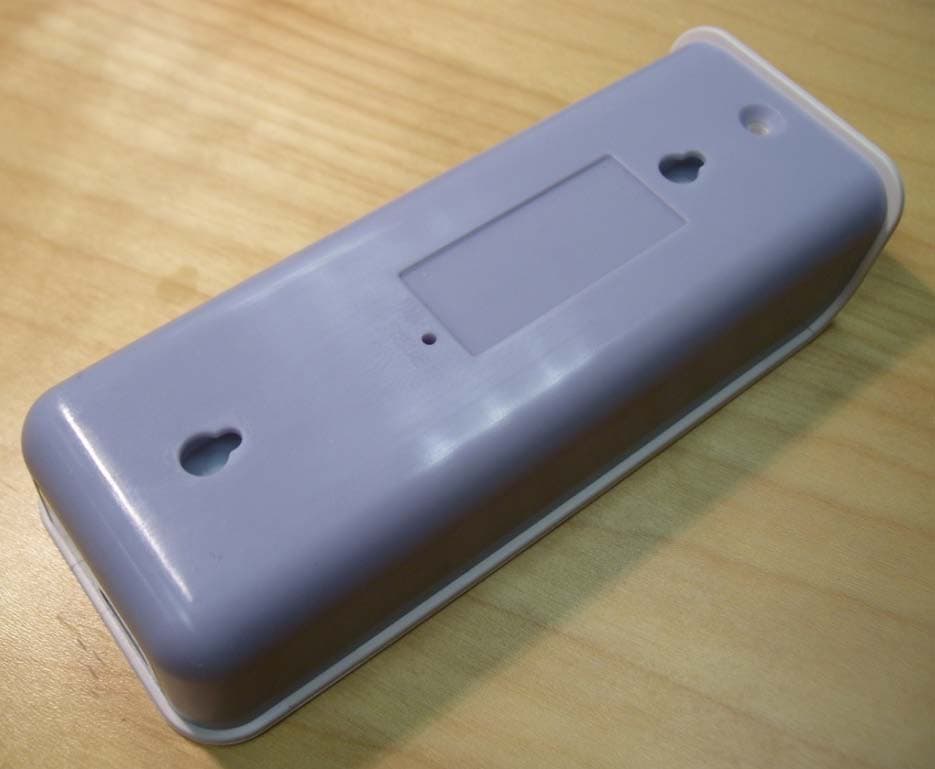

FCC ID: Z3GITA1SENAA FCC Label goes in this recessed pocket Screw inserted here to finalize assembly

Move/Stationary Sensor Board, Top Side The Move/Stationary Sensor is one variant of a generic board layout. The other variant is the Temperature Sensor. The two variants should be considered a family and registered per FCC ID Z3GITA1SENAA Move/Stationary Sensor Board, Bottom Side Move/Stationary Sensor Board, Top Side Reset tact switch “+” battery contact “-” battery contact USB-to-UART Bridge Integrated antenna for ZigBee, inverted “F” pattern ZigBee 2.4 GHz radio, Freescale MC13213 Move/Stationary Sensor Board, Bottom Side Power inductor, Coilcraft EPL3015-472MLB Header for SW flash Micro USB connector Move/Stationary Sensor Board, Side and End Views Front Housing is common to both Sensor variants Locating posts in front housing engage holes on pcb Single mounting screw Battery polarity markings molded in plastic housing Rear housing has latching teeth which engage hooks on front housing Rear Housing is common to both Sensor variants

Antenna Information: The integral inverted F PCB antenna (see image below) cannot be changed by the user.

Compliance with 47 CFR 15.247(i) “Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter.” The EUT is a battery operated sensor (temperature or motion) that can be mounted on the wall or ceiling. It can be considered a mobile transmitter per 47 CFR 2.1093 because it will be used greater than 20cm from the user’s head or torso. The transmit frequency is 2405 to 2480 MHz. The antenna is internal to the unit and etched on the circuit board. The antenna is an inverted F pattern antenna with approximately 5.2 dBi of gain. The maximum peak radiated output power is 2.1 mW EIRP, therefore the EUT does not require MPE estimates or routine SAR evaluation because it falls below the low power threshold of 60/f(GHz)mW. Please see this excerpt from KDB 447498D01 Mobile Portable RF Exposure v04, item 2)(a)(i): "a device may be used in portable exposure conditions with no restrictions on host platforms when either the source-based time-averaged output power is <=60/f(GHz)mW or all measured 1-g SAR are <0.4W.kg." The applicant’s wireless radio, FCC ID: Z3GITA1SENAA, is compliant with the requirements of FCC 15.247(i).

iTextAlert LLC ITA-1 Sensor AA Report No. 7LAY0062 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2011 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: September 27, 2011 iTextAlert LLC Model: ITA-1 Sensor AA Emissions Test Description Specification Test Method Pass/Fail Occupied Bandwidth FCC 15.247:2011 ANSI C63.10:2009 Pass Radiated Output Power FCC 15.247:2011 ANSI C63.10:2009 Pass Band Edge Compliance FCC 15.247:2011 ANSI C63.10:2009 Pass Power Spectral Density FCC 15.247:2011 ANSI C63.10:2009 Pass Spurious Radiated Emissions FCC 15.247:2011 ANSI C63.10:2009 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 41 Tesla Ave. Irvine, CA 92618 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834B-1). Approved By: Tim O'Shea, Operations Manager NVLAP Lab Code: 200676-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 06/29/09 Barometric Pressure The recorded barometric pressure has been normalized to sea level. Revision Number Description Date Page Number 00 None Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the National Voluntary Laboratory Accreditation Program (NVLAP) for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. NVLAP is administered by the National Institute of Standards and Technology (NIST), an agency of the U.S. Commerce Department. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). Accreditations and Authorizations VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T- 1658, and R-2318, Irvine: R-1943, G-85, C-2766, and T-1659, Sultan: R-871, G-83, C-3265, and T-1511, Brooklyn Park: R-3125, G-86, G-141, C-3464, and T-1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). GOST Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform EMC and Hygienic testing for Information Technology Products. As a result of their laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification KCC Northwest EMC, Inc is a CAB designated by MRA partners and recognized by Korea. (Assigned Lab Numbers: Hillsboro: US0017, Irvine: US0158, Sultan: US0157, Brooklyn Park: US0175) VIETNAM Vietnam MIC has ap…

Text truncated - open the document above for the full version.

NORTHWEST EMC Occupied Bandwidth XMit 2010.01.14 NORTHWEST EMC Occupied Bandwidth XMit 2010.01.14 NORTHWEST EMC REB 04 (Y-Axis).JPG REB 08 (X-Axis).JPG Output Power PSA-ESCI 2011.07.26 NORTHWEST EMC REB 12 (Z-Axis).JPG Output Power PSA-ESCI 2011.07.26 NORTHWEST EMC Band Edge Compliance XMit 2010.01.14 NORTHWEST EMC Band Edge Compliance XMit 2010.01.14 NORTHWEST EMC POWER SPECTRAL DENSITY XMit 2010.01.14 NORTHWEST EMC POWER SPECTRAL DENSITY XMit 2010.01.14 NORTHWEST EMC REB 04 (Y-Axis).JPG REB 08 (X-Axis).JPG Spurious Radiated Emissions PSA-ESCI 2011.07.26 NORTHWEST EMC REB 12 (Z-Axis).JPG Spurious Radiated Emissions PSA-ESCI 2011.07.26
