Z4C-0039Metal Detector

Español ES RECOMENDACIONES E INSTRUCCIONES DE SEGURIDAD Para obtener una especificación completa del producto y una guía operativa, lea el Manual de instrucciones completo en www.minelab. com/knowledge-base/product-manuals Como alternativa, póngase en contacto con nosotros para hacer arreglos alternativos para una copia. INSTRUCCIONES DE ENSAMBLAJE Para obtener orientación sobre el ensamblaje del detector, consulte la Guía de Introducción incluida o visite la Base de conocimientos en línea aquí: www.minelab.com/knowledge-base/ product-manuals. El sitio web de Minelab también proporciona información sobre los accesorios disponibles para su detector. TERMINOS DE LA GARANTIA Consulte www.minelab.com/warranty- conditions para conocer todos los términos y condiciones de la garantía. Registre la garantía de su producto en línea en register.minelab.com. CONSIDERACIONES DE SEGURIDAD • Mantener fuera del alcance de los niños, las piezas pequeñas son un peligro de asfixia. • No mutile las pilas. • Deseche las baterías según la normativa local. • Solo cargue el detector y los accesorios de acuerdo con las instrucciones del manual. • No arroje el detector o los accesorios al fuego. MONTAGE INSTRUCTIES Raadpleeg de meegeleverde handleiding of bezoek de hieronder genoemde website voor meer informatie over het monteren van de metaaldetector: www.minelab.com/knowledge- base/product-manuals. De Minelab website biedt ook informatie over accessoires die beschikbaar zijn voor uw detector. GARANTIEVOORWAARDEN Raadpleeg www.minelab.com/ warranty-conditions voor de volledige garantievoorwaarden. Registreer uw product online op register.minelab.com. VEILIGHEIDSOVERWEGINGEN • Buiten bereik van kinderen houden, kleine onderdelen vormen een verstikkingsgevaar. • Beschadig de batterijen niet. • Lever batterijen in volgens de plaatselijke voorschriften. • Laad de detector en accessoires alleen op volgens de instructies in de handleiding. • Stel de detector of accessoires niet bloot aan open vuur. • Ontkoppel de zoekschijf en/of batterij vóór het inpakken/opslaan als bagage. WETTELIJK VERPLICHTE INFORMATIE Vereenvoudigde EU-conformiteitsverklaring Hierbij verklaart Minelab Electronics Pty Ltd dat het type radioapparatuur [verwijs naar detectors uit tabel 1] voldoet aan Richtlijn 2014/53/EU. De volledige tekst van de EU- conformiteitsverklaring is beschikbaar op het • Desconecte la bobina y / o la batería antes de empacar / guardar como equipaje. INFORMACIÓN REGLAMENTARIA Declaración de conformidad de la UE simplificada Por la presente, Minelab Electronics Pty Ltd declara que el tipo de equipo de radio [Consulte los detectores enumerados en la Tabla 1] cumple con la Directiva 2014/53 / UE. El texto completo de la declaración de conformidad de la UE está disponible en la siguiente dirección de Internet: www.minelab.com/compliance. Français FR CONSEILS ET CONSIGNES DE SECURITE Pour connaître les spécifications complètes du produit et son mode de fonctionnement, veuillez-vous référer au manuel d’utilisation disponible sur: www.minelab.com/knowledge- base/product-manuals Vous pouvez également nous contacter pour en obtenir un exemplaire. INSTRUCTIONS DE MONTAGE Pour savoir comment assembler votre détecter, veuillez vous référer à la notice simplifiée fournie avec ou consultez la base d’informations produits disponible ici : www.minelab.com/ knowledge-base/product-manuals. Le site Minelab vous indique également quels accessoires sont disponibles pour votre détecteur. volgende internetadres: www.minelab.com/compliance. Polski PL PORADY I ZALECENIA DOTYCZĄCE BEZPIECZEŃSTWA Pełne informacje techniczne oraz wskazówki dotyczące użytkowania znajdują się w pełnej wersji Instrukcji Użytkownika na stronie www.minelab.com/knowledge-base/product- manuals. Alternatywnie, prosimy o kontakt w celu udostępnienia materiałów. MONTAŻ Instrukcje dotyczące sposobu składania wykrywacza znajdują się w załączonej Skróconej Instrukcji lub w bazie zasobów na stronie: www.minelab.com/knowledge-base/product- manuals. Na stronie Minelab znajdują się informacje dotyczące dostępnych akcesoriów. WARUNKI RĘKOJMI Warunki i zasady rękojmi znajdują się na: www.minelab.com/warranty-conditions. Zarejestruj produkt online na stronie: register.minelab.com. ZASADY BEZPIECZEŃSTWA • Trzymaj z dala od dzieci, małe części mogą być przyczyną zadławienia. • Nie otwieraj i nie niszcz baterii i akumulatorów. • Utylizuj baterie i akumulatory zgodnie z obowiązującymi przepisami. CONDITIONS DE GARANTIE Pour connaitre les modalités et les conditions de garantie veuillez consulter: www.minelab.com/warranty-conditions. Enregistrez votre produit en ligne pour bénéficier de la garantie sur register.minelab.com. CONSIGNES DE SECURITE • Tenir hors de la portée des enfants, la présence de petites pièces pouvant constituer un risque d’étouffement. • Ne pas tenter d’ouvrir les batteries. • Éliminer les batteries conformément aux lois en vigueur. • Ne charger le détecteur et ses accessoires qu’en respectant le mode d’emploi. • Ne pas jeter le détecteur ni les batteries au feu. • Débrancher le disque et/ou la batterie avant de ranger le détecteur ou de le transporter. INFORMATION RÉGLEMENTAIRE Avis de conformité Canadien Le présent produit est conforme aux spécifications techniques retenues par l’Innovation, Sciences et Développement économique Canada (ISDE). RSS-Gen l’avis: Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. • Ładuj akumulatory zgodnie z instrukcją. • Nie wrzucaj baterii, akumulatorów ani wykrywacza do ognia. • Odłącz cewkę i/lub baterie/akumulatory przed umieszczeniem w bagażu. Português PT INSTRUÇÕES DE USO E SEGURANÇA Para uma especificação c…

Text truncated - open the document above for the full version.

GPX 6000 USER MANUAL Product webpage Videos Accessories 2 Getting Started �������������������������������������������������������������������������������������3 Quick Start ������������������������������������������������������������������������������������������������������������3 Controls ��������������������������������������������������������������������������������������������������������������������4 Display�����������������������������������������������������������������������������������������������������������������������5 Bluetooth Headphones ���������������������������������������������������������������������������������6 Coils �����������������������������������������������������������������������������������������������������������������������������7 Beyond Default Settings ��������������������������������������������������������8 Sensitivity ��������������������������������������������������������������������������������������������������������������8 Ground Balance ��������������������������������������������������������������������������������������������������9 Quick-Trak �������������������������������������������������������������������������������������������������������������9 Ground Balance Procedure ��������������������������������������������������������������������������10 Mono coil advanced procedure ��������������������������������������������������������������������11 Double-D coil advanced procedure �����������������������������������������������������������12 Noise Cancel �������������������������������������������������������������������������������������������������������13 Advanced Concepts ����������������������������������������������������������������������14 Automatic Ground Balance ��������������������������������������������������������������������������14 Ground Type �������������������������������������������������������������������������������������������������������14 Double-D Modes �����������������������������������������������������������������������������������������������14 Troubleshooting, Care & Safety ���������������������������������16 Errors �����������������������������������������������������������������������������������������������������������������������16 General Troubleshooting ����������������������������������������������������������������������������17 Detector Care and Safety ������������������������������������������������������������������������18 Contents Additional resources are available online at www.minelab.com/GPX 6000 3 CONTENTS GETTING STARTED This sections shows you how to quickly set up your detector to begin detecting with minimal adjustment, and describes how to identify and adjust key detector functions� 1. Turn On Factory default settings The factory default settings are optimised for detecting in almost all conditions, regardless of mineralisation and EMI levels� The default settings are a practical choice for users who want to begin successfully detecting without the need to manually adjust the key detector settings� Quick Start is best used with factory default settings: ` Sensitivity: Auto ` Ground Type: Difficult ` Noise Cancel: Automatic at startup Factory Reset Factory default settings can be restored at any time by conducting a Factory Reset� 1. Ensure the detector is powered off� 2. Press and hold the power button for 7 seconds� 3. When reset is complete there is a confirmation tone, and ‘FP’ (Factory Preset) appears on the display� ‘FP’ appears on the display Quick Start Beginning with Factory Default Settings is recommended for Quick-Start� 2. Wait for Noise Cancel 3. Pump coil (< 10 s) 4. Begin Detecting GPX 6000 automatically compensates for ground noise, EMI, and sensitivity within 20 seconds of turning on� 4 CONTENTS Controls 1. Bluetooth Control Enables Bluetooth for connection of wireless headphones (page 6)� Long-press (> 2�5 s) to enable Bluetooth pairing for connecting Bluetooth headphones (page 6)� 2. Backlight Adjust Cycles through the backlight brightness settings — high, medium, low and off� 3. Power On/Off Turns the detector on and off� Restores factory default settings (Press and hold from off, > 7 s) (page 3)� 4. Sensitivity Adjust Adjusts the Sensitivity Level (page 8)� 5. Ground Type Toggles between Difficult and Normal Ground Type (page 9)� 6. Noise Cancel Initiates the Noise Cancel process (page 13)� Toggles between the Double-D Modes (page 10) — EMI Cancel and Conductive Ground Cancel� (Long-press, > 2�5 s) 7. Volume Adjust Adjusts the audio Volume Level� 8. Quick-Trak Trigger Press and hold during Quick-Trak Ground Balance (page 9)� 4 36 8 7 1 2 5 5 CONTENTS Display 1. Bluetooth Indicator Indicates that Bluetooth wireless audio is on (page 6)� Standard Bluetooth Bluetooth Qualcomm® aptX™ Low Latency 2. Double-D Modes Only available when using the Double-D coil (page 10)� Electromagnetic Interference Cancel (EMI) Conductive Ground Cancel 3. Backlight Indicator Indicates that the backlight is on� 4. Ground Type Displays the selected Ground Type (page 9)� Difficult (default) Normal 5. Noise Cancel Flashes when Noise Cancel is in progress (page 13)� 6. Headphones Connection Indicates that headphones are connected� Wired headphones connected Bluetooth headphones connected (page 6)� 7. Error Indicates that there is a coil or system error (page 16)� 8. Volume Level Displays the detector audio volume� 9. Sensitivity Displays the Sensitivity level (page 8)� 10. Battery Level Indicates the current battery level� 10 9 7 6 5 4 1 3 2 8 6 CONTENTS Bluetooth Headphones Any standard Bluetooth headphones can be used with the GPX 6000, however use of the Minelab ML 100 wireless headphones is recommended for optimum wireless audio performance� Minelab ML 100 headphones use aptX™ Low Latency technology, and will deliver faster audio than standard Bluetooth® headphones� aptX™ Low Latency technology is faster than standard Bluetooth, with a delay of 40 ms, giving a faster detection response� Pairi…

Text truncated - open the document above for the full version.

Date: 15 July 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Colin Gan, Senior Engineer, of Austest Laboratories and hereafter referred to as Austest, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Colin Gan, Senior Engineer, of Austest Laboratories on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Austest as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Best Regards Philip Beck General Manager Engineering and Operations Minelab Electronics Pty Ltd

Date: 14 August 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject:Request for Confidentiality FCC ID: Z4C-0039 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until: 18 December 2020. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Philip Beck General Manager Engineering and Operations Minelab Electronics Pty Ltd

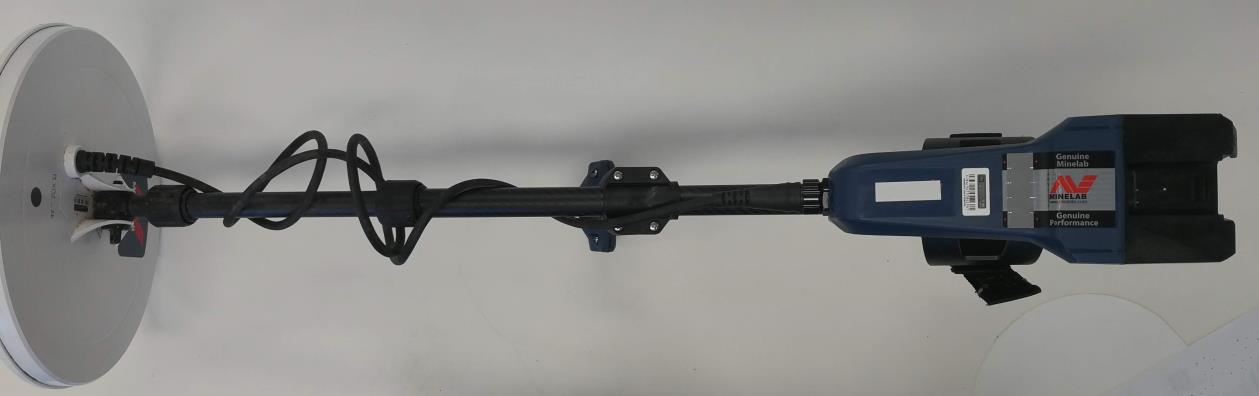

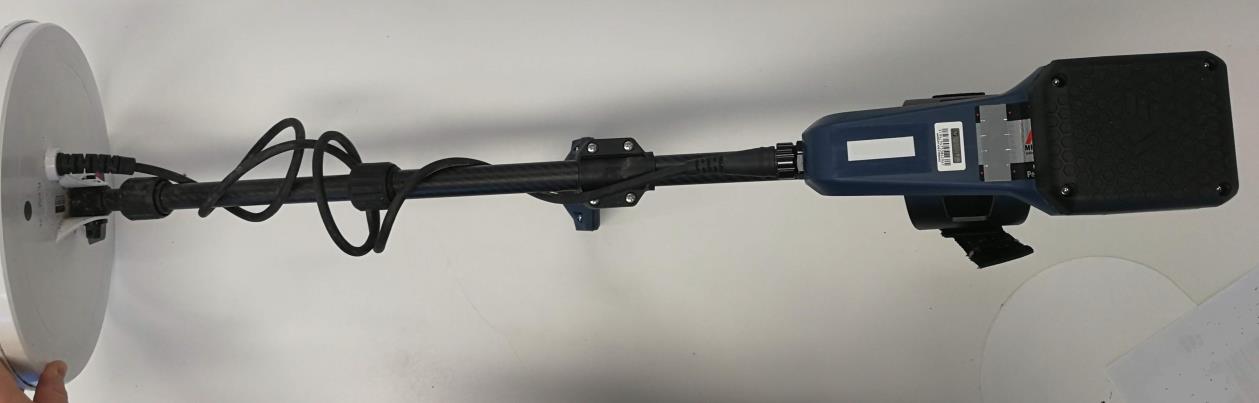

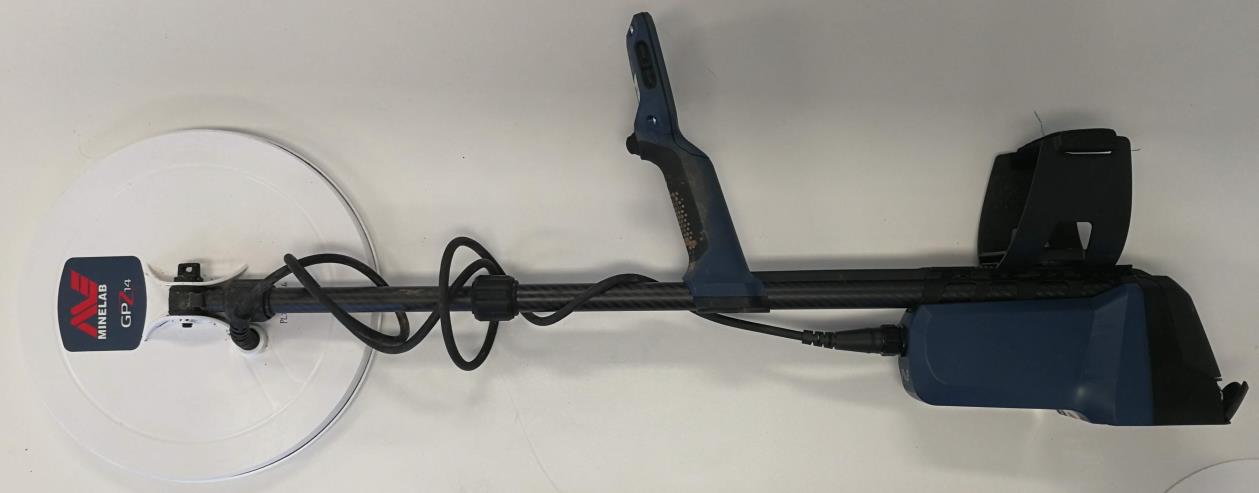

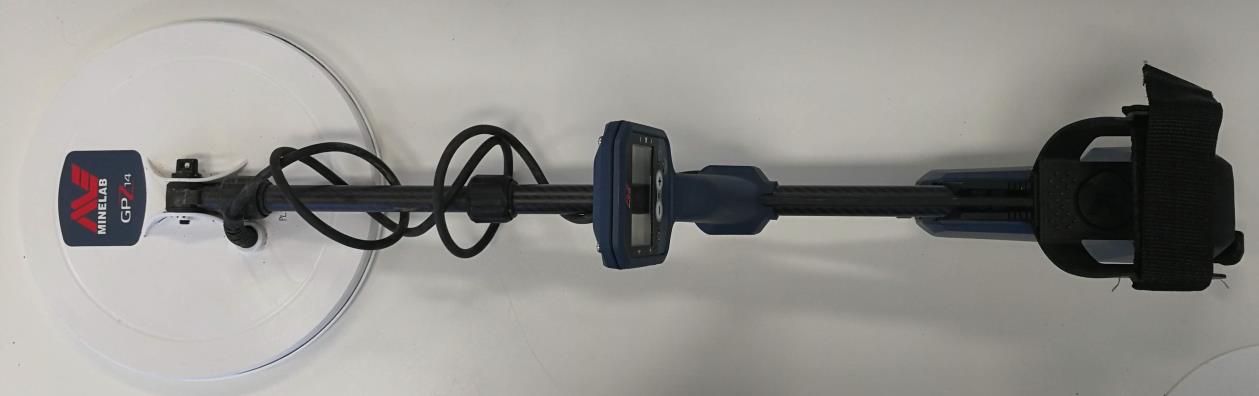

Page 1 of 2 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full APPENDIX A – EXTERNAL PHOTOS OF PRODUCT Metal Detector Top View Metal Detector Left Side View Metal Detector Right Side View Page 2 of 2 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full Metal Detector Bottom View Metal Detector Bottom View (with Battery Pack) Metal Detector End View

Page 1 of 1 Report No: 0813COD_GRU_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full APPENDIX D – FCC & IC LABEL & LOCATION Compliance label below is placed underneath the control box, ahead of the battery. Label width is placed along length of control box. The label is in plain sight without any obstructions.

Page 1 of 5 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full APPENDIX B – INTERNAL VIEW OF EUT Display Pod Page 2 of 5 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full Page 3 of 5 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full Control Box Page 4 of 5 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full Page 5 of 5 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full

Phone: 1800 001 411; Web: www.austest.com.au Page 1 of 32 This document shall not be reproduced, except in full RADIO TEST REPORT FCC TITLE 47 PART 15C AND RSS-247 ISSUE 2 Client: Minelab Electronics Pty Ltd Address: 2 Second Avenue, Mawson lakes, Adelaide, SA 5095, Australia Report Number: 0813COD_GPX6000_FCC15C-RSS247 Date of Testing: 1 st May to 6 th August 2020 File Number: COD190708 Equipment Name: GPX6000 Metal Detector Model Number GPX6000 FCC ID: Z4C-0039 IC ID: 24927-0039 Description: Metal Detector Result: COMPLIED Tested by Steven Garnham Test Engineer Approved by: Rob Weir Assessment Engineer Date of Issue: 13 August 2020 Results appearing herein relate only to the sample(s) tested. This report is issued errors and omissions exempt and is subject to withdrawal at Austest Laboratories discretion. Page 2 of 32 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full TABLE OF CONTENTS 1 REPORT REVISION HISTORY ....................................................................................................................................... 3 2 RESULT SUMMARY ..................................................................................................................................................... 3 3 MODIFICATIONS ......................................................................................................................................................... 4 4 REFERENCES ............................................................................................................................................................... 5 5 EQUIPMENT UNDER TEST (EUT) DESCRIPTION .......................................................................................................... 5 6 EUT TEST SETUP AND CONFIGURATION .................................................................................................................... 6 7 TEST SPECIFICATIONS ................................................................................................................................................. 7 8 ANTENNA REQUIREMENT .......................................................................................................................................... 8 9 RESTRICTED BANDS OF OPERATION .......................................................................................................................... 8 10 CONDUCTED LIMITS ................................................................................................................................................... 8 11 RADIATED SPURIOUS EMISSIONS .............................................................................................................................. 9 12 CHANNEL SEPARATION, HOPPING CHANNELS AND TIME OF OCCUPANCY ............................................................. 21 13 PEAK CONDUCTED OUTPUT POWER ........................................................................................................................ 27 14 MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................................................................. 30 15 99% BANDWIDTH ..................................................................................................................................................... 31 APPENDIX A – PHOTOGRAPHIC RECORD OF EUT APPENDIX B – INTERNAL VIEW OF EUT APPENDIX C – EUT TEST SETUP PHOTOGRAPHS APPENDIX D – FCC & IC LABEL & LOCATION Page 3 of 32 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full 1 REPORT REVISION HISTORY Date Report Number Changes 29 Jun. 2020 0629COD_GRU_FCC15C-RSS247 Original report. 7 Aug. 2020 0807COD_GPX6000_FCC15C-RSS247 Revised in accordance with TCB requests. 10 Aug. 2020 0810COD_GPX6000_FCC15C-RSS247 Revised in accordance with TCB requests. 13 Aug. 2020 0813COD_GPX6000_FCC15C-RSS247 Revised in accordance with TCB requests. 2 RESULT SUMMARY DISCLAIMER: Austest Laboratories makes no claim regarding the consistency of production versions of the EUT. The results in this report apply only to the sample tested, as described in Section 5 of this report. 2.1 FCC 15C Summary FCC Part 15, Subpart C – Intentional Radiators Result Notes 15.203 Antenna Requirement Complied - 15.205 Restricted Bands of Operation Complied - 15.207 Conducted Limits N.A. (i) 15.209 Radiated Emission Limits, General Requirements Complied - 15.247 Operation within the Bands 902-928MHz, 2400- 2483.5MHz, and 5725-5850MHz Complied - 15.247(a)(1) Channel Separation Complied - 15.247(a)(1)(iii) Number of Hopping Channels Complied - 15.247(a)(1)(iii) Time of Occupancy Complied - 15.247(b)(1) Equivalent Peak Conducted Output Power Complied - 15.247(d) Out of band emissions Complied - 15.247(i) Maximum Permissible Exposure (MPE) Complied - 2.1049 99% Bandwidth Noted - Notes: (i) Not applicable as the EUT was only powered by internal batteries, no direct or indirect AC mains connection. Page 4 of 32 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full 2.2 RSS-247 Summary RSS-247 and RSS-Gen Result Notes RSS-Gen (6.8) Antenna Requirement Complied - RSS-Gen (8.10) Restricted Bands of Operation Complied - RSS-Gen (8.8) Conducted Limits N.A. (i) RSS-Gen (8.9) Radiated Emission Limits, General Requirements Complied - RSS-247(5) Standard specifications for frequency hopping systems and digital transmission systems operating in the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Complied - RSS-247 (5.1) Channel Separation Complied - RSS-247 (5.1) Number of Hopping Channels Complied - RSS-247 (5.1) Time of Occupancy Complied - RSS-247 (5.4) Peak Conducted Output Power Complied - RSS-247 (5.5) Out of band emissions Complied - RSS-102 Maximum Permissible Exposure (MPE) Complied - RSS-Gen (6.7) 99% Bandwidth Noted - …

Text truncated - open the document above for the full version.

Page 1 of 3 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full APPENDIX C – EUT TEST SETUP PHOTOGRAPHS 9kHz to 30MHz, Over GP 9kHz to 30MHz, No GP Page 2 of 3 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full 30MHz to 1000MHz >1GHz Radiated Page 3 of 3 Report No: 0813COD_GPX6000_FCC15C-RSS247 FCC ID: Z4C-0039 IC ID: 24927-0039 This document shall not be reproduced, except in full >1GHz Radiated Radiated Closeup Of BT Control Interface
