Z4C-1010METAL DETECTOR FOR RECREATIONAL USE

1 Metal detecting is a fascinating and rewarding activity enjoyed by people all over the world. By getting to know your CTX 3030 you can become one of the many successful detectorists who combine their passion for the outdoors with the excitement of discovering valuable coins, relics, gold and jewellery on a regular basis. CTX 3030 is Minelab’s most technologically advanced detector, incorporating the unique Full Band Spectrum 2 (FBS 2) Technology. Its sleek, sturdy design, innovative control panel, clear LCD, robust lightweight coil and comprehensive targeting options set it apart from any other detector available today. The Wireless Audio Receiver Module (WARM) facilitates the use of wireless speaker or headphones. Congratulations on purchasing your Minelab metal detector! CTX 3030 also allows you to download and upload CTX 3030 settings, User Modes and Discrimination Patterns using your own Personal Computer (PC). CTX 3030 will locate valuable metal objects in a variety of mineralized ground conditions, including extremely salty soils, sea water, wet beach sand and highly magnetic ground conditions. New functionality allows you to customise your CTX 3030 to your specific requirements. This manual is designed to help both the beginner and expert treasure hunter obtain the best performance with their CTX 3030. Minelab wishes you every success with your CTX 3030! 2 Contents Item Number: 4901-xxxx Revision: 0.1 Contents.................................................................................................2 Detector.Parts........................................................................................4 Assembly................................................................................................5 Attach the Coil to the Lower Shaft ....................................................................5 Attach the Lower Shaft to the Chassis .............................................................6 Attach the Control Box ...........................................................................................6 Attach the Armrest ...................................................................................................7 Attach the Headphones .........................................................................................7 Disconnect the Coil ..................................................................................................7 Adjust.the.Detector.for.Comfortable.Detecting.............................8 Holding the Detector ..............................................................................................8 Adjust the Armrest Strap........................................................................................8 Adjust the Position of the Armrest .....................................................................8 Adjust the Length of the Shafts ..........................................................................9 Adjust the Angle of the Coil ..............................................................................10 Battery.Packs......................................................................................11 Insert the Battery Pack into the Battery Compartment .........................11 Remove the Battery Pack from the Battery Compartment ..................12 Recharge the Li-Ion Battery Pack with the BC 10 Battery Charger ...12 Recharge the Li-ion Battery Pack with the Car Charger ........................13 Replace the ‘AA’ Batteries ....................................................................................14 Turn.On.and.Go..................................................................................15 Power Button ...........................................................................................................15 Compliance.Information...................................................................16 Information to the User (FCC Part 15.105) ...................................................................................................16 3 Detector Parts Headphones Module Velcro Strap Armrest Armrest Lock Handle Control Pod USB Connector Lower Shaft Yoke Coil Battery Cover/ Compartment Latches Control Box Bulkhead Control Box WARM Chassis Chassis Cam Lock Coil Connector 4 Attach the Coil to the Lower Shaft 1. Remove the nut, bolt and washers from the coil. 2. Plug the two rubber washers into the holes on either side of the lower shaft. 3. Feed the coil cable up through the inside of the lower shaft until it appears at the top of the lower shaft. 4. Place the coil on a flat surface and slide the lower shaft into the bracket on top of the coil. Ensure that the open side of the lower shaft faces the ground. Assembly 5. Insert the bolt through the lower shaft and the bracket on top of the coil. 6. Fasten with the nut provided, taking care not to damage the thread of the nut by over-tightening. This will need to be loosened later to adjust the coil to a comfortable detecting angle (x-ref). PINCH POINTS - CONTROL BOX. Take care when sliding the control box onto the chassis and when operating the control box clip. The coil cable is directly wired into the coil and is not removable. 5 Attach the Lower Shaft to the Chassis 1. Release the chassis cam lock by pulling the lever away from the shaft. 2. Feed the coil cable up through the inside of the chassis ensuring the cam lock side of the shaft is facing the ground and that the key stop on the lower shaft is rotated 90° to the chassis. 3. Slide the chassis over the lower shaft until the coil cable and key stop appear at the top. Rotate the lower shaft 90° so that the key stop points downwards. 4. Lock the chassis cam lock by pushing the lever towards the shaft Attach the Control Box 1. Ensure the latches on the control box are released and place the battery pack into the cover. Position the battery cover onto the control box and lock the latches to secure. 2. Fit the headphone module onto the control box. Use a screwdriver…

Text truncated - open the document above for the full version.

EMC Technologies Pty Ltd, 176 Harrick VIC 3043 Australia Ph: +613 9365 1000 Fax: +613 9331 7455 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road, Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] To: Federal Communications Commission Attention: Certification Manager No. of pages: 1 From: Chieu Huynh Date: 24 th November 2011 EMC Ref: M110613_FCC_Cert Subject: FCC APPROVAL – FCC ID: Z4C-1010 Please receive EMC Technologies’ Report M110613_FCC_Cert for review. The EUT is 2.4 GHz Wireless Link, installed in host CTX3030 Metal Detector. The intention of this application is to FCC certify (modular approval) the 2.4 GHz Wireless Link to FCC 15.249. EMC Technologies Pty Ltd is acting as agent for Minelab Electronics Pty Ltd during this product approval. The FCC ID for this application is Z4C-1010 Regards ______________ Chieu Huynh Senior EMC Engineer EMC Technologies Pty Ltd

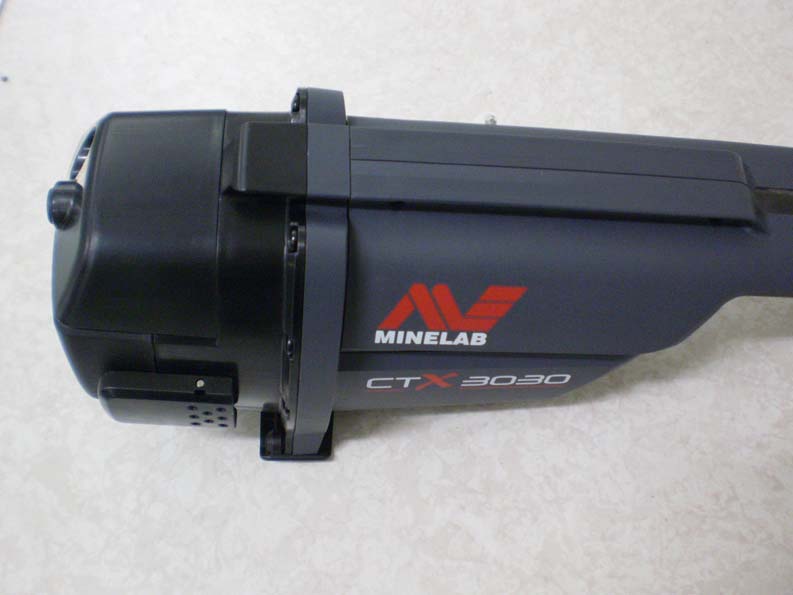

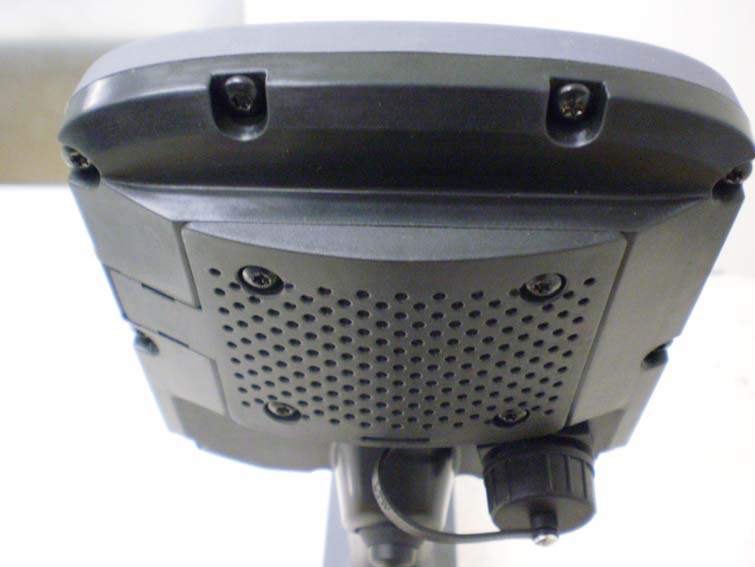

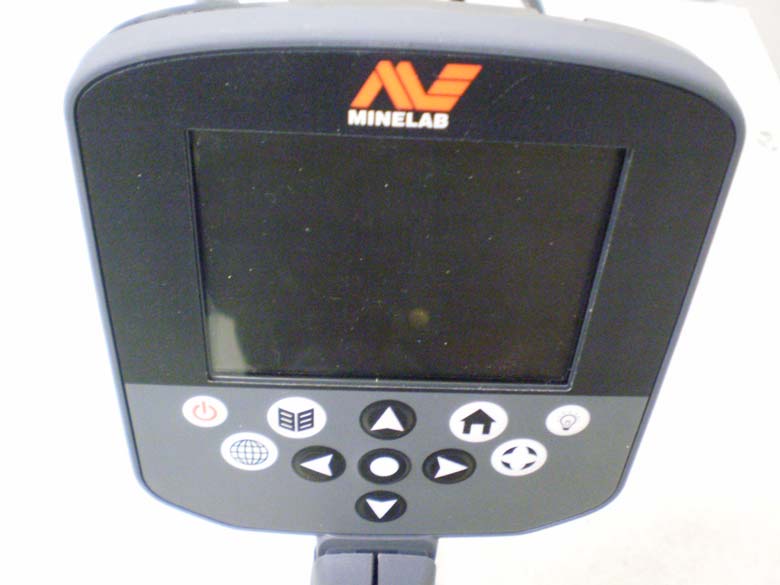

FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A1 – External Photos FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A1 – External Photos FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A1 – External Photos

FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix F – Label DECAL CONTROL BOX COMPLIANCE 0.01” (0.25 mm) Matte Lexan 8B35. Adhesive: 3M 467 2 Drawn on Illustrator CS4 118 Hayward Avenue Torrensville SA 5031 Phone: 8238 0888 Fax: 8238 0890 COPYRIGHT MINELAB 2011 C ANGLES DATEAPPCKDDATE DATEDRN DESCRIPTION REF # REV MATERIAL AND FINISH REVISION SCALESHEETSIZEDRAWING NUMBER A4 1:1 1 of 1 DIMENSIONS IN MILLIMETRES UNLESS OTHERWISE STATED 2 DECIMAL (0.00) 1 DECIMALS (0.0) GENERAL TOLERANCES 0 DECIMAL (0) DO NOT SCALE +/- 0.2 +/- 1.0 +/- 0.5 +/- 0.1 Colours: PMS Black PMS White Fonts: Arial Regular Arial Bold Arial Black MINELAB 2705-0063 Notes: 1) All parts and processes to be RoHS compliant. 2) Alternate materials may be used with Minelab Engineering approval. 3) Mininum 2 mm clearance between graphic elements and edge of decal. RELEASE FOR PRODUCTION 0471 1 BD 05.07.11 LG 06.07.11 CL 06.07.11 ADD FCC ID NO., CHANGED PRINT TO WHITE OUT OF BLACK 0471 2 BD 10.10.11 LG 10.10.11 LG 10.10.11 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: Z4C-1010 64.0 R 1.0 Typ 3.0 29.3

FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A3 – Internal Photos FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A3 – Internal Photos FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A3 – Internal Photos FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A3 – Internal Photos FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A3 – Internal Photos FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A3 – Internal Photos FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A3 – Internal Photos

FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A4 – Location Photos Antenna

Page 1 of 15 EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.249) FCC ID: Z4C-1010 Test Sample: 2.4 GHz Wireless Link Installed in Host: Metal Detector Model Number: CTX3030 Report Number M110613_FCC_Cert Tested for: Minelab Electronics Pty Ltd Issue Date: 03 rd October 2011 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. This document is issued in accordance with NATA’s accreditation requirements. The results of tests, calibration and/or measurements included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing and calibration reports. This document shall only be reproduced in full, with the exception of the certificate on p3 EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] FCC ID: Z4C-1010 Report No. M110613_FCC_Cert Page 2 of 15 This document is issued in accordance with NATA’s accreditation requirements. The results of tests, calibration and/or measurements included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing and calibration reports. This document shall only be reproduced in full, with the exception of the certificate on p3 EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.249) EMC Technologies Report No. M110613_FCC_Cert Issue Date: 03 rd October 2011 CONTENTS 1.0 INTRODUCTION 2.0 GENERAL INFORMATION 3.0 CONDUCTED EMISSION MEASUREMENTS 4.0 RADIATED EMISSION MEASUREMENTS 5.0 ANTENNA REQUIREMENT 6.0 COMPLIANCE STATEMENT 7.0 MEASUREMENT UNCERTAINTIES 8.0 MEASUREMENT INSTRUMENT APPENDIX A: REPORT PHOTOGRAPHS APPENDIX B: BLOCK DIAGRAM APPENDIX C: SCHEMATICS APPENDIX D: OPERATIONAL DESCRIPTION APPENDIX E: FCC LABELLING DETAILS APPENDIX F: USER MANUAL APPENDIX G: ANTENNA DETAILS FCC ID: Z4C-1010 Report No. M110613_FCC_Cert Page 3 of 15 This document is issued in accordance with NATA’s accreditation requirements. The results of tests, calibration and/or measurements included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing and calibration reports. This document shall only be reproduced in full, with the exception of the certificate on p3 EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.249) Report Number: M110613_FCC_Cert Test Sample: 2.4GHz Wireless Link FCC ID: Z4C-1010 Equipment Type: Intentional Radiator Installed in Host: Metal Detector Model Number: CTX3030 Tested for: Minelab Electronics Pty Ltd Address: 118 Hayward Avenue, Torrensville, SA 5031 Australia Phone: +61 8 8238 0888 Fax: +61 8 8238 0890 Contact: David Kitchener Email: [email protected] Responsible Party: Tony Stevens Test Standards: FCC Part 15, Subpart C – Intentional Radiators Section 15.249: Operation within the bands 902 – 928 MHz, 2400 – 2483.5 MHz, 5725 – 5875 MHz and 24.0 – 24.25 GHz. ANSI C63.4 – 2003 Test Dates: 9 th to 16 th June 2011 Test Engineer: Chieu Huynh Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory: Chieu Huynh EMC Technologies Pty Ltd Issued by EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au FCC ID: Z4C-1010 Report No. M110613_FCC_Cert Page 4 of 15 This document is issued in accordance with NATA’s accreditation requirements. The results of tests, calibration and/or measurements included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing and calibration reports. This document shall only be reproduced in full, with the exception of the certificate on p3 EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.249) 1.0 INTRODUCTION EMI testing was performed on the 2.4 GHz Wireless Link, installed in host CTX3030 Metal Detector. The test sample complied with the requirements of 47 CFR, Part 15 Subpart C - Section 15.249. Test results and procedures were performed in accordance with the following Federal Communications Commission (FCC) standards/regulations: 47 CFR, Part 15, Subpart C: Rules for intentional radiators (particularly section 15.249) Section 15.203: Antenna requirements Section 15.209: Radiated Emission Limits (General requirements) Section 15.249: Operation within the bands 902 – 928 MHz, 2400 – 2483.5 MHz, 5725 – 5875 MHz and 24.0 – 24.25 GHz. 1.1 Summary of Results FCC Part 15, Subpart C Test Performed Result 15.203 Antenna Requirement Not Applicable 15.207 Conducted Emissions Not Applicable 15.209 Radiated Emissions Complied 15.249 (a) Fundamental Field Strength Complied 15.249 (a) Harmonics Emissions Complies 15.249 (b) Fixed, point to point Not Applicable 15.249 (c) Field strength limits @ 3 meters Noted 15.249 (d) Spurious Emissions Complied 15.249 (e) 20 dB Peak to Average Complied 15.249 (f) Requirements – Manufacturing, etc Noted The measurement procedure used was in accordance with ANSI C63.4-2003. The…

Text truncated - open the document above for the full version.

FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A2 – Test Setup Photos FCC ID: Z4C-1010 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A2 – Test Setup Photos
