Z4C-2660Metal Detector with Bluetooth for recreational use

GO‑FIND 20GO‑FIND 40GO‑FIND 60 2 different audio tones:3 different audio tones:4 different audio tones: 1) POWER SWITCH (ON/OFF) 2) EAR BUDS OUTPUT 3) SENSITIVITY Increase for more detecting depth. You may need to decrease this if there is high noise interference or false signals. 4) PINPOINT (GO‑FIND 40/60 only) Determine the exact location of a target. 5) VOLUME 6) BACKLIGHT (GO‑FIND 40/60 only) 7) FIND MODE Detect and reject metal objects. 8) DEPTH INDICATION Shallow | Medium | Deep 9) TREASURE VIEW LED Red and green LEDs help you quickly identify treasure from trash. (GO‑FIND 40/60 only) 10) FIND ICONS (x 4) 11) BATTERY LEVEL 12) BLUETOOTH (GO‑FIND 40/60 only) AUDIO OUTPUT 1/8" connector with speaker at rear. DETECTING BASICSTREASURE VIEW (GO‑FIND 40/60 only) CONTROL PANEL GO‑FIND 20GO‑FIND 40GO‑FIND 60 Select from 2 find modes: 1) 2) Select from 3 find modes: 1) 2) 3) Select from 4 find modes: 1) 2) 3) 4) QUICK START GUIDE STEP 1. POWER ON Switch your detector on. The LCD will light up with several icons. STEP 2. BEGIN DETECTING Sweep the coil over the ground in a side-to-side motion. The detector will light up and beep when a metal object is found. FIND MODES FIND modes allow you to search for specific groups of metal objects by accepting or rejecting detection. No need to dig the trash – just the treasure! Cycle through the different modes using the Find button. DETECTOR SOUNDS The detector beeps when an object is detected. This sound can be heard through the detector speaker or through ear buds/headphones connected to the audio output socket (refer to control panel diagram). SWEEP LEVEL Keep the coil 1–2 inches (2–3 cm) above and parallel to the ground at all times. SPEED Sweep the coil over the ground in a side-to-side motion, an average sweep speed is 1–2 seconds from left to right. ADJUSTMENT The detector should be straight with your forearm and feel light and comfortable when you pick it up. SPACE Recommended distance is 50 feet (15 m) apart when multiple users are scanning an area. OVERLAP SWEEP Slightly overlap the previous sweep to ensure full ground coverage. 1 2 3 4 5 6 7 9 11 8 10 Treasure View LEDs light up when a metal object has been detected. As you get closer to the target, more LEDs illuminate. RED indicates an iron metal object (possibly trash). GREEN indicates a non-iron metal object (possibly treasure). ORANGE indicates Pinpoint mode for all metal objects. LEDs will illuminate from left to right when Pinpoint is off. ICON DESCRIPTIONS When a metal object is detected, the corresponding icon will flash on the control panel to indicate the target type. If the icon is turned off (not visible) then these object types will not be detected. ITEM FOUND The detector will light up and beep when a target is discovered. LOW TONE: Iron targets (such as nails) produce the lowest tone. MID 1 TONE (GO‑FIND 40/60 ONLY): Less valuable metals produce a lower medium tone. MID 2 TONE (GO‑FIND 60 ONLY): Higher value metals produce a higher medium tone. HIGH TONE: Silver and copper targets produce the highest tone. E.g. Iron objects, nails and horseshoes. E.g. Aluminium foil and lower value coins. E.g. Rings, pull tabs and lower value coins. E.g. Low and high value coins and screw caps. LEDs will illuminate towards the center when Pinpoint in on. This helps identify the exact location of the object. 12 ON switch 50 ft (15 m) SET UP CONTACT North & South America Minelab Americas Inc T: +1 630 401 8150 E: [email protected] Asia Pacific Minelab Electronics Pty Ltd T: +61 8 8238 0888 E: [email protected] Europe Minelab International Ltd T: +353 21 423 2352 E: [email protected] Middle East & Africa Minelab MEA General Trading LLC T: +971 4 254 9995 E: [email protected] WARRANTY TERMS This product has a 2 year limited warranty from the time of purchase. Please refer to www.minelab.com for further warranty information. COMPLIANCE Information to the User (FCC Part 15.105) NOTE: Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Warning: Any changes or modifications not expressively approved by Minelab Electronics could void the user’s authority to operate this equipment. CODE OF ETHICS 1. Respect the rights and property of others. 2. Observe all laws, whether national, state or local. 3. Never destroy historical or archaeological treasures. 4. Leave the land and vegetation as it was. 5. Always obtain permission before searching sites. 6. Always fill in your holes after digging. DOWNLOAD APP www.itunes.com | play.google.com NOTE: GO‑FIND App works with GO‑FIND 40/60 only. Pro App FREE with GO‑FIND 60 only. BLUETOOTH SMART COMPATIBLE GO‑FIND 40/60 are BLUETOOTzH SMART compatible with iOS 5 and Android 4.3 mobile operating systems, and above. Part No. 4901-0189-4 Instruction Sheet ACCESSORIES INCLUDED (supplied with GO‑FIND 60 model only) Ear buds | Digging tool | Phone holder WARNING: This device contains moving parts. Use caution when adjusting components. DO NOT le…

Text truncated - open the document above for the full version.

________________________________________________________________ www.emctech.com.au To: TIMCO Engineering From: EMC Technologies Pty Ltd No of pages: 1 EMC Ref: M140927 Date: 10 March 2015 Subject: FCC Approval – FCC ID: Z4C-2660 Please receive EMC Technologies’ Report M140927-4 for review. The EUT is a 2.4 GHz wireless link installed in host – GO-FIND 40 Metal Detector. The intention of this application is to FCC certify the 2.4 GHz wireless link to FCC 15.247. EMC Technologies is acting as agent for Minelab Electronics Pty Ltd during this product approval. The FCC ID for this application is FCC ID: Z4C-2660. Regards _____________ Donna Lennon Report Secretary EMC Technologies Pty Ltd EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road, Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected]

2 Drawn on Illustrator CS6 118 Hayward Avenue Torrensville SA 5031 Phone: 8238 0888 Fax: 8238 0890 © COPYRIGHT MINELAB 2015 ANGLES DATEAPPCKDDATE DATEDRN DESCRIPTION REF # REV MATERIAL AND FINISH REVISION SCALESHEETSIZEDRAWING NUMBER A4 1:1 1 of 1 DIMENSIONS IN MILLIMETRES UNLESS OTHERWISE STATED 2 DECIMAL (0.00) 1 DECIMALS (0.0) GENERAL TOLERANCES 0 DECIMAL (0) DO NOT SCALE +/- 0.2 +/- 1.0 +/- 0.5 +/- 0.1 Colours: PMS White Fonts: Arial Regular Arial Bold Arial Black MINELAB 2703-0054 Notes: 1) All parts and processes to be RoHS compliant. 2) Alternate materials may be used with Minelab Engineering approval. 3) Mininum 2 mm clearance between graphic elements and edge of decal. 5) Adhesive: Refer to Material and Finish 6) = indicates area of label to be transparent, Do not print blue colour. RELEASE FOR QUOTATION D.40002 0.1 LGr 09.01.15 DECAL, BATTERY MAP AND COMPLIANCE GO-FIND BB 09.01.15 09.01.15 CL ADD PATENT TEXT. REMOVE LABEL REMOVAL TAB. UPDATE NOTES & DIMS. REFORMAT ARTWORK. D.40002 2 SMQ 17.02.15 MATERIAL: Lexan 8B35V Film (0.125 thickness) - Matte nish ADHESIVE: 3M™ High Performance Acrylic Adhesive 467MP BB 18.02.15 CL 18.02.15 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: Z4C-2660 PATENTS APPLY Refer to website for details: www.minelab.com/patents 53.0 33.0 REFER NOTE 6

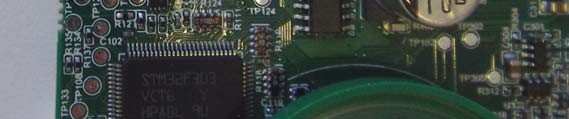

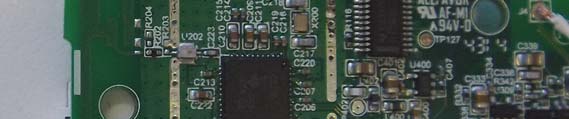

FCC ID: Z4C-2660 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A1 – Internal Photos FCC ID: Z4C-2660 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Appendix A1 – Internal Photos

Page 1 of 28 RADIO TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) Test Sample: Minelab Metal Detector Model: GO-FIND 40 FCC ID: Z4C-2660 Report Number: M140927-4 Tested for: Minelab Electronics Pty Ltd Issue Date: 18 March 2015 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. This document is issued in accordance with NATA’s accreditation requirements. The results of tests, calibration and/or measurements included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing and calibration reports. This document shall not be reproduced except in full. EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 Email: [email protected] Report No.: M140927-4 Page 2 of 28 This document is issued in accordance with NATA’s accreditation requirements. The results of tests, calibration and/or measurements included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing and calibration reports. This document shall not be reproduced except in full. RADIO TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) EMC Technologies Report No.: M140927-4 Issue Date: 18 March 2015 Contents 1.0 INTRODUCTION ______________________________________________________________ 4 2.0 GENERAL INFORMATION ______________________________________________________ 5 3.0 ANTENNA REQUIREMENT (§15.203) _____________________________________________ 7 4.0 CONDUCTED EMISSIONS (§15.207) ______________________________________________ 7 5.0 DTS 6 dB BANDWIDTH (§15.247 (a)(2)) ___________________________________________ 7 6.0 PEAK OUTPUT POWER (§15.247 (b)(3)) _________________________________________ 10 7.0 BAND-EDGE EMISSION MEASUREMENTS _______________________________________ 13 8.0 SPURIOUS EMISSION MEASUREMENTS (§15.247 (d)) _____________________________ 15 9.0 POWER SPECTRAL DENSITY (§15.247 (d)) ______________________________________ 22 10.0 RADIO FREQUENCY EXPOSURE (HAZARD) _____________________________________ 25 11.0 COMPLIANCE STATEMENT ___________________________________________________ 27 12.0 UNCERTAINTY ______________________________________________________________ 27 APPENDIX A MEASUREMENT INSTRUMENT DETAILS ___________________________________ 28 Report No.: M140927-4 Page 3 of 28 This document is issued in accordance with NATA’s accreditation requirements. The results of tests, calibration and/or measurements included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing and calibration reports. This document shall not be reproduced except in full. RADIO TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) Report Number: M140927-4 Test Sample: Minelab Metal Detecto r Model: GO-FIND 40 FCC ID: Z4C-2660 Equipment Type: Intentional Radiator (Transceiver) Manufacturer: Minelab Electronics Address: 118 Hayward Avenue Torrensville, SA 5031 Phone: + 61 8 8238 0888 Fax: + 61 8 8238 0890 Contact: Simon Mazurek Email: [email protected] Test Standards: FCC Part 15 – Radio Frequency Devices FCC Part 15 Subpart C – Intentional Radiators Section 15.247 – Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.4 – 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz KDB 558074 D01v03r02 – Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Test Date: 22 nd December 2014 Test Engineer: Mahan Ghassempouri Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory: Chris Zombolas Technical Director EMC Technologies Pty Ltd Report No.: M140927-4 Page 4 of 28 This document is issued in accordance with NATA’s accreditation requirements. The results of tests, calibration and/or measurements included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing and calibration reports. This document shall not be reproduced except in full. Radio TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) 1.0 INTRODUCTION Radio testing was performed on the Bluetooth transceiver of the Minelab GO-FIND 40 Metal Detector. Test results and procedures were performed in accordance with the following Federal Communications Commission (FCC) standards/regulations: 47 CFR, Part 15, Subpart C: Rules for intentional radiators (particularly section 15.247) Section 15.203: Antenna requirements Section 15.205: Restricted bands of operation Section 15.207: Conducted Emission Limits Section 15.209: Radiated Emission Limits (General requirements) Section 15.247: Operation in the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5850 MHz The test sample complied with the requirements of 47 CFR, Part 15 Subpart C - Section 15.247. The measurement procedure used was in accor…
