Z4GK101Wireless Sensor Module

Cora Tine Teoranta T/A Kelsius

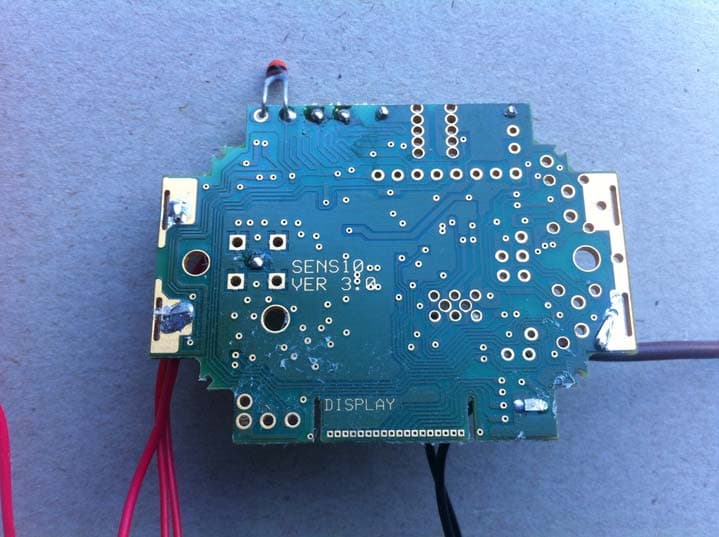

Wireless Sensor Module - FCC ID Z4GK101 - Cora Tine Teoranta T/A Kelsius
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Oct 19, 2011
Application Purpose
Original Equipment
Date of Application
Oct 19, 2011
Equipment Note
Wireless Sensor Module
Frequency Range
903.20000000 - 924.00000000
Company
Cora Tine Teoranta T/A Kelsius
Country
Ireland

Documents & Files

Select a file to view

Users Manual

โ†—

Cover Letter(s)

โ†—
โ†—
โ†—

External Photos

โ†—

ID Label/Location Info

โ†—

Internal Photos

โ†—

RF Exposure Info

Test Report

โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Product Manual Wireless Sensor Module K101 FCC ID: Z4GK101 Analogue Sensors (2): Thermistor: R@25 deg C = 10KOhms +/- 1% B = 3977 +/- 1% Digital Sensor: Normally Open contact 5VDC 25mA Radio Frequency Band: 902 to 928MHz Line of sight Radio Range: 100m Modulation Type: FHSS Power Output: 10mW Reprogrammability: Fully Reprogrammable over RF Battery: LithiumTiCl 3.6V 2AHr. AA Size. Battery Lifetime: 5 years with a 10 minute data transmission interval. Antenna: 915MHz ยผ wave antenna 82mm long Copper core 1.0mm 2 PVC coated to 2.5mm OD Instruction for installation Note the enclosure into which this module is installed must display a Label clearly visible to the user without magnification stating โ€œContains FCC ID: Z4GK101โ€ This module is to be installed only in the end products of Cora Tine Teoranta t/a Kelsius Battery A -ve Antenna Battery B +ve Battery B -ve Battery A +ve Analogue Sensor Inputs Digital Sensor Input Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. WARNING! This module is to be installed only in Cora Tine Teoranta t/a Kelsius end products by Cora Tine Teoranta t/a Kelsius personnel, and shall not be offered to 3rd party OEM integrators or the general public. The RF Module is labeled with its own FCC ID Number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: Contains Transmitter Module FCC ID: Z4GK101 or Contains FCC ID: Z4GK101 To comply with FCC RF exposure limits for general population/uncontrolled exposure, the antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter.

Cover Letter(s)

14

Cover Letter(s)

Cora Tine Teoranta T/A Kelsius, Unit 2, Ballyconnell Industrial Estate, Falcarragh, Co Donegal, Ireland T +353 74 91 62982 F +353 74 91 65303 Kelsius Headed paper Limited Single Modular Approval Letter Date: 14-10-2011 Product name: Wireless Sensor FCC ID: Z4GK101 The EUT meets the requirements for modular approval as detailed in FCC Public notice 15.212. Limited single modular approval is sought as the modules will be installed in only Kelsius products under our control. Compliance to each of the requirements is described below. 1 The module does not have a shielding can and we are therefore requesting limited modular approval. 2 The modular transmitter has no modulation/data inputs. Please see schematics of the module for example 3 The modular transmitter must have its own power supply regulator. Please see schematics, the EUT has its own voltage regulation circuitry. 4 The modular transmitter complies with the antenna requirements of FCC sections 15.203 and 15.204(c) 5 The modular transmitter has been tested in a stand-alone configuration. 6 The modular transmitter must be labelled with its own FCC ID number. The EUT is labelled with its own FCC ID number 7 The modular transmitter is compliant with all applicable FCC rules. 8 The modular transmitter must comply with any applicable RF exposure requirements. The EUT fully complies with RF exposure requirements. Yours Sincerely David Gray CTO Kelsius

External Photos

Report Ref: 11E3697-1 Page 1 of 4 Project Number: 11E3697-1 Prepared for: Kelsius Ltd By Compliance Engineering Ireland Ltd Ratoath Road Ashbourne Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Code: 8517A Compliance Engineering Ireland Ltd Clonross Lane, Derrockstown, Dunshaughlin, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 11E3697-1 Page 2 of 4 Date September 2011 FCC EQUIPMENT AUTHORISATION Test Report EUT Description Network Controller Authorised: Report Ref: 11E3697-1 Page 3 of 4 Figure 1: Test Configuration Figure 2: EUT on turntable Report Ref: 11E3697-1 Page 4 of 4 Figure 3: Internal Front View Figure 4: Module Rear View

ID Label/Location Info

KELSIUS MODEL:K101 FCC ID: Z4GK101 35mm 14mm CONTAINS FCC ID: Z4GK101 14mm Located on back of module pcb Located on side of enclosure

Internal Photos

Report Ref: 11E3697-1 Page 1 of 4 Project Number: 11E3697-1 Prepared for: Kelsius Ltd By Compliance Engineering Ireland Ltd Ratoath Road Ashbourne Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Code: 8517A Compliance Engineering Ireland Ltd Clonross Lane, Derrockstown, Dunshaughlin, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 11E3697-1 Page 2 of 4 Date September 2011 FCC EQUIPMENT AUTHORISATION Test Report EUT Description Network Controller Authorised: Report Ref: 11E3697-1 Page 3 of 4 Figure 1: Test Configuration Figure 2: EUT on turntable Report Ref: 11E3697-1 Page 4 of 4 Figure 3: Internal Front View Figure 4: Module Rear View

Test Report

Report Ref: 11E3697-4 Page 1 of 33 Project Number: 11E3697-4 Prepared for: Kelsius Ltd By Compliance Engineering Ireland Ltd Raystown Ratoath Road Ashbourne Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Code: 8517A Compliance Engineering Ireland Ltd Raystown, Ratoath Road, Ashbourne, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 11E3697-4 Page 2 of 33 Date September 2011 FCC EQUIPMENT AUTHORISATION Test Report EUT Description Sensor Module for use by applicant only. Authorised: Report Ref: 11E3697-4 Page 3 of 33 TEST SUMMARY The equipment complies with the requirements according to the following standards. TEST SPECIFICATION TEST PARAMETERS RESULT 15.247(b), (c) / RSS-210 A8.4 Maximum peak output power Pass 15.247/(e) / RSS-210 A8.1 Hopping channel carrier frequencies separation Pass 15.247(a) / RSS-210 A8.1 20dB bandwidth of the hopping channel Pass 15.247/(e) / RSS-210 A8.1 Number of hopping frequencies Pass 15.247/(e) / RSS-210 A8.1 Average time of occupancy of hopping frequency Pass 15.247(d) / RSS-210 A8.5 Antenna conducted spurious and band edge emissions Pass 15.247(d) / RSS-210 A8.5 Radiated spurious emissions Pass 15.109 / ICES-003 Receiver/digital device radiated emissions Pass THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF COMPLIANCE ENGINEERING IRELAND LTD Report Ref: 11E3697-4 Page 4 of 33 Exhibit A โ€“ Technical Report Table of Contents 1.0 EUT DESCRIPTION ................................................................................................................................ 5 1.1 EUT OPERATION ..................................................................................................................................... 6 1.2 MODIFICATIONS ..................................................................................................................................... 7 1.3 DATE OF TEST ........................................................................................................................................ 7 1.4.1 MEASUREMENT UNCERTAINTY ......................................................................................................... 7 2.0 RADIATED EMISSIONS MEASUREMENTS ......................................................................................... 8 2.1 TEST PROCEDURE ................................................................................................................................. 8 2.2 TEST CRITERIA ....................................................................................................................................... 8 3.0 FIELD STRENGTH OF SPURIOUS RADIATED EMISSIONS ............................................................. 9 4.0 MAXIMUM PEAK OUTPUT POWER .................................................................................................... 11 5.0 HOPPING CHANNEL CARRIER FREQUENCIES SEPARATION .................................................... 14 6.0 20DB BANDWIDTH OF THE HOPPING CHANNEL ........................................................................... 16 7.0 NUMBER OF HOPPING FREQUENCIES ............................................................................................ 19 8.0 AVERAGE TIME OF OCCUPANCY OF HOPPING FREQUENCY ................................................... 21 9.0 ANTENNA CONDUCTED SPURIOUS EMISSIONS ........................................................................... 23 10.0 ANTENNA CONDUCTED BAND EDGE COMPLIANCE .................................................................... 27 11.0 MAXIMUM PERMISSIBLE EXPOSURE .............................................................................................. 30 12.0 LIST OF TEST EQUIPMENT ................................................................................................................. 31 Report Ref: 11E3697-4 Page 5 of 33 1.0 EUT Description The EUT was a module using a short range 915 MHz band transceiver intended to be used by Kelsius only as the basis for detector modules used in temperature sensing and similar applications. Model: Network Controller Type: 915 MHz Sensor Module FCC ID: Z4GK101 Company: Kelsius Contact Dr David Gray Address: Unit 6, Ballyconnell Industrial Estate, Falcarragh, Co Donegal, Ireland Phone: +353 7491 62982 extn 223 e-mail: [email protected] Test Standards: 47 CFR, Part 15.247 Type of radio: Stand-alone Transmitter Type: FHSS Operating Frequency Range(s): 902 to 927 MHz Number of Channels: 53 Antenna: Internal Transmitter power configuration: Internal battery Test Methodology: Measurements performed according to the procedures in ANSI C63.4-2003 Report Ref: 11E3697-4 Page 6 of 33 1.1 EUT Operation Operating Conditions during Test: The equipment under test was operated during the measurement under the following conditions: Standby Continuous transmissions with hopping function enabled Continuous transmissions with hopping function disabled (modulated signal) Continuous transmissions with hopping function disabled (un-modulated signal) Continuous receiving Test program (customer specific) No. Description 1. Test was performed at low channel, middle channel, and upper channel New batteries were fitted prior to testing. The module transmits once every 60 seconds under internal control. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: +15 to +35 ยฐ C Humidity: 20-75 % Report Ref: 11E3697-4 Page 7 of 33 1.2 Modifications No modifications were required in order to pass the test specifications. 1.3 Date of Test The tests were carried out on one sample of the EUT during the month of September 2011. 1.4 Electromagnetic Emissions Testing The guidelines of CISPR 16-4 were used for all uncertainty calculations, estimates and expressions thereof for EMC testing. A copy of Compliance Engineering Ireland Ltd.โ€™s policy for EMC Measurement Uncertainty is available on request. RF Requirements: Spuriโ€ฆ

Text truncated - open the document above for the full version.

Test Setup Photos

Report Ref: 11E3697-1 Page 1 of 4 Project Number: 11E3697-1 Prepared for: Kelsius Ltd By Compliance Engineering Ireland Ltd Ratoath Road Ashbourne Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Code: 8517A Compliance Engineering Ireland Ltd Clonross Lane, Derrockstown, Dunshaughlin, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 11E3697-1 Page 2 of 4 Date September 2011 FCC EQUIPMENT AUTHORISATION Test Report EUT Description Network Controller Authorised: Report Ref: 11E3697-1 Page 3 of 4 Figure 1: Test Configuration Figure 2: EUT on turntable Report Ref: 11E3697-1 Page 4 of 4 Figure 3: Internal Front View Figure 4: Module Rear View

Contact Information

Applicant

David Gray(Dr)
[email protected]00353749162982Fax: 00353749165303

Test Firm

Compliance Engineering Ireland Ltd.John McAuley
[email protected]353-1-8256722Fax: 353-1-8256733

Technical Specifications

#Rule PartsFrequency RangePower Output
115C903.2 MHz - 924 MHz4.50 mW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Limited single modular approval. Output power listed is conducted. This grant is valid only when the module is installed in the end products of the grantee under their control as explained in this filing. Marketing of this module to 3rd parties and general public is prohibited. Grantee must ensure that the end user has no instructions to remove or install this module. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance requirements.
