Z4GK115Wireless Sensor Module

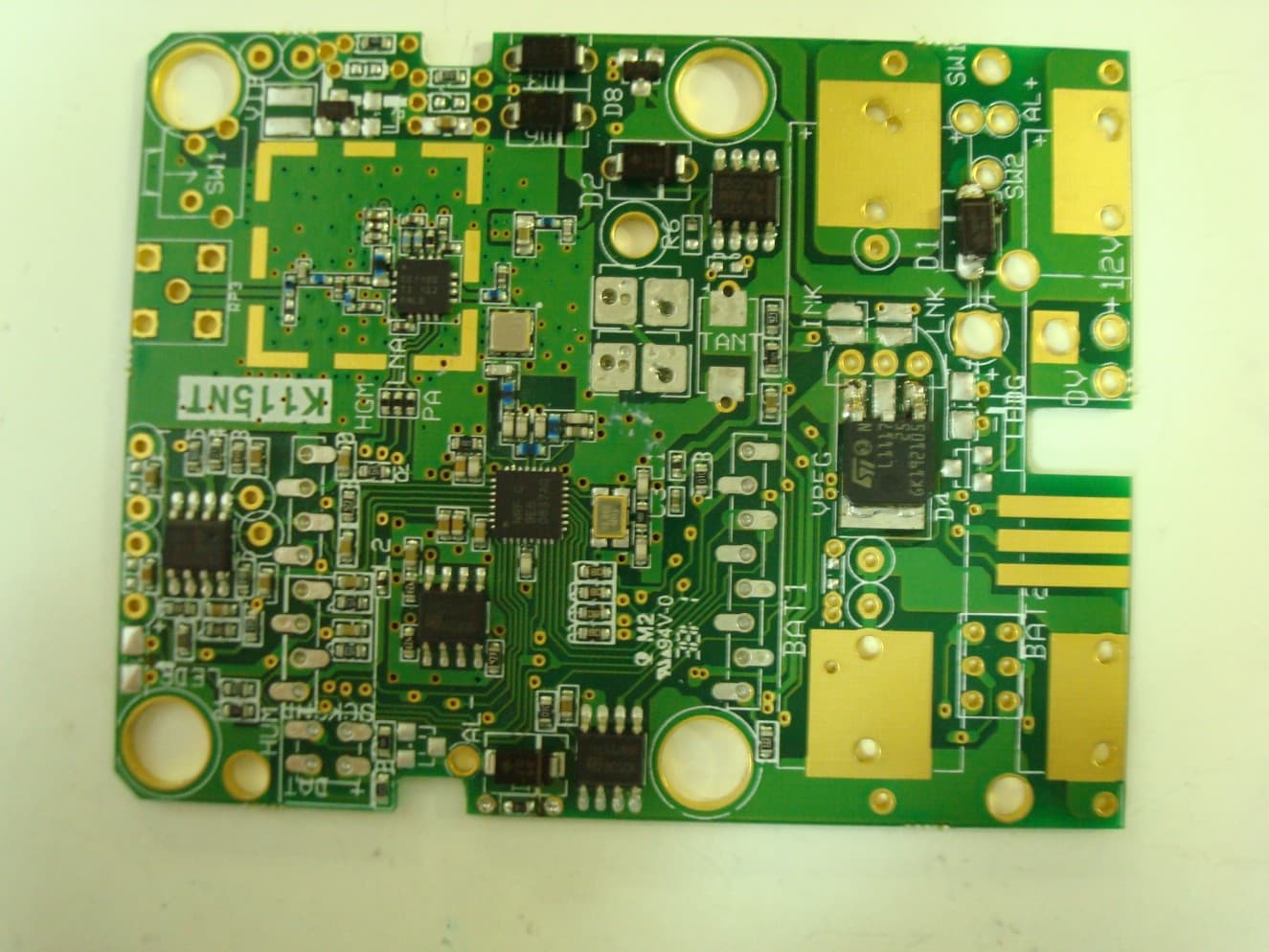

Product Manual Wireless Sensor Module K115 FCC ID: Z4GK115 Instruction for installation Note the enclosure into which this module is installed must display a Label clearly visible to the user without magnification stating “Contains FCC ID: Z4GK115” This module is to be installed only in the end products of Cora Tine Teoranta t/a Kelsius Antenna Linx Technologies Part Number ANT-916-CW-QW with part 15 compliant RP-SMA connector TI CC1190 Amplifier Linear voltage regulator Sensors and Op Amp EEPROM memory Nordic 10mW Transceiver 12 VDC input Battery Connections Analogue Sensors (2): Thermistor: R@25 deg C = 10KOhms +/- 1% B = 3977 +/- 1% Analogue Sensors (1): Power supply is monitored by 1M to 47K resistive divider. Digital Sensor: Normally Open contact 3.3VDC 25mA Digital Sensor: Sensirion SHT11 Temperature and Relative Humidity sensor Digital Outputs: GPIO 3 Green LED indicates connectivity GPIO 1 Alarm Output Back Up Battery: 3.6V 1AHr. AA Nickel Cadmium battery pack (2) Power Supply: 12VDC >500mA UL approved mains adaptor. Radio Frequency Band: 902 to 928MHz Line of sight Radio Range: 1000m Modulation Type: FHSS Power Output: 200mW Reprogrammability: Fully Reprogrammable over RF Antenna: Linx Technologies. Part Number ANT-916-CW-QW With part 15 compliant RP-SMA connector Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. WARNING! This module is to be installed only in Cora Tine Teoranta t/a Kelsius end products by Cora Tine Teoranta t/a Kelsius personnel, and shall not be offered to 3rd party OEM integrators or the general public. The RF Module is labeled with its own FCC ID Number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: Contains Transmitter Module FCC ID: Z4GK115 or Contains FCC ID: Z4GK115 To comply with FCC RF radiation exposure limits for general population, the antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20cm is maintained between the radiator (antenna) and all persons at all times and must not be collocated or operating in conjunction with any other antenna or transmitter.

Report Ref: 11E3272 Page 1 of 10 Project Number: 11E3272 FCC ID: Z4GK115 Prepared for: Kelsius By Compliance Engineering Ireland Ltd Clonross Lane Derrockstown Dunshaughlin Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Code: 8517A Date 13 th January 2012 FCC EQUIPMENT AUTHORISATION Test Report EUT Description Repeater Authorised: Compliance Engineering Ireland Ltd Raystown, Ratoath Road, Ashbourne, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 11E3272 Page 2 of 10 Kelsius Applicant Name and Address The system covered under this authorisation report was designed, manufactured and assembled by Kelsius Ltd. The company's full name and mailing address is given below: Unit 6, Ballyconnell Industrial Estate, Falcarragh, Co Donegal, Ireland Model Name The model number for the EUT covered under this application report is: Wireless Sensor Report Ref: 11E3272 Page 3 of 10 Report Ref: 11E3272 Page 4 of 10 Report Ref: 11E3272 Page 5 of 10 Report Ref: 11E3272 Page 6 of 10 Report Ref: 11E3272 Page 7 of 10 Report Ref: 11E3272 Page 8 of 10 Report Ref: 11E3272 Page 9 of 10 Report Ref: 11E3272 Page 10 of 10

Report Ref: 11E3272 Page 1 of 10 Project Number: 11E3272 FCC ID: Z4GK115 Prepared for: Kelsius By Compliance Engineering Ireland Ltd Clonross Lane Derrockstown Dunshaughlin Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Code: 8517A Date 13 th January 2012 FCC EQUIPMENT AUTHORISATION Test Report EUT Description Repeater Authorised: Compliance Engineering Ireland Ltd Raystown, Ratoath Road, Ashbourne, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 11E3272 Page 2 of 10 Kelsius Applicant Name and Address The system covered under this authorisation report was designed, manufactured and assembled by Kelsius Ltd. The company's full name and mailing address is given below: Unit 6, Ballyconnell Industrial Estate, Falcarragh, Co Donegal, Ireland Model Name The model number for the EUT covered under this application report is: Wireless Sensor Report Ref: 11E3272 Page 3 of 10 Report Ref: 11E3272 Page 4 of 10 Report Ref: 11E3272 Page 5 of 10 Report Ref: 11E3272 Page 6 of 10 Report Ref: 11E3272 Page 7 of 10 Report Ref: 11E3272 Page 8 of 10 Report Ref: 11E3272 Page 9 of 10 Report Ref: 11E3272 Page 10 of 10

Report Ref: 11E3272 Page 1 of 4 Project Number: 11E3272 FCC ID Z4GK115 Prepared for: Kelsius By Compliance Engineering Ireland Ltd Clonross Lane Derrockstown Dunshaughlin Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Code: 8517A Date 13 th January 2012 FCC EQUIPMENT AUTHORISATION Test Report EUT Description Wireless Sensor Module K115 Authorised: Compliance Engineering Ireland Ltd Raystown, Ratoath Road, Ashbourne, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 11E3272 Page 2 of 4 List of Exhibits 1 Maximum Permissible Exposure THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF COMPLIANCE ENGINEERING IRELAND LTD Report Ref: 11E3272 Page 3 of 4 RF Exposure Exhibit– Technical Report Kelsius Applicant Name and Address The system covered under this authorisation report was designed, manufactured and assembled by Kelsius Ltd. The company's full name and mailing address is given below: Unit 6, Ballyconnell Industrial Estate, Falcarragh, Co Donegal, Ireland Model Name The model number for the EUT covered under this application report is: Wireless Sensor Module K115 Report Ref: 11E3272 Page 4 of 4 1.0 Maximum Permissible Exposure Prediction of MPE limit at a given distance Equation from OET Bulletin 65 where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23 (dBm) Maximum peak output power at antenna input terminal: 200 (mW) Antenna gain(typical): 2.15 (dBi) Maximum antenna gain: 1.64 (numeric) Prediction distance: 20 (cm) Prediction frequency: 913 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.6 (mW/cm^2) Power density at prediction frequency: 0.065 (mW/cm^2) Maximum allowable antenna gain: 9.63 (dBi)

Report Ref: 11E3272-2 Page 1 of 35 Project Number: 11E3272-2 Prepared for: Kelsius Ltd By Compliance Engineering Ireland Ltd Raystown Ratoath Road Ashbourne Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Code: 8517A Date 13 January 2012 FCC EQUIPMENT AUTHORISATION Test Report EUT Description Sensor Module for use by applicant only. Authorised: Compliance Engineering Ireland Ltd Raystown, Ratoath Road, Ashbourne, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 11E3272-2 Page 2 of 35 TEST SUMMARY The equipment complies with the requirements according to the following standards. TEST SPECIFICATION TEST PARAMETERS RESULT 15.247(b), (c) / RSS-210 A8.4 Maximum peak output power Pass 15.247/(e) / RSS-210 A8.1 Hopping channel carrier frequencies separation Pass 15.247(a) / RSS-210 A8.1 20dB bandwidth of the hopping channel Pass 15.247/(e) / RSS-210 A8.1 Number of hopping frequencies Pass 15.247/(e) / RSS-210 A8.1 Average time of occupancy of hopping frequency Pass 15.247(d) / RSS-210 A8.5 Antenna conducted spurious and band edge emissions Pass 15.247(d) / RSS-210 A8.5 Radiated spurious emissions Pass 15.109 / ICES-003 Receiver/digital device radiated emissions Pass THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF COMPLIANCE ENGINEERING IRELAND LTD Report Ref: 11E3272-2 Page 3 of 35 Exhibit A – Technical Report Table of Contents 1.0 EUT DESCRIPTION ................................................................................................................................ 4 1.1 EUT OPERATION ..................................................................................................................................... 5 1.2 MODIFICATIONS ..................................................................................................................................... 5 1.3 DATE OF TEST ........................................................................................................................................ 6 1.4.1 MEASUREMENT UNCERTAINTY ......................................................................................................... 6 2.0 EMISSIONS MEASUREMENTS ............................................................................................................. 7 2.1 CONDUCTED EMISSIONS MEASUREMENTS .................................................................................... 7 2.2 RADIATED EMISSIONS MEASUREMENTS ......................................................................................... 7 2.3 TEST CRITERIA ....................................................................................................................................... 8 3.0 FIELD STRENGTH OF SPURIOUS RADIATED EMISSIONS ............................................................. 9 4.0 MAXIMUM PEAK OUTPUT POWER .................................................................................................... 11 5.0 HOPPING CHANNEL CARRIER FREQUENCIES SEPARATION .................................................... 14 6.0 20DB BANDWIDTH OF THE HOPPING CHANNEL ........................................................................... 16 7.0 NUMBER OF HOPPING FREQUENCIES ............................................................................................ 19 8.0 AVERAGE TIME OF OCCUPANCY OF HOPPING FREQUENCY ................................................... 21 9.0 ANTENNA CONDUCTED SPURIOUS EMISSIONS ........................................................................... 23 10.0 ANTENNA CONDUCTED BAND EDGE COMPLIANCE .................................................................... 28 11.0 LIST OF TEST EQUIPMENT ................................................................................................................. 31 Report Ref: 11E3272-2 Page 4 of 35 1.0 EUT Description The EUT was a module using a short range 915 MHz band transceiver intended to be used by Kelsius only as the basis for detector modules used in temperature sensing and similar applications. Model: Wireless Sensor Module K115 Type: 915 MHz Sensor Module FCC ID: Z4GK115 Company: Kelsius Contact Dr David Gray Address: Unit 6, Ballyconnell Industrial Estate, Falcarragh, Co Donegal, Ireland Phone: +353 7491 62982 extn 223 e-mail: [email protected] Test Standards: 47 CFR, Part 15.247 Type of radio: Stand-alone Transmitter Type: FHSS Operating Frequency Range(s): 902 to 927 MHz Number of Channels: 53 Antenna: Internal Transmitter power configuration: 12VDC supply from mains power adaptor Test Methodology: Measurements performed according to the procedures in ANSI C63.4-2003 Report Ref: 11E3272-2 Page 5 of 35 1.1 EUT Operation Operating Conditions during Test: The equipment under test was operated during the measurement under the following conditions: Standby Continuous transmissions with hopping function enabled Continuous transmissions with hopping function disabled (modulated signal) Continuous transmissions with hopping function disabled (un-modulated signal) Continuous receiving Test program (customer specific) No. Description 1. Test was performed at low channel, middle channel, and upper channel The module transmits once every 5 seconds under internal control. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: +15 to +35 ° C Humidity: 20-75 % 1.2 Modifications No modifications were required in order to pass the test specifications. Report Ref: 11E3272-2 Page 6 of 35 1.3 Date of Test The tests were carried out on one sample of the EUT during the month of December 2011. 1.4 Electromagnetic Emissions Testing The guidelines of CISPR 16-4 were used for all uncertainty calculations, estimates and expressions thereof for EMC testing. A copy of Compliance Engineering Ireland Ltd.’s policy for EMC Measurement Uncertainty is available on request. RF Requirements: Spurious emissions in accordance with FCC CFR 15.107, 15.109 and 15.209. Te…

Text truncated - open the document above for the full version.

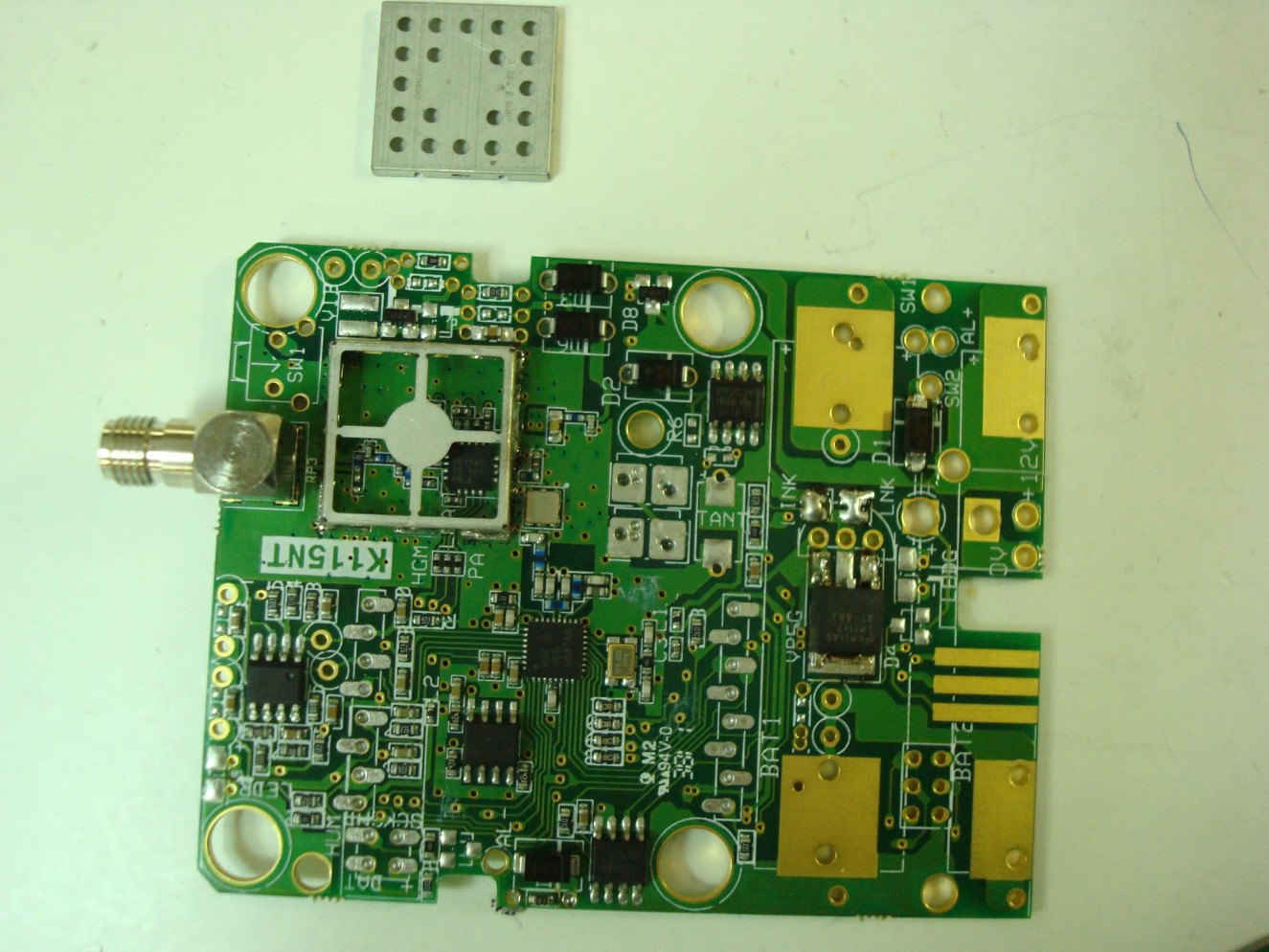

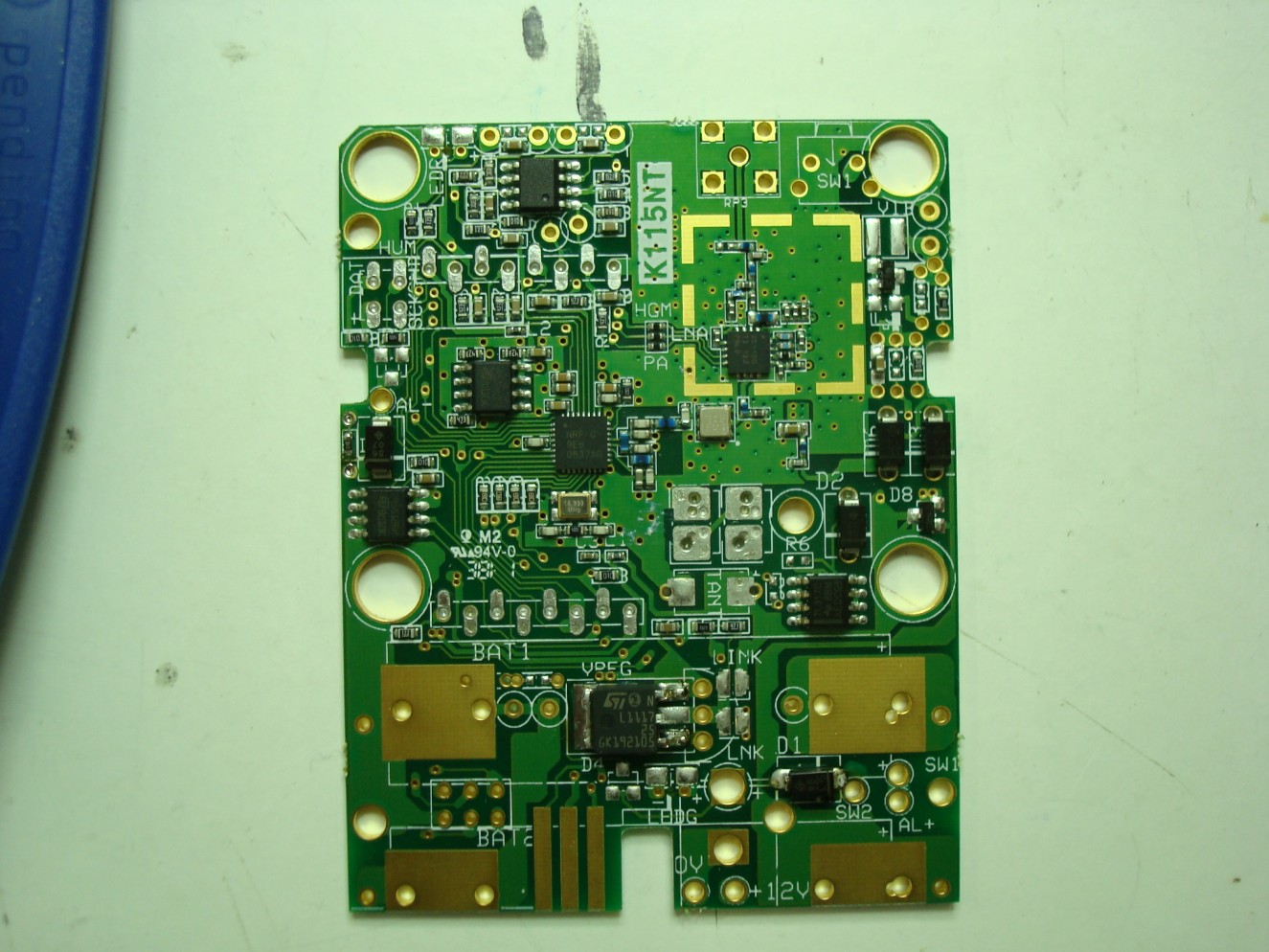

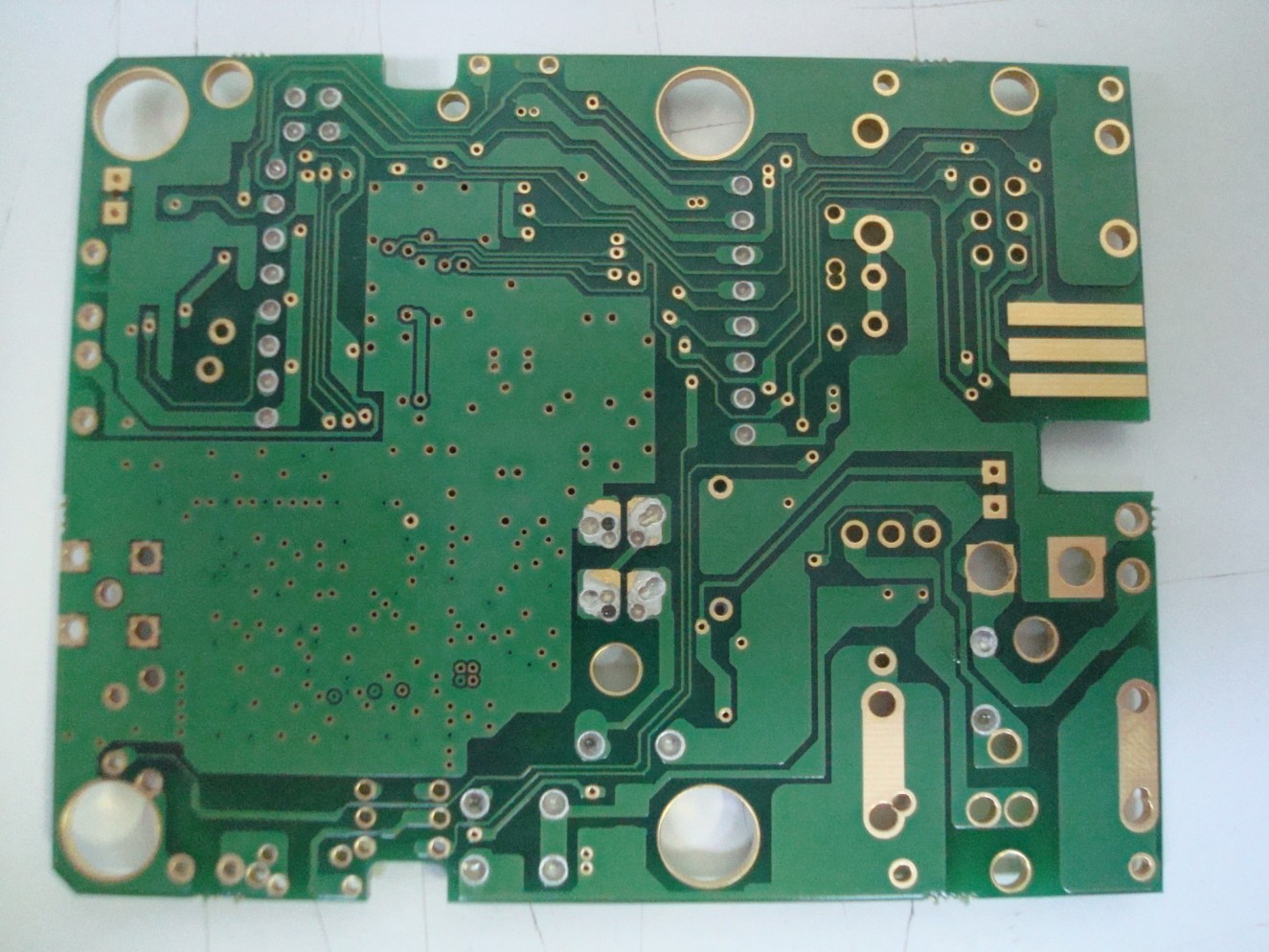

Report Ref: 11E3272-1 Page 1 of 7 Project Number: 11E3272-1 FCC ID Z4GK115 Prepared for: Kelsius By Compliance Engineering Ireland Ltd Clonross Lane Derrockstown Dunshaughlin Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Code: 8517A Date 29 th December 2011 FCC EQUIPMENT AUTHORISATION Test Report EUT Description Wireless Sensor Module K115 Authorised: Compliance Engineering Ireland Ltd Raystown, Ratoath Road, Ashbourne, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 11E3272-1 Page 2 of 7 List of Exhibits Title Page List of Exhibits Exhibit A – Technical Report Exhibit B – Photographs THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF COMPLIANCE ENGINEERING IRELAND LTD Report Ref: 11E3272-1 Page 3 of 7 Exhibit A – Technical Report Kelsius Applicant Name and Address The system covered under this authorisation report was designed, manufactured and assembled by Kelsius Ltd. The company's full name and mailing address is given below: Unit 6, Ballyconnell Industrial Estate, Falcarragh, Co Donegal, Ireland Model Name The model number for the EUT covered under this application report is: Wireless Sensor Module K115 Report Ref: 11E3272-1 Page 4 of 7 Test Setups FIGURE 1: Radiated Emissions Test Setup – Test Distance 10m Report Ref: 11E3272-1 Page 5 of 7 FIGURE 2: Conducted Emissions Test Setup Report Ref: 11E3272-1 Page 6 of 7 Exhibit B Test Configurations Figure 1: Radiated emissions setup below 1 GHz Figure 2: Radiated emissions setup above 1 GHz Report Ref: 11E3272-1 Page 7 of 7 Figure 3: Conducted emissions setup
