Z57-321120708CAR-MOUNTED DEVICE FOR FLEET MANAGEMENT AUTOMATION

User manual Zibox v3 Author Guillaume REMOND Version 1.5 THIS DOCUMENT AND THE INFORMATION IT CONTAINS ARE PROPERTY OF EILEO AND CONFIDENTIAL. THEY SHALL NOT BE REPRODUCED NOR DISCLOSED TO ANY PERSON EXCEPT TO THOSE HAVING A NEED TO KNOW THEM WITHOUT PRIOR WRITTEN CONSENT OF EILEO User manual (1.4) - Page 2 / 7 THIS DOCUMENT AND THE INFORMATION IT CONTAINS ARE PROPERTY OF EILEO AND CONFIDENTIAL. THEY SHALL NOT BE REPRODUCED NOR DISCLOSED TO ANY PERSON EXCEPT TO THOSE HAVING A NEED TO KNOW THEM WITHOUT PRIOR WRITTEN CONSENT OF EILEO. History of changes Version Date Changes Author 1.0 24/02/2012 Initial version Guillaume Rémond 1.1 29/05/2012 Removed FM functionality Added modifications for certification Guillaume Rémond 1.2 08/06/2012 Fix FCC ID / IC ID Guillaume Rémond 1.3 21/06/2012 Fix IC ID Guillaume Rémond 1.4 30/07/2012 Change FCC ID and IC ID, Zibox V3.2.1 Thierry Lemoult 1.5 09/08/2012 Change text about antenna distance with user Thierry lemoult CONTENTS 1. INTRODUCTION ..........................................................................................................................3 2. ScreenPad notice ........................................................................................................................4 1. Navigation ......................................................................................................................................... 4 2. Language ........................................................................................................................................... 5 3. Call volume ........................................................................................................................................ 5 4. Contrast ............................................................................................................................................. 5 3. Cautions .....................................................................................................................................6 1. Power supply ..................................................................................................................................... 6 2. Antennas ........................................................................................................................................... 6 4. Requirements .............................................................................................................................7 User manual (1.4) - Page 3 / 7 THIS DOCUMENT AND THE INFORMATION IT CONTAINS ARE PROPERTY OF EILEO AND CONFIDENTIAL. THEY SHALL NOT BE REPRODUCED NOR DISCLOSED TO ANY PERSON EXCEPT TO THOSE HAVING A NEED TO KNOW THEM WITHOUT PRIOR WRITTEN CONSENT OF EILEO. 1. INTRODUCTION This guide describes how to use the interface inside the vehicle. User manual (1.4) - Page 4 / 7 THIS DOCUMENT AND THE INFORMATION IT CONTAINS ARE PROPERTY OF EILEO AND CONFIDENTIAL. THEY SHALL NOT BE REPRODUCED NOR DISCLOSED TO ANY PERSON EXCEPT TO THOSE HAVING A NEED TO KNOW THEM WITHOUT PRIOR WRITTEN CONSENT OF EILEO. 2. ScreenPad notice 1. Navigation Buttons Functions Control knob - Turn knob to navigate through the menus - Press briefly: open a menu or confirm a selection Green button - Confirm a selection (YES) - Open a menu Red button - Cancel a selection (NO) - Back to previous menu Backlighting Backlighting is automatically deactivated after 30 seconds of inactivity. To reactivate the backlighting you can press any button. Pressing a button in this situation does not produce any other action. Pop-ups The lifetime of a pop-up depends on the message displayed. You can press any button to close a pop-up. Pressing a button in this situation does not produce any other action. User manual (1.4) - Page 5 / 7 THIS DOCUMENT AND THE INFORMATION IT CONTAINS ARE PROPERTY OF EILEO AND CONFIDENTIAL. THEY SHALL NOT BE REPRODUCED NOR DISCLOSED TO ANY PERSON EXCEPT TO THOSE HAVING A NEED TO KNOW THEM WITHOUT PRIOR WRITTEN CONSENT OF EILEO. 2. Language Sets the language of the user interface. 3. Call volume To adjust the volume of the incoming caller’s voice, turn the control knob. 4. Contrast To adjust screen contrast, turn the control knob. English LANGUAGE French CALL VOLUME      CONTRAST      User manual (1.4) - Page 6 / 7 THIS DOCUMENT AND THE INFORMATION IT CONTAINS ARE PROPERTY OF EILEO AND CONFIDENTIAL. THEY SHALL NOT BE REPRODUCED NOR DISCLOSED TO ANY PERSON EXCEPT TO THOSE HAVING A NEED TO KNOW THEM WITHOUT PRIOR WRITTEN CONSENT OF EILEO. 3. Cautions 1. Power supply A few precautions are necessary when connecting the power supply:  For the permanent power supply, wait several minutes to be sure that the vehicle does not switch off the power supply automatically  The ground must be adequate  The power supply must be SELV (Safety Extra Low Voltage), and limited power source. Value Continuous voltage 12 Volts Maximum voltage 36 Volts Maximum current 2 Amps Temperature range -20°C ... + 70°C 2. Antennas All antennas must be at minimum 20cm between each others. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. User manual (1.4) - Page 7 / 7 THIS DOCUMENT AND THE INFORMATION IT CONTAINS ARE PROPERTY OF EILEO AND CONFIDENTIAL. THEY SHALL NOT BE REPRODUCED NOR DISCLOSED TO ANY PERSON EXCEPT TO THOSE HAVING A NEED TO KNOW THEM WITHOUT PRIOR WRITTEN CONSENT OF EILEO. 4. Requirements The product Zibox v3.2 is certified:  FCC ID: Z57-321120708  IC ID: 9970A-321120708 This class B digital device complies with Canadian ICES-003. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in a…

Text truncated - open the document above for the full version.

EILEO S.A.S au capital de 120 004 € 3 impasse de la planchette – 75003 PARIS – France 441 384 039 R.C.S PARIS Eileo SAS 3 impasse de la planchette 75003 PARIS France Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Z57-321120708 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Operational description Block diagram Electrical schematics Parts list ZiboxV3-OpDes ZiboxV3-blkDia ZiboxV3-Schem ZiboxV3-PartsLst The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Thierry Lemoult Scientific director

EILEO S.A.S. au capital de 120 004€ 3 Impasse de la Planchette – 75003 PARIS – France 441 384 039 R.C.S. PARIS Eileo S.A.S. 3 impasse de la planchette 75003 Paris FRANCE TO: TIMCO Subject: Certification submission of a device with RFID function and including previously « Modular Approval » certified RF modules Product: Zibox v3 FCC ID: Z57-321120708 IC: 9970A-321120708 Dear Sir/Madam, We, Eileo S.A.S., would like to apply for certification our car-mounted device for fleet. The equipment submitted for Certification includes a RFID function which has been tested according to relevant FCC/RSS rules. In addition, the equipment integrates a Bluetooth/Wifi module already « modular approval » certified under FCC ID: U9R-W2CBW003 / IC: 7089A-W2CBW003. This module is strictly identical as for the original tests. The equipment also integrates a GSM/GPRS module already “modular approval” certified under FCC ID: QIPPH8-P / IC: 7830A-PH8P. This module is strictly identical as for original tests. The GSM/GPRS antenna would be separated by more than 20 cm from any other RF components. The 2 RF functions (Bluetooth, Wifi) would never operate simultaneously (only one function at a given time). If you have any queries, please do not hesitate to contact us. Best Regards. July 16th, 2012 Guillaume Remond, In-car development manager

EILEO S.A.S. au capital de 120 004€ 3 Impasse de la Planchette – 75003 PARIS – France 441 384 039 R.C.S. PARIS EILEO S.A.S 3 impasse de la planchette 75003 PARIS France Federal Communications Commission July 16 th , 2012 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint M. Olivier ROY, Emitech Atlantique, 21, rue de la Fuye, F 49610 Juigné / Loire. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Federal Communications Commission, still resides with EILEO S.A.S., 3 impasse de la planchette, 75003 PARIS, France. This authorization is valid until further written notice from EILEO S.A.S. July 16 th , 2012 By Thierry Lemoult, Scientific director On behalf of EILEO S.A.S. Telephone: +33.1.53.01.21.75 E-mail: [email protected]

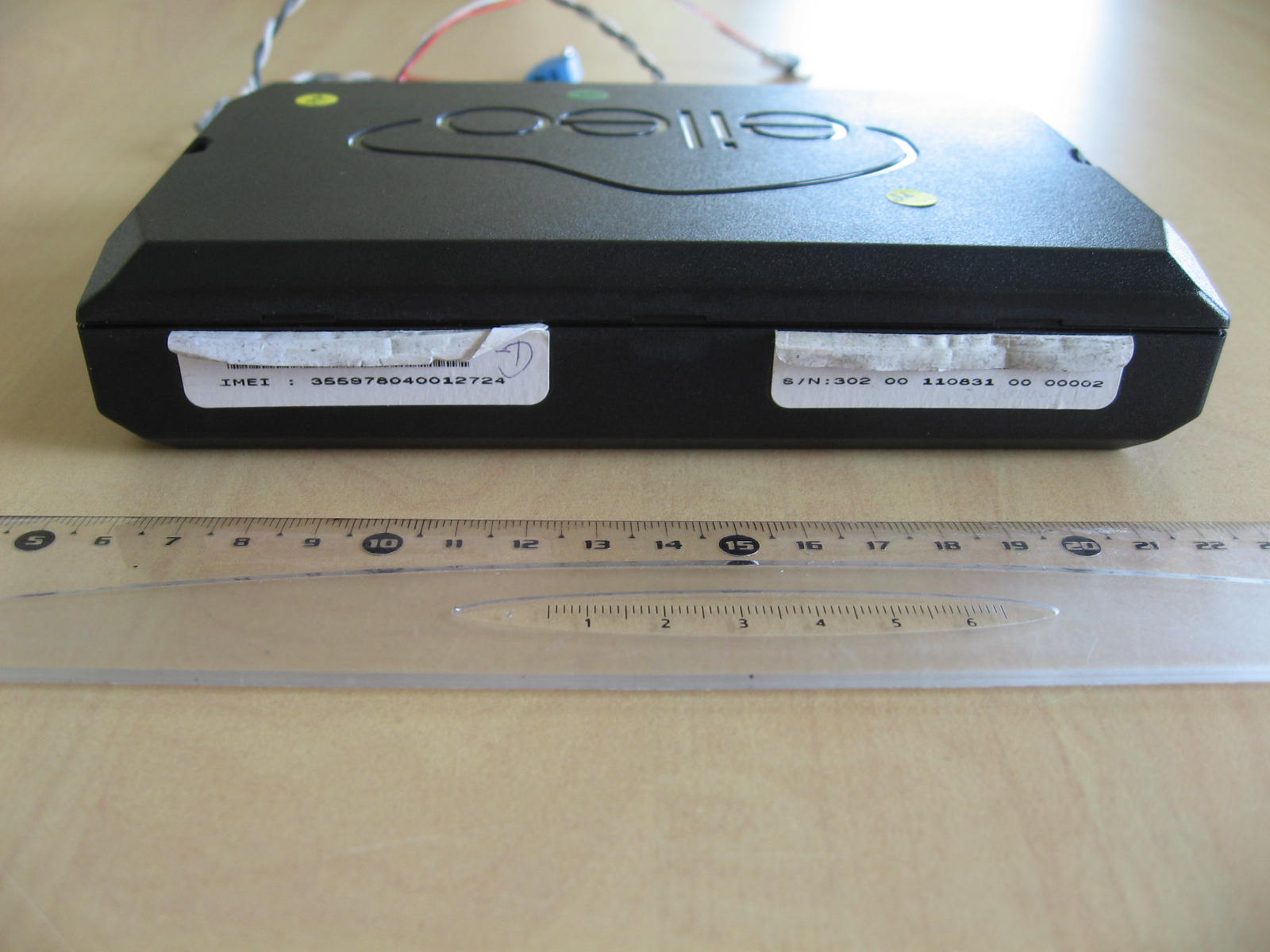

External photos PAGE 1 EUT main box : Six sides of main box External photos PAGE 2 TAG reader:

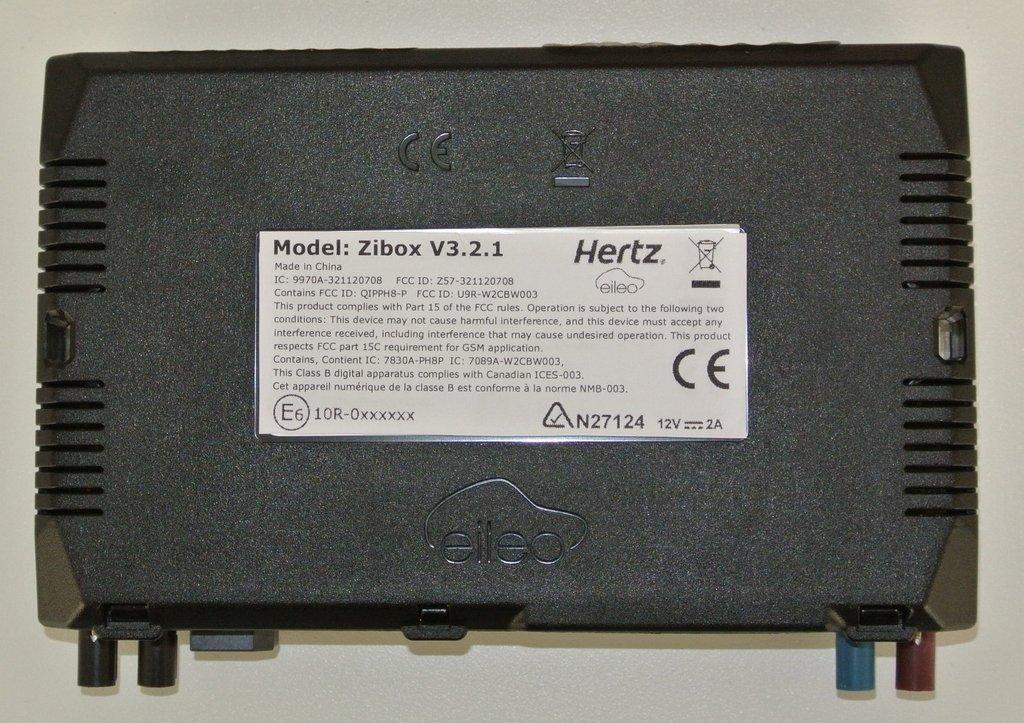

Product label Label location Bottom side of the product 90 mm Model: Zibox V3.2.1 Font : Verdana, size 11, bold Made in China IC: 9970A-321120708 FCC ID: Z57-321120708 Contains FCC ID: QIPPH8-P FCC ID: U9R-W2CBW003 This product complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. This product respects FCC part 15C requirement for GSM application. Contains, Contient IC: 7830A-PH8P IC: 7089A-W2CBW003, This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003. 38 mm Font : Verdana, size 5

Internal photos PAGE 1 Main board top Bottom BT shield Internal photos PAGE 2 Inside BT shield RFID Antenna Top Bottom Internal photos PAGE 3 Key holder board GSM GPS Board

Z.I. de Lanserre, 21, rue de la Fuye - 49610 Juigné sur Loire - Siret : 344 545 645 00154 Tél. : +33 (0) 2 41 57 57 40 - Fax : +33 (0) 2 41 45 25 77 - E-mail : [email protected] - URL : www.emitech.fr Siège Social : 3, rue des Coudriers - CAP 78 - ZA de l’Observatoire - 78180 MONTIGNY LE BX S.A. au capital de 1 560 000 € - R.C.S. VERSAILLES 344 545 645 - APE 7112B R052-RAD-12-103774-2/A Ed.1 DISTRIBUTION: Mr Lemoult Company: EILEO Number of pages: 25 including 1 annexe Technical Verification Ed. Date Modified Written by Quality Approval pages Name Visa Name Visa 1 8-Aug-12 1, 3, 4 G.Hyaumet O. ROY Duplication of this test report is only permitted for an integral photographic facsimile. It includes the number of pages referenced here above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole manufactured products of the tested sample. E.M.C. test report standard to apply: CFR 47 FCC Part 15 (2012) Equipment under test: TELEMATIC BOX FOR CAR-SHARING Model: ZIBOX V3.2.1 FCC ID: Z57-321120708 Company: EILEO R052-RAD-12-103774-2/A Ed.1 PAGE 2 R052-RAD-12-103774-2A Fcc PRODUCT: Telematic Box Reference / model: Zibox V3.2.1 Serial number: N°1 : HCS32124120000014 / IMEI N° 359628040184686 N°2 : HCS32124120000027 / IMEI N° 359628040184702 MANUFACTURER: EILEO COMPANY SUBMITTING THE PRODUCT AND TECHNICAL SUPORT: Company: EILEO Address: 3, impasse de La Planchette 204, rue de Crimée Paris (75003) France Responsible: M. Lemoult DATE(S) OF TEST: 09 to 17 July 2012 02 and 03 August 2012 TESTING LOCATION: EMITECH laboratory in Juigné sur Loire (49) FRANCE FCC 2.948 Listed Site Registration Number: 90469 EMITECH laboratory in Le Mans for prescan measurements. (49) FRANCE TESTED BY: G.Hyaumet SUPERVISED BY: O. Roy R052-RAD-12-103774-2/A Ed.1 PAGE 3 R052-RAD-12-103774-2A Fcc CONTENTS TITLE PAGE 1. INTRODUCTION ........................................................................................................................... 4 2. NORMATIVE REFERENCE .......................................................................................................... 4 3. ABBREVIATIONS ......................................................................................................................... 4 4. TEST UNIT CONFIGURATION .................................................................................................... 4 5. EUT OPERATING CONDITION ................................................................................................... 5 6. TESTS AND CONCLUSIONS ....................................................................................................... 6 6.1 unintentional radiator (subpart B) .............................................................................................. 6 6.2 intentional radiator (subpart C) .................................................................................................. 6 7. MEASUREMENT OF RADIATED INTERFERENCE FIELD STRENGTH ............................... 7 8. RADIATED EMISSION LIMITS; general requirements ............................................................. 12 9. OPERATION WITHIN THE BAND 13.110 – 14.010 MHz ........................................................ 19 ANNEX N°1 : Photos of the equipment under test R052-RAD-12-103774-2/A Ed.1 PAGE 4 R052-RAD-12-103774-2A Fcc 1. INTRODUCTION This document presents the result of E.M.C. test carried out on the following equipment: Zibox V3.2.1 in accordance with normative reference. The application of the equipment is a car-mounted device for fleet management automation. The equipment under test integrates a GSM/GPRS module (FCC ID: QIPPH8) and a WiFi/Bluetooth module (FCC ID: U9R-W2CBW003) both already certified under single modular approval rules. This test report concerns RFID function of the device under test : FCC ID: Z57-321120708 2. NORMATIVE REFERENCE The standards and testing methods related throughout this report are those listed below. They are applied on the whole test report even though the extensions (version, date and amendment) are not repeated. CFR 47 - FCC Part 15 (12) Code of Federal Regulations Title 47 - Telecommunication Chapter 1 - Federal Communications Commission Part 15 - Radio frequency devices Subpart B - Unintentional Radiators Limits and methods of measurement of radio disturbance characteristics of information technology equipment FCC Part 2 (00) Frequency allocations and Radio Treaty Matters General Rules and Regulations ANSI C63.4 (03) Standard format measurements/technical report personal computer and peripherals. 3. ABBREVIATIONS For the purposes of the present document, the following abbreviations apply: EUT Equipment Under Test RF Radio Frequency OATS Open Area Test Site DVB-T Digital Video Broadcasting – Terrestrial 4. TEST UNIT CONFIGURATION ANNEX 1 Photos of the equipment under test R052-RAD-12-103774-2/A Ed.1 PAGE 5 R052-RAD-12-103774-2A Fcc ITU Emission code: - Class:B Antenna type and gain: 4cm diameter loop, 1.5dBi Operating frequency range: 13.56MHz Number of channels: 1 Frequency generation: - Modulation: - Power source: +12Vdc from car battery 5. EUT OPERATING CONDITION EUT is linked to auxiliary devices as presented hereafter: EUT is powered from a 12Vdc power source, with IGNITION wire connected to +12V or OV according to informations listed in the annexed document software description for certification. Idle state means RFID reader is waiting for a tag, others functions are disabled. Idle state for RFID reader is not functional after a period. (Identified software bug) R052-RAD-12-103774-2/A Ed.1 PAGE 6 R052-RAD-12-103774-2A Fcc 6. TESTS AND CONCLUSIONS 6.1 unintentional radiator (subpart B) Test Description of test Respected criteria? Comment procedure Yes No NAp NAs FCC Part 15.107 CONDUCTED LIMITS X FCC Part 15.109 RADIATED EMISSION LIMITS X Note NAp: Not Applicable NAs: Not Asked Note: Criterion is respected…

Text truncated - open the document above for the full version.

Test set-up PAGE 1 Final measurement, EUT is in vertical position (right side face to test antenna): Final measurement, EUT is in horizontal position (right side face to test antenna):
