Z5W-10520111150 MHz band cellular base station

BS422 installation and setup guideline Ver. 1.11 The information contained in this document is the property of Damm Cellular Systems A/S. This document is subject to copyright and shall not be published or reproduced, in whole or in part, without the written permission of Damm Cellular Systems A/S. © 2010 Damm Cellular Systems A/S. All rights reserved. Møllegade 68, DK-6400 Sønderborg, Denmark Phone: +45 74 42 35 00, Fax: +45 74 42 30 31, E-Mail: [email protected], http://www.damm.dk Doc. No. Rev. Date 1.112020-03-06 Damm Cellular Systems A/S, Denmark BS422 Installation and Setup guideline BS422 Installation and setup guideline - Specifications subject to change without notice 2 INTRODUCTION This manual is intended for installation and configuration of the BS422 for operational use. It is recommended that engineers doing the installation and configuration of a BS422 have practical experience in installation of radio and computer systems, and have made themselves familiar with the BS422 equipment through appropriate DAMM training courses and study of the content of the TetraFlex manual and other documentation from DAMM. IMPORTANT: Updates / changes / important information related to the TetraFlex® system and software may be downloaded from the protected part of www.damm.dk Please check this URL for updated information before attempting to install or correct errors NOTE: Chapters marked with a indicate areas where special care must be taken to avoid personal injury or damage to the equipment. Before starting installation and configuration, please read the entire manual carefully. NOTE: It is the responsibility of the system owner / operator to ensure that only authorized service persons has access to the inside circuits of the BS422 NOTE: It is the responsibility of the system owner / operator to ensure that all local legislation, rules and regulations are complied. Internal fuses protect the BS422. Always replace with fuses of equivalent value and type. General Warning This manual contains important safety and operational information. Please read and follow the instructions in this manual. Failure to do so could be hazardous and result in damage to your device. Changes and modifications to this device not expressly proved by DAMM could void the user’s authorization to operate this device Doc. No. Rev. Date 1.112020-03-06 Damm Cellular Systems A/S, Denmark BS422 Installation and Setup guideline BS422 Installation and setup guideline - Specifications subject to change without notice 3 North America regulations The Base Station Transceivers and products devices mentioned in this User Manual comply to FCC part 90 and Industry Canada (IC) RS119 regulations for such equipment. The equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. The equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. Canadian regulations Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. RF Exposure EU: The DAMM developed transmitting devices mentioned in this User Manual have the Nemko approval concerning “Maximum Permissible Exposure Calculations” which are the European limits for maximum permissible exposure defined in the document 1999/519/EC, Council Recommendation of 12. July 1999. A summary of the results is listed below. The specific Nemko Document 128948/5 and 365007-07r01 can be obtained by request from the DAMM Support Department. USA: RF Exposure compliance is determined at time of licensing. Canada: the following minimum safety distances should be maintained based on maximum authorized output power. Au Canada, les distances de sécurité minimales suivantes doivent être respectées en fonction de la puissance de sortie maximale autorisée. RF Exposure Requirements (Canada): Freq. band: 68-174MHz TR type Power Safety Distance m/ft BS422 68MHz 450W E.I.R.P. 273W E.R.P. 5.5/18 BS422 146MHz 794W E.I.R.P. 7.5/24.6 484W E.R.P. 7.5/24.6 Freq. band: 410-470MHz TR type Power Safety Distance m/ft BS422 420-460MHz 794W E.I.R.P. 6.5/21.3 484W E.R.P. 6.5/21.3 Doc. No. Rev. Date 1.112020-03-06 Damm Cellular Systems A/S, Denmark BS422 Installation and Setup guideline BS422 Installation and setup guideline - Specifications subject to change without notice 4 Antennas The outside antenna connected to this device must be installed on an outdoor permanent structure. L'antenne extérieure connectée à cet appareil doit être installée sur une structure permanente extérieure. Notice Do not modify any part of this device for any reason Do not place any combustible material near the transceiver Do not spray any liquid over the device Ensure that the power and antenna connections are securely made, using cables recommended and with excess capacity for the power being utilized. Installing more BS422 according to user manual and using DAMM…

Text truncated - open the document above for the full version.

DAMM Cellular Systems A/S Møllegade 68 DK-6400 Sønderborg Denmark E-mail: [email protected] Phone: +45 7442 3500 Fax: +45 7442 3230 CVR no. 71257010 www.dammcellular.com To Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 17 February 2020 Spectrum Efficiency Attestation Emission designator Type of information Data rate or # of voice channels 7K60FXW DMR Voice One voice channel per 6.25 kHz bandwidth 7K60FXW DMR Data 9600 bps 6K00F3E; 11K0F3E; 16K0F3E Analogue Voice One voice channel per 6.25 kHz 20K0D1W 0.20TETRA 16 kbps (8 kbps per 6.25 kHz bandwidth) We attest that the transmitter meets a minimum spectrum efficiency standard of one voice channel per 6.25 kHz of channel bandwidth in accordance with 90.203j(4). We further attest that data emission designators meet a minimum spectrum efficiency of 4800 bps per 6.25 kHz of channel bandwidth. Signed,

DAMM Cellular Systems A/S Møllegade 68 DK-6400 Sønderborg Denmark Phone: +45 7442 3500 Email: [email protected] CVR no. 71257010 www.dammcellular.com To Whom it may concern 3 February 2020 Re: FCC ID: Z5W-10520111 This is to attest that, although the device represented by the above FCC identifier is capable of operating over the entire frequency range 150.8 – 173.4 MHz, only the authorized frequencies will be programmed for use in the United States. Regulated parameters are programmed by the manufacturer and cannot be modified by the user. In accordance to 90.203(e), there are no external controls that allow the user to use or program frequencies that are not programmed by the manufacturer, service, or maintenance personnel. Authorized Frequencies Frequency Range MHz) FCC Rule Part(s) 150.8-152.855 22, 90 152.855-154 74D, 90 154-156.2475 90 157.1875-157.45 90 157.45-161.575 22, 74D, 90 161.575-161.625 22 161.625-161.775 22, 74D 161.775-161.9625 90 162.0375-173.2 74D, 90 173.2-173.4 90 The entire contiguous frequency range 150.8 – 173.4 MHz will be listed on the FCC Grant to reduce the number of entries.

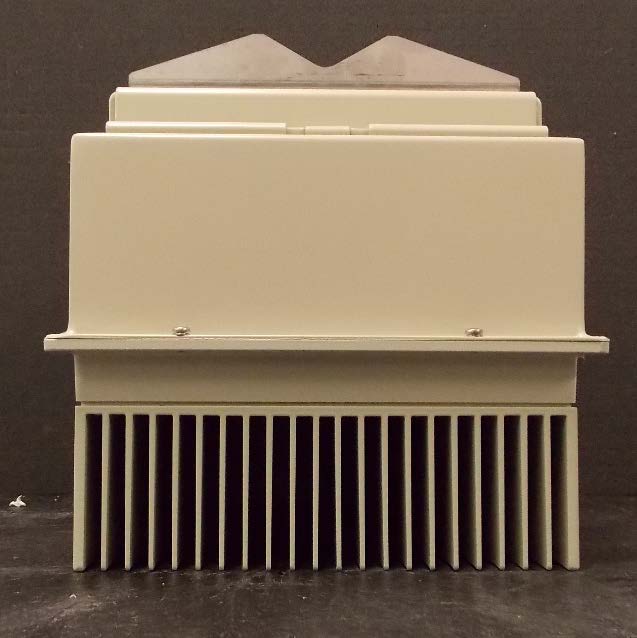

www.nemko.com External photos.docx; Date: May 2013 ONE WORLDOUR APPROVAL External photos 365560RADWL3 Date of issue: Applicant: DAMM Cellular Systems A/S Product type: cellular base station Model: BS 422 FCC ID: IC Registration number: Z5W-10520111 10159A-10520111 Section 1: External photos Report reference ID: -1RADWL Page 2 of 7 Section 1. External photos 1.1 External photos Figure 9.1-1: Front view photo Section 1: External photos Report reference ID: -1RADWL Page 3 of 7 Figure 9.1-2: Rear view photo Section 1: External photos Report reference ID: -1RADWL Page 4 of 7 Figure 9.1-3: Side view photo Section 1: External photos Report reference ID: -1RADWL Page 5 of 7 Figure 9.1-4: Side view photo Section 1: External photos Report reference ID: -1RADWL Page 6 of 7 Figure 9.1-5: Top view photo Section 1: External photos Report reference ID: -1RADWL Page 7 of 7 Figure 9.1-6: Bottom view photo

Label location

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation FCC 90 M and RSS-137.docx; Date: May 2014 MRA il ac SCC Accredited LAB LAB Accrédité CCN TM Choose Scandinavian trust Wireless test report – 365560-2TRFWL Applicant: Product type: DAMM Cellular Systems A/S 150 MHz band cellular base station Model: FCC ID: IC Registration number: 10520111 Z5W-10520111 10159A-10520111 Specifications:  FCC Part 90, Subpart I Private land mobile radio services  FCC Part 22, Subpart E Public mobile services, Paging and Radiotelephone Service  FCC Part 74, Subpart D Experimental radio, auxiliary, special broadcast and other program distributional services Remote pickup broadcast stations  RSS-119 Issue 12, May 2015 Land Mobile and Fixed Equipment Operating in the Frequency Range 27.41–960 MHz Date of issue: February 27, 2020 Yong Huang, Wireless/EMC Specialist Tested by Signature Kevin Rose, Wireless/EMC Specialist Tested by Signature Tom Tidwell, Director Nemko Direct for Telecom Reviewed by Signature Report reference ID: 365560-2TRFWL Page 2 of 67 Test location Company name: Nemko Canada Inc. Address: 292 Labrosse Avenue City: Pointe-Claire Province: Quebec Postal code: H9R 5L8 Country: Canada Telephone: +1 514 694 2684 Facsimile: +1 514 694 3528 Toll free: +1 800 563 6336 Website: www.nemko.com Site number: FCC: CA2041; ISED: 2040G-5 (3 m SAC) Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 365560-2TRFWL Page 3 of 67 Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section 1. Report summary ................................................................................................................................................................................. 4 1.1 Applicant/Manufacturer........................................................................................................................................................................................... 4 1.2 Test specifications .................................................................................................................................................................................................... 4 1.3 Test methods ............................................................................................................................................................................................................ 4 1.4 Statement of compliance ......................................................................................................................................................................................... 4 1.5 Exclusions ................................................................................................................................................................................................................. 4 1.6 Test report revision history ...................................................................................................................................................................................... 4 Section 2. Summary of test results ....................................................................................................................................................................... 5 2.1 FCC– Intentional Radiators, test results ................................................................................................................................................................... 5 2.2 RSS-119 Issue 12– Intentional Radiators, test results ............................................................................................................................................... 5 Section 3. Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 EUT information ....................................................................................................................................................................................................... 6 3.2 Technical information .............................................................................................................................................................................................. 6 3.3 Product description and theory of operation ........................................................................................................................................................... 6 Section 4. Engineering considerations .................................................................................................................................................................. 7 4.1 Modifications incorporated in the EUT.....................................................................................…

Text truncated - open the document above for the full version.

www.nemko.com setup photos.docx; Date: May 2013 ONE WORLDOURAPPROVAL Setup photos 365560RADWL Date of issue: Click here to enter a date. Applicant: DAMM Cellular Systems A/S Product: cellular base station Model: 10520111 FCC ID: IC Registration number: Z5W-10520111 10159A-10520111 Section 1: setup photos Report reference ID: - Page 2 of 4 Section 1. Setup photos 1.1 Radiated Front view Section 1: setup photos Report reference ID: - Page 3 of 4 1.2 Radiated back view Section 1: setup photos Report reference ID: - Page 4 of 4 1.3 Conducted view
