KG8004 Wireless mini keyboard Art.no Model concerning technical problems please contact our Customer Services. Product description • Wireless mini keyboard with optical trackball and integrated mouse buttons. • Range: up to 15 m. • Compatible with Windows 7 (32/64-bit), Vista (32/64-bit) and XP. • Comes with USB receiver and batteries. Operation 1. Depress [ FN ] and then press [ Insert Num LK function keys [ 0 ] – [ 9 ], marked with blue. Keep [ FN FN ] to return to normal letter functioning. 2. FN F11 ]. Care and maintenance cleaning agents. Troubleshooting 1. ON to OFF and back to ON. 2. 3. Disposal When it is time to dispose of this product, do so in accordance with local regula- Specifications Frequency range 2.4000–2.4835 GHz Range Up to 15 m Power supply 2 x AAA/LR03 batteries (1.5 V), alkaline batteries recommended. USB Interface 1.1 Size (W x H x D) 265 x 127 x 17 mm Note: • • • Turn off any existing wireless equipment to see if that could be causing • and receiver. 1. 2. 3. 4. ON/OFF switch 5. USB receiver 6. 7. System requirements • USB port • Windows XP/VISTA/Win 7 Contents • Wireless mini keyboard • • 2 x AAA/LR03 batteries • Instruction manual Installation 1. 2. 3. 4. ON 5. 6. window will appear once installation is complete. 123 4567 Matching the receiver and keyboard again via pressing the three keys together: ESC;key 1;key ahead of backspace When the green LED starts flashing ,pls insert the USB receiver into any port available on PC/ Notebook within 10 seconds,place the keyboard around the USB receiver within 30cm to enter the pairing connection. Upon the successful pairing, the LED Indicator stops flashing 4. FCC NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Shenzhen Loyal Electronics Co., Ltd. 8F, Bldg. A, Huayuan Technology Park Fenghuang Industrial Zone, Fuyong, Bao’an Shenzhen, China Authorization Letter Number: CF101 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name Shenzhen Loyal Electronics Co., Ltd. Addresss 8F, Bldg. A, Huayuan Technology Park, Fenghuang Industrial Zone, Fuyong, Bao’an City Shenzhen Country China declare that the following representative (agent): Name (person) Daniel Zhu Company name Anbotek Compliance Laboratory Limited Addresss 1/F, 1 /Build, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Keyboard Type or Model(s) KG8004 Tradename or Brand(s) N.A. We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process (sign and apply for) this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen, China 2011-10-11 Lei Zhu Engineer

Shenzhen Loyal Electronics Co., Ltd. 8F, Bldg. A, Huayuan Technology Park Fenghuang Industrial Zone, Fuyong, Bao’an Shenzhen, China FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Shenzhen Loyal Electronics Co., Ltd. Addresss 8F, Bldg. A, Huayuan Technology Park, Fenghuang Industrial Zone, Fuyong, Bao’an City Shenzhen Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: Z5X 8004TX of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) √ Schematics Diagrams (file: Z5X8004TX_Schematic Diagram.pdf, showing the components, their values and interconnections) √ Block Diagrams (file: Z5X8004TX_Block Diagram.pdf, showing the systematic building blocks of the EUT) √ Circuit Description (file: Z5X8004TX_CircuitDescription.pdf, explaining the functioning of the block diagram / EUT) User Manual Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen, China 2011-10-11 Lei Zhu Engineer

Page 16 of 18 FCC ID: Z5X8004TX Anbotek Compliance Laboratory Limited Report No.201110674F Figure 1 The EUT-Front View Figure 2 The EUT-Back View

FCC ID Label Sample for FCC ID: Z5X8004TX FCC ID: Z5X8004TX

The proposed Label Location on EUT Proposed FCC ID Label Location Proposed Label Location on EUT The EUT-Back View/Proposed FCC ID Label Location

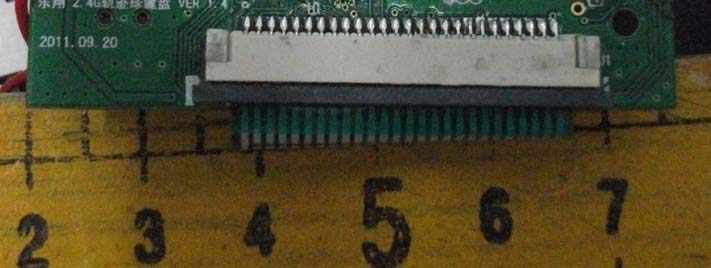

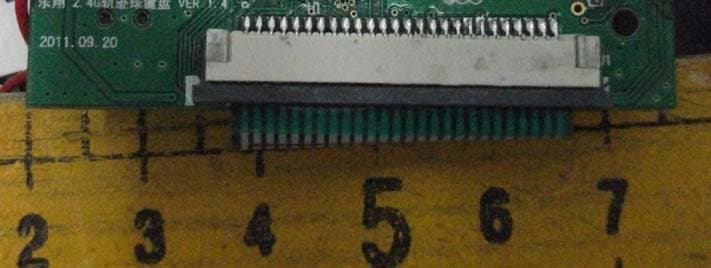

Page 17 of 18 FCC ID: Z5X8004TX Anbotek Compliance Laboratory Limited Report No.201110674F Figure 3 The EUT-Inside View Figure 4 The EUT-Inside View Page 18 of 18 FCC ID: Z5X8004TX Anbotek Compliance Laboratory Limited Report No.201110674F Figure 5 PCB of the EUT-Front View Figure 6 PCB of the EUT-Back View

Page 1 of 18 FCC ID: Z5X8004TX Anbotek Compliance Laboratory Limited Report No.201110674F FCC TEST REPORT for Shenzhen Loyal Electronics Co., Ltd. Keyboard Model No.: KG8004 Report Number : 201110674F Date of Test : Oct. 12~17, 2011 Date of Report : Oct. 18, 2011 Prepared for : Shenzhen Loyal Electronics Co., Ltd. Address : 8F, Bldg. A, Huayuan Technology Park, Fenghuang Industrial Zone, Fuyong, Bao’an, Shenzhen Prepared By : Anbotek Compliance Laboratory Limited Address : 1/F, 1 /Building, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District, Shenzhen, 518054, China Tel: (86) 755-26014771 Fax: (86) 755-26014772 Page 2 of 18 FCC ID: Z5X8004TX Anbotek Compliance Laboratory Limited Report No.201110674F TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION .........................................................................................................4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility ......................................................................................................................5 1.3. Measurement Uncertainty.........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT.................................................................... 6 3. TEST PROCEDURE ....................................................................................................................... 7 4. RADIATION INTERFERENCE.................................................................................................... 8 4.1. Requirements (15.249, 15.209): ...............................................................................................................8 4.2 Test Procedure ...........................................................................................................................................8 4.3 Test Results................................................................................................................................................8 5. OCCUPIED BANDWIDTH..........................................................................................................12 5.1. Requirements (15.249): ..........................................................................................................................12 5.2. Test Procedure ........................................................................................................................................12 5.3. Test Configuration:.................................................................................................................................12 5.4. Test Results.............................................................................................................................................12 6. PHOTOGRAPH............................................................................................................................. 14 6.1. Photo of Radiation Emission Test ..........................................................................................................14 APPENDIX I (Photos of EUT) (3 Pages) Page 3 of 18 FCC ID: Z5X8004TX Anbotek Compliance Laboratory Limited Report No.201110674F TEST REPORT Applicant : Shenzhen Loyal Electronics Co., Ltd. Manufacturer : Shenzhen Loyal Electronics Co., Ltd. EUT : Keyboard Model No. : KG8004 Serial No. : N.A. Rating : 3.0V , 15mA max. Trade Mark : N.A. Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Anbotek Compliance Laboratory Limited Date of Test : Oct. 12~17, 2011 Prepared by : (Engineer / Rock Zeng) Reviewer : (Project Manager / Coco Xiang) Approved & Authorized Signer : (Manager / Henry Yang) Page 4 of 18 FCC ID: Z5X8004TX Anbotek Compliance Laboratory Limited Report No.201110674F 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : Keyboard Model Number : KG8004 Test Power Supply : DC 3 V Frequency : 2410~2473MHz Channels : 2410~2473MHz (A total of 64 channels with channel spacing of 1MHz. Under normal working condition, choose 20 channels of 64 randomly) Antenna Specification : Printed Antenna:1dBi Applicant : Shenzhen Loyal Electronics Co., Ltd. Address : 8F, Bldg. A, Huayuan Technology Park, Fenghuang Industrial Zone, Fuyong, Bao’an, Shenzhen Manufacturer : Shenzhen Loyal Electronics Co., Ltd. Address : No.31, Furong Road, Gushu Village, Xixiang Town, Bao’an District, Shenzhen Date of receiver : Oct. 11, 2011 Date of Test : Oct. 12~17, 2011 Page 5 of 18 FCC ID: Z5X8004TX Anbotek Compliance Laboratory Limited Report No.201110674F 1.2. Description of Test Facility The test facility is recognized, certified, or accredited by the following organizations: CNAS - LAB Code: L3503 Anbotek Compliance Laboratory Limited., Laboratory has been assessed and in compliance with CNAS/CL01: 2006 accreditation criteria for testing laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of Testing Laboratories. FCC-Registration No.: 752021 Anbotek Compliance Laboratory Limited, EMC Laboratory has been registed and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter…

Text truncated - open the document above for the full version.

Page 14 of 18 FCC ID: Z5X8004TX Anbotek Compliance Laboratory Limited Report No.201110674F 6. PHOTOGRAPH 6.1. Photo of Radiation Emission Test
