Z6QFC12227Toy RC Off Road Explorer

Bl ock Diagram Fi lter RF power amplifier and Modulator Os cillator 27.145MHz En coder Co ntrol key 27.145MHz ANT U 2 TX2S

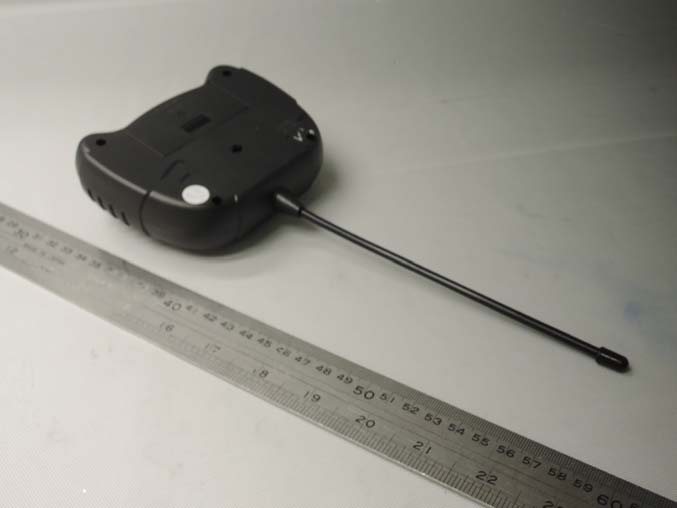

INTERTEK TESTING SERVICE Report No.: 15060656HKG-001 FCC ID: Z6QFC12227 Equipment Photographs Model : FL2015E (External)

INTERTEK TESTING SERVICE Report No.: 15060656HKG-001 FCC ID: Z6QFC12227 Equipment Photographs Model : FL2015E (Internal) INTERTEK TESTING SERVICE Report No.: 15060656HKG-001 FCC ID: Z6QFC12227 Equipment Photographs Model : FL2015E (Internal)

Technical Description (Transmitter portion) The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: Integral, external Nominal field strength is 59.1dBμV/m @ 3m Production Tolerance of field strength is 56.1 dBμV/m to 62.1 dBμV/m Antenna gain is 0dBi The circuit of the transmitter mentioned below. 1. Control buttons: Consists of SW1, SW2, SW3 and SW4 2. Encoding circuit Consists of U2(TX2S ZYX1514A) 3. Oscillator (27.145MHz): Consists of X2 4. RF power amplifier and modulator Consists of Q4 and Q3 5. Filter network Consists of L4, L5, L6 , C12, C13, C15 and C14 6. Power Supply Consists of 9VDC (1 x 9.0 D size battery)

Analysis Report The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: Integral, external Nominal field strength is 59.1dBμV/m @ 3m Production Tolerance of field strength is 56.1 dBμV/m to 62.1 dBμV/m Antenna gain is 0dBi Based on the Maximum allowed field strength of production tolerance was 62.1dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.000487mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.000487mW The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 10-Jun-2015 Sheet of File: E:\ 电电电 \ 飞飞飞飞 .Ddb Drawn By: 11ANT L68.2UH/0410 C14 100P Q3S8050 L5 3.3UH C1247P C15 22P Q4C1623 C13220P R1022K R81.5M C10104P BAT1+9V 27(49)MHZ 吉吉吉吉吉吉吉吉吉吉吉 X2 49.860MHZ L4 2.2UH C6104P D61N4148 R5330R Z23V9 C9104P SW2SS12F42G4 R95.6K LED2RED 27MHZ 49MHZ 1UH 27MHZ 49MHZ 1UH 27MHZ27MHZ2.2UH/0410 27.145MHZ 2 SW1 9 SW3 11 SW4 7 SW2 R3200K 左左右 左 后后前前 OSC1 1 FB 2 LR 3 F12 4 GND 5 SC 6 VCC 7 PC 8 U2 TX2S ZYX1514A R7 47K R9 47K

- Intertek's standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 15060656HKG-001 GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Application For Certification (Original Grant) (FCC ID: Z6QFC12227) Transmitter Prepared and Checked by: Approved by: Signed On File Tse Ying, Cathy Senior Lead Engineer Chow Chi Ming, Billy Manager Date: July 23, 2015 INTERTEK TESTING SERVICES Report No.: 15060656HKG-001 i FCC ID: Z6QFC12227 GENERAL INFORMATION Grantee: GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Grantee Address: Haisheng Road, Laimei Industrial District, Fengxiang Chenghai, Shantou, Guangdong, China Contact Person: Cai shaona Tel: 15817981190 Fax: 0754-85730555 e-mail: [email protected] Manufacturer: GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Manufacturer Address: Haisheng Road, Laimei Industrial District, Fengxiang Chenghai, Shantou, Guangdong, China Brand Name: N/A Model: FL2015E Manufacturer ID: 29007 Type of EUT: Transmitter Description of EUT: Toy RC Off Road Explorer Serial Number: N/A FCC ID: Z6QFC12227 Date of Sample Submitted: June 10, 2015 Date of Test: June 10, 2015 to July 23, 2015 Report No.: 15060656HKG-001 Report Date: July 23, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 15060656HKG-001 ii FCC ID: Z6QFC12227 SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 15060656HKG-001 iii FCC ID: Z6QFC12227 Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .................................................................................. 2 2.5 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling................................................................................................ 6 6.0 Technical Specifications..................................................................................... 6 7.0 Instruction Manual .............................................................................................. 6 8.0 Miscellaneous Information ................................................................................. 7 8.1 Measured Bandwidth ......................................................................................... 7 8.2 Discussion of Pulse Desensitization ................................................................... 8 8…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15060656HKG-001 FCC ID: Z6QFC12227 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : FL2015E INTERTEK TESTING SERVICE Report No: 15060656HKG-001 FCC ID: Z6QFC12227 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : FL2015E
