Bl ock Diagram Fi lter RF power amplifier and Modulator Os cillator 49 . 860 MHz En coder Co ntrol key 49 . 860 MHz ANT U 2 TX2S Bl ock Diagram Fi lter RF power amplifier and Modulator Os cillator 49.860MHz Co ntrol key 49.86MHz ANT I Encoder U2 TX2S

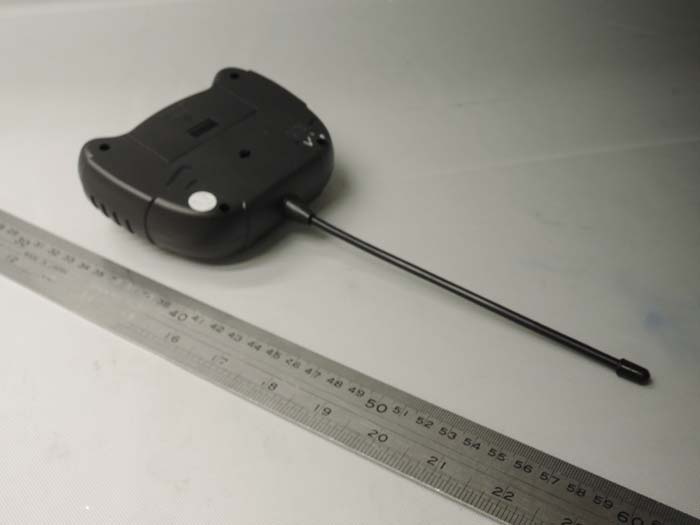

INTERTEK TESTING SERVICE Report No.: 15060657HKG-001 Equipment Photographs Model : FL2015E (External) FCC ID: Z6QFC12249

INTERTEK TESTING SERVICE Report No.: 15060657HKG-001 Equipment Photographs Model : FL2015E (Internal) FCC ID: Z6QFC12249 INTERTEK TESTING SERVICE Report No.: 15060657HKG-001 Equipment Photographs Model : FL2015E (Internal) FCC ID: Z6QFC12249 INTERTEK TESTING SERVICE Report No.: 15060657HKG-001 Equipment Photographs Model : FL2015E (Internal) FCC ID: Z6QFC12249

FCC ID: Z6QFC12249 Model: FL2015E (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.86 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. Control buttons: Consisting: SW1, SW2, SW3 and SW4 2. An Encoding circuit Consisting: U2 (TX-2S ZYX1514A) 3. A RF Oscillator (49.86MHz) Consisting: X2, Q4 4. A Filter Network Consisting: L6, C14 5. A RF Modulator and Amplifier Consisting: Q3 6. A Power Supply Consisting: 9VDC (1 X “9V” battery) 7. Regulator Consisting: Z2, C9 Antenna Gain: 0dBi Nominal rated field strength: 69.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and Integral antenna .

Analysis Report Report No.: 15060657HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 49.86 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, Integral antenna Antenna Gain: 0dBi Nominal rated field strength: 69.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 72.5dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00534mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00534mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 10-Jun-2015 Sheet of File: E:\ 电电电 \ 飞飞飞飞 .Ddb Drawn By: 11ANT L68.2UH/0410 C14 100P Q3S8050 L5 3.3UH C1247P C15 NC Q4C1623 C13220P R1022K R868K C10104P BAT1+9V 27(49)MHZ 吉吉吉吉吉吉吉吉吉吉吉 X2 49.860MHZ L4 2.2UH C6104P D61N4148 R5330R Z23V9 C9104P SW2SS12F42G4 R95.6K LED2RED C1133P 27MHZ 49MHZ 1UH 27MHZ 49MHZ 1UH 27MHZ27MHZ2.2UH/0410 27.145MHZ 2 SW1 9 SW3 11 SW4 7 SW2 R3200K 左左右 左 后后前前 OSC1 1 FB 2 LR 3 F12 4 GND 5 SC 6 VCC 7 PC 8 U2 TX2S ZYX1514A R7 47K R9 47K
