Z6X-DVLINKVIDEO TRANSMISSION FROM A CAMERA TO A RECEIVER

Minewise Technology Ltd. 727 Lorne St Sudbury Ontario P3C 4R5 Ph. (705) 674 ‐ 3332 fax. (705) 674 ‐ 2221 Rev 1.0 www.minewise.net Diversity Video RF Mucking System Model #: DVLINK ‘Technology that pays its way’ Rev 1.0 www.minewise.net 2 DVLINK Installation Guide THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS DEVICE COMPLIES WITH INDUSTRY CANADA LICENSE-EXEMPT RSS STANDARD(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, INCLUDING INTERFERE NCE THAT MAY CAUSE UNDESIRED OPERATION OF THE DEVICE. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT THIS DEVICE COMPLIES WITH INDUSTRY CANADA LICENSE-EXEMPT RSS STANDARD(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRE D OPERATION OF THE DEVICE. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT THE ANTENNA(S) USED FOR THIS TRANSMI TTER MUST BE INSTALLED TO PROVIDE A SEPARATION DISTANCE OF AT LEAST 20 CM FROM ALL PERSONS. Rev 1.0 www.minewise.net 7 DVLINK Installation Guide Connecting power to the RRC power is preferential. Connecting the “Reverse” lead to the reverse signal generated by the RRC allows the Video system to automatically select the reverse signal (while the mode selector is in the “Auto” position). Rev 1.0 www.minewise.net 6 DVLINK Installation Guide Installation: The rear camera/transmitter ships with a pedestal mount which can be welded or bolted to your piece of mobile equipment. The front camera mounts simply with a magnetic base and the view angle can be adjusted with the gymbal mount. Camera placement is key to achieving optimal use of the system. The forward facing camera needs to be placed ahead of the midship in order to maintain view of the bucket while cornering. Typical placement is on top of a headlight housing to the left of the boom (simulating the view from the operators cab). The rear camera should be mounted on the center line of the machine and placed just ahead of the rear axle. (Shown below) Power: The Main harness consists of 3 conductors. 1) 12 / 24 volts 2) Vehicle Ground 3) RRC Reverse signal Rev 1.0 www.minewise.net 3 DVLINK Installation Guide DVLINK Installation Guide Introduction: Thank you for purchasing a Diversity Video RF Mucking System (Model #: DVLINK). This booklet describes the steps necessary for installing the DVLINK on your piece of mobile equipment. Unpacking the System: Carefully unpack the system. Please read any instructions or cautions that appear on the shipping container. Check all material in the container against the packing list. Minewise Technology will not accept responsibility for shortages against the packing list unless notified within 30 days. The equipment and accessories were inspected and tested by Minewise Technology before shipment; all of the equipment should be in good working order. Examine the equipment carefully; if any shipping damage is evident, notify the carrier immediately. You are responsible for claim negotiations with the carrier. Save the shipping container and packing material in case the equipment needs to be stored, returned to Minewise Technology, or transported for any reason. Parts: See pages 4 and 5 for parts list. Rev 1.0 www.minewise.net

2762IC11 1. APPENDIX I & II: a. Item 15: Please uncheck Receiver. Done. b. Item 16: Please match the Emission Designator to the occupied bandwidth 12M3FXD. Done. c. Item 18: This device is measured in watts. Please mark this N/A. Done. d. Item 21: Receiver data is not applicable. Please mark this N/A. Done. 2. TEST REPORT: Page 7: RSS-210 at the bottom of the page lists Issue 7. Please correct to Issue 8. Done. 2757UC11 3. RECEIVER: The receiver is a separate device, and will need its own certification. Please remove it from this filing and submit a separate filing. We will list were it needs to be removed below. 4. EXTERNAL PHOTOS: Please remove the photos of the receiver. Done. 5. MPE REPORT: Please remove the photos of the receiver. Done. 6. TEST SETUP PHOTOS: Please remove the photos of the receiver. Done. 7. BLOCK DIAGRAM: Please list the frequencies of the clocks and oscillators. Done. 8. USER MANUAL: Please add the following statement to the user manual: Done. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. 9. TEST REPORT: a. Pages 22-23: Please remove the receiver spurious information. Done. b. Pages 25-26: Please indicate that the level is in dBuV/m. Done. c. Page 40: The screen capture of the spectrum analyzer has an asterisk “*” in the upper right hand corner. This is usually indicates a measurement error. Please explain or revise. New plot recaptured and included in test report. d. Page 46: Please remove the photo of the receiver. Done.

Technology That Pays It’s Way 727 Lorne St. Sudbury, Ontario P3C 4R5 Ph (705) 674-3332 Fax: (705) 674-2221 Email: [email protected] Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Z6X-DVLINK Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Z6X-DVLINK Schem.pdf Parts List Z6X-DVLINK PartsLst.pdf Block diagrams Z6X-DVLINK BlkDia.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ___________________________ James Henderson

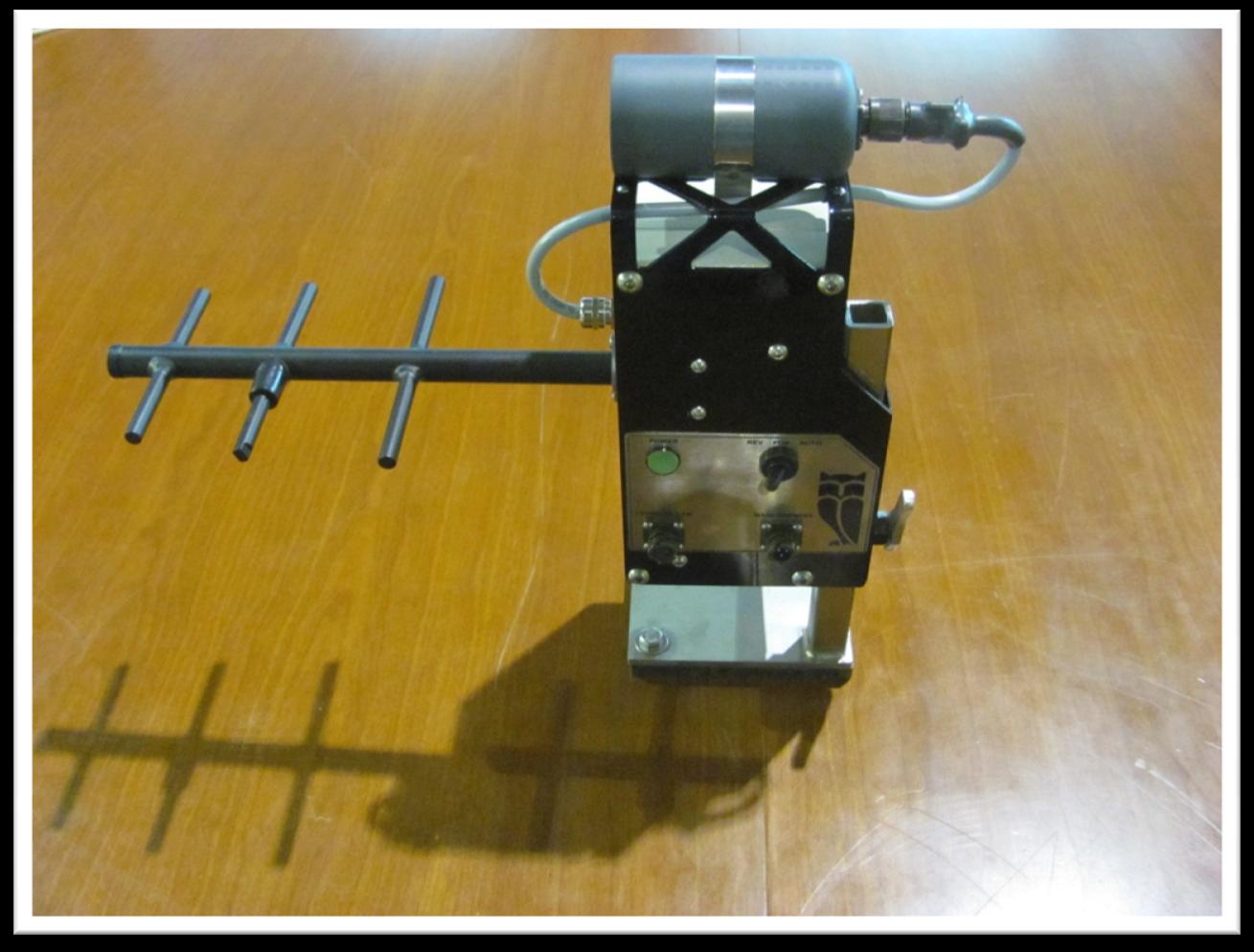

Figure 1 – Front EUT Figure 2 – Right Side Figure 3 – Back Side Figure 4 – Left Side

Label Sample

Technology That Pays It’s Way 727 Lorne St. Sudbury, Ontario P3C 4R5 Ph (705) 674-3332 Fax: (705) 674-2221 Email: [email protected] Operational Description: The system consists of a mobile operated video transmitter with an N type antenna connector and a portable or stationary operated video receiver. The video Transmitter is analog WFM modulated with a bandwidth (-20dBc) of 18 MHz and a peak deviation of 4 MHz powered by 13.8Vdc. The receiver is a WFM demodulator with 18 MHz IF filtering and set for 4 MHz peak deviation. Both Transmitter/ Receiver perform Pre- emphasis/De-emphasis according to CCIR 405-1 and use a phase locked loop controlled by a reference crystal for maintaining the final frequency. In case of lock failure inside the transmitter the final output stages are disabled to prevent unintentional interference at other frequencies.

LAB REGISTRATION #6844A-1 FCC REGISTRATION #612361 Page 1 of 17 Report issue date: 12/2/2011 GEMC File #19877-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs MPE Evaluation As per Industry Canada Safety Code 6 & FCC Part 15 Subpart C: 2010 15.247i FCC Part 1, Section 1.1310 Table 1 (B) Wireless Video Transmitter Ashwani Malhotra Global EMC Inc. 180 Brodie Dr, Unit 2 Richmond Hill, ON L4B 3K8 Canada Ph: (905) 883-3919 Testing produced for See Appendix A for full customer & EUT details. Client Minewise Technology Ltd. Product Z6X-DVLINK / 9978A-DVLINK Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 2 of 17 Report issue date: 12/2/2011 GEMC File #:19877-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Maximum Permissible Exposure ..................................................................................... 13 Appendix A – EUT Summary .............................................................................................. 14 Appendix B – EUT and Test Setup Photographs................................................................. 15 Client Minewise Technology Ltd. Product Z6X-DVLINK / 9978A-DVLINK Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 3 of 17 Report issue date: 12/2/2011 GEMC File #:19877-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC certification testing and test results of the DVLINK (Wireless video monitoring system), herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was evaluated for compliance against the following standards: IC Safety Code 6 & FCC Part 1, Section 1.1310 Table 1 (B) Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Minewise Technology Ltd. Product Z6X-DVLINK / 9978A-DVLINK Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 4 of 17 Report issue date: 12/2/2011 GEMC File #:19877-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: Z6X-DVLINK EUT Industry Canada Certification #, IC: 9978A-DVLINK EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Ashwani Malhotra Client Minewise Technology Ltd. Product Z6X-DVLINK / 9978A-DVLINK Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 5 of 17 Report issue date: 12/2/2011 GEMC File #:19877-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.247(i) IC Safety code 6 Maximum Permissible Exposure > 20 cm separation. Pass See justification and calculations Overall Result PASS All tests were performed by Ashwani Malhotra If the product as tested or otherwise complies with the specification, the EUT is deemed to comply with the requirement and is deemed a „PASS‟ grade. If not „FAIL‟ grade will be issued. Note that „PASS‟ / „FAIL‟ grade is independent of any measurement uncertainties. A „PASS‟ / „FAIL‟ grade within measurement uncertainty is marked with a „*‟. Client Minewise Technology Ltd. Product Z6X-DVLINK / 9978A-DVLINK Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 6 of 17 Report issue date: 12/2/2011 GEMC File #:19877-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Justifications, Descriptio…
