Z79ABS6bluetooth shutter remote

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

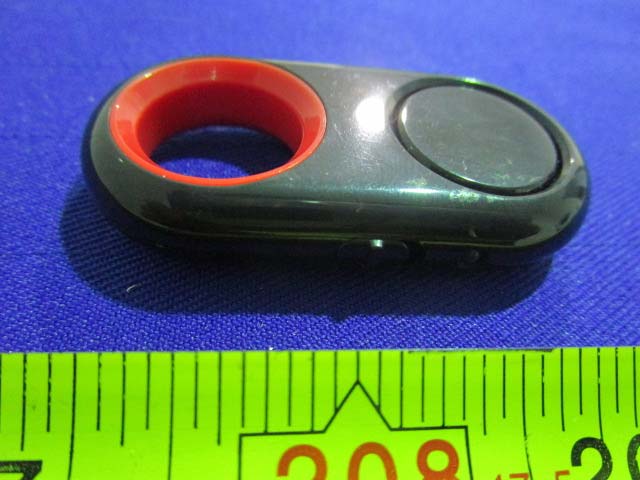

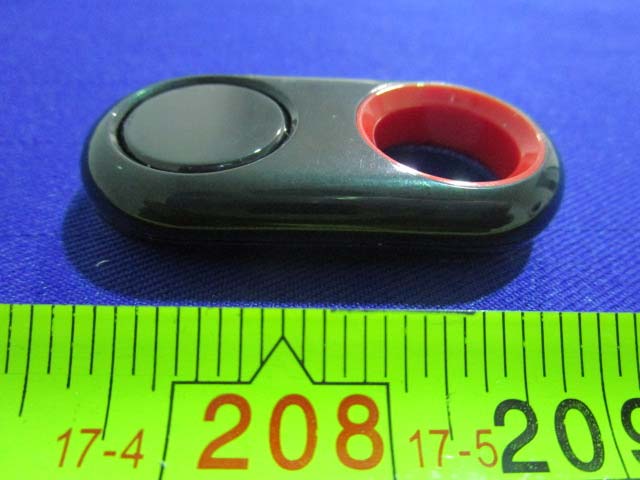

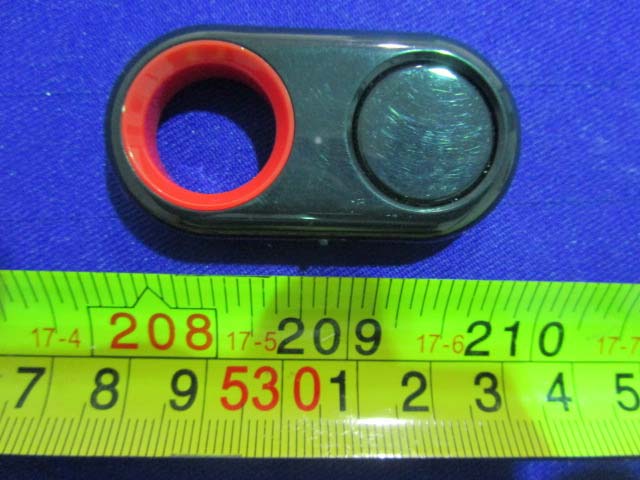

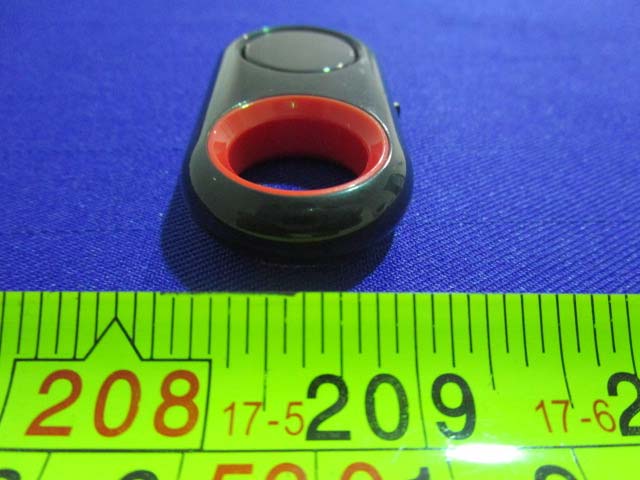

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT –Top View EUT –Bottom View EUT – Side View EUT – Side View EUT – Side View EUT – Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncover View EUT – Uncover View EUT – Uncover View EUT – Battery Top View EUT –Battery Bottom View EUT –Main Board Top View EUT –Main Board Bottom View EUT – RF Chip View EUT –Antenna View

Circuit Description The 26 MHz crystal oscillator drives the base of IC U3 the final/buffer amplifier. The modulation provided by U3. The output of U3 has the matching network consisting of U3 RFLP LFB212G45BA1A220 and L1,C1,C2 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a PCB antenna There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3.7 Volt (“4.0mm*20mm*40mm” size battery280mAH) primary battery Operation Descriptions The transmitter is a Bluetooth radio operating at 2400MHz ISM band. The transmitter is powered by a 3.7V battery (“3.5mm*25mm*25mm” size battery 145mAH) and the transmitting frequency is controlled by crystal and U3. The operation is achieved by different combinations of form pulse / amplitude / frequency modulating signal on the 3MHz bandwidth and 2402—2480 carrier frequency. Remarks: The transmitter is a button transmitter. The EUT continues to transmit while button is being pressed. It is button transmitter, Modulation by U3; and type is GFSK modulation. Model:AB Shutter6

<Drawn By> <Checked By> <QC By> <Released By> <Drawn Date> <Checked Date> <QC Date> <Release Date> <Company Name> <Title> <Code> B <Drawing Number> <Revision> <Scale> 1 1 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED: QUALITY CONTROL: DATED: DATED: RELEASED: COMPANY: TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD APPROVED: ECO NO: A B D DATE: 1 2 3 4 5 6 D C A B C LTR 1 P11/P27 2 LDO_IN 3 LDO_OUT 4 VDDIF 5 VDDFE 6 RF 7 VDDVCO 8 VDDPLL 9 XTALI 10 XTALO 11 VDDC 12 UART_RXD 13 UART_TXD 14 VDDM 15 SDA 16 SCL 17 TMC 18 RST_N 19 P0 20 P1 21 P3 22 P2 23 P4 24 P8/P33 25 P32 26 P25 27 P24 28 VDDO 29 P13/P28 30 P14/P38 31 P15 32 P12/P26 U1 BCM20730 C15 1.8PF C16 1.2PF 1 U3 ANT C17 0.5PF R8 0R C18 0.5PF L1 2.7NH + J1 R19 75K R2 1K D1 BLUE LED R12 150K Y1 24MHZ C13 15PF C14 15PF C1 1uF C2 1uF C4 10nF C5 NC C6 10nF C7 NC R3 0R C11 1uF R6 10K C8 1uF 8 VCC 7 WP 6 SCL 5 SDA 4 GND 3 A2 2 A1 1 A0 U2 24LC128 R5 10K R7 10K R9 10K C12 100NF R10 10K C9 100NF R11 10K C3 100NF 1 2 S2 TT-1187 3V 3V P15 P25 3V 3V 1P2V 1P2V 1P2V 1P2V 1P2VC RX TX 3V 3V P32 RST R0 R1 R3 R2 R4 P33 P32 P25 P24 P28 C6 P15 C4 C3 RST 3V 3V P24

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For HongKong AtoB Co. Ltd. The 1st floor, Shisheng Building,Shangkeng Industrial District Changping Town,DongGuan City,GuangDong,China Report Type: Original Report Product Type: bluetooth shutter remote Test En gineer: Sevin Li Re port Number: RSH150112055-00 Re port Date: 2015-01-20 Reviewed B y: Jerry Zhang EMC Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: Z79ABS6 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSH150112055-00 FCC Part 15.247 Page 2 of 34 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 FCC §15.247 (i) & §1.1310 & §2.1093- RF EXPOSURE ............................................................................................... 7 APPLICABLE STANDARD .............................................................................................................................................. 7 FCC §15.203 - ANTENNA REQUIREMENT ............................................................................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 8 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 MEASUREMENT UNCERTAINTY .................................................................................................................................... 9 EUT SETUP .................................................................................................................................................................. 9 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 11 TEST RESULTS SUMMARY .......................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §15.247(a) (1) - CHANNEL SEPARATION TEST ......................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 15 TEST DATA ..............…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
