Z7ZMAXMEDIAWIFI3Wireless adapter

MaxMedia Technology Limited
Wireless adapter - FCC ID Z7ZMAXMEDIAWIFI3 - MaxMedia Technology Limited
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 02, 2013
Application Purpose
Original Equipment
Date of Application
Dec 02, 2013
Equipment Note
Wireless adapter
Frequency Range
2422.00000000 - 2452.00000000
Company
MaxMedia Technology Limited
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Chapter 1: Product Introduction Congratulations on your purchase of Maxmedia Wireless Display Receiver Dongle NTV520. This section introduces you to the NTV520. 1-1 Package Contents (1) NTV520 (2) Micro USB to USB adapter (3) AC adapter (4) Quick Installation Guide 1-2 Recommendation for Miracast Mode NTV520 supports streaming screen capture fromWi-Fi Miracast Ready devices(such as smartphone/tablet/NB) to TV. Android version4.2above Windows8.1is available on hardware(GPU) with supported Miracast drivers (ex.Nvidia Tegra 3 platform) 1-3 Highlights Thanks again for choosing the product. This product allows multiple users to connect to the same projector by wireless network and avoiding the hassle of using HDMI cable. Features 802.11 b/g/n Wireless compatibility 802.11n 2.4GHz single band standard Supports Wireless connectivity HDMI connections Support HDCP 1.X/HDCP 2.X Wireless multimedia streaming up to Full HD 1080p PC content, movies, photo’s apps and more all on your big screen Network security 1-4 Hardware Setup/Installation (1) Connect your device (2) Connect power to turn on NTV500 Chapter 2: Using NTV520 on Miracast Mode To connect NTV500 with WiFi Miracast mode, your smart phone or tablet device must beWiFi Miracast ready. Connect the dongle to the monitor,you will see the information “Please use your phone to connect to“XXXXXXX ”” “XXXXXXX ”is the dongle name After connecting successes, you will see the message“P2P connected to“XXXXXXXXX”,IP:OOO.OOO.OOO.OOO” “XXXXXXXXX”is the device name. In the below we will show the examples of how to find “miracast” in different smart phone. How to find “Miracast” function 1. HTC (New One)for example (1) “Settings” -> “Media Output” (2) The phone will automatically scan the streaming box, and show the IP address. (3) Choose the IP address which you find on the TV, and your phone will connect to the box automatically. (4) Mirroring will begin while your phone connect to streaming box successfully. 2. Samsung (S3 & Note2)for example (1) “Settings” -> “More settings” (2) “AllShare Cast” (3) Turn “on” AllShare Cast . Your phone will scan the streaming box, and it will show the IP address of the box. (4) Choose the IP address which you find on the TV, and your phone will connect to the boxautomatically. (5) Mirroring will begin while your phone connect to streaming box successfully. 3. SONY (Xperia TX)for example (1) “Settings” -> “Xperia” (2) “Screen mirroring” (3) “Turn on Screen mirroring” (4) Your phone will scan the streaming box, and it will show the IP address of the box. (5) Choose the IP address, mirroring will begin while your phone connect to streaming box successfully. 4. SHARP (SH-10D)for example (1) “Settings” -> “Wireless output” (2) Turn “on” (3) Your phone will scan the streaming box, and it will show the IP address of the box. (4) Choose the IP address which you find on the TV, and your phone will connect to the box automatically. (5) Mirroring will begin while your phone connect to streaming box successfully. Appendex : Miracast Support List Module LG Nexus 4 LG P880 LG F-180 LG Optimus G LG Optimus G pro Sony Xperia TX Sony Xperia T Sony Xperia Z Sony Xperia V Samsung Galaxy S3 Samsung note 10.1 TBL NEC N-03E(Disney) MTK8389, 8382 and 8135 tablets / MTK6589, 6582 smart phones HTC Butterfly Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Non-modification Statement: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. HTC New One Rockchip 3188 tablets

External Photos

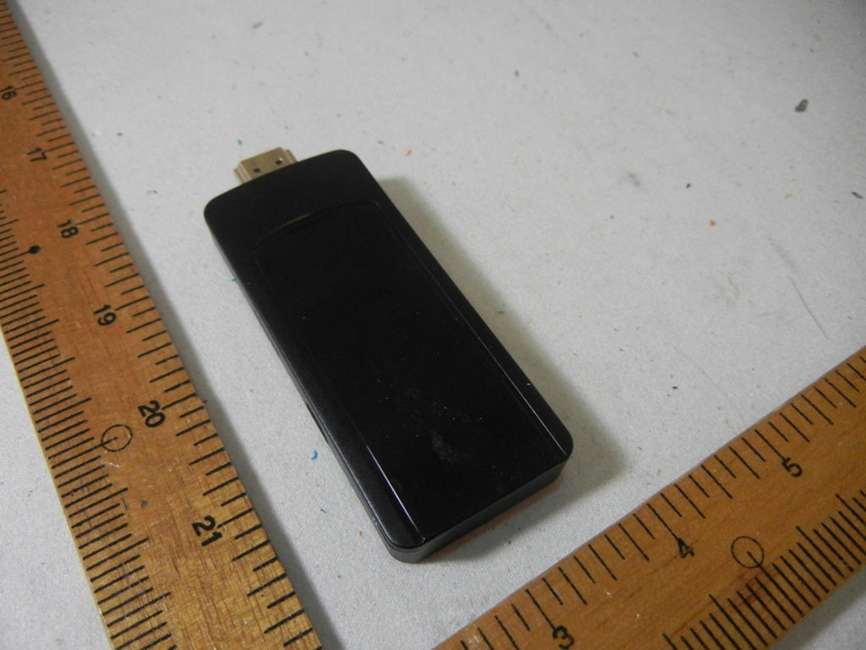

CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp.Issued Date:Nov. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A1of A6 FCC ID:Z7ZMAXMEDIAWIFI3 Appendix A. Photographs of EUT

ID Label/Location Info

Label & Location MaxMedia Wireless adapter Model(型號 ):NTV520 FCC ID: Z7ZMAXMEDIAWIFI3 40.00mm R0.50mm 12.00mm

Internal Photos

CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp.Issued Date:Nov. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A2of A6 FCC ID:Z7ZMAXMEDIAWIFI3 CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp.Issued Date:Nov. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A3of A6 FCC ID:Z7ZMAXMEDIAWIFI3 CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp.Issued Date:Nov. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A4of A6 FCC ID:Z7ZMAXMEDIAWIFI3 CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp.Issued Date:Nov. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A5of A6 FCC ID:Z7ZMAXMEDIAWIFI3 CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp.Issued Date:Nov. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A6of A6 FCC ID:Z7ZMAXMEDIAWIFI3

RF Exposure Info

CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp. Issued date:Nov. 21, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No.:1 of 3 FCC ID:Z7ZMAXMEDIAWIFI3 Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUTWireless adapter Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE802.11b:15.34dBm (0.0337W) IEEE802.11g:20.38dBm (0.1091W) IEEE802.11n HT20:19.46dBm (0.0883W) IEEE802.11n HT40:18.62dBm (0.0728W) Antenna gain (Max)2 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 20.38 dBm (0.1091W)at 2437MHz(with numeric 2 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. *Note: Simultaneous transmission is not applicable for this EUT. CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp. Issued date:Nov. 21, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No.:2 of 3 FCC ID:Z7ZMAXMEDIAWIFI3 TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S WhereE = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S     Equation 1 Whered = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp. Issued date:Nov. 21, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No.:3 of 3 FCC ID:Z7ZMAXMEDIAWIFI3 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) IEEE802.11b2412-2462 15.34 220 0.011 1 IEEE802.11g2412-2462 20.38 220 0.034 1 IEEE802.11n HT202412-2462 19.46 220 0.028 1 IEEE802.11n HT402422-2452 18.62 220 0.023 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

Test Report

CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp.Issued date:Nov. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:1 of 88 FCC ID:Z7ZMAXMEDIAWIFI3 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant:MaxMedia Technology Limited Address: 5F., No. 113, Jian 2nd Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Equipment:Wireless adapter Model No.:NTV520 Trade Name:MaxMedia FCC ID:Z7ZMAXMEDIAWIFI3 The test result refers exclusively to the test presented test model / sample., Without written approval ofCerpass Technology Corp.,the test report shall not be reproduced except in full. The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp.Issued date:Nov. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:2 of 88 FCC ID:Z7ZMAXMEDIAWIFI3 Contents 1.Report of Measurements and Examinations ....................................................................................6 1.1List of Measurements and Examinations ...................................................................................6 2.Test Configuration of Equipment under Test ...................................................................................7 2.1Feature of Equipment under Test...............................................................................................7 2.2Carrier Frequency of Channels ..................................................................................................7 2.3Test Mode and Test Software.....................................................................................................8 2.4Description of Test System.........................................................................................................8 2.5General Information of Test........................................................................................................9 2.6Measurement Uncertainty ..........................................................................................................9 3.Antenna Requirements.....................................................................................................................10 3.1Standard Applicable .................................................................................................................10 3.2Antenna Construction and Directional Gain.............................................................................10 4.Test of Conducted Emission............................................................................................................ 11 4.1Test Limit .................................................................................................................................. 11 4.2Test Procedures ....................................................................................................................... 11 4.3Typical Test Setup ....................................................................................................................12 4.4Measurement Equipment .........................................................................................................12 4.5Test Result and Data ................................................................................................................13 4.6Test Photographs .....................................................................................................................19 5.Test of Radiated Emission ...............................................................................................................20 5.1Test Limit ..................................................................................................................................20 5.2Test Procedures .......................................................................................................................20 5.3Typical Test Setup ....................................................................................................................21 5.4Measurement Equipment .........................................................................................................21 5.1Test Result and Data (9kHz ~ 30MHz).....................................................................................22 5.2Test Result and Data (30MHz ~ 1GHz)....................................................................................22 5.3Test Result and Data (Above 1GHz) ........................................................................................34 5.4Test Photographs (30MHz~1GHz) ...........................................................................................58 5.5Test Photographs (Above 1GHz) .............................................................................................59 6.6dB Bandwidth Measurement Data .................................................................................................60 6.1Test Limit ..................................................................................................................................60 6.2Test Procedures .......................................................................................................................60 6.3Test Setup Layout ....................................................................................................................60 6.4Measurement Equipment .........................................................................................................60 6.5Test Result and Data ................................................................................................................61 7.Maximum Peak and Average Output Power ...................................................................................68 7.1Test Limit ..…

Text truncated - open the document above for the full version.

Test Setup Photos

CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp.Issued date:Nov. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:19 of 88 FCC ID:Z7ZMAXMEDIAWIFI3 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp.Issued date:Nov. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:58 of 88 FCC ID:Z7ZMAXMEDIAWIFI3 5.4 Test Photographs (30MHz~1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1310221 Cerpass Technology Corp.Issued date:Nov. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:59 of 88 FCC ID:Z7ZMAXMEDIAWIFI3 5.5 Test Photographs (Above 1GHz) Front View Rear View

Contact Information

Applicant

Jason Chu
[email protected]886-2-8228-6088Fax: 886-2-8227-7388

Test Firm

Cerpass Technology CorporationEric Chen
[email protected]886-2-2656-1688Fax: 886-2-2656-1689

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz72.80 mW
Confidentiality
Long Term
Grant Notes
Output power is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter procedures. End users must be informed of the requirements for satisfying RF Exposure compliance.
