Z8Q-TZ-PWS-01MyE Smart Thermostat

MyE Home Energy Management System Manual Front view of the thermostat LCD Display 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 25 26 27 28 22 23 24 Button Operations and Related LCD Display 1 – Communications button. it will toggle through the following control options: • Web server control and smart-grid control • Web server control and no smart-grid control • smart-grid control and no Web server control • No Web server control and no smart-grid control. If there is no smart-meter detected, then the button will only toggle: • Web server control • No Web server control. 2 – SYSTEM button. Pushing the SYSTEM button will cycle through the system modes auto( ), heat (), Off, and cool (). If the system is a heat pump, then emergency heat (EM) will also be available, and that comes after “heat” and before “Off”. • AUTO is represented by having both the and active. • OFF indicates that the system is turned off. • A single heating icon ( ) indicates that the system is in heat-only mode. • A single cooling icon ( ) indicates that the system is in cool-only mode. • Em indicates that the system is in Emergency Heat mode. • CAUTION: To avoid possible compressor damage, do not use Auto Changeover if the outside temperature drops below 50°F (10°C). 3 – Menu button. Pressing this button will change the content of the time display area and change the text displayed above the Menu button. • When the system is reset, Clk will be active and the time will be displayed in the middle of the LCD. • Power is the instantaneous power use for the whole building and is in kWh. Cost is the current cost of electricity per kWh. Power and Cost require that a smart-meter is present, and smart-grid control is enabled. If there is no smart-meter in the house or there is No smart-grid control, this choice will be skipped. • External temperature . If there is no web connection, then outside temperature won’t be available either. 4 – FAN button. • This button will toggle between AUTO fan and forcing the fan ON. 5, 7 – Up, Down Buttons. Used to set temperature and set points. • When in time set mode, the buttons are used to adjust hour, min, am/pm, and day. • When in the default (temperature) mode, the buttons will set a temporary HOLD that will affect the current mode (either heat or cool) until the program’s next schedule change. • Pushing the up button will increase the selected value. The down button will decrease the selected value. • When the thermostat is in DR Hold mode, pushing the up/down buttons will not modify the temperature. If the user wants to override the DR HOLD, then he needs to explicitly click on the hold/run button. 6 – Hold/Run button. The button is used to HOLD a temperature, or to RUN (resume) the current program. • If Hold is “off”, then pressing HOLD/RUN when the thermostat is in its default mode will implement a set point Hold until you release it. • If Hold is “on”, then pressing HOLD/RUN will release the hold and return to the default weekly thermostat program. 8 – SET TIME button. Used to set the time for the Thermostat. • Press the set_time button to enable set_hours mode. Then Press the up/down buttons to change the hours. • Then Press the set_time button again to move on to set minutes mode. Then Press the up/down buttons to change the minutes. • Then Press the set_time button again to move on to set AM/PM mode. Then Press the up/down buttons to toggle between AM and PM. • Then Press the set_time button again to move on to set day mode. Then Press the up/down buttons to cycle through the days of the week. • Then Press the set_time button again to start the set_time mode from the beginning. • The active field (hours, minutes, etc) will blink while active. • Press any button other than the up, down buttons while the system is in “set time” mode to cancel the changes and revert the system to normal operating mode (this will NOT change the hold/resume status.) • When the adjustments are done, press the Hold/Run button to exit TIME ADJUST mode. 9 – Temperature/humidity display. This indicates the current temperature (and humidity if an indoor humidity sensor is connected). • The units (C or F) are defined by the user using the graphic interface (through the local server, or the web, or handheld interface). • If an indoor humidity sensor is connected, the display will alternate between the temperature and the humidity. 10 – ALT field. This indicates that the temperature sensor used to drive the thermostat is the alternate sensor, either located in the Mediator or in an external temperature sensor. • If lit, the temperature in the temperature field (9) will reflect the temperature at the alternate sensor. Otherwise, the temperature reflects the sensor located at the thermostat. • The selection of the temperature sensor to use is by default at the Thermostat. A setting in the web page or mediator is where the user can change to the ALT sensor. 11 – Signal Strength. Status field for connection with the mediator • Shows the signal strength of the connection with the Mediator, from 0 to 3 bars. • If the thermostat loses communications with the Mediator, no bar is shown and the antenna will flash. In this case, all control is local to the thermostat. 12 – BATTERY field. There are three fill levels, corresponding to the strength of the batteries. When it starts flashing, please replace the batteries soon. 13 – HIGH COST (High $). Indicates a spike in electricity cost • If the electric utility company indicates that current electricity prices are about to spike or already high, then this field will flash until the prices come back down below the high cost level. • This field is only used if there is some way to receive the information on utility pricing, and the utility has a variable price program. • The user can define the high price limit using MyEnergyDomain.com in the thermostat setup section. For example, it could be defined as anything above $.30/kwh, or 2x the base rate. 14 – Lock icon: I…

Text truncated - open the document above for the full version.

MyEnergy Domain, Inc. FCC ID:Z8Q-TZ-PWS-01 POWER OF ATTORNEY November 07, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We,MyEnergy Domain, Inc.,hereby authorizeShenzhen Super Test Service Technology Co., Ltd.(Terry YANG/ Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out byShenzhen Super Test Service Technology Co., Ltd.(Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires onNovember 3 0, 2011. Thisis to advise that we are in full compliance with the Anti-Drug Abuse Act. We,MyEnergy Domain, Inc.are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. HaoRong Li CEO MyEnergy Domain, Inc. November 07, 2011

MyEnergy Domain, Inc. November 07, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Z8Q-TZ-PWS-01. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram T_Block Diagram.pdf Circuit Diagram T_Circuit Diagram.pdf BOM List T_BOM Lists.pdf PCB Layout T_PCB Layout.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, we are aware that the exhibits listed above have publicly available since 11/07/2011 the date the grant was issued. Yours Sincerely, HaoRong Li CEO MyEnergy Domain, Inc. November 07, 2011

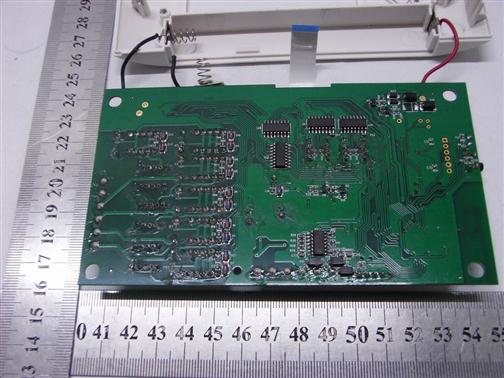

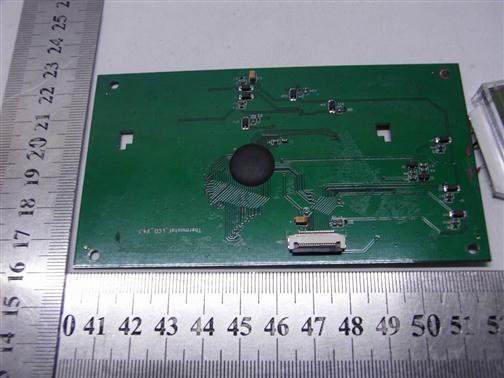

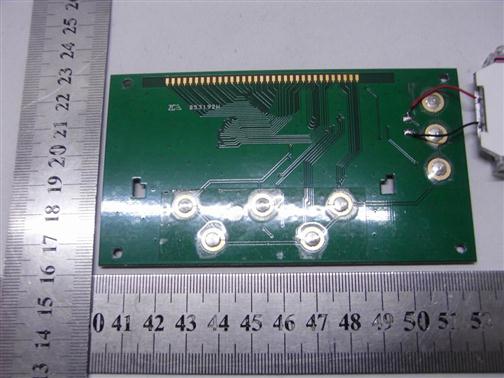

FCC ID: Z8Q-TZ-PWS-01Report No.: STS111017F2 INTERNAL PHOTO OF SAMPLE - 1 INTERNAL PHOTO OF SAMPLE -2 FCC ID: Z8Q-TZ-PWS-01Report No.: STS111017F2 INTERNAL PHOTO OF SAMPLE -3 INTERNAL PHOTO OF SAMPLE -4 FCC ID: Z8Q-TZ-PWS-01Report No.: STS111017F2

FCC Operation description Power supply: The products include two parts, namely THEMOSTAT and MEDIATOR. The THERMOSTAT power supply uses 4 AA batteries or 24V AC from transformer. It’s work current about 60ma. The MEDIATOR power supply from adapter of external DC 5V/ 1A . It’swork current about 300ma. Antenna: The M&T(Mediator and thermostat) antenna type is difference. M is a dipole antenna. T is microstrip antenna. M&T and server is composed of a set of wireless remote control system. M and server through the Ethernet transmission control instructions and information. M and T via 2.4G wireless transmission control instructions and information. The wireless transceiver is compatible with IEEE802.15.4, it is theCC2530 from Texas Instrument’s, it’s maximum RF output power is 4.5dbm FCC Tune Up Description Frequency: 2.400 – 2.483 GHz IEEE802.15.4 Modulation: 2000kchip/s O-QPSK Carrier frequency modulation model: DSSS O-QPSK RF power: 4.5dBm Information of antenna GAIN: MEDIATOR 5DBi , Thermostat -10DB +/-1DB Lmpedance：50 OHM VSWR: <= 1.92

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : MyEnergy Domain, Inc. Address : 5604 Nicholas St, Omaha NE 68132 Product Name : MyE Home Energy Management System Model Name : MyE Smart Thermostat Brand Name : FCC ID : Z8Q-TZ-PWS-01 Report No. : STS111017F2 Date of Issue : November. 04, 2011 Issued by : Shenzhen Super Test Service Technology Co., Ltd. Address : No.5, Langshan 2nd Rd., North Hi-Tech Industrial Park, Nanshan Shenzhen, China Tel : 86-755-2795 8522 Fax : 86-755-2795 8022 The report consists 42 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by STS. The test results in the report only apply to the tested sample. The test report shall be invalid without all thesignatures of testing engineers, reviewer and approver. FCC ID: Z8Q-TZ-PWS-01Report No.: STS111017F2 Page 2 of 42 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY.........................................................................................................................3 2. GENERAL INFORMATION.......................................................................................................................................4 2.1 Product Information.....................................................................................................................................................4 2.2 Objective.......................................................................................................................................................................5 2.3 Test Standards and Results.......................................................................................................................................5 2.4 Environmental Conditions..........................................................................................................................................5 3. TEST FACILITY...........................................................................................................................................................6 4. TEST EQUIPMENT LIST...........................................................................................................................................8 5. 47 CFR Part 15 C 15.247 Requirements...............................................................................................................9 5.1 6dB Bandwidth..........................................................................................................................................................9 5.1.1Definition.................................................................................................................................................................9 5.1.2Test Description......................................................................................................................................................9 5.1.3Test Result..............................................................................................................................................................9 5.2 Peak Output Power..................................................................................................................................................12 5.2.1Definition...............................................................................................................................................................12 5.2.2Test Description....................................................................................................................................................12 5.2.3Test Result............................................................................................................................................................12 5.3 Conducted Spurious Emission...........................................................................................................................14 5.3.1Definition...............................................................................................................................................................14 5.3.2Test Description....................................................................................................................................................14 5.3.3Test Result............................................................................................................................................................14 5.4 Band Edge................................................................................................................................................................16 5.4.1Definition...............................................................................................................................................................16 5.4.2Test Description....................................................................................................................................................16 5.4.3Test Result............................................................................................................................................................17 5.5 Power Spectral Density (PSD).............................................................................................................................20 5.5.1Definition...............................................................................................................................................................20 5.5.2 T est Description....................................................................................................................................................20 5.5.3Test Result............................................................................................................................................................20 5.6 Conducted Emission.......…

Text truncated - open the document above for the full version.

FCC ID: Z8Q-TZ-PWS-01Report No.: STS111017F2 CONDUCTED TEST SETUP RE TEST SETUP FCC ID: Z8Q-TZ-PWS-01Report No.: STS111017F2
