Z97-STB01RFID reader of automating reordering operations system

Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 1/11 STOCK BOX USER MANUAL Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 2/11 Product name STOCKBOX™ user manual p/n Product rev. A01 Document p/n LT-D-0101 Document rev. 01 date 14/11/2011 Author name Golan K. Documents changes and version Date Name Change description version 14/11/2011 Golan K Document release 01 Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 3/11 1. Safety Instructions / Warning - Read before start-up ! The device may only be used for the purpose intended by the manufacturer.  The operation manual should be kept readily available at all times for each user. Unauthorized changes and the use of spare parts and additional devices which have not been sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such unauthorized measures shall exclude the manufacturer from any liability.  The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors, or omissions in the manual or automatically set parameters for a device or for an incorrect application of a device. Repairs may only be undertaken by the manufacturer. Installation, operation, and maintenance procedures should only be carried out by qualified personnel. Use of the device and its installation must be in accordance with national legal requirements and local electrical codes. When working on devices the valid safety regulations must be observed. Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 4/11 2. System description and operation The STOCKBOX is a system for automating reordering operations in healthcare, manufacturing and other environments. By pre-encoding stock-cards carrying 13.56MHz RFID transponders (ISO-15693) and placing them in bins at the reordering level, users can perform a reorder operation by simply placing the card into the StockBox. The StockBox is designed to identify the cards inserted through its slot, and send the data to a remote server. The StockBox supports replenishment monitoring performed by authorized personnel, by scanning their employee badge and the individual cards, before they are placed back into the bin. The StockBox includes an RFID module at operating frequency of 13.56MHz, 0.2W maximum transmitting power. It has 4 LED as a display and 1 pushbutton. Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 5/11 The system has 4 interface connectors:  RJ45 adaptor for Ethernet connection D-type 9 pin female connector for RS232 connection power supply: plug connector size of 5.5*2.1mm SMA female connector for optional GPRS module antenna 2.1 LED Display And Button Led indicators: Power – LED is on when StockBox is connected to power. Com – LED is on when Ethernet interface is connected.  Re-stock button and LED – Pressing the Re-Stock button will put the StockBox into "Restocking mode" for 1 continues minute, during which the "Re-Stock Mode" LED will be ON. Read – LED is on whenever the system identifies a transponder either at standard or re-stock mode. Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 6/11 2.2 Power Supply Connection Allowed supply voltage: 12-24V +/-5%.  System's DC supply connector: male jack size 5.5*2.1mm.  Use of higher supply voltage can damage the system!! Use only authorized class B power supply certified device. The current consumption of the device (with GPRS connection) is 0.3A@12V. 2.3 Ethernet connection Use CAT5E cable, shielded SFTP. 2.4 RS232 interface Standard RS232, port settings: baud rate 115200b/s  data bits=8 parity=none stop bit=1 flow control=none  Use standard cable with male D-type 9 pin connector, pin out:  Pin 2-Tx Pin 3-Rx Pin 5 – GND 2.5 GPRS antenna connection In StockBox systems with the optional GPRS module installed, connect the GPRS antenna supplied with the system and mount it on the system enclosure or any near-by allowed surface. 2.6 RFID transponders The system supports ISO15693 transponders. Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 7/11 2.7 System operation: To operate the system: 1. Connect power supply to the power plug and see that the Power LED is ON. 2. Connect LAN or RS232 port to the host computer (section 2.3 and 2.4). 3. Run the StockBox software at the host computer 4. Insert transponders to the slot and see that the "Read" LED is ON 5. Monitor on the host computer's screen the identified transponders 6. Insert only one transponder at a time. 7. To perform Re-Stock operation: a. Open the StockBox lock and remove all the transponders. b. Press the Re-stock button, c. Put your badge on the "IDENTIFY" area on the StockBox and see that the "Read" LED turns ON. d. Put the cards taken out of the StockBox on the "Identify" area one after another. Wait 3 seconds between each transponder. Each time the Read Led should be on. Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 8/11 Slot IDENTIFY Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone,…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: LogiTag Systems Ltd. Address: 2 Hamelacha street, Poleg Industrial Zone City: Netanya 42504 Country: Israel  . Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel is authorized to apply for Certification of the following product(s): Product description:  System for automating reordering operations with RFID reader Type designation:  StockBox  . Trademark:  LogiTag  . on our behalf. Date: November 13, 2011 Name: Golan Kormian Function: Engineering manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: LogiTag Systems Ltd. Address : 2 Hamelacha street, Poleg Industrial Zone City: Netanya 42504 Country: Israel To: Telefication B.V ., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: Z97-STB01 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: November 21, 2011 Name and signature of applicant: Golan Kormian Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Netanya, P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com December 25, 2011 Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Application for certification of a system for automating reordering operations with RFID reader, FCC ID:Z97-STB01 Dear Gentlemen, Please find attached our application for certification of a system for automating reordering operations with RFID reader, part numbers LT-SB-G001, LT-SB-001, FCC ID:Z97-STB01, prepared in accordance with FCC Rules part 2, part 15 subpart C section 15.225 and subpart B. A Declaration of Conformity provided. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC, Registration Numbers 90623, 90624. The FCC Designation Number is US1003. Hermon Labs responsible person is Mr. Michael Nikishin, tel: +972 4626 8440, fax:+972 4628 8277, e-mail: [email protected]. Please send an invoice to Hermon Labs. We hope this application satisfies your requirements Sincerely yours, Golan Kormian Engineering Manager

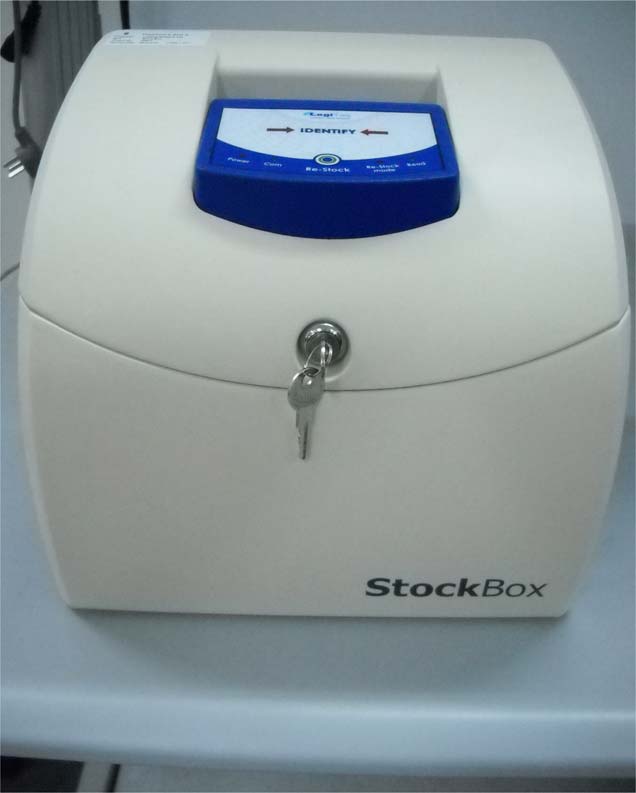

LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 2 of 5 Photograph No.1 StockBox system general view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 3 of 5 Photograph No.2 StockBox system front view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 4 of 5 Photograph No.3 StockBox system rear side view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 5 of 5 Photograph No.4 RFID reader location

LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 1 of 2 Label The label is affixed on the rear side of the wireless control panel as shown below. The label material is PVC with a permanent adhesive. LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 2 of 2 Label location Label with FCC ID:Z97-STB01 will be located here.

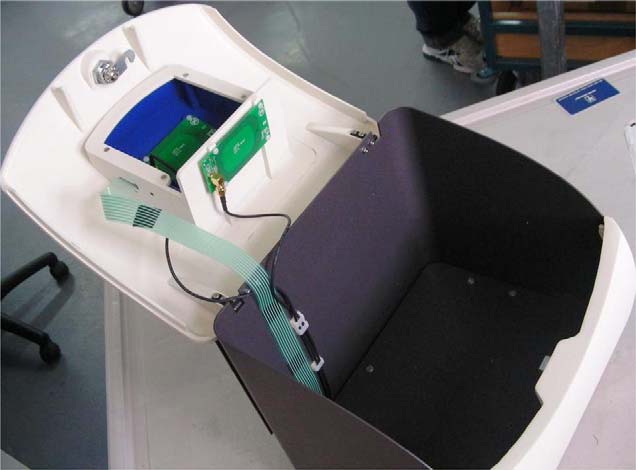

LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 1 of 14 INTERNAL PHOTOGRAPHS This document contains 13 photographs LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 2 of 14 Photograph No.1 StockBox system internal view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 3 of 14 Photograph No.2 StockBox system internal view with RFID reader LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 4 of 14 Photograph No.3 StockBox system internal close view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 5 of 14 Photograph No.4 RFID reader with vertical antenna view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 6 of 14 Photograph No.5 RFID reader with horizontal antenna view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 7 of 14 Photograph No.6 RFID reader PCB front view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 8 of 14 Photograph No.7 RFID reader PCB second side view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 9 of 14 Photograph No.8 StockBox main PCB front view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 10 of 14 Photograph No.9 StockBox main PCB rear side view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 11 of 14 Photograph No.10 StockBox MUX PCB front view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 12 of 14 Photograph No.11 StockBox MUX PCB rear side view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 13 of 14 Photograph No.12 StockBox second PCB front view LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 14 of 14 Photograph No.13 StockBox second PCB rear side view

FCC ID:Z97-STB01 Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 1/6 STOCKBOX™ operational description FCC ID:Z97-STB01 Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 2/6 The STOCKBOX™ is a system for automating reordering operations in healthcare, manufacturing and other environments. By pre-encoding stock- cards carrying 13.56MHz RFID transponders (ISO-15693) and placing them in bins at the reordering level, users can perform a reorder operation by simply placing the card into the StockBox. The StockBox is designed to identify the cards inserted through its slot, and send the data to a remote server. The StockBox supports replenishment monitoring performed by authorized personnel, by scanning their employee badge and the individual cards, before they are placed back into the bin. The StockBox includes an RFID module at operating frequency of 13.56MHz, 0.2W maximum transmitting power. It has 4 LED as a display and 1 pushbutton. FCC ID:Z97-STB01 Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 3/6 The system has 4 interface connectors: RJ45 adaptor for Ethernet connection D-type 9 pin female connector for RS232 connection  power supply: plug connector size of 5.5*2.1mm SMA female connector for optional GPRS module antenna LED Display and Button: Led indicators: Power – LED is on when StockBox is connected to power. Com – LED is on when Ethernet interface is connected. Re-stock button and LED – Pressing the Re-Stock button will put the StockBox into "Restocking mode" for 1 continues minute, during which the "Re-Stock Mode" LED will be ON. Read – LED is on whenever the system identifies a transponder either at standard or re-stock mode. FCC ID:Z97-STB01 Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 4/6 To operate the system: 1. Connect power supply to the power plug and see that the Power LED is ON. 2. Connect LAN or RS232 port to the host computer (section 2.3 and 2.4). 3. Run the StockBox software at the host computer 4. Insert transponders to the slot and see that the "Read" LED is ON 5. Monitor on the host computer's screen the identified transponders 6. Insert only one transponder at a time. 7. To perform Re-Stock operation: a. Open the StockBox lock and remove all the transponders. b. Press the Re-stock button, c. Put your badge on the "IDENTIFY" area on the StockBox and see that the "Read" LED turns ON. d. Put the cards taken out of the StockBox on the "Identify" area one after another. Wait 3 seconds between each transponder. Each time the Read Led should be on. FCC ID:Z97-STB01 Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 5/6 Slot IDENTIFY FCC ID:Z97-STB01 Tel: 972-9-835-4848 Fax: 972-9-865-6262 2 Hamelacha St., Poleg Industrial Zone, Natanya ,P.O.B 8249, ZIP 42504 Israel LogiTag Systems LTD. www.logi-tag.com Page 6/6

LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 1 of 6 SETUP PHOTOGRAPHS This document contains 5 photographs LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 2 of 6 Photograph No.1 Setup for spurious emission field strength measurements in the anechoic chamber below 30 MHz LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 3 of 6 Photograph No.2 Setup for carrier field strength, OBW, spurious emission field strength measurements in the anechoic chamber in 30 – 1000 MHz range LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 4 of 6 Photograph No.3 Setup for frequency stability measurements LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 5 of 6 Photograph No.4 Setup for occupied bandwidth measurements LogiTag Systems Ltd. FCC ID:Z97-STB01 Page 6 of 6 Photograph No.5 Setup for conducted emissions measurements on AC power lines
