RF_160, Issue 03 Declaration of Authorization We Name: LogiTag Systems Ltd. Address: 1st Floor, Building 9, 29 Yad Harutzim street, Poleg Industrial Zone City: Netanya 4250473 Country: Israel Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel is authorized to apply for Certification of the following product(s): Product description:  Gate Exciter GPRS Type designation:  LTG2-11 Trademark:  LogiTag on our behalf. Date: October 1, 2014 City: Netanya Name: Golan Kormian (2) Function: Engineering manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: LogiTag Systems Ltd. Address : 1st Floor, Building 9, 29 Yad Harutzim street, Poleg Industrial Zone City: Netanya 4250473 Country: Israel To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: Z97LTG2-01 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: New product for the market, need to keep staff from competitors, reviling information only for customers Planned Release Date STC: 180 after grant (notes 2, 3, 4, 5) Date: October 1, 2014 Name and signature of applicant: Golan Kormian Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Tel: 972-9-835-4848 Fax: 972-9-865-6262 29 Yad Harutzim St., Poleg Industrial Zone, Netanya, P.O.B 8249, ZIP 4250473 Israel LogiTag Systems LTD. www.logi-tag.com November 3, 2014 Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Composite application for certification of a Gate Exciter GPRS (management unit), FCC ID:Z97LTG2-01 Dear Gentlemen, Please find attached our composite application for certification of a Gate Exciter GPRS (management unit), FCC ID:Z97LTG2-01 , prepared in accordance with FCC Rules, parts 2 and 15, sections 15.231(a), 15.249, 15.209. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC, Registration Numbers 90623, 90624. The FCC Designation Number is US1003. Hermon Labs responsible person is Mr. Michael Nikishin, tel: +972 4626 8440, fax:+972 4628 8277, e-mail: [email protected]. Please send an invoice to Hermon Labs. We hope this application satisfies your requirements Sincerely yours, Golan Kormian Engineering Manager

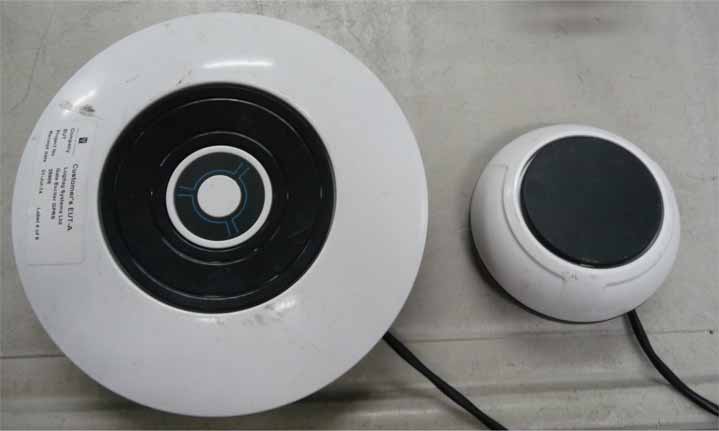

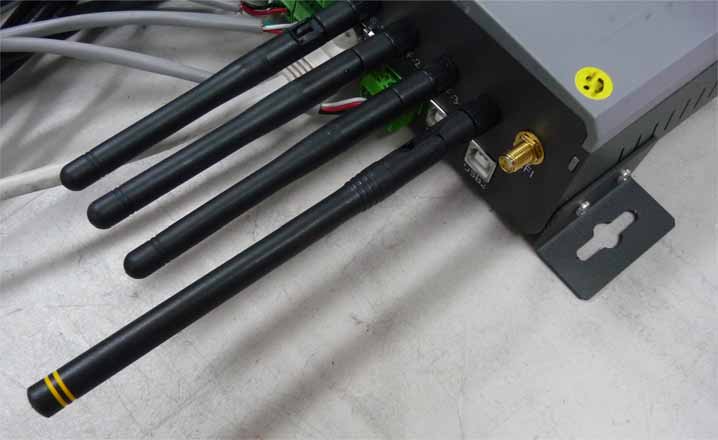

LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 1 of 7 EXTERNAL PHOTOGRAPHS This document contains 6 photographs LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 2 of 7 Photograph No.1 Gate Exciter GPRS front view LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 3 of 7 Photograph No.2 Gate Exciter GPRS rear side general view with antennas LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 4 of 7 Photograph No.3 Gate Exciter GPRS rear panel view LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 5 of 7 Photograph No.4 Gate Exciter GPRS bottom view LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 6 of 7 Photograph No.5 Gate Exciter GPRS ceiling and door antennas LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 7 of 7 Photograph No.6 Gate Exciter GPRS antennas

LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 1 of 5 Label The label is affixed on the device bottom side as shown below on the photo. The label material is PVC with a permanent adhesive. 1) Gate Exciter GPRS, model name LTG2-11 2) Door Management Unit GPRS, model name LTG2-11-PRF LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 2 of 5 3) Base Station, model name LTG2-01 4) Central Management Unit, model name LTG2-01-PRF LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 3 of 5 5) Gate Locator, model name LTG2-02 6) Door Management Unit, model name LTG2-02-PRF LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 4 of 5 7) 4 Channel Exciter, model name LTG2-03 8) Multi Location Unit, model name LTG2-03-PRF LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 5 of 5 9) Additional label for approved module Note: if the Base Station, Gate Locator, Central management unit, Door management unit will include the GPRS module, this separate label will be placed on the EUT bottom side. Label location Label with FCC ID:Z97LTG2-01 will be located on the bottom side of the device. Note: the Additional label may be added to Base Station, Gate Locator, Central management unit, Door management unit which will include the GPRS module. FCC ID:Z97LTG2-01 Additional label

LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 1 of 8 INTERNAL PHOTOGRAPHS This document contains 7 photographs LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 2 of 8 Photograph No.1 Gate Exciter GPRS internal view LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 3 of 8 Photograph No.2 Gate Exciter GPRS internal close view LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 4 of 8 Photograph No.3 Gate Exciter GPRS internal view LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 5 of 8 Photograph No.4 PCB rear side view LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 6 of 8 Photograph No.5 Gate Exciter GPRS RF board front view UHF1 UHF2 UHF3 UHF4 (902-928 MHz) LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 7 of 8 Photograph No.6 RF board second side view LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 8 of 8 Photograph No.7 PCB close view

LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Summation of RF exposure calculation The device transmitters operate according to FCC part 15 subpart C sections 15.231(a), 15.249 and 15.209. The standards do not contain RF Exposure limits. The device includes the single modular approved transmitters FCC ID:RI7HE910 and FCC ID:TFB-TIWI1-01. The unit is classified as mobile device. The power density P (mW/cm 2 ) = P T / 4 r 2 1) Limit for power density is f/1500 = 0.55 mW/cm 2 for 824-849 MHz for general population/uncontrolled exposure. Maximum conducted output power given in FCC ID:RI7HE910 module grant is 1995 mW. It is used with 12.5 % duty cycle according to RF Exposure Report provided by Telit, hence, corresponds to equivalent average power 33 dBm x 0.125 = 4.125 dBm in 824.2-848.8 band. According to RF Exposure Report the 1738 mW peak power is used with 50 % duty cycle which corresponds to equivalent average power 32.4 dBm x 0. 5 = 16.2 dBm in 824.2-848.8 band. The gain of antenna used with the module is 3 dBi. The maximum equivalent isotropically radiated power EIRP is P T = 16.2 dBm +3 dBi = 19.2 dBm = 83.2 mW The power density at 20 cm is calculated as follows: S1= 83.2 mW / 4 (20 cm) 2 = 0.016 mW/cm 2 < 0.55 mW/cm 2 2) Max Power density at 20 cm of FCC ID:TFB-TIWI1-01 module calculated in MPE report is S2=0.0177 mW/cm 2 Limit for power density for general population/uncontrolled exposure is P = 1 mW/cm 2 (for 2.4 GHz). Summation When all the antennas are at least 20 cm away from the user but individual antennas cannot be separated by 20 cm from each other the following equation shall be fulfilled S1/Limit + S2/Limit < 1, i.e. 0.016 mW/cm 2 /0.55 mW/cm 2 + 0.0177 mW/cm 2 /1 mW/cm 2 = 0.03 +0.018 = 0.048 < 1 Therefore, the management unit including approved modules complies with FCC RF exposure limit for mobile device for general population. General public cannot be exposed to dangerous RF level.

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 78 Report ID: LOGRAD_FCC.25985_15.231.docx Date of Issue: 11-Sep-14 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC CFR 47 Part 15 subpart C, section 15.231(a) and RSS-210 issue 8 Annex 1 FOR: LogiTag Systems Ltd. Gate Exciter GPRS Model:LTG2-11 Door Management Unit GPRS Model:LTG2-11-PRF Base Station Model:LTG2-01 Central Management Unit Model:LTG2-01-PRF Gate Locator Model:LTG2-02 Door Management Unit Model:LTG2-02-PRF 4 Channel Exciter Model:LTG2-03 Multi Location Unit Model:LTG2-03-PRF FCC ID:Z97LTG2-01 This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: LOGRAD_FCC.25985_15.231.docx Date of Issue: 11-Sep-14 Page 2 of 78 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 EUT modules and sub-assemblies ................................................................................................................................ 5 6.3 Ports and lines .............................................................................................................................................................. 6 6.4 Support and test equipment .......................................................................................................................................... 7 6.5 Changes made in the EUT ............................................................................................................................................ 7 6.6 Test configuration .......................................................................................................................................................... 8 6.7 Transmitter characteristics ............................................................................................................................................ 9 7 Transmitter tests according to 47CFR part 15 subpart C requirements ...................................................................... 10 7.1 Periodic operation requirements ................................................................................................................................. 10 7.2 Field strength of emissions .......................................................................................................................................... 17 7.3 Occupied bandwidth test ............................................................................................................................................. 59 7.4 Conducted emissions .................................................................................................................................................. 62 7.5 Antenna requirements ................................................................................................................................................. 65 8 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 66 9 APPENDIX B Measurement uncertainties ................................................................................................................... 67 10 APPENDIX C Test laboratory description ................................................................................................................... 68 11 APPENDIX D Specification references ....................................................................................................................... 68 12 APPENDIX E Test equipment correction factors ......................................................................................................... 69 13 APPENDIX F Abbreviations and acronyms ................................................................................................................. 76 14 APPENDIX G Manufacturer’s declaration of identity ................................................................................................... 77 Report ID: LOGRAD_FCC.25985_15.231.docx Date of Issue: 11-Sep-14 Page 3 of 78 1 Applicant information Client name: LogiTag Systems Ltd. Address: 1st Floor, Building 9, 29 Yad Harutzim street, Poleg Industrial Zone, P.O.B. 8249, Netanya 4250473, Israel Telephone: +972 9835 4848 Fax: +972 9865 6262 E-mail: [email protected] Contact name: Mr. Golan Kormian 2 Equipment under test attributes Product name: Gate Exciter GPRS Model(s): LTG2-11 Serial number: 1 Hardware …

Text truncated - open the document above for the full version.

LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 1 of 6 SETUP PHOTOGRAPHS This document contains 5 photographs LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 2 of 6 Photograph No.1 Setup for emission field strength measurements in the anechoic chamber below 30 MHz LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 3 of 6 Photograph No.3 Setup for fundamental and spurious emission field strength measurements in the anechoic chamber in 30 – 1000 MHz range LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 4 of 6 Photograph No.6 Setup for spurious emission field strength measurements in the anechoic chamber above1000 MHz LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 5 of 6 Photograph No.4 Setup for emission field strength measurements in the anechoic chamber, EUT close view LogiTag Systems Ltd. FCC ID:Z97LTG2-01 Page 6 of 6 Photograph No.5 Setup for conducted emission measurements on the AC power lines
