Z9I-U02MM CHIP DEDICATED READER WRITER

1／20 MMRW User Manual Product Name MM Chip Reader / Writer module [UHF] Product Number MMRW-MD-U01 FEC International (M) SDN BHD 2 nd Nov. 2011 2／20 Contents 1 Introduction ..........................................................................................................................................................3 2 Usage Important Points .........................................................................................................................................3 3 Key features .........................................................................................................................................................3 4 Reader/writer module package content ....................................................................................................................4 5 Connections..........................................................................................................................................................5 6 Function and use ...................................................................................................................................................5 7 Hardware .............................................................................................................................................................6 7.1 Transmitting circuit .......................................................................................................................................6 7.2 Receiving circuit / comparator circuit .............................................................................................................7 7.3 Microprocessor .............................................................................................................................................8 7.4 Microprocessor’s pin assignment ................................................................................................................. 10 7.5 RF antenna ................................................................................................................................................. 10 8 Firmware............................................................................................................................................................ 11 9 Firmware Writing Procedures............................................................................................................................... 12 9.1 Firmware writing application start-up and installation .................................................................................... 12 9.2 Firmware writing ........................................................................................................................................ 12 10 Product general specification................................................................................................................................ 16 11 Annexes ............................................................................................................................................................. 17 11.1 Schematics ................................................................................................................................................. 17 11.2 List of components ..................................................................................................................................... 18 11.3 Antenna layout ........................................................................................................................................... 20 12 FCC STATEMENT ............................................................................................................................................. 20 3／20 1 Introduction This MMRW-MD-U01 is a reader/writer module complied with multiband RFID chip dubbed as “MM Chip”. This document contains the instructions to use and evaluate the functions and the performance of this device. For external interface connection, either USB or UART serial connection can be applied, which is applicable to almost all of the controller systems. For more details on the product specifications, please refer to “MMRW-U02 Product Specification Document”. 2 Usage Important Points [Regulation/Standards] This product follows the guidance for reading/writing communication equipment. It is important to check the regulation/standard and the seller or user of the intended country. [Points to take notes before using the product] 1) This product is designed for general use and should not be utilized with application such as medical appliances related to human life or in space satellite environment which requires high reliability. Our company will not be responsible for any accidents caused from the said events, such as personal accident, fire accident or any public related accident. 2) This product is emitting radio wave which can affect medical appliances such as the pacemaker device. 3) Do not place this product near any radio device since it can cause interference. 4) Do not touch the connector terminal as it can result in electrical shock and will eventually destroy the product. 3 Key features  Support MM2 chip air interface protocol and commands  Light weight, compact size module  UART serial and USB communication available  RF output: 100mW  Operation voltage: 5VDC 4／20 4 Reader/writer module package content [RFID reader / writer board: MMRW-MD-U01] USB (Mini B) Packet communication complies with USB2.0/1.1 UART serial  Communication speed Variable according to a command (default：9,600bps) (1,200/2,400/4,800/9,600/19,200/38,400/57,600bps)  Data bit: 8bit  Stop bit: 1bit  Parity bit: N/A  Flow control: N/A [Board antenna: MMATU-OCA] [CD with SDK and documentation] Included in the CD are SDK and related documents, product specifications and various manuals. For more details, please see “readme.txt” included in the CD. Top side Back side Min-USB UART Antenna connector Antenna connector…

Text truncated - open the document above for the full version.

Senstech Sdn. Bhd. Suite 10-01,Level 10, Menara Atlan, 161B Jalan Ampang, 50450 Kuala Lumpur, Malaysia Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 2011-12-06 SUBJECT: FCC Application for Z9I-MD-U02 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing.

1/2 Block diagram No.D07013R-A /D Product Name MM Chip Dedicated Reader/Writer Module [UHF] Model MMRW-MD-U01 Document Name Block diagram Revision Nov. 2011 FEC Inc. 1414, Ustugi-machi Higashi Kanazawa-city, Ishikawa Prefecture 920-0377 TEL: 076-269-8890 / FAX: 076-269-8897 2/2 Block diagram No.D07013R-A /D RF connector (U.FL for coaxial) (915.5 to 927.5MHz) Tr a n s m i t t e r LPF Buffer amplifie Variable Gain am plifier Receiver Power amplifie Tr a n s m i t UART serial connector USB connector LED Power supply Each part Directional coupler PLL IC *Insert the ATT between amplifier and VCO AF amplifier AT T BPF Comparato r RF amplifier RF amplifier 2 RSSI IF amplifier IF amplifier MIX LBT controller BPF Controller (decryption) (13.000MHz) TCXO CXO (temperature compensated crystal oscillator): This is reference oscillator for carrier. VCO (voltage controlled oscillator): VCO controlled oscillating frequency.

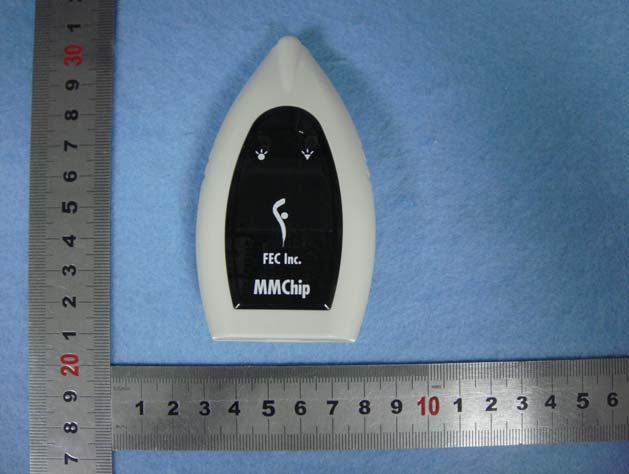

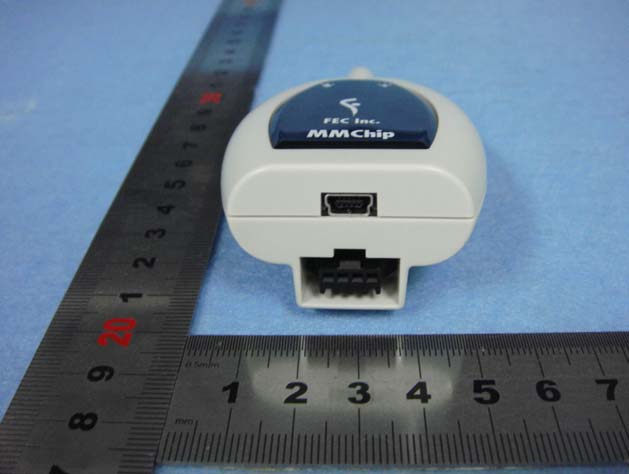

SENSTECH SDN. BHD. MODEL: MMRW-U02 APPENDIX B – External Photo EUT – Rear View 1 EUT - Rear View 2 REPORT NO.: MTI111102004RF SENSTECH SDN. BHD. MODEL: MMRW-U02 EUT - Rear View 3 REPORT NO.: MTI111102004RF

SENSTECH SDN. BHD. MODEL: MMRW-U02 Proposed Label Location on EUT FCC ID Label Location - REPORT NO.: MTI111102004RF

SENSTECH SDN. BHD. MODEL: MMRW-U02 APPENDIX A - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: Z9I-U02 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. REPORT NO.: MTI111102004RF

SENSTECH SDN. BHD. MODEL: MMRW-U02 APPENDIX C - EUT INTERNAL PHOTOGRAPHS EUT – Inside View EUT – PCB View 1 REPORT NO.: MTI111102004RF SENSTECH SDN. BHD. MODEL: MMRW-U02 EUT – PCB View 2 REPORT NO.: MTI111102004RF

MMRW functional descriptions MMRW mainly functions as a data transceiver device to an IC tag. 1. Connect the equipment as shown below. MMRW has serial interface and USB interface. Host controller MMRW-MD-U02 Antenna Serial or USB communicati 2. Power supply to the control board. 3. Wave the IC tag over an antenna surface 4. Send a command from the host controller. A power supply and data are transmitted to an IC tag from an antenna, and it communicates. IC Tag MMRW-MD-U02 Host controller Antenna 5. MMRW acquires the data of an IC tag and transmits the acquired data to a host controller.

FCC Part 15C Measurement And Test Report For Senstech Sdn. Bhd. Suite 10-01,Level 10, Menara Atlan, 161B Jalan Ampang, 50450 Kuala Lumpur, Malaysia FCC ID: Z9I-U02 Nov 29, 2011 This Report Concerns: Original Report Equipment Type: MM chip dedicated reader writer Report Number: MTI111102004RF Test Engineer: Bill Chen Reviewed By: Jason Zheng Approved & Authorized By: Hebe Lee Test Date: Nov 4 - 25,2011 Prepared By: MTI Technology Laboratory Ltd． 10F, Yinxing Business Hotel, Xixiang Road, Bao'an District, Shenzhen, P,R.China. Tel: +86-755-8885 0135 Fax: +86-755-8885 0136 Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior written consent of MTI Technology Laboratory Ltd． . Report No.：MTI111102004RF Page 2 of 22 TABLE OF CONTENTS 1. GENERAL INFORMATION......................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................................3 1.2 RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................3 1.3 TEST METHODOLOGY..................................................................................................................................................3 1.4 TEST FACILITY............................................................................................................................................................4 2. SYSTEM TEST CONFIGURATION............................................................................................................ 5 2.1 EUT CONFIGURATION..................................................................................................................................................5 2.2 EUT EXERCISE...........................................................................................................................................................5 2.3 GENERAL TEST PROCEDURES......................................................................................................................................5 2.4 LIST OF MEASURING EQUIPMENTS USED.......................................................................................................................6 3. SUMMARY OF TEST RESULTS................................................................................................................ 7 4. ANTENNA REQUIREMENT....................................................................................................................... 8 4.1 STANDARD APPLICABLE...............................................................................................................................................8 4.2 ANTENNA CONNECTED CONSTRUCTION.........................................................................................................................8 5. §15.205, §15.209, §15.249 (A)- RADIATED EMISSION............................................................................ 9 5.1 STANDARD APPLICABLE...............................................................................................................................................9 5.2 EUT SETUP................................................................................................................................................................9 5.3 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................10 5.4 TEST PROCEDURE.....................................................................................................................................................10 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................................11 5.6 TEST RESULT............................................................................................................................................................11 6. §15.249(B) OUT OF BAND EMISSIONS.................................................................................................. 20 6.1 LIMITS OF BANDEDGE MEASUREMENT..........................................................................................................................20 6.2 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................20 6.3 TEST PROCEDURE.....................................................................................................................................................20 6.4 TEST RESULT /PLOTS................................................................................................................................................20 Report No.：MTI111102004RF Page 3 of 22 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Applicant: Senstech Sdn. Bhd. Address of applicant: Suite 10-01, Level 10, Menara Atlan, 161B Jalan Ampang, 50450 Kuala Lumpur, Malaysia Manufacturer: FEC Inc Address of manufacturer: 1414 Higashi, Utsugi machi, Kanazawa shi, Ishikawa, 920- 0377, Japan Equipment Under Test: MM chip dedicated reader writer Tested Model No.: MMRW-U02 Trade Name: / Supplementary Models No: / Remark: supplementary models are only different in exterior with tested Model and with the same circuit construction Type of Modulation: ASK Antenna Type: Integral Antenna Frequency Band: 915.5-927.5 MHz Channel Spacing: 0.5 MHz Rated Power: <10mW Power Supply: DC 5V Remark: * The test data gathered are from the production sample provided by the manufacturer. 1.2 Related Submittal(s) / Grant (s) This submittal(s) is a test report based on the Electromagnetic Interference (EMI) tests performed on the EUT. The EMI measurements were performed according to t…

Text truncated - open the document above for the full version.

SENSTECH SDN. BHD. MODEL: MMRW-U02 APPENDIX D - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz) REPORT NO.: MTI111102004RF
