Z9UMOMO9STARTablet

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Date:2012-11-10 FCC ID: Z9UMOMO9STAR Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Yours sincerely, Signatory Signature Name Brian chou Title Manager 6F, Building 8, Yusheng Industrial Park, Gushu, Xixiang Town, Baoan District, Shenzen, China

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date:2012-11-10 FCC ID: Z9UMOMO9STAR Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Signature Name Brian chou Title Manager 6F, Building 8, Yusheng Industrial Park, Gushu, Xixiang Town, Baoan District, Shenzen, China

Authorization Letter We, (the approval holder) Company name Shenzhen Ployer Electronics Co.,Ltd Addresss 6F, Building 8, Yusheng Industrial Park, Gushu, Xixiang Town, Baoan District, , City Shenzhen Country China declare that the following representative (agent): Name (person) Bovey.yang Company name NTEK Testing Technology Co., Ltd. Addresss 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description Tablet PC Type or Model(s) IDOLPAD PLUS 9,Q7pro -L9,MOMO9, MOMO9 Dual Core,MOMO9 STAR-Dual Core MOMO9 STAR-II,TAB 9.0,S9 Tradename or Brand(s) N/A We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) China 2012/11/10 Brian chou Manager

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Shenzhen Ployer Electronics Co.,Ltd Addresss 6F, Building 8, Yusheng Industrial Park, Gushu, Xixiang Town, Baoan District, City Shenzhen Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: Z9U MOMO9STAR of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) China 2012/11/05 Brian chou Manager

Model Difference FCC ID: Z9UMOMO9STAR All model(IDOLPAD PLUS 9,Q7pro -L9,MOMO9,MOMO9 Dual Core,MOMO9 STAR- Dual Core MOMO9 STAR-II,TAB 9.0,S9),Model name is different, other is same. Yours sincerely, Signatory Signature Name Brian chou Title Manager 6F, Building 8, Yusheng Industrial Park, Gushu, Xixiang Town, Baoan District, Shenzen, China

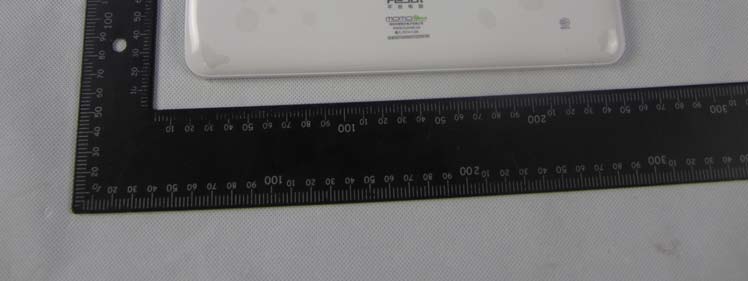

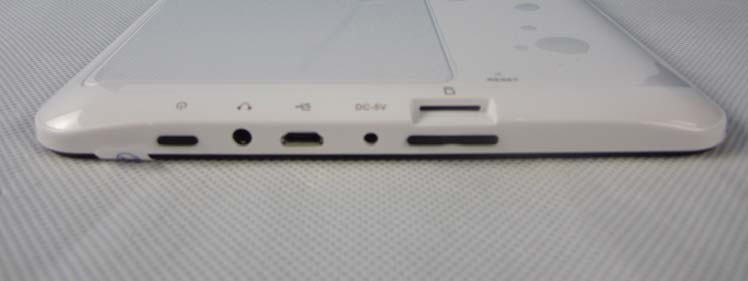

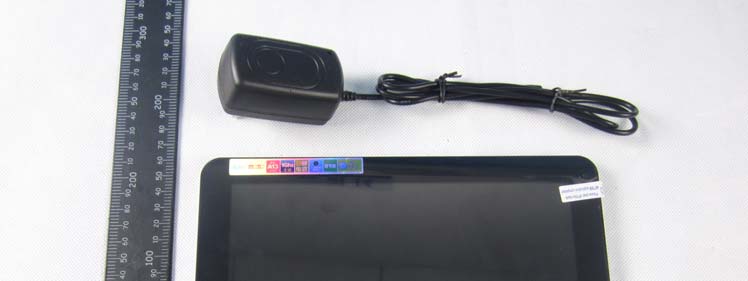

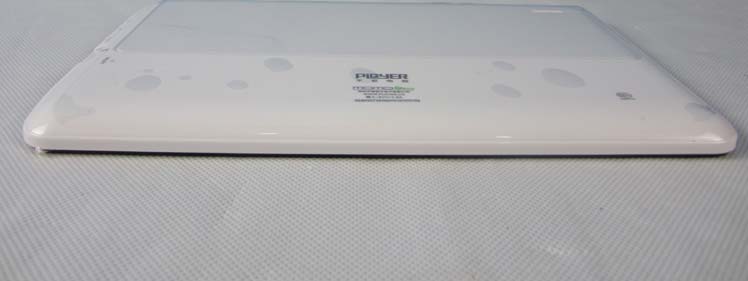

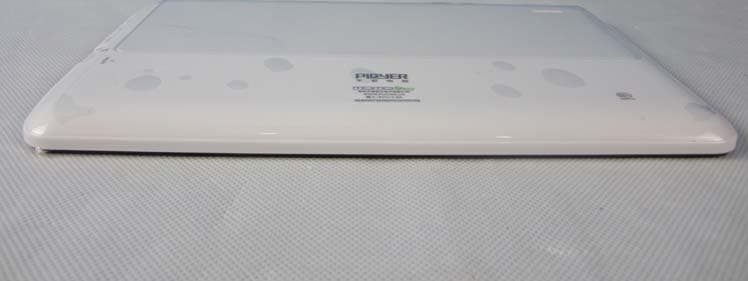

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

3.7*1.5

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13

Tune-Up Information This is to formally certify that: The tune up procedures of Tablet PC (IDOLPAD PLUS 9,Q7pro - L9,MOMO9,MOMO9 Dual Core,MOMO9 STAR-Dual Core MOMO9 STAR-II,TAB 9.0,S9)is not open to end user. The end user is not allowed to perform finaltune. All the power and frequency set up were finished at the manufacturer stage. IEEE 802.11b max possible output power (PK,conducted) ：10±1dbm IEEE 802.11g/n max possible output power(PK, conducted) ：9±1dbm Regards, Yours sincerely, Signatory Signatory Signature Name Brian chou Title Manager 6F, Building 8, Yusheng Industrial Park, Gushu, Xixiang Town, Baoan District, Shenzen, China

Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) For portable device,the power limit is 60/f(in GHz) mW For limit 60/f is equal: 60/2.412=24.87mW 60/2.437=24.62 mW 60/2.462=24.37mW Maximum measured transmitter power Model MAX Conducted Power (dBm) Max Antenna Gain (dBi)EIRP (mW) EIRP (mW) 802.11b 10.22 2.0 16.67 24.37 802.11g 8.43 2.0 11.04 24.37 802.11n 8.45 2.0 11.09 24.37 To Tune Up information max possible output power (PK)： ±1dbm MAX possible Conducted Power (dBm) Max Antenna Gain (dBi) EIRP (dBm) EIRP (mW) limit(mW) 11 2 13 19.95 24.37 The max.output power E.I.R.P is 19.95 mW<24.37mW Conclusion: No SAR is required.

FCC RADIO TEST REPORT FCC ID: Z9UMOMO9STAR Product： Tablet PC Trade Name： N/A Model Name： MOMO9 STAR Serial Model： IDOLPAD PLUS 9,Q7pro -L9,MOMO9, MOMO9 Dual Core,MOMO9 STAR-Dual Core MOMO9 STAR-II,TAB 9.0,S9 Report No.： NTEK- 2012NT1009051F Prepared for Shenzhen Ployer Electronics Co.,Ltd 6F, Building 8, Yusheng Industrial Park, Gushu, Xixiang Town, Baoan District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 72 Report No.: NTEK-2012NT1009051F TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Ployer Electronics Co.,Ltd Address ................................. : 6F, Building 8, Yusheng Industrial Park, Gushu, Xixiang Town, Baoan District, Shenzhen, China Manufacture's Name ............ : Shenzhen Ployer Electronics Co.,Ltd Address ................................. : 6F, Building 8, Yusheng Industrial Park, Gushu, Xixiang Town, Baoan District, Shenzhen, China Product description Product name ........................... : Tablet PC Model and/or type reference : MOMO9 STAR Serial Model： IDOLPAD PLUS 9,Q7pro -L9,MOMO9, MOMO9 Dual Core,MOMO9 STAR-Dual Core MOMO9 STAR-II,TAB 9.0,S9 Standards ............................. : FCC Part15.247 Test procedure ..............................ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 05 Nov. 2012 ~12 Nov. 2012 Date of Issue ........................................... : 13 Nov. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 72 Report No.: NTEK-2012NT1009051F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 54 4.1 APPLIED PROCEDURES / LIMIT 54 4.1.1 TEST PROCEDURE 54 4.1.2 DEVIATION FROM STANDARD 54 4.1.3 TEST SETUP 54 4.1.4 EUT OPERATION CONDITIONS 54 4.1.5 TEST RESULTS 55 5 . BANDWIDTH TEST 61 5.1 APPLIED PROCEDURES / LIMIT 61 5.1.1 TEST PROCEDURE 61 Page 4 of 72 Report No.: NTEK-2012NT1009051F Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 61 5.1.3 TEST SETUP 61 5.1.4 EUT OPERATION CONDITIONS 61 5.1.5 TEST RESULTS 62 6 . PEAK OUTPUT POWER TEST 68 6.1 APPLIED PROCEDURES / LIMIT 68 6.1.1 TEST PROCEDURE 68 6.1.2 DEVIATION FROM STANDARD 68 6.1.3 TEST SETUP 68 6.1.4 EUT OPERATION CONDITIONS 68 6.1.5 TEST RESULTS 69 7 . ANTENNA REQUIREMENT 70 7.1 STANDARD REQUIREMENT 70 7.2 EUT ANTENNA 70 8 . EUT TEST PHOTO 71 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 72 Report No.: NTEK-2012NT1009051F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 72 Report No.: NTEK-2012NT1009051F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 72 Report No.: NTEK-2012NT1009051F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Tablet PC Trade Name N/A Model Name MOMO9 STAR Serial Model IDOLPAD PLUS 9,Q7pro -L9,MOMO9, MOMO9 Dual Core,MOMO9 STAR-Dual Core MOMO9 STAR-II,TAB 9.0,S9 Model Difference Model name is different, other is same Product Description The EUT is a Tablet PC Operation Frequency: 2412~2462 MHz(802.11b/g/n) Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n: 72.2/65/58.5/57.8/52/ 43.3/39/28.9/26/21.7/19.5/14.4/13/7.2 /6.5Mbps Number Of Channel 11 CH, Please see Note 2. Antenna Designation: Please see Note 3. Output…

Text truncated - open the document above for the full version.

Page 71 of 72 Report No.: NTEK-2012NT1009051F 8. EUT TEST PHOTO Radiated Measurement Photos Page 72 of 72 Report No.: NTEK-2012NT1009051F Conducted Measurement Photos
