ZAL26770RADAR DETECTOR

1, The Ghost Radar/ Laser Detector This Device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: 1: This device may not cause harmful interference, and 2: This device must accept any interference received, including interference that may cause undesired operation. Note: The Manufacture in not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Introduction Dear owner, Thank you for purchasing The Ghost Series radar/laser detector with VCO technology. Your radar detector detects all speed monitoring radar & laser signals, is designed to help your drive safe with visual and audio alerts. It is recommended to read this entire manual for full understanding the operation of your radar/laser Detector. Enjoy and drive safe with The Ghost Series radar/laser detector. Features  World-Wide Band : X, Ku, K, New K, Super wide Ka  Laser Detecting: 360 degree Laser  Applied Low Noise VCO Technology  Ultra High Sensitivity by FET Technology  Undetectable by VG-2, Spectre/Stalka and any existing Radar Detector Detector  Low Current Consumption  LED or Text display  Buzzer of Voice Alert  Quick Power Volume Button  City or Highway Mode  Mute Mode  Bright, Dark & Dimmer Mode Table of Contents Model Features Summary 1.Installation (1)Power connection (2)Fuse replacement (3)Power Self-test (4)Volume adjustment 2.Operation (1)Power On/Off & Audio volume control (2)City Button (3)Mute Button (4)Dim Button (5)Power Jack (6)Audio or Voice Alert (7)Laser Optical Senser (8)Antenna Opening (9)LED Indicators (8EA) 3.Description of Modes (1)City Mode (2)Dim Mode (3)Mute Mode 4.Alerts (1)Radar Alerts (2)Laser Alerts (3)VG-2, Spectre/Stalca Alerts 5.Troubleshooting 6.Specifications 7.Accessories 1. Installation Mounting Your Unit ▪ Mount the unit at the center of the windshield as low as possible to get optimum performance from your detector. ▪ Unit’s lens/View should not be blocked. Windshield Mounting (1)Power connection The Ghost Series detector is designed to operate with DC12V negative vehicle electrical systems. You can connect the power with the provided power cable. 1) Plug the small end of the power cable into the unit’s power jack. 2) Plug the large end of into the vehicle’s cigarette jack. ▶If the unit does not operate even though it is properly connected to the cigarette socket, check the socket and the fuse in the adaptor & vehicle’s fuse box carefully. (2)Fuse Replacement If the detector stops operating, the fuse in the cigarette lighter plug might be blown. Follow below steps to replace it with 250V and 2A fuse. 1) To replace the fuse, unscrew the tip of the plug carefully as the spring in the tip could fly out when disassemble. 2) Should it blown, remove the fuse and insert the new fuse. (3)Power Self-Test Connect the power and rotate the On-Off/Volume Control Dial clockwise until it clicks. When the detector is powered up, a distinctive tone for each signal will sounds and LEDs will flash in sequence as a self-test. And then all LEDs will be off except the power LED. (4)Volume adjustment To adjust volume level, rotate the On-Off/Volume Control Dial either clockwise or in the reverse direction. 2. Operation (1)Power On-Off/Volume Control Turn the detector on/off and control the volume level. (2)City Button City mode will reduce false alerts while driving in or near urban areas. You can select this mode by press the City button and one more press will switch to Highway mode. (3)Mute Button If you press the Mute Button, it will make a beeping sound and cancel audio/voice alerts. To resume audio/voice alerts, press the Mute Button again and Mute LED will be off. (4)Dim Button Press the Dim Button to reduce the illumination of the display. The detector provides 3-levels brightness of LED. (5)Power Jack You can connect the power using the Power cord(cable) enclosed with the detector. The detector operates with DC12V~DC16V range. (6)Audio Alert Outlet You can hear audio alert with beep sound through this outlet. *Voice alert is option. (7)Laser Optical Sensors Collect laser signals from any direction with increased sensitivity. (8)Antenna Opening High efficiency Antenna receives radar signals. (9)LED Indicators (8EA) 3.Description of Modes (1)City Mode The City Mode is designed to reduce the annoyance of non-traffic radar system such as automatic door openers, intrusion alarms, microwave traffic signal controllers and other devices which share frequencies with police radar. Radar signals from non-traffic radar system are frequently encountered in urban and sub-urban areas. The detector will produce no audio alert only the Band Indicator LED will blink in this mode. In City Mode, weak non-police radar signals give no audio alert. When the signal strength increases, the detector will provide audio alert with Band Indicator LED’s blinking. (2)Dim Mode The Ghost radar detector provides 3-levels of brightness. You can select the levels by pressing the Dim Button. The 3-levels brightness will cycle as per each pressing of the Button. Use of the Dim Mode has no effect on audio alerts. (3)Mute Mode Pressing of Mute Button provides muting of audio alerts and Text display will be on. If you press Mute Button again, the detector will resume audio alert mode and Text display. 4.Alerts Description of LED P/X Ku K Ka Laser L1 L2 City Red Green Yellow Red Green Yellow Yellow Green (1) Radar Alert When the detector receives radar signal; 1) Different audio alerts will be provided for ‘X’, ’Ku’, ’K’ and ‘Ka’ band radar signals. The beep will sound faster and faster as the radar signal gets stronger. 2) The different Band Indicator LED will be turned on or blink in unison with the different audio alert. 3) The Signal Strength LEDs will blink as the strength of signals. [Example] Visual Alert (at X Band) (2) Laser Alert When the detector receives laser…

Text truncated - open the document above for the full version.

N7S Corp. 4757 NW 67 AVE Lauderhill,FL 33319 Tel: 954.588.9447 Email:[email protected] FederalCommunicationsConunission Authorizationand EvaluationDivision ConfidentialityRequestregardingapplicationfor certificationof FCC10: ZAL26770 Pursuantto Sections0.457and 0.459of the Commission'sRules,we herebyrequestconfidential treatmentof informationaccompanyingthis applicationas outlinedbelow: ExhibitType BlocDiagram.Schematics.Circuit Description,PartsList if any included.. File Name RD BlockDiagramedited.jpg,RD Schematic edited.jpg,CircuitDescription.jpg,PartsList if any included. The abovematerialscontaintradesecretsand proprietaryinformationnot customarilyreleasedto the public.The publicdisclosureof thesematerialsmay be harmfulto the applicantand provide unjustifiedbenefitsto its competitors. Sincerely,/ Nir Steel/ presi~dent ----"-y/ -- N7SCorp.

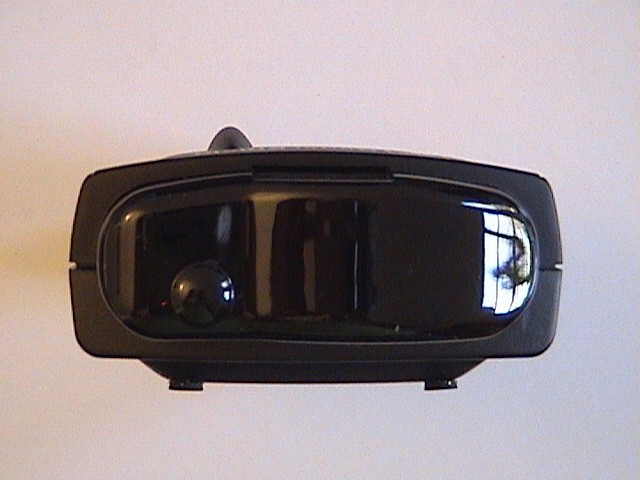

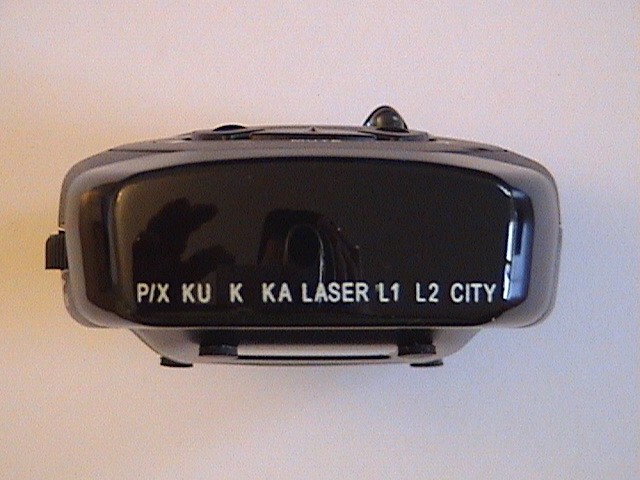

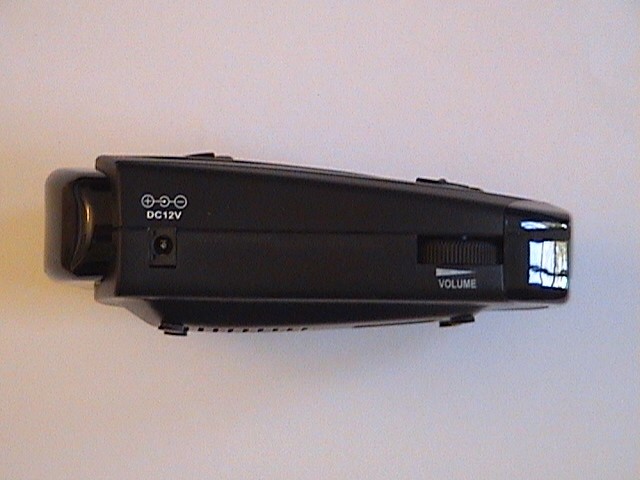

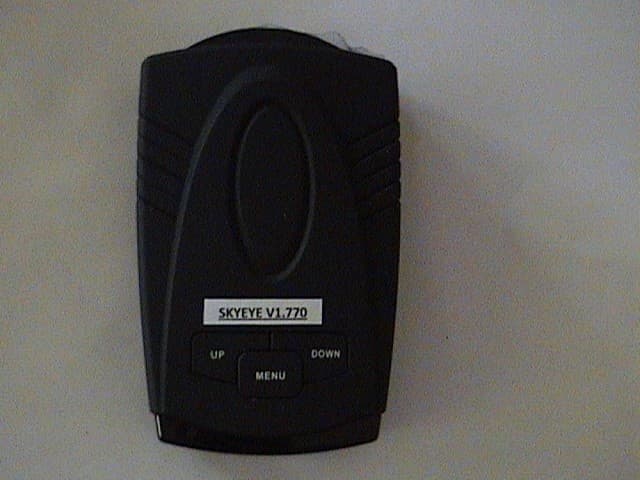

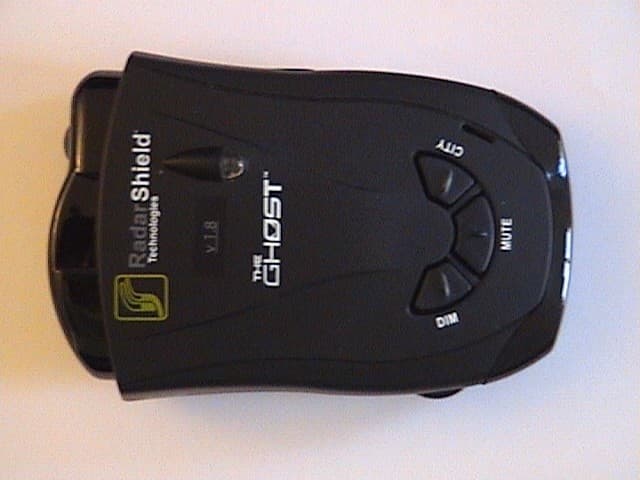

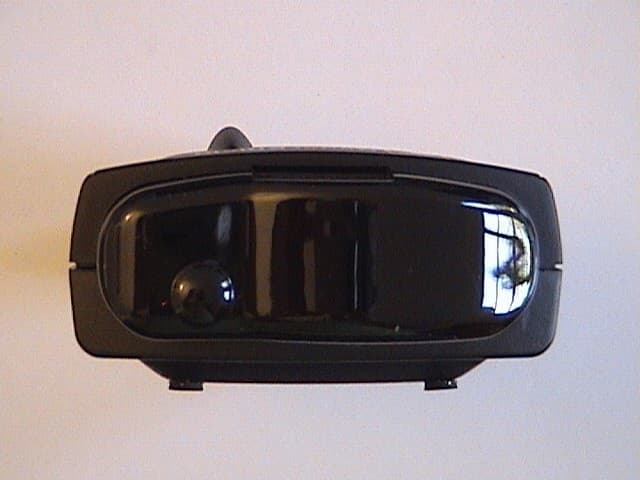

N7S CORP. FCC ID: ZAL26770 EXTERNAL PHOTOS

N7S CORP. FCC ID: ZAL26770 INTERNAL PHOTOS

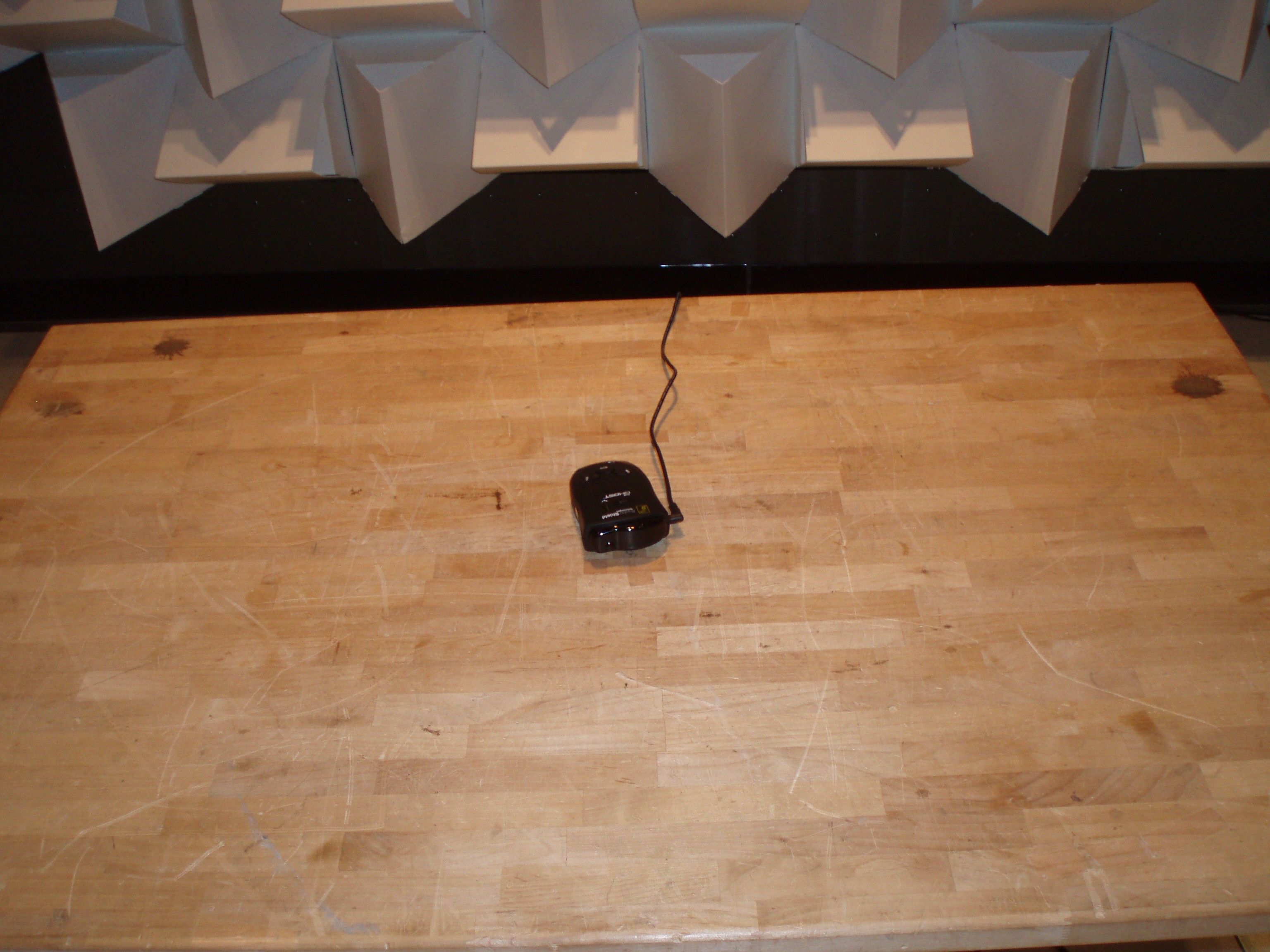

FCC PART 15 RADAR DETECTOR REPORT Applicant N7S CORP. Address 4757 NW 67 AVENUE LAUDERHILL FL 33319 USA FCC ID: ZAL26770 Product Description RADAR DETECTOR Date Sample Received 2/17/2011 Date Tested 2/18/2011 Tested By Joe Scoglio Approved By Mario R. de Aranzeta Report Number 289UT11TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: N7S CORP. FCC ID: ZAL26770 REPORT: N\N7S CORP.\289UT11\289UT11TestReport.doc Page 2 of 11 TABLE OF CONTENTS GENERAL REMARKS ................................................................................................................. 3 GENERAL INFORMATION .......................................................................................................... 4 TEST EQUIPMENT LIST ............................................................................................................. 5 TEST PROCEDURES .................................................................................................................. 6 RADIATED SPURIOUS EMISSIONS ........................................................................................... 8 PEAK PLOT ................................................................................................................................ 9 AVERAGE PLOT ....................................................................................................................... 10 RADIATED EMISSIONS TEST SETUP PHOTO.......................................................................... 11 APPLICANT: N7S CORP. FCC ID: ZAL26770 REPORT: N\N7S CORP.\289UT11\289UT11TestReport.doc Page 3 of 11 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: February/21/2011 APPLICANT: N7S CORP. FCC ID: ZAL26770 REPORT: N\N7S CORP.\289UT11\289UT11TestReport.doc Page 4 of 11 GENERAL INFORMATION The test results relate only to the items tested. DUT Description RADAR DETECTOR FCC ID ZAL26770 DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Modifications to DUT None Test Standards FCC Part 15, Subpart B, ANSI C63.4-2003 APPLICANT: N7S CORP. FCC ID: ZAL26770 REPORT: N\N7S CORP.\289UT11\289UT11TestReport.doc Page 5 of 11 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 3/10/10 3/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 3/23/09 3/23/11 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 6/10/09 6/10/11 Frequency Counter HP 5385A 3242A07460 CAL 5/26/09 5/26/11 Hygro- Thermometer Extech 445703 0602 CAL 1/30/09 1/30/11 Modulation Analyzer HP 8901A 3435A06868 CAL 5/26/09 5/26/11 Digital Multimeter Fluke FLUKE-77-3 79510405 CAL 5/18/09 5/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 APPLICANT: N7S CORP. FCC ID: ZAL26770 REPORT: N\N7S CORP.\289UT11\289UT11TestReport.doc Page 6 of 11 TEST PROCEDURES General: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: Testing was done in accordance with ANSI C63.4-2003. Section 15.35(b) specifies the use of an average detector in this band. In addition, the peak level of an emission shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions caused by other circuitry within the device. 1) Determine the frequency of the peak emission: Start Frequency 11.7 GHz Stop Frequency 12.2 GHz RBW equal to or greater than 1 MHz VBW equal to or greater than 1 MHz Detector Function Peak Maximize the emissions with regards to device orientation, antenna polarization, and antenna height. Sweep the band using Max Hold for a minimum of 2 minutes. Record this frequency for measuring the peak emission. In addition record the frequency of other spurious emissions noted. 2) Determine the peak level of the emission: Center Frequency Set to the frequency determined in Step 1 RBW Equal to or greater than 1 MHz VBW Equal to or greater than 1 MHz Detector Function Peak Measure the value of the peak emission using Max Hold for a minimum of 2 minutes. This can be done at zero span or a frequency span where the analy…
