ZASHQ-BLE-1DBase Station Board with Bluetooth functionality

HUSQVARNA AB

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: May 27, 2021
Application Purpose: Original Equipment
Date of Application: May 27, 2021
Equipment Note: Base Station Board with Bluetooth functionality
Frequency Range: 2402.00000000 - 2480.00000000
Company: HUSQVARNA AB
Country: Sweden

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Issued by: Therese Berg Issued date: 210421 1 (8) Instruction for implementing Bluetooth ® functionality into robotic mower systems: Certification Requirements In addition to technical implementation specifications, the following instructions shall be followed when implementing boards incorporating Bluetooth functionality into Husqvarna products. These instructions shall be followed for all boards with the following Bluetooth design on them: • HQ-BLE-1: 590 54 13 The design is on all PCBs with any of the numbers: • 582 87 12 (HMI Type 10, 11, 12, and 14) • 590 11 35 (HMI Type 13) • 591 10 05 (Application Board Type 1) • 597 97 76 (Application Board Type 3) • 598 01 59 (Base Station Board Type 1) • 598 91 35 (Main board Type 15) Changes or modifications made to this equipment not expressly approved by Husqvarna compliance department may void the validity of the certification, for instance the FCC authorization to operate this equipment. The Bluetooth boards with design HQ-BLE-1 can only be used in robotic lawn mowers and their accessories developed and manufactured by Husqvarna. The boards are only allowed to be mounted during the manufacturing process of the robotic lawn mower systems. The boards are not for sale for use in any other product. The boards are only allowed to be used in the robotic lawn mower systems which are covered by the certification. 1 Worldwide 1.1 Bluetooth Special Interest Group For Bluetooth certification to BT SIG, the design HQ-BLE-1 is certified. All products that uses HMI-boards or other boards with Bluetooth functionality activated shall be listed in the BT SIG community database. The guidelines from Bluetooth SIG regarding word mark and logos shall be followed for documentation and information. Issued by: Therese Berg Issued date: 210421 2 (8) 2 Europe 2.1 Robotic mower Make sure the robotic mower system is verified with appropriate EMC and radio standards covering at least output power, spurious emission and receiver sensitivity (i.e. blocking). 2.2 Manual and other documentation The manual of the mower system shall state the frequency and output power of the radio signals. 3 USA and Canada The boards incorporating Bluetooth have FCC and ISED approvals according to 47 CFR Part 15.247 and RSS 247/Gen. The boards are marked with the following FCC and IC IDs: Table 1: Board id FCC ID PMN IC ID 582 87 12 ZASHQ-BLE-1A HMI Board Type 10 HMI Board Type 11 HMI Board Type 12 HMI Board Type 14 23307-HQBLE1A 590 11 35 ZASHQ-BLE-1B HMI Board Type 13 23307-HQBLE1B 591 10 05 ZASHQ-BLE-1C Application Board Type 1 23307-HQBLE1C 597 97 76 ZASHQ-BLE-1G Application Board Type 3 23307-HQBLE1G 598 01 59 ZASHQ-BLE-1D Base Station Board Type 1 23307-HQBLE1D 598 91 35 ZASHQ-BLE-1J Main Board Type 15 23307-HQBLE1J 3.1 Robotic mower The designs mentioned in Table 1 above are certified as limited modular approvals due to the design is without shielded RF-circuit. Therefore shall the radio characteristics be verified on the robotic lawn mower. This check can be done as a spot check with the mower in a typical configuration to verify fundamental frequency and spurious emissions according to applicable rules as mentioned above. The boards mentioned in Table 1 above are only FCC authorized for the rules mentioned above. The robotic lawn mower must comply to all applicable FCC rules, including Part 15B for unintentional radiators with applicable radio transmitters included. Issued by: Therese Berg Issued date: 210421 3 (8) 3.1.1 Radiation Exposure Statement US This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Canada This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Déclaration d'exposition aux radiations Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé à distance minimum de 20 cm entre le radiateur et votre corps. 3.1.2 FCC ID label If boards with Bluetooth functionality are mounted so that the FCC ID cannot be seen from the outside, the robotic mower device shall be marked with a label with the FCC ID. The label should be seen from the outside of the product and easy for the customer to find. The following format is recommended on the label: This device contains module FCC ID XXXXXXX Where XXXXXXX shall be exchanged to the applicable FCC ID, i.e according to Table 1 above, for instance “This device contains module FCC ID ZASHQ-BLE-1A”. Also, the Canadian IC should be mentioned for mower systems intended for Canada. The recommended format is then the following: This device contains module FCC ID XXXXXXX IC:YYYYYYYY Where XXXXXXX and YYYYYYYY shall be exchanged to the applicable FCC ID and IC ID, i.e according to Table 1 above, for instance “This device contains module FCC ID ZASHQ-BLE-1A IC: 23307-HQBLE1A”. Also, the following notice should be on a label on the outside of the mower: NOTICE: This device complies with Part 15 of the FCC Rules and with Innovation, Science and Economic Development Canada’s licence-exempt RSS standard(s). Operation is subject to the following two conditions: • this device may not cause harmful interference, and • this device must accept any interference received, including interference that may cause undesired operation. Issued by: Therese Berg Issued date: 210421 4 (8) 3.1.3 SDoC requirements Verify that the robotic mower fulfills requirements for EMC Part 15B as required for a SDoC to be issued. It is allowed on a voluntary basis to use the FCC-logo on the device as below: 3.2 Manual 3.2.1 Warning The following information shall …

Text truncated - open the document above for the full version.

Cover Letter(s)

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 2021-04-06 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b) (4) of the Freedom of Information Act, we request confidentiality for the following products: FCC ID Model name ZASHQ-BLE-1D Base Station Board Type 1 For the product stated above, we request that the following information be held confidential: Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Therese Berg Phone: +46 36 14 65 00 Husqvarna AB (publ) Fax: +46 36 14 68 00 SE-561 82 Huskvarna E-mail: [email protected] Sweden

Cover Letter(s)

ISED/FCC Modular Approval Statement 1 Receiver Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Certification and Engineering Bureau Innovation, Science and Economic Development Canada Spectrum Engineering Branch 3701 Carling Avenue, Building 94 Ottawa, Ontario K2H 8S2 Subject: Modular Approval Statement Date: 210428 FCC Certification Number: ZASHQ-BLE-1D ISED Company Number: 23307 UPN: HQBLE1D HVIN (Hardware Version Identification Number): Base Station Board Type 1 PMN: (Product Marketing Name) Base Station Board Type 1 HMN: (Host Marketing Name) N/A FVIN: (Firmware Version Identification Number) N/A TO WHOM IT MAY CONCERN Pursuant to Annex D in RSP-100 Issue 11 January 2016 and CFR § 15.212, we herewith declare for our module. Modular approval requirement Yes No * (a) The radio elements must have the radio frequency circuitry shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. X *Please provide a detailed explanation if the answer is “No.”: All radio elements are included in an integrated circuit, which is not shielded. The complete solution is designed exclusively for use in the Husqvarna Reference Station to be used with Husqvarna Robotic Mowers and hence the radio environment of the module is well known. Electromagnetic compatibility and emission have been verified not only on module level, but also in the complete machines. (b) The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS / part 15 under conditions of excessive data rates or over-modulation. X *Please provide a detailed explanation if the answer is “No.”: ISED/FCC Modular Approval Statement 2 (c) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. X *Please provide a detailed explanation if the answer is “No.”: (d) The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of highest antenna gain for each type of antenna. X *Please provide a detailed explanation if the answer is “No.”: The module is designed for use exclusively with the integral antenna onboard. The u.fl connector is for testing purposes only. (e) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. X *Please provide a detailed explanation if the answer is “No.”: (f) The module shall comply with applicable RSS-102 exposure requirements and any applicable FCC RF exposure requirement which are based on the intended configuration/integration in a host. X *Please provide a detailed explanation if the answer is “No.”: Only applicable for FCC certification: (g) The module must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. X *Please provide a detailed explanation if the answer is “No.”: (h) The modular transmitter complies with all applicable FCC rules. Instructions for maintaining compliance are given in the user instructions. X If you have any questions, please feel free to contact us at the address shown below Best Regards, ______________________ Therese Berg Husqvarna AB SE-56182 Huskvarna, Sweden +46 36 36 42 75 [email protected] INFO for applicant: LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the ISED/FCC Modular Approval Statement 3 device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product, into which the module will be installed, will be maintained, such that full compliance of the end product is always ensured.

External Photos

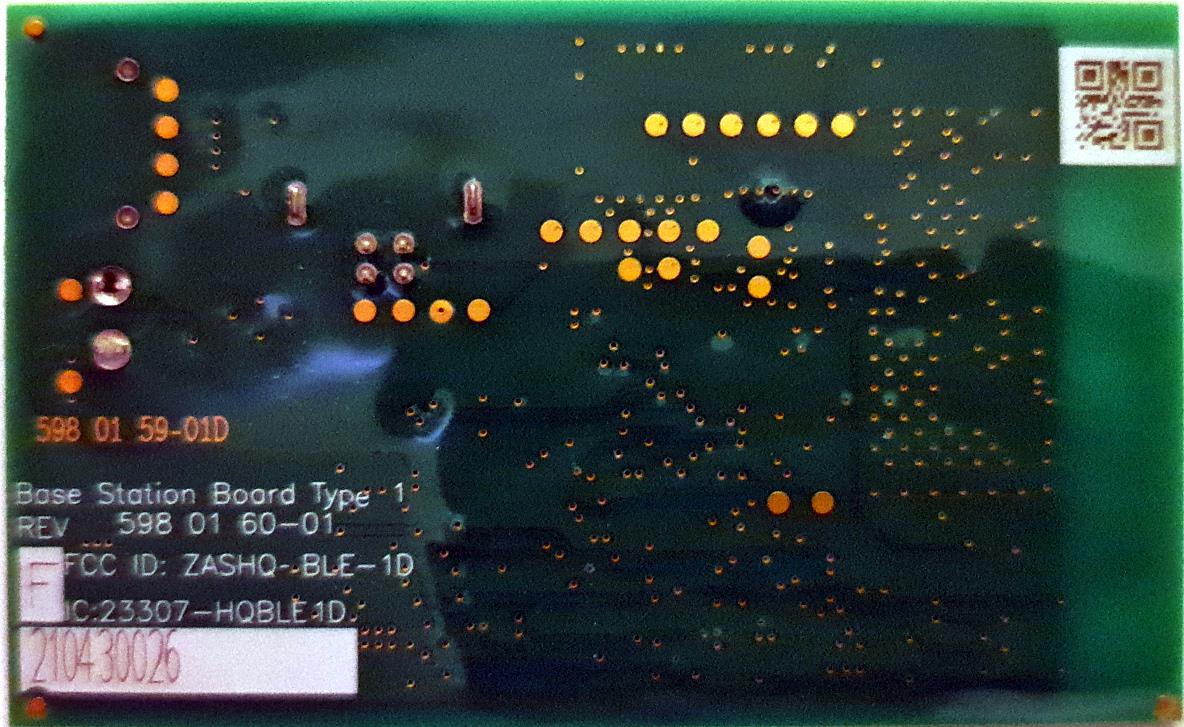

Internal and External Images Base Station Board Type 1 ZASHQ-BLE-1D 23307-HQBLE1D 210517 Radio part Antenna Radio part Antenna

ID Label/Location Info

File name 598016001-PCBA Spec-Base Station Board Type 1 Doc no. 598 01 60-01 Date 2021-02-16 Page 1 (5) Issued by Niklas Landin Project Robotic Mower P3 Doc type Prod doc Rev G PCBA Specification for 598 01 60-01 Base Station Board Type 1 File name 598016001-PCBA Spec-Base Station Board Type 1 Doc no. 598 01 60-01 Date 2021-02-16 Rev G Page 2 (5) Product Marking of PCBA: Each printed circuit board assembly (PCBA) shall be marked with: - A QR code, min 10x10mm, with total 50 positions consisting of HID and Rev according to “STD 0002” and “STD 0003”. In these standards the QR code is specified to start with HTTPS://HQR.CODES but this must be excluded. This means that the complete QR code will be as follows: HID=xxxxxxxxxxxxxxxxxxxxxxxxx&REV=yy, where x the 25 letters in HID and y is one or two letters for revision. - Product name, (“Base Station Board Type 1”) - Part number for the assembly, (“589 01 60-01”) - Revision for the assembly, (“same as the (first) letter in PCBA revision according to BOM”) - HID - Radio certification text: “FCC ID: ZASHQ-BLE-1D “IC:23307-HQBLE1D Example of label: Base Station Board Type 1 598 01 60-01 Rev R HID: xxxxxxxxxxxxxxxxxxxxxxxxx FCC ID: ZASHQ-BLE-1D IC:23307-HQBLE1D Supplier specific code QR The text shall be placed in the white area on the bottom left side. The QR-code shall be placed in the white are on the top right side. (If the manufacturer of the PCB wishes to place his logo on the PCBA, this could be placed in the solder mask or on a label. It must not be placed in the copper layer.) CPMS reporting of the produced part, including revision, must be done before delivery to Husqvarna, see further description in latest revision of ” 597180601 CPMS specification for vendors” File name 598016001-PCBA Spec-Base Station Board Type 1 Doc no. 598 01 60-01 Date 2021-02-16 Rev G Page 3 (5) Components, PCB’s and soldering: Standard: IPC A-610-E class 2, or latest revision issued. Compliance with RoHS /REACH. Item shown in BOM must not contain substances classified as "banned" or "restricted" according to Husqvarna Group Restricted Materials List (see, “www.purchase.husqvarna.com”). Mechanical outline requirements: Tolerances in x- and y-direction are ± 0.25mm. Production requirements: AOI: - Must be used on every board after SMD and THD soldering process. - Equipment must be able to inspect according to PCBA layout drawings supplied from Husqvarna. X-ray: - X-ray must be done on components that can’t be verified in AOI. FCT: - Husqvarna will supply with a PTS spec that every board must be tested according to. - Supplier/Manufacturer (or third party to them) of the PCBA must develop a test system according to the PTS and be responsible of the maintenance of that. Coating: - Coating must be done in a robotic system. Traceability: All boards must be possible to be trace on board level. Note, If upper points couldn’t be achieved Husqvarna must be notified for further discussion. File name 598016001-PCBA Spec-Base Station Board Type 1 Doc no. 598 01 60-01 Date 2021-02-16 Rev G Page 4 (5) Coating instruction: Component side: The coating layer on the component side, shall be applied in the blue area. Bottom side: The coating on the bottom, shall be applied in the blue area. File name 598016001-PCBA Spec-Base Station Board Type 1 Doc no. 598 01 60-01 Date 2021-02-16 Rev G Page 5 (5) Revision History Revision Date Issued by Comments Draft A 2019-08-30 Niklas Landin New release Draft B 2019-12-11 Niklas Landin Minor changes in layout. New coating instructions. New label instructions. Draft C001 2020-02-24 Niklas Landin Changed Radio certification text. Draft C002 2020-06-02 Niklas Landin Edited the marking of the PCBA to include HID. Rev C 2020-06-11 Niklas Landin Removed washing requirements and added ....... Rev D 2020-09-03 Niklas Landin New coating instructions and bigger area for label. Rev E 2020-10-14 Niklas Landin New coating instructions. Rev F 2020-10-26 Niklas Landin New revision. Rev G 2020-12-15 Niklas Landin Added how the HID should be presented in the QR-code

Internal Photos

Internal and External Images Base Station Board Type 1 ZASHQ-BLE-1D 23307-HQBLE1D 210517 Radio part Antenna Radio part Antenna

RF Exposure Info

Test Report 20-1-0183503T02a Number of pages: 16 Date of Report: 2021-Mar-09 Testing company: CETECOM GmbH Im Teelbruch 116 45219 Essen Germany Tel. + 49 (0) 20 54 / 95 19-0 Fax: + 49 (0) 20 54 / 95 19-150 Applicant: Husqvarna AB Product: Base station board with Bluetooth functionality Model: Base Station Board Type 1 FCC ID: ZASHQ-BLE-1D IC: 23307-HQBLE1D Testing has been carried out in accordance with: FCC Regulations Part 1.1310 Part 2.1091 IC-Regulations RSS-102, Issue 5 Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Tested Technology: BLE Test Results: ☒ The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Signatures: Dipl.-Ing. Ninovic Perez B.Eng. Martin Nunier Test Lab Manager Testing Expert Authorization of test report Responsible of test report Test Report 20-1-0183503T02a CETECOM_TR20_1_0183503T02a 2 / 16 Table of Contents Table of Annex...................................................................................................................................................................................3 1General information ................................................................................................................................................................4 1.1Disclaimer and Notes .........................................................................................................................................................4 1.2Attestation .........................................................................................................................................................................4 1.3Summary of Test Results ...................................................................................................................................................5 2Administrative Data .................................................................................................................................................................6 2.1Identification of the Testing Laboratory ............................................................................................................................6 2.2General limits for environmental conditions .....................................................................................................................6 2.3Test Laboratories sub-contracted ......................................................................................................................................6 2.4Organizational Items .........................................................................................................................................................6 2.5Applicant’s details .............................................................................................................................................................6 2.6Manufacturer’s details ......................................................................................................................................................6 2.7EUT: Type, S/N etc. and short descriptions used in this test report ..................................................................................7 2.8Auxiliary Equipment (AE): Type, S/N etc. and short descriptions ......................................................................................7 2.9Connected cables ..............................................................................................................................................................7 2.10Software .......................................................................................................................................................................7 2.11EUT set-ups ..................................................................................................................................................................7 2.12EUT operation modes ...................................................................................................................................................8 3Equipment under test (EUT) ....................................................................................................................................................8 3.1General Data of Main EUT as Declared by Applicant .........................................................................................................8 3.2Detailed Technical data of Main EUT as Declared by Applicant ........................................................................................8 4Measurements .........................................................................................................................................................................9 4.1Radio Frequency Exposure Evaluation §2.1091 .................................................................................................................9 4.2Requirements and limits for RSS Standard ......................................................................................................................11 4.3MPE Calculation method .................................................................................................................................................12 4.4Evaluation Method ..........................................................................................................................................................12 4.5Results for fixed and mobile operations ..........................................................................................................................13 5Abbreviations used in this report ..........................................................................................................................................14 6Measurement Uncertainty valid for conducted/radiated measurements ...............…

Text truncated - open the document above for the full version.

Test Report

The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM Annex 1: Measurement diagrams to PARTIAL Test Report 20-1-0183503T01a-A1 Number of pages: 16 Date of Report: 2021-Apr-01 Testing company: CETECOM GmbH Im Teelbruch 116 45219 Essen Germany Tel. + 49 (0) 20 54 / 95 19-0 Fax: + 49 (0) 20 54 / 95 19-150 Applicant: Husqvarna AB Product: Base station board with Bluetooth functionality Model: Base Station Board Type 1 FCC ID: ZASHQ-BLE-1D IC: 23307-HQBLE1D Testing has been carried out in accordance with: Title 47 CFR, Chapter I FCC Regulations, Subchapter A Subpart C: §15.247 (DTS) , RSS-247, Issue 2 (DTS) RSS-Gen., Issue 5 Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit" 20-1-0183503T01a-A1 CETECOM_TR20-1-0183503T01a-A1 2 / 16 Table of Contents 1.1 Radiated measurements....................................................................................................................................................3 1.2 Conducted measurements ..............................................................................................................................................12 20-1-0183503T01a-A1 CETECOM_TR20-1-0183503T01a-A1 3 / 16 1 Measurement diagrams 1.1 Radiated measurements 2.01a_BT_LE_low Common Information Test Description: Magnetic Field Strength Measurement related to 30/300 m distance Test Site Location: Ref.-Nr. 441 Semi Anechoic Chamber (SAC1) with 3 m measurement distance Version of Testsoftware: EMC32 V10.50.0 Distance correction: used accord. table, pls. see test report Technical Data: Please see page 2 for detailed data of measurement setup Rec. antenna (pre-scan): height 1.00 m, parallel and 90° to EUT polarisation Used Filter: bypass Test Standard: FCC 15.205 § 15.209; RSS-Gen: Issue 5 Operator: HEL Operating Mode: BLE_CH:Low_Postion :Standing Power during tests: 28V DC Environmental Conditions:: Humidity : 48 %rH; Temperature: 21 °C EUT Setup: 1 Verdict: Passed EUT Information PMT number: 20-1-01835S19_C01 Manufacturer: Husqvarna AB Final_Result Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margi n (dB) Meas. Time (ms) Bandwidt h (kHz) Pol Azimut h (deg) Corr. (dB/m) Comment 0.017160 -22.90 42.91 65.80 1000.0 0.200 V 244.0 -59.4 16:32:41 - 27.02.2021 Level in dBμV/m 20-1-0183503T01a-A1 CETECOM_TR20-1-0183503T01a-A1 4 / 16 2.01b_BT_LE_low Common Information Test Description: Magnetic Field Strength Measurement related to 30/300 m distance Test Site Location: Ref.-Nr. 441 Semi Anechoic Chamber (SAC1) with 3 m measurement distance Version of Testsoftware: EMC32 V10.50.0 Distance correction: used accord. table, pls. see test report Technical Data: Please see page 2 for detailed data of measurement setup Rec. antenna (pre-scan): height 1.00 m, parallel and 90° to EUT polarisation Used Filter: bypass Test Standard: FCC 15.205 § 15.209; RSS-Gen: Issue 5 Operator: HEL Operating Mode: BLE_CH:LOw_Postion :Laying Power during tests: 28V DC Comment 1: Channel low Comment 2: Environmental Conditions:: Humidity : 48 %rH; Temperature: 21 °C EUT Setup: 1 Verdict: Passed Comment: EUT Information PMT number: 20-1-01835S19_C01 Manufacturer: Husqvarna AB Final_Result Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margi n (dB) Meas. Time (ms) Bandwidt h (kHz) Pol Azimut h (deg) Corr. (dB/m) Comment 0.017160 -22.97 42.91 65.87 1000.0 0.200 V 311.0 -59.4 16:05:53 - 27.02.2021 Level in dBμV/m 20-1-0183503T01a-A1 CETECOM_TR20-1-0183503T01a-A1 5 / 16 3.01a_BT_LE_low Common Information Test Description: Radiated field strength emission in 3m distance Test Site: CETECOM GmbH Essen Test Standard: FCC 15.205&15.209 RSS Gen Issue 5 Intentional Radiator Antenna polarisation: horizontal/vertical Comment: Operating Mode: BLE_CH:LOw_Postion : laying Environmental Conditions:: Humidity : 45%rH; Temperature: 16°C Operator: HEL Verdict: Passed EUT Information PMT number: 20-1-01835S19_C01 Manufacturer: Husqvarna AB Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Meas. Time (ms) Bandwidth (kHz) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 253.110000 23.71 46.00 22.29 1000.0 120.000 173.0 V 349.0 13.2 928.332000 34.13 46.00 11.87 1000.0 120.000 360.0 V 284.0 27.0 Remark: Peak at 928.332 MHz is a known external interferer and does not come frome the EUT Level in dBμV/m 20-1-0183503T01a-A1 CETECOM_TR20-1-0183503T01a-A1 6 / 16 3.01b_BT_LE_low Common Information Test Description: Radiated field strength emission in 3m distance Test Site: CETECOM GmbH Essen Test Standard: FCC 15.205&15.209 RSS Gen Issue 5 Intentional Radiator Antenna polarisation: horizontal/vertical Comment: Operating Mode: BLE_CH:LOw_Postion :Standing Environmental Conditions:: Humidity : 45%rH; Temperature: 17°C Operator: HEL Verdict: Passed EUT Information PMT number: 20-1-01835S19_C01 Manufacturer: Husqvarna AB Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Meas. Time (ms) Bandwidth (kHz) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 212.542000 19.82 43.50 23.68 1000.0 120.000 207.0 V 352.0 11.7 251.876000 20.47 46.00 25.53 1000.0 120.000 111.0 V 222.0 13.1 928.418000 33.12 46.00 12.88 1000.0 120.000 230.0 V 325.0 27.0 Remark: Peak at 928.418 MHz is a known external interferer and does not come frome the EUT Level in dBμV/m 20-1-0183503T01a-A1 CETECOM_TR20-1-0183503T01a-A1 7 / 16 4.01a_BT_LE_low Common Information Test Description: Radiated field strength emission in 3m distance Test Site: Fully Anechoic Chamber (FAC1) - EMC32 V10.50.0 Test Standard: FCC 15.247&15.209 Intentional Radiator / RSS-Gen, Issue 5 Antenna polarisation: horizontal/vertical Operating Mode: BT-LE | Channel low Set-up no. Operator: TFa Environmental Conditions:: Humidity : 40%rH; Temperature: 20°C Verdict: Passed EUT Information PMT number: 20-1-01835S19_C0…

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Therese Berg(Compliance Specialist)

[email protected]+4636364275Fax: +4636146810

Test Firm

cetecom advanced GmbHGerald Schmidt

[email protected]+49 681 598 0Fax: +49 681 598 8775

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	2.70 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Output power listed is peak conducted. Limited Modular Approval. Co-location of this module with other transmitters that operate simultaneously are required to be evaluated using the FCC multi-transmitter procedures. The host integrator must follow the integration instructions provided by the module manufacturer and ensure that the composite-system end product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules and to KDB Publication 996369. The module antenna must be installed to meet the RF exposure compliance separation distance of �20 cm� and any additional testing and authorization process as required.
