ZASHQ-BLE-1HApplication Board Type 4

Issued by: Therese Berg Issued date: 210421 1 (8) Instruction for implementing Bluetooth ® functionality into robotic mower systems: Certification Requirements In addition to technical implementation specifications, the following instructions shall be followed when implementing boards incorporating Bluetooth functionality into Husqvarna products. These instructions shall be followed for all boards with the following Bluetooth design on them: • HQ-BLE-1: 590 54 13 The design is on all PCBs with any of the numbers: • 582 87 12 (HMI Type 10, 11, 12, and 14) • 590 11 35 (HMI Type 13) • 591 10 05 (Application Board Type 1) • 597 97 76 (Application Board Type 3) • 598 01 59 (Base Station Board Type 1) • 598 91 35 (Main board Type 15) • 597 97 76 (Application Board Type 3) • 598 90 28 (Application Board Type 4) Changes or modifications made to this equipment not expressly approved by Husqvarna compliance department may void the validity of the certification, for instance the FCC authorization to operate this equipment. The Bluetooth boards with design HQ-BLE-1 can only be used in robotic lawn mowers and their accessories developed and manufactured by Husqvarna. The boards are only allowed to be mounted during the manufacturing process of the robotic lawn mower systems. The boards are not for sale for use in any other product. The boards are only allowed to be used in the robotic lawn mower systems which are covered by the certification. 1 Worldwide 1.1 Bluetooth Special Interest Group For Bluetooth certification to BT SIG, the design HQ-BLE-1 is certified. All products that uses HMI-boards or other boards with Bluetooth functionality activated shall be listed in the BT SIG community database. The guidelines from Bluetooth SIG regarding word mark and logos shall be followed for documentation and information. Issued by: Therese Berg Issued date: 210421 2 (8) 2 Europe 2.1 Robotic mower Make sure the robotic mower system is verified with appropriate EMC and radio standards covering at least output power, spurious emission and receiver sensitivity (i.e. blocking). 2.2 Manual and other documentation The manual of the mower system shall state the frequency and output power of the radio signals. 3 USA and Canada The boards incorporating Bluetooth have FCC and ISED approvals according to 47 CFR Part 15.247 and RSS 247/Gen. The boards are marked with the following FCC and IC IDs: Table 1: Board id FCC ID PMN IC ID 582 87 12 ZASHQ-BLE-1A HMI Board Type 10 HMI Board Type 11 HMI Board Type 12 HMI Board Type 14 23307-HQBLE1A 590 11 35 ZASHQ-BLE-1B HMI Board Type 13 23307-HQBLE1B 591 10 05 ZASHQ-BLE-1C Application Board Type 1 23307-HQBLE1C 597 97 76 ZASHQ-BLE-1G Application Board Type 3 23307-HQBLE1G 598 01 59 ZASHQ-BLE-1D Base Station Board Type 1 23307-HQBLE1D 598 98 28 ZASHQ-BLE-1H Application Board Type 4 23307-HQBLE1H 598 91 35 ZASHQ-BLE-1J Main Board Type 15 23307-HQBLE1J 3.1 Robotic mower The designs mentioned in Table 1 above are certified as limited modular approvals due to the design is without shielded RF-circuit. Therefore shall the radio characteristics be verified on the robotic lawn mower. This check can be done as a spot check with the mower in a typical configuration to verify fundamental frequency and spurious emissions according to applicable rules as mentioned above. The boards mentioned in Table 1 above are only FCC authorized for the rules mentioned above. The robotic lawn mower must comply to all applicable FCC rules, including Part 15B for unintentional radiators with applicable radio transmitters included. Issued by: Therese Berg Issued date: 210421 3 (8) 3.1.1 Radiation Exposure Statement US This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Canada This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Déclaration d'exposition aux radiations Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé à distance minimum de 20 cm entre le radiateur et votre corps. 3.1.2 FCC ID label If boards with Bluetooth functionality are mounted so that the FCC ID cannot be seen from the outside, the robotic mower device shall be marked with a label with the FCC ID. The label should be seen from the outside of the product and easy for the customer to find. The following format is recommended on the label: This device contains module FCC ID XXXXXXX Where XXXXXXX shall be exchanged to the applicable FCC ID, i.e according to Table 1 above, for instance “This device contains module FCC ID ZASHQ-BLE-1A”. Also, the Canadian IC should be mentioned for mower systems intended for Canada. The recommended format is then the following: This device contains module FCC ID XXXXXXX IC:YYYYYYYY Where XXXXXXX and YYYYYYYY shall be exchanged to the applicable FCC ID and IC ID, i.e according to Table 1 above, for instance “This device contains module FCC ID ZASHQ-BLE-1A IC: 23307-HQBLE1A”. Also, the following notice should be on a label on the outside of the mower: NOTICE: This device complies with Part 15 of the FCC Rules and with Innovation, Science and Economic Development Canada’s licence-exempt RSS standard(s). Operation is subject to the following two conditions: • this device may not cause harmful interference, and • this device must accept any interference received, including interference that may cause undesired operation. Issued by: Therese Berg Issued date: 210421 4 (8) 3.1.3 SDoC requirements Verify that the robotic mower fulfills requirements for EMC Part 15B as required for a SDoC to be issu…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 2021-07-09 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b) (4) of the Freedom of Information Act, we request confidentiality for the following products: FCC ID Model name ZASHQ-BLE-1H Application Board Type 4 For the product stated above, we request that the following information be held confidential: Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Therese Berg Phone: +46 36 14 65 00 Husqvarna AB (publ) Fax: +46 36 14 68 00 SE-561 82 Huskvarna E-mail: [email protected] Sweden

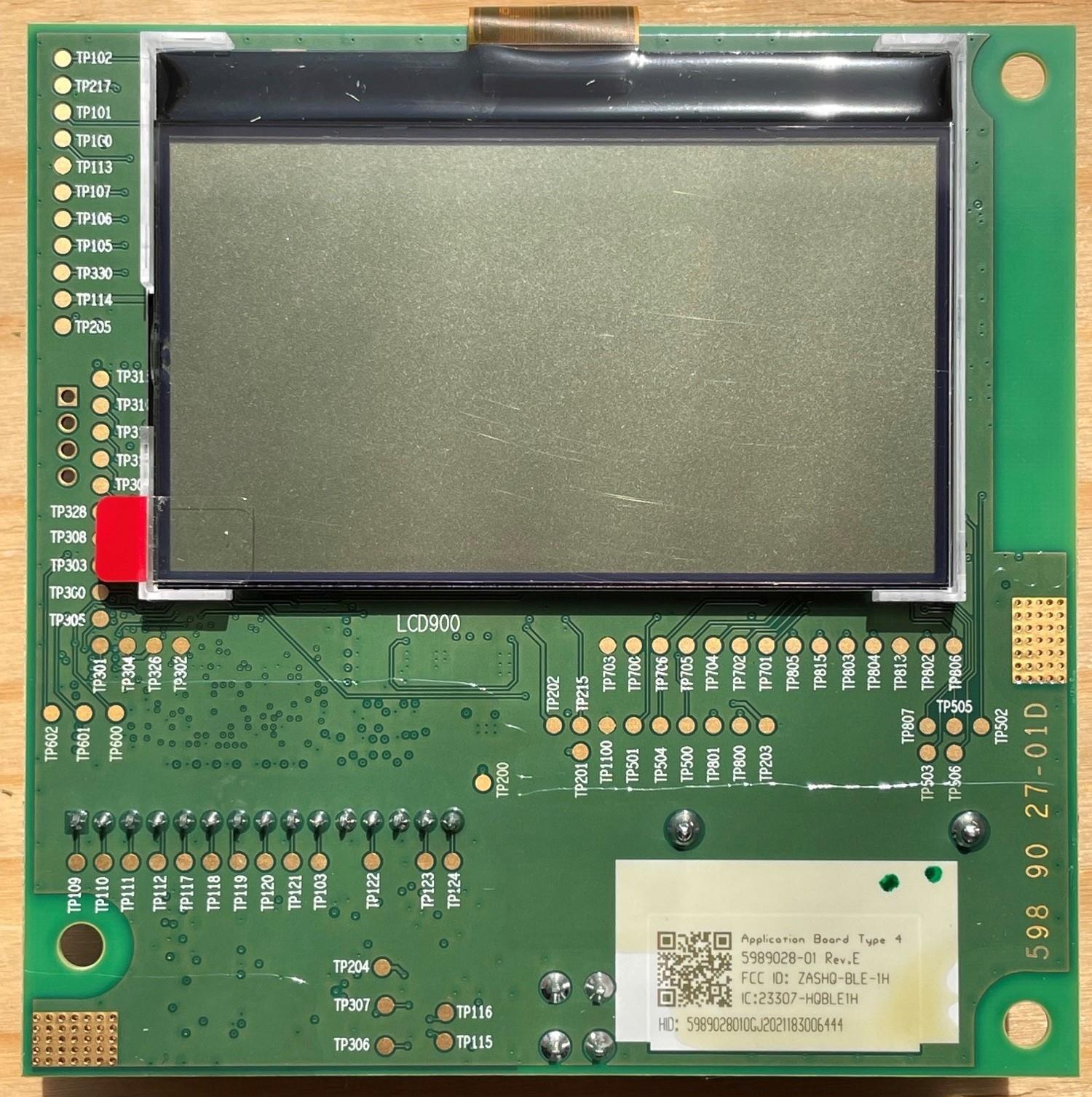

Internal and External Images Application Board Type 4 ZASHQ-BLE-1H 23307-HQBLE1H 210719 Radio part Antenna LayerView-TOP Radio part Antenna LayerView-BOTTOM

File name 5989028-PCBA Spec-Application Board Type 4 Doc no. 598 90 28 Date 2021-01-26 Page 1 (7) Issued by Magnus Berggren Project Robotic Mower P16 Doc type Prod doc Rev F 598 90 28-PCBA Spec-Application Board Type 4 Product Marking of PCBA: QR field: Each printed circuit board assembly (PCBA) shall be marked with: - A QR code, min 7x7mm, consisting of HID and Rev according to “STD 0002” and “STD 0003”. In these standards the QR code is specified to start with HTTPS://HQR.CODES but this must be excluded. This means that the complete QR code will be as follows: HID=xxxxxxxxxxxxxxxxxxxxxxxxx&REV=yy, where x the 25 letters in HID and y is one or two letters for revision. Text field: - Product name, (“Application Board Type 4”) - Part number for the assembly, (“598 90 28-01”) - Revision for the assembly, (“same as the (first) letter in PCBA revision according to BOM”) - HID - Radio certification text: “FCC ID: ZASHQ-BLE-1H” “IC:23307-HQBLE1H” Example of label: QR Application Board Type 4 598 90 28-01 Rev yy HID: xxxxxxxxxxxxxxxxxxxxxxxxx FCC ID: ZASHQ-BLE-1H IC:23307-HQBLE1H Supplier specific code CPMS reporting of the produced part, including revision, must be done before delivery to Husqvarna, see further description in latest revision of ” 597180601 CPMS specification for vendors”. File name 5989028-PCBA Spec-Application Board Type 4 Doc no. 598 90 28 Date 2021-01-26 Rev F Page 2 (7) The HID-label shall be placed inside the white area of the back side of PCB. Manufacturer specific QR-code can be added in above square on top side, as seen above. (If the manufacturer of the PCB wishes to place his logo on the PCBA, this could be placed in the solder mask or on a label. It must not be placed in the copper layer.) QR File name 5989028-PCBA Spec-Application Board Type 4 Doc no. 598 90 28 Date 2021-01-26 Rev F Page 3 (7) Components, PCB and soldering: Standard: IPC A-610-E class 2, or latest revision issued. Compliance with RoHS /REACH. Item shown in BOM must not contain substances classified as "banned" or "restricted" according to Husqvarna Group Restricted Materials List (see, “www.purchase.husqvarna.com”). Mechanical outline requirements: Tolerances in x- and y-direction are ± 0.25mm. File name 5989028-PCBA Spec-Application Board Type 4 Doc no. 598 90 28 Date 2021-01-26 Rev F Page 4 (7) Production requirements: AOI: - Must be used on every board after SMD and THD soldering process. - Equipment must be able to inspect according to PCBA layout drawings supplied from Husqvarna. X-ray: - X-ray must be done on components that can’t be verified in AOI. - First and last board in a batch must be X-rayed. If the batch is > 500 pc, then each 500 th board must also be x-rayed. Flying Probe: - First and last board in a batch must be used in Flying Probe tester. If the batch is > 500 pc, then each 500 th board must also be tested. FCT: - Husqvarna will supply with a PTS spec that every board must be tested according to. - Supplier/Manufacturer (or third party to them) of the PCBA must develop a test system according to the PTS and be responsible of the maintenance of that. BT: - BT tests, DUT must be placed in radio frequency shielded box to not interfere or be disturbed with other equipment. EOL: - EOL testing would be done on complete assy level including plastic cover or on a single coated PCBA if used as spare parts. Washing: - Boards must be washed before coating. Coating: - Coating must be done in a robotic system. Traceability: All boards must be possible to be trace on board level. Buzzer soldering: Make sure that buzzer pins are not longer than max 3,5mm. Note, If upper points couldn’t be achieved Husqvarna must be notified for further discussion. File name 5989028-PCBA Spec-Application Board Type 4 Doc no. 598 90 28 Date 2021-01-26 Rev F Page 5 (7) Coating instruction: Coating must be added on both sides of the PCB. The coating process must be configured in a way that no coating residuals enters the connector pins on any of the PCBA’s in the panel. Coating should apply to the rules below: Red area: Coating MUST be applied! Blue area: Buffer zone - coating not necessary but allowed for the manufacturer’s convenience. Other area: No coating allowed! Component side: File name 5989028-PCBA Spec-Application Board Type 4 Doc no. 598 90 28 Date 2021-01-26 Rev F Page 6 (7) Bottom side: The whole viewing area of the display shall be masked during display side coating. Make sure that coating residuals do not cover the edge of the display. Note: Pictures in above specification are for reference use only and could have minor changes compared to latest release revision of board. File name 5989028-PCBA Spec-Application Board Type 4 Doc no. 598 90 28 Date 2021-01-26 Rev F Page 7 (7) Revision History Revision Date Issued by Comments A 2019-12-17 Magnus Berggren First release. B.001 2020-03-02 Magnus Berggren Radio cert revision changed to rev H. B.002 2020-03-12 Magnus Berggren Radio cert text updated. B 2020-04-08 Magnus Berggren Updated Coating instructions. Added Flying Probe testing. C 2020-06-29 Johan Öster Updated Coating instructions. D 2020-09-09 Magnus Berggren Updated with HID info on label. Added info about max buzzer pin length. E.001 2020-10-12 Magnus Berggren Removed “Assy test”. E.002 2020-10-14 Adam Evegren Updated Coating instructions. E 2020-10-23 Magnus Berggren Release F 2021-01-26 Magnus Berggren Updated coating instruction.

Internal and External Images Application Board Type 4 ZASHQ-BLE-1H 23307-HQBLE1H 210719 Radio part Antenna LayerView-TOP Radio part Antenna LayerView-BOTTOM

Test Report 21-1-0041301T02a Number of pages: 16 Date of Report: 2021-Jun-09 Testing company: CETECOM GmbH Im Teelbruch 116 45219 Essen Germany Tel. + 49 (0) 20 54 / 95 19-0 Fax: + 49 (0) 20 54 / 95 19-150 Applicant: Husqvarna AB Product: Application board with Bluetooth functionality Model: Application Board Type 4 FCC ID: ZASHQ-BLE-1H IC: 23307-HQBLE1H Testing has been carried out in accordance with: FCC Regulations Part 1.1310 Part 2.1091 IC-Regulations RSS-102, Issue 5 Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Tested Technology: BLE Test Results: ☒ The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Signatures: Dipl.-Ing. Ninovic Perez B.Eng. Martin Nunier Test Lab Manager Testing Expert Authorization of test report Responsible of test report Test Report 21-1-0041301T02a CETECOM_TR21_1_0041301T02a 2 / 16 Table of Contents Table of Annex...................................................................................................................................................................................3 1 General information ................................................................................................................................................................4 1.1 Disclaimer and Notes .........................................................................................................................................................4 1.2 Attestation .........................................................................................................................................................................4 1.3 Summary of Test Results ...................................................................................................................................................5 2 Administrative Data .................................................................................................................................................................6 2.1 Identification of the Testing Laboratory ............................................................................................................................6 2.2 General limits for environmental conditions .....................................................................................................................6 2.3 Test Laboratories sub-contracted ......................................................................................................................................6 2.4 Organizational Items .........................................................................................................................................................6 2.5 Applicant’s details .............................................................................................................................................................6 2.6 Manufacturer’s details ......................................................................................................................................................6 2.7 EUT: Type, S/N etc. and short descriptions used in this test report ..................................................................................7 2.8 Auxiliary Equipment (AE): Type, S/N etc. and short descriptions ......................................................................................7 2.9 Connected cables ..............................................................................................................................................................7 2.10 Software .......................................................................................................................................................................7 2.11 EUT set-ups ..................................................................................................................................................................7 2.12 EUT operation modes ...................................................................................................................................................8 3 Equipment under test (EUT) ....................................................................................................................................................8 3.1 General Data of Main EUT as Declared by Applicant .........................................................................................................8 3.2 Detailed Technical data of Main EUT as Declared by Applicant ........................................................................................8 4 Measurements .........................................................................................................................................................................9 4.1 Radio Frequency Exposure Evaluation §2.1091 .................................................................................................................9 4.2 Requirements and limits for RSS Standard ......................................................................................................................11 4.3 MPE Calculation method .................................................................................................................................................12 4.4 Evaluation Method ..........................................................................................................................................................12 4.5 Results for fixed and mobile operations ..........................................................................................................................13 5 Abbreviations used in this report ..........................................................................................................................................14 6 Measurement Uncertainty valid for conducted/radiated me…

Text truncated - open the document above for the full version.

The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM Annex 1: External photographs 21-1-0041301T02a-A1 Number of pages: 3 Date of Report: 2021-Jun-09 Testing company: CETECOM GmbH Im Teelbruch 116 45219 Essen Germany Tel. + 49 (0) 20 54 / 95 19-0 Fax: + 49 (0) 20 54 / 95 19-150 Applicant: Husqvarna AB Product: Application board with Bluetooth functionality Model: Application Board Type 3 FCC ID: ZASHQ-BLE-1G IC: 23307-HQBLE1G Testing has been carried out in accordance with: FCC Regulations Part 1.1310 Part 2.1091 IC-Regulations RSS-102, Issue 5 Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". 21-1-0041301T02a-A1 CETECOM_TR21_1_0041301T02a_A1 2 / 3 Table of Contents 1 External photographs of Main device under test (EUT) ...........................................................................................................3 21-1-0041301T02a-A1 CETECOM_TR21_1_0041301T02a_A1 3 / 3 1 External photographs of Main device under test (EUT) Photograph 1: EUT Top view Photograph 2: EUT Bottom view End of Annex 1

The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM Annex 3: External photographs to Test Report 21-1-0041301T01a-A3a Number of pages: 6 Date of Report: 2021-Jul-02 Testing company: CETECOM GmbH Im Teelbruch 116 45219 Essen Germany Tel. + 49 (0) 20 54 / 95 19-0 Fax: + 49 (0) 20 54 / 95 19-150 Applicant: Husqvarna AB Product: Application board with Bluetooth functionality Model: Application Board Type 4 FCC ID: ZASHQ-BLE-1H IC: 23307-HQBLE1H Testing has been carried out in accordance with: Title 47 CFR, Chapter I FCC Regulations, Subchapter A Subpart C: §15.247 (DTS) , RSS-247, Issue 2 (DTS) RSS-Gen., Issue 5 Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Test Report 21-1-0041301T01a-A3 CETECOM_TR21_1_0041301T01a_A3 2 / 6 Table of Contents 1 External photographs of Main device under test (EUT/DUT) ..................................................................................................3 Photograph 1 : EUT 1_Top view ...................................................................................................................................................3 Photograph 2 : EUT 1_Bottom side view ......................................................................................................................................3 Photograph 3 : EUT 2_Top side view ............................................................................................................................................4 Photograph 4 : EUT 2_Bottom side view ......................................................................................................................................4 2 External photographs of Accessories .......................................................................................................................................5 Photograph 1 : CAB 01 ..................................................................................................................................................................5 Photograph 2 : CAB 02 ..................................................................................................................................................................6 Photograph 3 : CAB 03 ..................................................................................................................................................................6 Test Report 21-1-0041301T01a-A3 CETECOM_TR21_1_0041301T01a_A3 3 / 6 1 External photographs of Main device under test (EUT/DUT) Photograph 1: EUT 1_Top view Photograph 2: EUT 1_Bottom side view Test Report 21-1-0041301T01a-A3 CETECOM_TR21_1_0041301T01a_A3 4 / 6 Photograph 3: EUT 2_Top side view Photograph 4: EUT 2_Bottom side view Test Report 21-1-0041301T01a-A3 CETECOM_TR21_1_0041301T01a_A3 5 / 6 2 External photographs of Accessories Photograph 1: AE 1 Photograph 2: CAB 01 Test Report 21-1-0041301T01a-A3 CETECOM_TR21_1_0041301T01a_A3 6 / 6 Photograph 3: CAB 02 Photograph 4: CAB 03 End Of Annex 3

The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM Annex 1: Measurement diagrams to Test Report 21-1-0041301T01a Number of pages: 61 Date of Report: 2021-Jul-05 Testing company: CETECOM GmbH Im Teelbruch 116 45219 Essen Germany Tel. + 49 (0) 20 54 / 95 19-0 Fax: + 49 (0) 20 54 / 95 19-150 Applicant: Husqvarna AB Product: Application board with Bluetooth functionality Model: Application Board Type 4 FCC ID: ZASHQ-BLE-1H IC: 23307-HQBLE1H Testing has been carried out in accordance with: Title 47 CFR, Chapter I FCC Regulations, Subchapter A Subpart C: §15.247 (DTS) , RSS-247, Issue 2 (DTS) RSS-Gen., Issue 5 Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". 21-1-0041301T01 21-1-0041301T01 2 / 61 Table of Contents 1 Measurement diagrams ...........................................................................................................................................................3 1.1 Radiated measurements....................................................................................................................................................3 1.2 Condcuted measurements ..............................................................................................................................................38 21-1-0041301T01 21-1-0041301T01 3 / 61 1 Measurement diagrams 1.1 Radiated measurements 2.01a_BT_LE_low_standing Common Information Test Description: Magnetic Field Strength Measurement related to 30/300 m distance Test Site Location: Ref.-Nr. 441 Semi Anechoic Chamber (SAC1) with 3 m measurement distance Version of Testsoftware: EMC32 V10.50.0 Distance correction: used accord. table, pls. see test report Technical Data: Please see page 2 for detailed data of measurement setup Rec. antenna (pre-scan): height 1.00 m, parallel and 90° to EUT polarisation Used Filter: bypass Test Standard: FCC 15.205&15.209 & RSS Gen. Issue 5 Operator: PMa/SSanthakum/Soz Operating Mode: BLE low channel Power during tests: 20V DC Comment 1: Channel low Comment 2: Environmental Conditions:: Humidity : 51%rH; Temperature: 21°C EUT Setup: 1 Verdict: Passed Comment: EUT Information PMT number: 21-1-00413S02_C01 Level in dBμV/m 21-1-0041301T01 21-1-0041301T01 4 / 61 2.01b_BT_LE_low_laying Common Information Test Description: Magnetic Field Strength Measurement related to 30/300 m distance Test Site Location: Ref.-Nr. 441 Semi Anechoic Chamber (SAC1) with 3 m measurement distance Version of Testsoftware: EMC32 V10.50.0 Distance correction: used accord. table, pls. see test report Technical Data: Please see page 2 for detailed data of measurement setup Rec. antenna (pre-scan): height 1.00 m, parallel and 90° to EUT polarisation Used Filter: bypass Test Standard: FCC 15.205 § 15.209; RSS-Gen: Issue 5 Operator: PMa/SSanthakum/Soz Operating Mode: BLE low channel Power during tests: 20V DC Comment 1: Channel low Comment 2: Environmental Conditions:: Humidity : 51%rH; Temperature: 21°C EUT Setup: 1 Verdict: Passed Comment: EUT Information PMT number: 21-1-00413S02_C01 Level in dBμV/m 21-1-0041301T01 21-1-0041301T01 5 / 61 2.02a_BT_LE_mid_standing Common Information Test Description: Magnetic Field Strength Measurement related to 30/300 m distance Test Site Location: Ref.-Nr. 441 Semi Anechoic Chamber (SAC1) with 3 m measurement distance Version of Testsoftware: EMC32 V10.50.0 Distance correction: used accord. table, pls. see test report Technical Data: Please see page 2 for detailed data of measurement setup Rec. antenna (pre-scan): height 1.00 m, parallel and 90° to EUT polarisation Used Filter: bypass Test Standard: FCC 15.205 § 15.209; RSS-Gen: Issue 4 Operator: PMa/SSanthakum/Soz Operating Mode: BLE middle channel Power during tests: 20V DC Comment 1: Channel middle Comment 2: Environmental Conditions:: Humidity : 51%rH; Temperature: 21°C EUT Setup: 1 Verdict: Passed Comment: EUT Information PMT number: 21-1-00413S02_C01 Level in dBμV/m 21-1-0041301T01 21-1-0041301T01 6 / 61 2.01b_BT_LE_low_laying Common Information Test Description: Magnetic Field Strength Measurement related to 30/300 m distance Test Site Location: Ref.-Nr. 441 Semi Anechoic Chamber (SAC1) with 3 m measurement distance Version of Testsoftware: EMC32 V10.50.0 Distance correction: used accord. table, pls. see test report Technical Data: Please see page 2 for detailed data of measurement setup Rec. antenna (pre-scan): height 1.00 m, parallel and 90° to EUT polarisation Used Filter: bypass Test Standard: FCC 15.205 § 15.209; RSS-Gen: Issue 5 Operator: PMa/SSanthakum/Soz Operating Mode: BLE middle channel Power during tests: 20V DC Comment 1: Channel low Comment 2: Environmental Conditions:: Humidity : 51%rH; Temperature: 21°C EUT Setup: 1 Verdict: Passed Comment: EUT Information PMT number: 21-1-00413S02_C01 Level in dBμV/m 21-1-0041301T01 21-1-0041301T01 7 / 61 2.03a_BT_LE_high_standing Common Information Test Description: Magnetic Field Strength Measurement related to 30/300 m distance Test Site Location: Ref.-Nr. 441 Semi Anechoic Chamber (SAC1) with 3 m measurement distance Version of Testsoftware: EMC32 V10.50.0 Distance correction: used accord. table, pls. see test report Technical Data: Please see page 2 for detailed data of measurement setup Rec. antenna (pre-scan): height 1.00 m, parallel and 90° to EUT polarisation Used Filter: bypass Test Standard: FCC 15.205 § 15.209; RSS-Gen: Issue 5 Operator: PMa/SSanthakum/Soz Operating Mode: BLE high channel Power during tests: 20V DC Comment 1: Channel high Comment 2: Environmental Conditions:: Humidity : 51%rH; Temperature: 21°C EUT Setup: 1 Verdict: Passed Comment: EUT Information PMT number: 21-1-00413S02_C01 Level in dBμV/m 21-1-0041301T01 21-1-0041301T01 8 / 61 2.03b_BT_LE_high_laying Common Information Test Descriptio…

Text truncated - open the document above for the full version.

Test Report 21-1-0041301T01a Number of pages: 33 Date of Report: 2021-Jul-05 Testing company: CETECOM GmbH Im Teelbruch 116 45219 Essen Germany Tel. + 49 (0) 20 54 / 95 19-0 Fax: + 49 (0) 20 54 / 95 19-150 Applicant: Husqvarna AB Product: Application board with Bluetooth functionality Model: Application Board Type 4 FCC ID: ZASHQ-BLE-1H IC: 23307-HQBLE1H Testing has been carried out in accordance with: Title 47 CFR, Chapter I FCC …
