ZBCSMDP23NAAV Dock station for iPod&iPhone

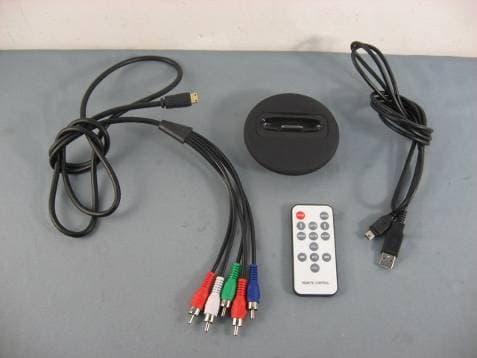

Component AV Dock Station for iPod&iPhone Power USB power input:5V DC 1A AV Dock Station output power:5V DC 1A, or 5V DC 500mA Compatibility WarningThank you for buying our product. Before operating this product, Please read the manual in detail for proper operation of the AV Dock Station for iPod&iPhone 1. AV Out a),Plug the red, green, and blue video connectors into the component video input(Y,Pb and Pr) ports on your TV or receiver, Plug the write and red audio connectors into the left and right analog audio input ports respectively, on your TV or receiver. Plug the mini HDMI connectors of component AV cable into AV Dock Station. b), Put the Dock plate suitable for iPhone/iPod into the groove of the Using AV Dock StationRemote Control Component AV Cable Mini USB Cable the Dock Station, and insert the iPhone/iPod into the Dock Station to ensure that the Apple 30 pin connector of the Dock Station is duly connected to iPhone/iPod connector. c), then you can enjoy the relaxing time with the remote control. The Kit Includes： Component dock station x1 (inclueds iPhone4 plate X1, iPod touch/iPhone 3GS plate x1) Remote control x1 1M Mini USB cable x1 1.5M Mini HDMI/5RCA cable x1 iPhone 4 Plate iPod Touch / iPhone 3GS Plate 3. How to change the plate? POWER MENU ENTER MUTE REPEA T SHUF VOL+ VOL- Component AV Cable 2. Charging & Sync Connect AV dock station to USB power adapter and plug Apple device into the dock for charging. Connect AV dock station to computer for charging and sync via the mini USB cable . 4. Important Notice To remove iPhone/iPod,side the iPhone&iPod in an upward motion Never pull your iPhone/iPod towards you to remove This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Do not modify, disassemble, open, drop, crush, puncture or shred the product Do not expose the product to rain or water Keep away from open flame or sunlight to prevent heat build-up Keep away from high voltage devices This product is not a toy, keep away from children. Insure that all persons who use the product read and follow these warnings and instructions. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Power USB power input:5V DC 1A AV Dock Station output power:5V DC 1A, or 5V DC 500mA Thank you for buying our product. Before operating this product, Please read the manual in detail for proper operation of the AV Dock Station for iPod&iPhone Av Dock StationRemote Control Composite AV Cable Mini USB Cable the Dock Station, and insert the iPhone/iPod into the Dock Station to ensure that the Apple 30 pin connector of the Dock Station is duly connected to iPhone/iPod connector. c), then you can enjoy the relaxing time with the remote control. The Kit Includes： Composite dock station x1 (inclueds iPhone4 plate X1, iPod touch/iPhone 3GS plate x1) Remote control x1 1M Mini USB cable x1 1.5M Mini HDMI/3RCA cable x1 iPhone 4 Plate iPod Touch / iPhone 3GS Plate POWER MENU ENTER MUTE REPEA T SHUF VOL+ VOL- Composite AV Cable 2. Charging & Sync Connect AV dock station to USB power adapter and plug Apple device into the dock for charging. Connect AV dock station to computer for charging and sync via the mini USB cable . Composite AV Dock Station for iPod&iPhone 3. How to change the plate? 4. Important Notice To remove iPhone/iPod,side the iPhone&iPod in an upward motion Never pull your iPhone/iPod towards you to remove 1. AV Out a),Plug the yellow video connector into the composite video input port on your TV or receiver, Plug the write and red audio connectors into the left and right analog audio input ports respectively, on your TV or receiver. Plug the mini HDMI connectors of component AV cable into AV Dock Station. b), Put the Dock plate suitable for iPhone/iPod into the groove of the Using Compatibility This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Do not modify, disassemble, open, drop, crush, puncture or shred the product Do not expose the product to rain or water Keep away from open flame or sunlight to prevent heat build-up Keep away from high voltage devices This product is not a toy, keep away from children. Insure that all persons who use the product read and follow these warnings and instructions. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B d…

Text truncated - open the document above for the full version.

1 Photographs - EUT Constructional Details

The label will be permanently affixed to the permanently attached part as show below of the device.

1 Photographs - EUT Constructional Details

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle Section, Science & Technology Park, District Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.:SZEMO10120788101 Page: 1 of 15 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC Test Report (Verification) Application No.: SZEMO101207881IT Applicant/Manufacturer: SHENZHEN D & S INDUSTRIES LIMITED Address of Applicant /Manufacturer: 33F., Landmark Tower, 4028 Jintian Rd., Futian, Shenzhen, China Factory: HUIZHOU D & S CABLE CO., LTD Address of Factory: Longjin Dongjiang Industry Zone. Shuikou, Huicheng, Huizhou, Guangdong, China Equipment Under Test (EUT): EUT Name: AV Dock station for iPod & iPhone Item No.: SMDP23NA0001, SMDP23NA0002♣ ♣ Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. FCC ID: ZBCSMDP23NA Standards: FCC PART15 SUBPART B:2009 Date of Receipt: 2010-12-30 Date of Test: 2011-01-04 to 2011-02-28 Date of Issue: 2011-03-09 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEMO10120788101 Page: 2 of 15 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 2 Test Summary Test Test Requirement Test Method Class / Severity Result Radiated Emission (30MHz to 1GHz) FCC PART 15, SUBPART B: 2009 ANSI C63.4:2009 Class B PASS* Conducted Emission (150KHz to 30MHz) FCC PART 15, SUBPART B: 2009 ANSI C63.4:2009 Class B PASS Remark: Item No.: SMDP23NA0001, SMDP23NA0002 Only the item SMDP23NA0001 was tested, since the electrical circuit design, layout, component used and internal wiring were identical for the above samples, with only difference being the model name. SMDP23NA0001 is used with HDMI to 5R Cable and SMDP23NA0002 is used with HDMI to 3R Cable. * The EUT passed the Radiated Emission test after modification. See the picture below: SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEMO10120788101 Page: 3 of 15 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility…

Text truncated - open the document above for the full version.

1 Photographs-test setup photo 1.1 Conducted Emission Test Setup 1.2 Radiatd Emission Test Setup
