ZBCWD-216AWireless Charge Power bank, Power Bank

WirelessChargerusermanual WirelessChargerPowerBank Model：WD-216A Contents 1.Whatisinthebox 2.ProductIntroduction 3.Specification 4.Howtouse 5.ImportantNotification 6.FCCStatement&Warning 7.TrademarkAcknowledgments ThanksforpurchasingthisfantasticQiWirelesscharger.Please readthemanual indetailforproperoperationbeforeyougettostarttouse. Manufacturer:SHENZHENDNSINDUSTRIESCO.,LTD. Address:23/FBuildingA,ShenzhenInternationalInnovation Center,No.1006ShennanRoad,Futian,Shenzhen,China Specification Features: Mainfunctions:singlecoilwirelesschargertransmitter; Productsapplicable:allwirelesschargingequipmentaccordedwith Qistandard; Chargingtype:one-on-onechargecorrespondingarea; FastchargingmodelonlyworkwithQCquickcharger. Specification: Mainfunctions:singlecoilwirelesschargertransmitter; Standardversion:WPC-1.2.4; Productsapplicable:allwirelesschargingequipmentaccordedwithQIstandard; Chargingtype:one-on-onechargecorrespondingarea; MicroUSBInput:5V2A TypeCIuput:5V3A USBAOutput:5V2.4A TypeCOutput:5V3A WirelessOutput:5V1A,MAX5W TotalOutput:15W Capacity:10000mAh Launchdistance:3to8MM; Conversionefficiency:≥70%; Chargingmethods:inductionmodel; DeclarationforEUComplianceOperationFrequencyBand/H-field:110.kHzto 205kHz, HowtoUSE 1,PlugYourQiWirelessChargertothePowerSource Plugthesmallend(microUSBBport)oftheUSBcordintothe sideoftheQicharger.Youcanthenplugthelargerend(USBA port)oftheUSBcordintothewallcharger,andthenplugthe chargerintothewall,oryoucanplugthelargerendintoaPC 2,PlaceYourCellphoneontheQiCharger Afteryouhaveconnectedthechargertoapowersource(either yourcomputerorawalloutlet),allyouneedtodotochargeyour phoneissimplyplaceyourphoneontopofthecharger. Beforeyoutrytochargeyourphonewiththecharger,ensurethat yourphoneiscompatiblewithQichargersandmakesurethatthe phoneiswelllocatedatthechargingareaofwirelesscharger. 3,ChargingStatusIndicator 1)Theindicatorgreenlightisonfor4s,thenentersthestandby status,thegreenlightgoesout. 2)Pleaselaythedevicedirectlyonwirelesschargerforcharging,the greenlightalwaysstaysonwhenthechargerisinchargingstatus 3)Whenthedeviceisfullofpower,thegreenlightgoesout. 4)Thetransmitterhasthefunctionofdetectingforeignobjects(FOD). Ifthereisaforeignobjectonthetransmitter,thegreenlightwill flash. ImportantNotification Thefirst:Toprotectpeoplefromharmandpropertyloss,wemakeaclear explanationonwhatyoudoshouldobey: A.Warning!Thereareconcerningthepossibilitiesofdeathandsevere wound: Peoplewhouseheart-birth-makershouldconsultyourdoctorbefore youusethisproduct; Andpleaseleaveitatadistanceof22cmfromtheplacewhereyou installyourheart-birth-maker,theelectromagneticwavehaveinfluence onheart-birth-maker’swork. B.Attention!Itmayledtoheat,fireandelectricshock: 1Donotputitintowateroranyotherliquid,Donotmakeitwet; 2DonotpulltheACadapteroutwithwethands,ensurethesafetyand integrityoftheadapter; 3DonotletthedustorotherthingsaccumulateontheproductandtheAC adapter; 4Donotusetheproductoutsidethetemperature0°Cto40°C; 5Donotchargeinplaceswherethesunshinedirectlyorwithhigh temperature; 6Donotusethisproductinplacesthatareeasytofall,soasnottobreak; 7Donotlaythemagneticcard,magneticrecordmediaandprecisemachinetoo closetotheprotect; 8Donotdecomposeandremold; 9Donotlayanythingbetweenthenon-connectionchargingpadandthe chargingmachine; 10Donotsurpasstheratedvaluewhenusingtheplugandotherwiring layout.; 11DonotmakeanybreakageontheACadapter,pleasemakesureyouconnect theACadapterfullyandtaketheACadapterofftheplugwhenit’snot used; 12Pleaseteachyourchildrentouse Disposalofabatteryintofireorahotover,ormechanicallycrushingor cuttingofabattery,thatcanresultinanexplosion;leavingabatteryin anextremelyhightemperaturesurroundingenvironmentthatcan resultinanexplosionortheleakageofflammableliquidorgas;a batterysubjectedtoextremelylowairpressurethatmayresultinan explosionortheleakageofflammableliquidorgas. Thisequipmenthasbeentestedandfoundtocomplywiththelimits foraWPCdevice,pursuanttoPart15oftheFCCRules.Theselimits aredesignedtoprovidereasonableprotectionagainstharmful interferenceinaresidentialinstallation. NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora wirelesspowercharger,pursuanttoPart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceina residentialinstallation.Thisequipmentgenerates,usesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththe instructions,maycauseharmfulinterferencetoradiocommunications.However, thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation. Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception, whichcanbedeterminedbyturningtheequipmentoffandon,theuseris encouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich thereceiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. ThisdevicecomplieswithPart 15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat maycauseundesiredoperation. RFExposureWarningStatement ： ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan uncontrolledenvironment.Thisequipmentshallbeinstalledandoperatedwith minimumdistance20cmbetweentheradiator&body. CAUTION:Changesormodificationsnotexpresslyapprovedbytheparty responsibleforcompliancecouldvoidtheuser’sauthoritytooperatethe product.

SHENZHEN DNS INDUSTRIES CO., LTD. 23/F Building A, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian, Shenzhen, China Dec. 10, 2019 Federal Communication Commission Authorization and Evaluation Division FCC ID: ZBCWD-216A Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, SHENZHEN DNS INDUSTRIES CO., LTD. Contact person: Yuki Wu Title: General Manager

SHENZHEN DNS INDUSTRIES CO., LTD. 23/F Building A, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian, Shenzhen, China Declaration Letter Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 3/23/2020 FCC ID: ZBCWD-216A Pursuant to KDB 680106 of the Commission’s Rules, SHENZHEN DNS INDUSTRIES CO., LTD. Corporation hereby declare our product which is an inductive wireless power transfer applications that meet all of the following requirements are not required to submit a KDB inquiry for devices approved using a PAG for equipment approved using certification to address RF exposure compliance. 1) Power transfer frequency is 0.110-0.205MHz which is less than1 MHz 2) Output power from each primary coil is 5W which is less than 15 watts 3) The transfer system includes only single primary coils. 4) Client device is placed directly in contact with the transmitter 5) The EUT is a mobile device. 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yours sincerely, SHENZHEN DNS INDUSTRIES CO., LTD. Contact person: Yuki Wu Title: General Manager

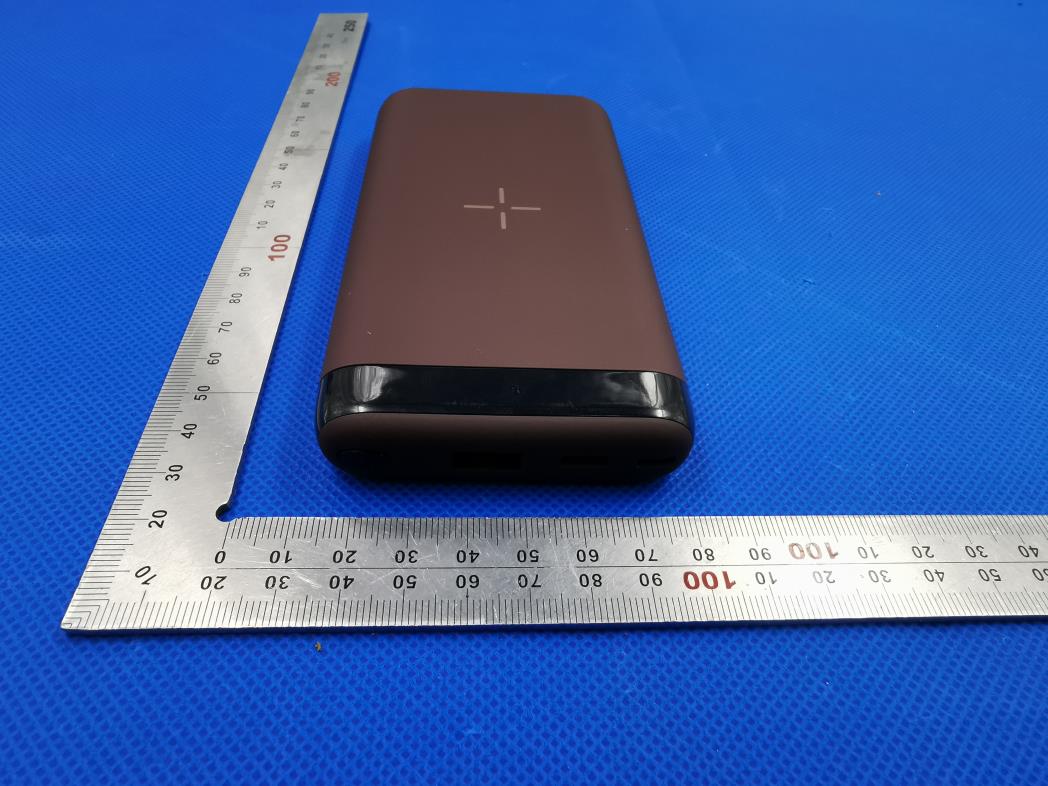

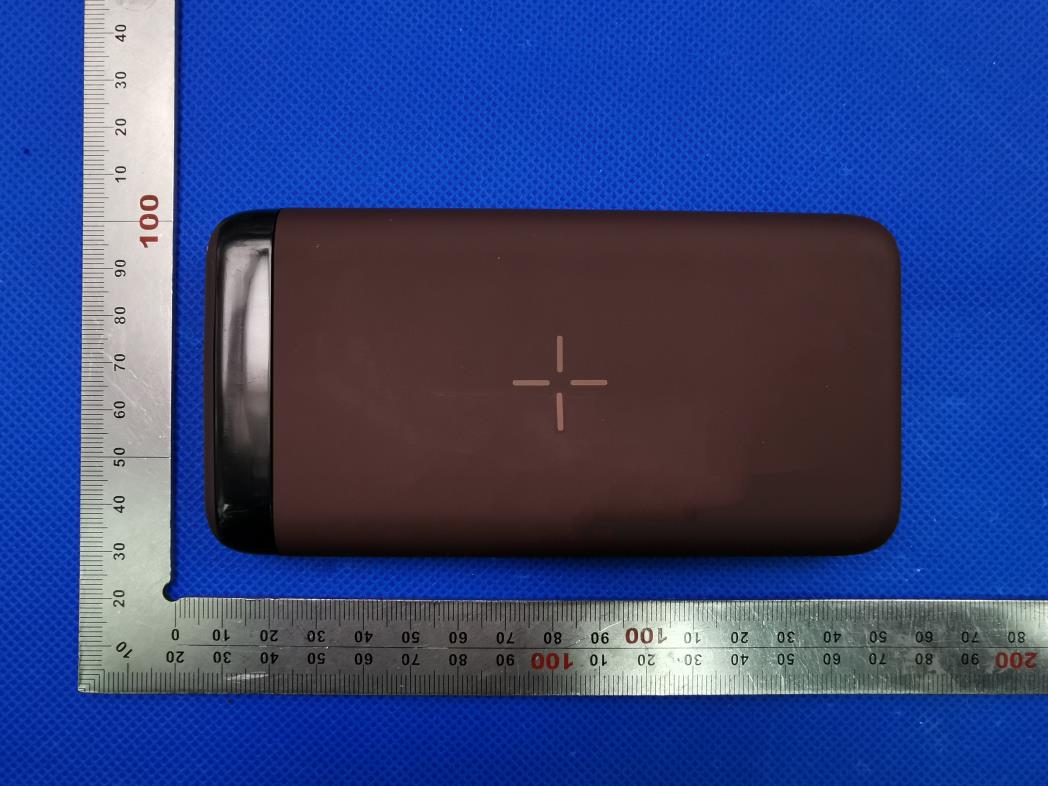

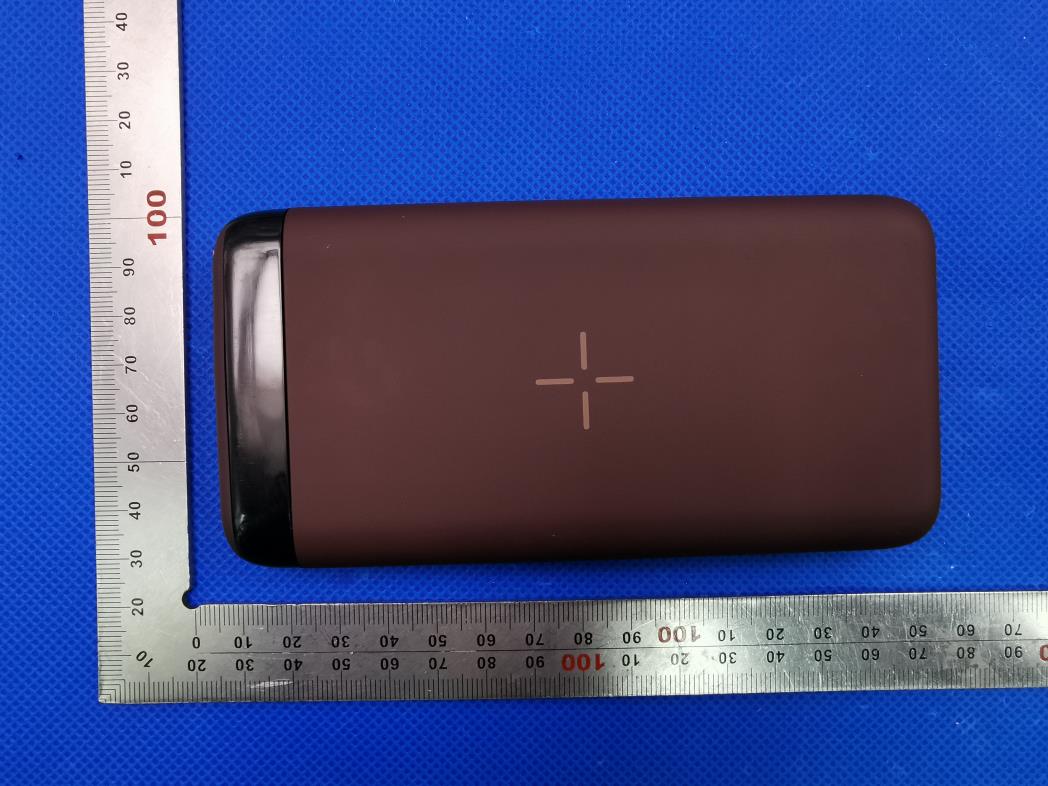

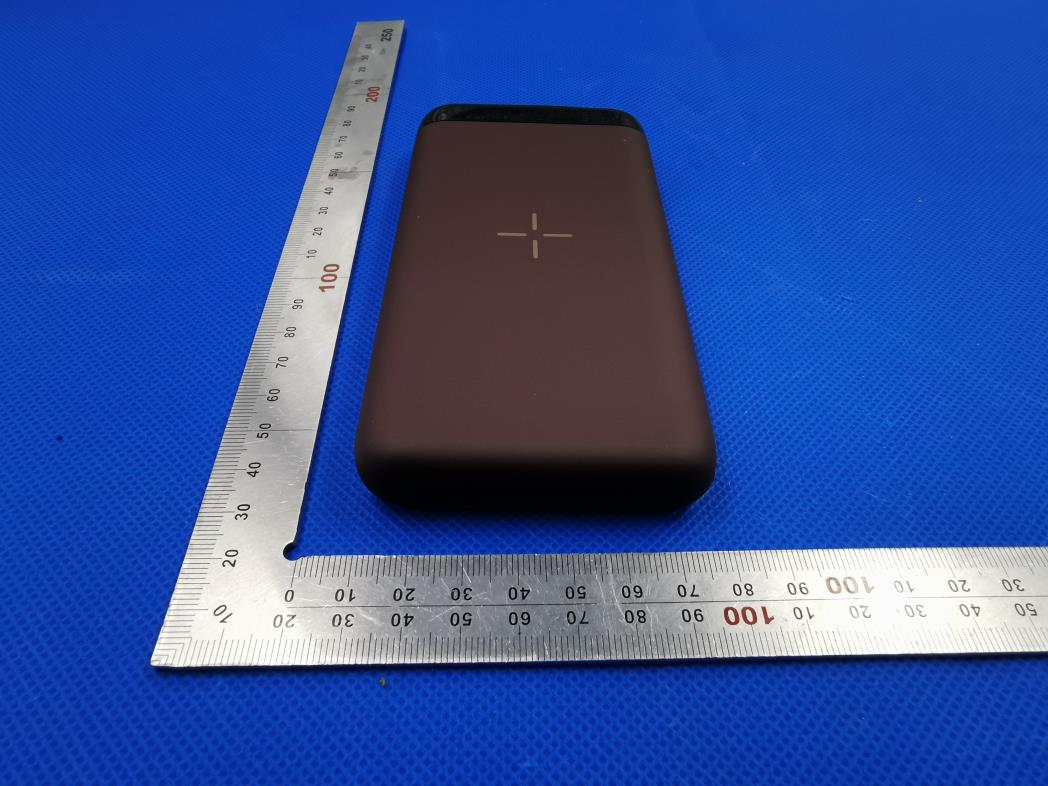

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 Antenna INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT

Page 1 of 13 RF Exposure Report Report No.: AGC05803191104FH03 FCC ID : ZBCWD-216A APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Charge Power bank, Power Bank BRAND NAME : DNS, iLuv MODEL NAME : WD-216A, MYPOWER10QBK APPLICANT : SHENZHEN DNS INDUSTRIES CO., LTD. DATE OF ISSUE : Dec. 10, 2019 STANDARD(S) : KDB 680106 D01 RF Exposure Wireless Charging Base App v03 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC05803191104FH03 Page 2 of 13 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 10, 2019 Valid Initial Release Report No.: AGC05803191104FH03 Page 3 of 13 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ......................................................................................... 4 2. GENERAL INFORMATION ...................................................................................................... 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 3. DESCRIPTION OF TEST MODES ........................................................................................... 6 4. SYSTEM TEST CONFIGURATION ......................................................................................... 6 5. TEST FACILITY ....................................................................................................................... 7 6. RADIO FREQUENCY (RF) EXPOSURE TEST ....................................................................... 8 6.1. LIMITS ..................................................................................................................................................... 8 6.2. TEST SETUP ........................................................................................................................................... 8 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ................................................................... 11 Report No.: AGC05803191104FH03 Page 4 of 13 1. VERIFICATION OF CONFORMITY Applicant SHENZHEN DNS INDUSTRIES CO., LTD. Address 23/F Building A, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian, Shenzhen, China Manufacturer SHENZHEN DNS INDUSTRIES CO., LTD. Address 23/F Building A, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian, Shenzhen, China Product Designation Wireless Charge Power bank, Power Bank Brand Name DNS, iLuv Test Model WD-216A Series Model MYPOWER10QBK Difference description All the same except for brand name and model name, the corresponding relationship are as follow: DNS is corresponding WD-216A ; iLuv is corresponding MYPOWER10QBK; Date of test Nov. 21, 2019 to Dec. 10, 2019 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in KDB 680106 D01. The results of testing in this report apply to the product/system which was tested only. Prepared By Jeast Zhan (Project Engineer) Dec. 10, 2019 Reviewed By Max Zhang (Reviewer) Dec. 10, 2019 Approved By Forrest Lei ( Authorized Officer ) Dec. 10, 2019 Report No.: AGC05803191104FH03 Page 5 of 13 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 110-205 kHz Test Frequency 178.6 kHz Maximum field strength 55.65dBuV/m(PK)@3m Number of channels 1 Antenna Designation Integrated Antenna (Met 15.203 Antenna requirement) Hardware Version WD-216A/B-WL-5W Software Version V1.0 Power Supply DC 5V 2A by Micro B or DC 5V 3A by Type C Report No.: AGC05803191104FH03 Page 6 of 13 3. DESCRIPTION OF TEST MODES NO. TEST MODE DESCRIPTION 1 Wireless charging Mode(Full load) 2 Wireless charging Mode(half load) 3 Wireless charging Mode(Null load) Note: 1. The mode 1 was the worst case and only the data of the worst case record in this report. 2. Both adaptors are tested and reported the worst-case data. 4. SYSTEM TEST CONFIGURATION Item Equipment Model No. ID or Specification Remark 1 Wireless Charge Power bank, Power Bank WD-216A ZBCWD-216A EUT 2 Load N/A 5W Accessory 3 Adapter N/A DC 5V 2A Accessory 4 USB Cable N/A 1.0m, Unshielded Accessory Report No.: AGC05803191104FH03 Page 7 of 13 5. TEST FACILITY TEST EQUIPMENT LIST Description Manufacturer Model S/N Cal. Date Cal. Due Broadband Field Meter Narda Safety Test Solutions GmbH NBM-550 J-0004 Jun.12, 2019 Jun.11, 2020 Probe FHP Narda Safety Test Solutions GmbH EHP-50F J-0015 Jun.12, 2019 Jun.11, 2020 Test Site Attestation of Global Compliance (Shenzhen) Co., Ltd Location 1-2/F, Building 19, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Designation Number CN1259 FCC Test Firm Registration Number 975832 A2LA Cert. No. 5054.02 Description Attestation of Global Compliance(Shenzhen) Co., Ltd is accredited by A2LA Report No.: AGC05803191104FH03 Page 8 of 13 6. RADIO FREQUENCY (RF) EXPOSURE TEST 6.1. LIMITS For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. 6.2. TEST SETUP Note: Position A: …

Text truncated - open the document above for the full version.

Page 1 of 29 FCC Test Report Report No.: AGC05803191104FE03 FCC ID : ZBCWD-216A APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Charge Power bank, Power Bank BRAND NAME : DNS, iLuv MODEL NAME : WD-216A, MYPOWER10QBK APPLICANT : SHENZHEN DNS INDUSTRIES CO., LTD. DATE OF ISSUE : Dec. 10, 2019 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC05803191104FE03 Page 2 of 29 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 10, 2019 Valid Initial Release Report No.: AGC05803191104FE03 Page 3 of 29 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .......................................................................................................................... 4 2. GENERAL INFORMATION ....................................................................................................................................... 5 2.1. PRODUCT DESCRIPTION ................................................................................................................................ 5 3. MEASUREMENT UNCERTAINTY ............................................................................................................................ 6 4. DESCRIPTION OF TEST MODES ............................................................................................................................ 7 5. SYSTEM TEST CONFIGURATION........................................................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ................................................................................................................ 8 5.2. EQUIPMENT USED IN EUT SYSTEM ............................................................................................................... 8 5.3. SUMMARY OF TEST RESULTS ........................................................................................................................ 8 6. TEST FACILITY ......................................................................................................................................................... 9 7. RADIATED EMISSION ............................................................................................................................................ 10 7.1TEST LIMIT ........................................................................................................................................................ 10 7.2. MEASUREMENT PROCEDURE ...................................................................................................................... 11 7.3. TEST SETUP .................................................................................................................................................... 12 7.4. TEST RESULT .................................................................................................................................................. 13 8. 20DB BANDWIDTH ................................................................................................................................................ 16 8.1. MEASUREMENT PROCEDURE ...................................................................................................................... 16 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................................. 16 8.3. MEASUREMENT RESULTS ............................................................................................................................ 17 9. FCC LINE CONDUCTED EMISSION TEST ........................................................................................................... 18 9.1. LIMITS OF LINE CONDUCTED EMISSION TEST ........................................................................................... 18 9.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ......................................................................... 18 9.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ...................................................... 19 9.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ..................................................................... 19 9.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ............................................................................... 20 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ................................................................................................... 22 APPENDIX B: PHOTOGRAPHS OF EUT .................................................................................................................. 24 Report No.: AGC05803191104FE03 Page 4 of 29 1. VERIFICATION OF CONFORMITY Applicant SHENZHEN DNS INDUSTRIES CO., LTD. Address 23/F Building A, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian, Shenzhen, China Manufacturer SHENZHEN DNS INDUSTRIES CO., LTD. Address 23/F Building A, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian, Shenzhen, China Product Designation Wireless Charge Power bank, Power Bank Brand Name DNS, iLuv Test Model WD-216A Series Model MYPOWER10QBK Difference description All the same except for brand name and model name, the corresponding relationship are as follow: DNS is corresponding WD-216A ; iLuv is corresponding MYPOWER10QBK; Date of test Nov. 21, 2019 to Dec. 10, 2019 Deviation No any deviation from the test method Condition of Test Sample Normal Test Result Pass Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the pro…

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ FCC LINE CONDUCTED EMISSION TEST SETUP
