ZBCWD234AWireless Car Charger

PARTS INCLUDED • Device holder • Wir eless charger • • Vent mount Suction mount COMPONENT IDENTIFICATION 1. Clip 2. Char ging coil 3. Char ger 4. Bottom clip 5. Tightning knob 6. Ball joint 7. Air vent clip 8. Char ging LED 9. Micr o USB port INSTALLATION Place the screw cap (threads fac- ing up) over the mount’s ball joint. Snap the device holder onto the mount’s joint, you will hear a “snap” when it is prop- erly connected. Place the holder onto the air vent or wind- shield as desired. Adjust as necessary. Air vent clip and suction mount can be adjusted to the optimum angle for your vehicle. Connect to charge Align the device holder over the mount's ball joint. Adjust the bottom clip to ensure the wireless char ging pad is in the correct place on your device. WD-234A WIRELESS CAR CHARGER Instruction Manual Please Recycle UNDERSTANDING THE LED LIGHTS Gr een LED ON–Charging Gr een LED OFF–Standby Blinking LED–For eign object in charger Blinking LED–Overheat warning Blinking LED–Voltage too high WARNING DO NOT put metal objects on charger Keep charger dry DO NOT use if damaged DO NOT char ge with a damaged, br ok en or exploded battery DO NOT use or under 0ºC or over 30ºC DO NOT stor e in frigid temperatur es to avoid moisture build up inside the charger DO NOT open or repair DO NOT thr ow , beat or shake to avoid internal damage SPECIFICATIONS Char ging modes: 5W/7.5W/10W Input: 5V/2A; 9V/1.67A Char ging distance: <0.2" (5mm) � 75% Size: 4.33x3.8x2.13in Qualcomm Quick Charge is a product of Qualcomm Technologies, Inc. , and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United Sta tes and other countries. Quick Charge is a trademark of Qualcomm Incorpo- rated.

SHENZHEN DNS INDUSTRIES CO., LTD. 23/F Building A, Shenzhen International Innovation Center, No. 1006 Shennan Road, Futian, Shenzhen, 518026 China Agent Authorization Company: SHENZHEN DNS INDUSTRIES CO., LTD. Address: 23/F Building A, Shenzhen International Innovation Center, No. 1006 Shennan Road, Futian, Shenzhen, 518026 China Product Name: Wireless Car Charger Model Number(s): WD-234A, B08LL545PW, B08LL3317V Product Description: Wireless Car Charger We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Dec. 02, 2020 Name: Yuki Wu Title: General Manager Company: SHENZHEN DNS INDUSTRIES CO., LTD.

SHENZHEN DNS INDUSTRIES CO., LTD. 23/F Building A, Shenzhen International Innovation Center, No. 1006 Shennan Road, Futian, Shenzhen, 518026 China Declaration Letter Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dec. 02, 2020 FCC ID: ZBCWD234A Pursuant to KDB 680106 of the SHENZHEN DNS INDUSTRIES CO., LTD. hereby declare our product which is an inductive wireless power transfer applications that meet all of the following requirements are not required to submit a KDB inquiry for devices approved using a PAG for equipment approved using certification to address RF exposure compliance. 1) Power transfer frequency is 0.110-0.205MHz which is less than1 MHz 2) Output power from each primary coil is 10W which is less than 15 watts 3) The transfer system includes only single primary coils. 4) Client device is placed directly in contact with the transmitter 5) The EUT is a mobile device. 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yours sincerely, Name: Yuki Wu Title: General Manager

SHENZHEN DNS INDUSTRIES CO., LTD. 23/F Building A, Shenzhen International Innovation Center, No. 1006 Shennan Road, Futian, Shenzhen, 518026 China Dec. 02, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID: ZBCWD234A Models: WD-234A, B08LL545PW, B08LL3317V To Whom It May Concern: We, The SHENZHEN DNS INDUSTRIES CO., LTD. hereby declare that the model : B08LL545PW, B08LL3317V is identical with the model : WD- 234A, except the model name and the brand names. WD-234A corresponding to DNS; B08LL545PW corresponding to omars, mbest, NOVOO, KEYMOX; B08LL3317V corresponding to omars, mbest, NOVOO, KEYMOX. Except for the different above, no other modification is performed. Sincerely, SHENZHEN DNS INDUSTRIES CO., LTD. Signature: [Yuki Wu, General Manager]

SHENZHEN DNS INDUSTRIES CO., LTD. 23/F Building A, Shenzhen International Innovation Center, No. 1006 Shennan Road, Futian, Shenzhen, 518026 China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Dec. 02, 2020 Subject; Request for Confidentiality FCC ID: ZBCWD234A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Parts List Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yuki Wu Title: General Manager

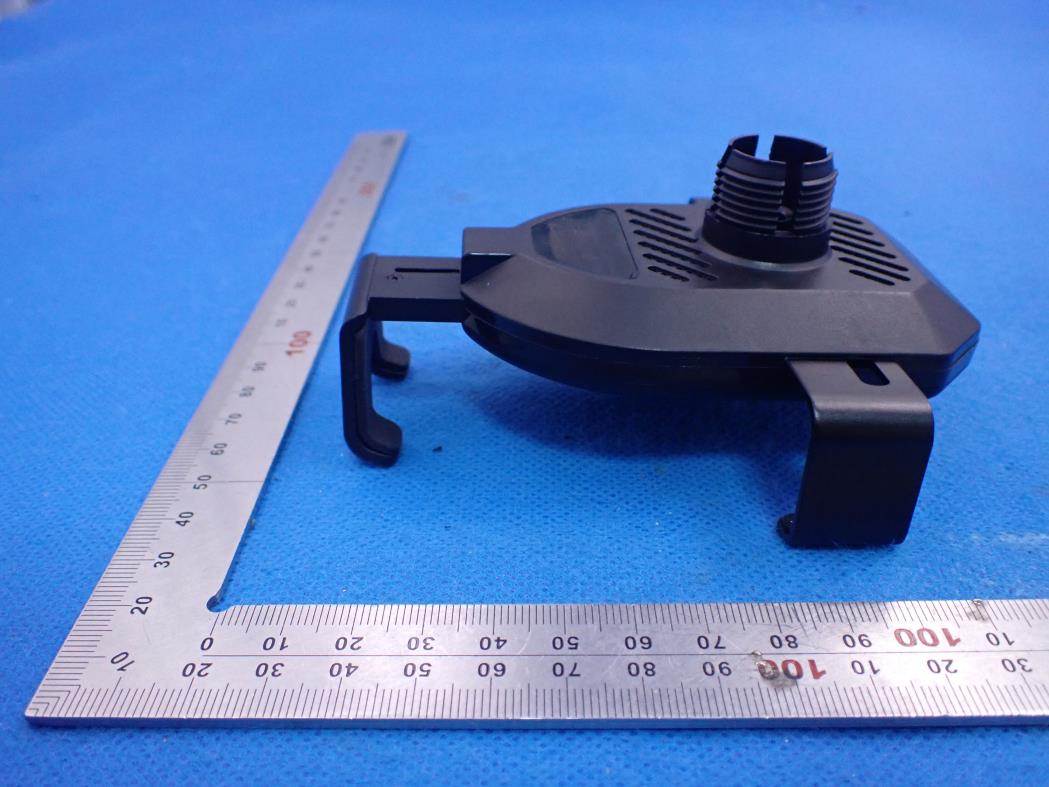

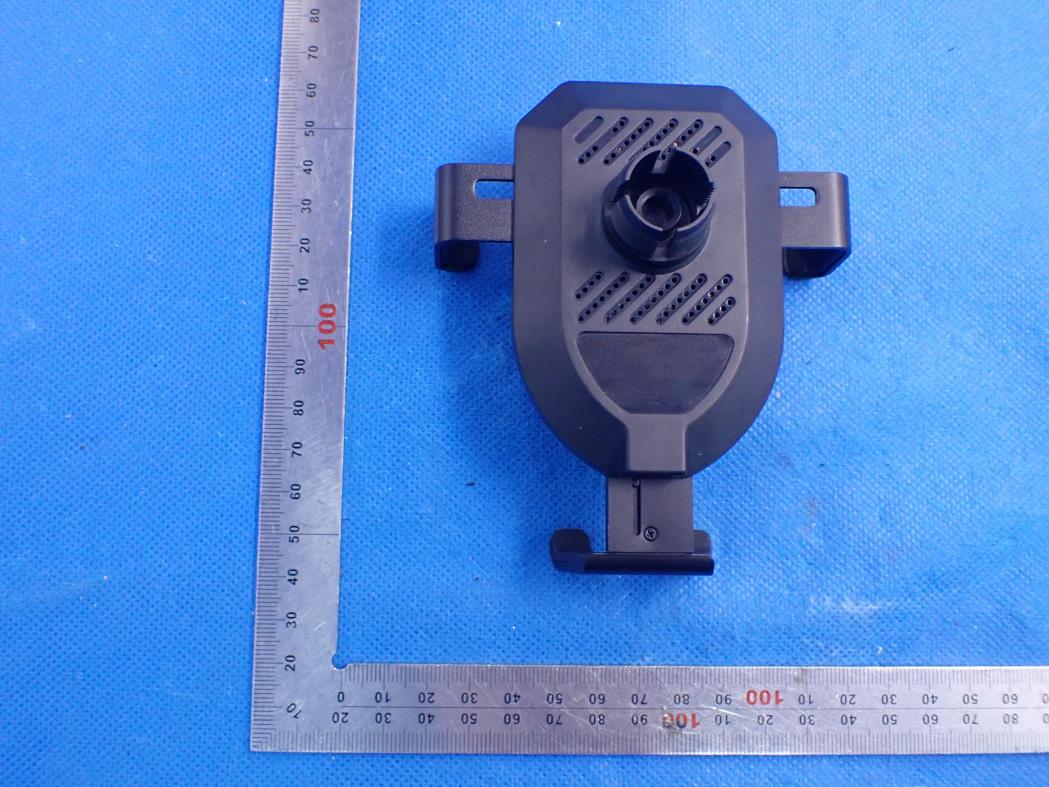

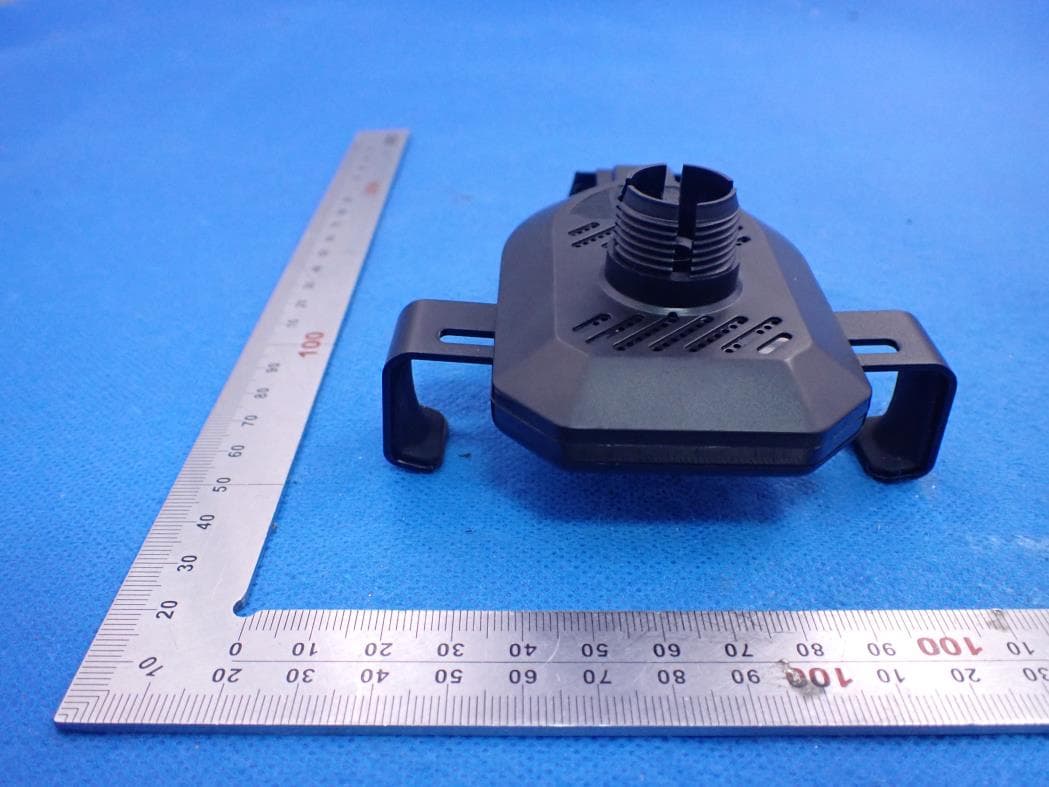

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

Wireless Car Charger ModelWD-234A Input5V 2A, 9V 1.67A Output5W / 7.5W / 10W(max) FCC ID: ZBCWD234A Made in China 04A21 14.1mm 25.2mm

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

Page 1 of 14 RF Exposure Report Report No.: AGC05803201101FH03 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Car Charger BRAND NAME : DNS, omars, mbest, NOVOO, KEYMOX MODEL NAME : WD-234A, B08LL545PW, B08LL3317V APPLICANT : SHENZHEN DNS INDUSTRIES CO., LTD. DATE OF ISSUE : Dec. 01, 2020 STANDARD(S) : KDB680106 D01 RF Exposure Wireless Charging Base App v03 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC05803201101FH03 Page 2 of 14 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 01, 2020 Valid Initial Release Report No.: AGC05803201101FH03 Page 3 of 14 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 4 2. GENERAL INFORMATION .............................................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 5 3. DESCRIPTION OF TEST MODES ................................................................................................................... 6 4. SYSTEM TEST CONFIGURATION .................................................................................................................. 6 5. TEST FACILITY ................................................................................................................................................ 7 6. RADIO FREQUENCY (RF) EXPOSURE TEST ............................................................................................... 8 6.1. LIMITS ........................................................................................................................................................ 8 6.2. TEST SETUP.............................................................................................................................................. 8 APPENDIX A: PHOTOGRAPHS OF TEST SETUP .......................................................................................... 11 Report No.: AGC05803201101FH03 Page 4 of 14 1. VERIFICATION OF CONFORMITY Applicant SHENZHEN DNS INDUSTRIES CO., LTD. Address 23/F Building A, Shenzhen International Innovation Center, No. 1006 Shennan Road, Futian, Shenzhen, 518026 China Manufacturer SHENZHEN DNS INDUSTRIES CO., LTD. Address 23/F Building A, Shenzhen International Innovation Center, No. 1006 Shennan Road, Futian, Shenzhen, 518026 China Factory1 HUIZHOU D&S CABLE CO., LTD. Address1 Longjin Dongjiang Industry Zone Shuikou, Huicheng, Huizhou, Guangdong, China Factory2 HUI ZHOU DNS TECHNOLOGY CO., LTD. Address2 5 Dongshun South Road, Dongjiang Hi-tech Industrial Park, Zhongkai Hi-tech Zone, Huizhou City, Guangdong, China Factory3 D AND S INDUSTRIES (PHILIPPINES) CORPORATION Address3 1 to 5 Orient Goldcrest Suntrust Ecotown Building 2, Lot 8 Block 8, Sahud Ulan, Suntrust Ecotown Tanza, Region IV-A, Cavite, Philippines Product Designation Wireless Car Charger Brand Name DNS, omars, mbest, NOVOO, KEYMOX Test Model: WD-234A Series Model B08LL545PW, B08LL3317V Difference Description All the series models are same as the test model except for the model names and the brand names. WD-234A corresponding to DNS; B08LL545PW corresponding to omars, mbest, NOVOO, KEYMOX; B08LL3317V corresponding to omars, mbest, NOVOO, KEYMOX. Date of test Nov. 23, 2020 to Dec. 01, 2020 Deviation No any deviation from the test method Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in KDB680106 D01. The results of testing in this report apply to the product/system which was tested only. Prepared By Sky Dong (Project Engineer) Dec. 01, 2020 Reviewed By Max Zhang (Reviewer) Dec. 01, 2020 Approved By Forrest Lei (Authorized Officer) Dec. 01, 2020 Report No.: AGC05803201101FH03 Page 5 of 14 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 110-205 kHz Test Frequency 125kHz Maximum field strength 53.14dBuV/m(PK)@3m Number of channels 1 Antenna Designation Coil Antenna (Met 15.203 Antenna requirement) Hardware Version CX-L2141T-10W TX1.2 Software Version V1.0 Power Supply DC 12V by battery Report No.: AGC05803201101FH03 Page 6 of 14 3. DESCRIPTION OF TEST MODES NO. TEST MODE DESCRIPTION 1 Wireless charging Mode(10W) 2 Wireless charging Mode(7.5W) 3 Wireless charging Mode(5W) Note: 1. The mode 1 was the worst case and only the data of the worst case record in this report. 4. SYSTEM TEST CONFIGURATION Item Equipment Model No. ID or Specification Remark 1 Wireless charger WD-234A ZBCWD234A EUT 2 Wireless Load N/A 10W AE Report No.: AGC05803201101FH03 Page 7 of 14 5. TEST FACILITY TEST EQUIPMENT LIST Description Manufacturer Model S/N Cal. Date Cal. Due Broadband Field Meter Narda Safety Test Solutions GmbH ELT-400 J-0004 May 25,2020 May 24,2021 Probe FHP Narda Safety Test Solutions GmbH 2300/90.10 J-0015 May 25,2020 May 24,2021 Test Site Attestation of Global Compliance(Shenzhen) Co., Ltd Location 1-2/F,Building19,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiSt reet,Bao'anDistrict,Shenzhen,Guangdong,China Designation Number CN1259 FCC Test Firm Registration Number 975832 A2LA Cert. No. 5054.02 Description Attestation of Global Compliance(Shenzhen) Co., Ltd is accredited by A2LA Report No.: AGC05803201101FH03 Page 8 of 14 6. RADIO FREQUENCY (RF) EXPOSURETEST 6.1. LIMITS For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field s…

Text truncated - open the document above for the full version.

Page 1 of 26 FCC Test Report Report No.: AGC05803201101FE04 FCC ID : ZBCWD234A APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Car Charger BRAND NAME : DNS, omars, mbest, NOVOO, KEYMOX MODEL NAME : WD-234A, B08LL545PW, B08LL3317V APPLICANT : SHENZHEN DNS INDUSTRIES CO., LTD. DATE OF ISSUE : Dec. 01, 2020 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC05803201101FE04 Page 2 of 26 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 01, 2020 Valid Initial Release Report No.: AGC05803201101FE04 Page 3 of 26 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ................................................................................................................................ 4 2. GENERAL INFORMATION ............................................................................................................................................. 5 2.1. PRODUCT DESCRIPTION ....................................................................................................................................................... 5 3. MEASUREMENT UNCERTAINTY ................................................................................................................................. 6 4. DESCRIPTION OF TEST MODES ................................................................................................................................. 7 5. SYSTEM TEST CONFIGURATION ................................................................................................................................ 8 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................................................................ 8 5.2. EQUIPMENT USED IN EUT SYSTEM ...................................................................................................................................... 8 5.3. SUMMARY OF TEST RESULTS ................................................................................................................................................ 8 6. TEST FACILITY ............................................................................................................................................................... 9 7. RADIATED EMISSION .................................................................................................................................................. 10 7.1TEST LIMIT ........................................................................................................................................................................... 10 7.2. MEASUREMENT PROCEDURE ............................................................................................................................................ 11 7.3. TEST SETUP ........................................................................................................................................................................ 12 7.4. TEST RESULT ....................................................................................................................................................................... 13 8. 20DB BANDWIDTH ....................................................................................................................................................... 16 8.1. MEASUREMENT PROCEDURE ............................................................................................................................................ 16 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................................................................................ 16 8.3. MEASUREMENT RESULTS ................................................................................................................................................... 17 9. FCC LINE CONDUCTED EMISSION TEST ................................................................................................................ 18 9.1. LIMITS OF LINE CONDUCTED EMISSION TEST..................................................................................................................... 18 9.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST .................................................................................................... 18 9.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ..................................................................................... 19 9.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ................................................................................................. 19 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ........................................................................................................ 20 APPENDIX B: PHOTOGRAPHS OF EUT ....................................................................................................................... 21 Report No.: AGC05803201101FE04 Page 4 of 26 1. VERIFICATION OF CONFORMITY Applicant SHENZHEN DNS INDUSTRIES CO., LTD. Address 23/F Building A, Shenzhen International Innovation Center, No. 1006 Shennan Road, Futian, Shenzhen, 518026 China Manufacturer SHENZHEN DNS INDUSTRIES CO., LTD. Address 23/F Building A, Shenzhen International Innovation Center, No. 1006 Shennan Road, Futian, Shenzhen, 518026 China Factory1 HUIZHOU D&S CABLE CO., LTD. Address1 Longjin Dongjiang Industry Zone Shuikou, Huicheng, Huizhou, Guangdong, China Factory2 HUI ZHOU DNS TECHNOLOGY CO., LTD. Address2 5 Dongshun South Road, Dongjiang Hi-tech Industrial Park,Zhongkai Hi-tech Zone, Huizhou City, Guangdong, China Factory3 D AND S INDUSTRIES (PHILIPPINES) CORPORATION Address3 1 to 5 Orient Goldcrest Suntrust Ecotown Building 2, Lot 8 Block 8, Sahud Ulan, Suntrust Ecotown Tanza, Region IV-A, Cavite, Philippines Product Designation Wireless Car Charger Brand Name DNS, omars, mbest, NOVOO, KE…

Text truncated - open the document above for the full version.

Test Setup Photos Position E Position A Position B Position C Position D

Test Setup Photos FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ
