Wireless Charger user manual Model：WD-248D Contents 1.What is in the box 2.Product Introduction 3.Specification 4.How to use 5.Important Notification Thanks for purchasing this fantastic Qi Wireless charger. Please read the manual in detail for proper operation before you get to start to use. What is in the box: 1) Qi Wireless Charger x1pc 2) User Manual x1pc Manufacturer: SHENZHEN DNS INDUSTRIES CO., LTD. Address:23/F Building A, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian, Shenzhen, China The importer: XXXXXXXXXXXX The importer: XXXXXXXXXXXXXXX Product Introduction Type C USB Charging Port LED indicator Antiskid strip Products applicable: all wireless charging equipment accorded with QI standard; USB-C Input: 12V d.c. 3.5A Wireless output 1: 5W/7.5W/10W/15W Wireless output 2: 5W/7.5W/10W/15W Frequency Band: 116.59 to 205.53 KHz Transmitter Power: 29.97 dbuA/m at 3m distance How to USE 1, Plug Your Qi Wireless Charger to the Power Source Plug the small end (Type C port) of the USB cord into the side of the Qi charger. You can then plug the larger end (USB A port) of the USB cord into the wall charger, and then plug the charger into the wall, or you can plug the larger end into a PC 2, Place Your Cellphone on the Qi Charger After you have connected the charger to a power source (either your computer or a wall outlet), all you need to do to charge your phone is simply place your phone on top of the charger. Before you try to charge your phone with the charger, ensure that your phone is compatible with Qi chargers and make sure that the phone is well located at the charging area of wireless charger. 3, Charging Status Indicator 1) The indicator green light is on for 4s , then enters the standby status, the green light goes out. 2) Please lay the device directly on wireless charger for charging, the green light always stays on when the charger is in charging status 3) When the device is full of power, the green light goes out. 4) The transmitter has the function of detecting foreign objects(FOD). If there is a foreign object on the transmitter, the green light will flash. Important Notification The First: To protect people from harm and property loss,we make a clear explanation on what you do should obey: A. There are concerning the possibilities of death and severe wound: People who use heart-birth-maker should consult your doctor before you use this product; And please leave it at a distance of 22cm from the place where you install your heart-birth-maker, the electromagnetic wave have influence on heart-birth-maker’s work. B . Attention! It may led to heat, fire and electric shock: 1 Do not put it into water or any other liquid, Do not make it wet; 2 Do not pull the AC adapter out with wet hands, ensure the safety and integrity of the adapter; 3 Do not let the dust or other things accumulate on the product and the AC adapter; 4 Do not use the product outside the temperature - 20 °C to 40 °C; 5 Do not charge in places where the sun shine directly or with high temperature; 6 Do not use this product in places that are easy to fall, so as not to break; 7 Do not lay the magnetic card, magnetic record media and precise machine too close to the protect; 8 Do not decompose and remold; 9 Do not lay anything between the non-connection charging pad and the charging machine; 10 Do not surpass the rated value when using the plug and other wiring layout.; 11 Do not make any breakage on the AC adapter, please make sure you connect the AC adapter fully and take the AC adapter off the plug when it’s not used ; 12 Please teach your children to use FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the product. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

SHENZHEN DNS INDUSTRIES CO., LTD. Date: 2020-8-4 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: ZBCWD24830W To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Joyce Shi in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with SHENZHEN DNS INDUSTRIES CO., LTD. This authorization is valid until further written notice from the applicant. Title: Certificate Engineer Print Name: Yuki Wu Signature: On behalf of Company: SHENZHEN DNS INDUSTRIES CO., LTD. Telephone: +86-755-83401338 Fax: +86-755-83301489 E-mail: [email protected]

SHENZHEN DNS INDUSTRIES CO., LTD. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: SHENZHEN DNS INDUSTRIES CO., LTD. 23/F Building A, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian, Shenzhen 518026, China Regarding: Confidentiality Request regarding application for FCC ID: ZBCWD24830W LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic Block Diagram Operational Description The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 180 days from the grant date, whichever is less. If the device is marketed within 180 days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photo Internal Photo Test Setup Photo User manual Sincerely, Print Name: Yuki Wu Title: Certificate Engineer Signature: On behalf of Company: SHENZHEN DNS INDUSTRIES CO., LTD. Telephone: +86-755-83401338 Fax: +86-755-83301489 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name SHENZHEN DNS INDUSTRIES CO., LTD. Address 23/F Building A, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian, shenzhen 518026 China Grantee Code ZBC FCC ID ZBCWD24830W Authorized Contact Name Yuki Wu Contact Email [email protected] Contact Phone +86-755-83401338 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 08/4/2020 Print Name: Yuki Wu Title: Certificate Engineer *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Cover Letter-Wireless Charger Approval FCC ID: ZBCWD24830W Date: 2020-8-4 Gentlemen: There’s a Wireless Charger that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below, Wireless Charger, with its designed features and specified description, meets special requirements for KDB 680106 D01 section 5.2 requirements. Company: SHENZHEN DNS INDUSTRIES CO., LTD. Product Name: Wireless Charger Model Number: WD-248D, WD-248F, WD-224D, WD-246D, 3S-1836 FCC ID: ZBCWD24830W KDB 680106 D01 Section 5.2 Requirements: Product Technical Specification： Result: a) Power transfer frequency is less that 1 MHz 116.59 to 205.53KHz Complied b) Output power from each primary coil is less than or equal to 15 watts. Wireless output 1: 5W/7.5W/10W/15W Wireless output 2: 5W/7.5W/10W/15W Complied c) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils Complied d) Client device is placed directly in contact with the transmitter. Complied e) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion) Complied f) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Please refer to RF exposure report Complied Sincerely, Print Name: Yuki Wu Title: Certificate Engineer Signature: On behalf of Company: SHENZHEN DNS INDUSTRIES CO., LTD. Telephone: +86-755-83401338 E-mail: [email protected]

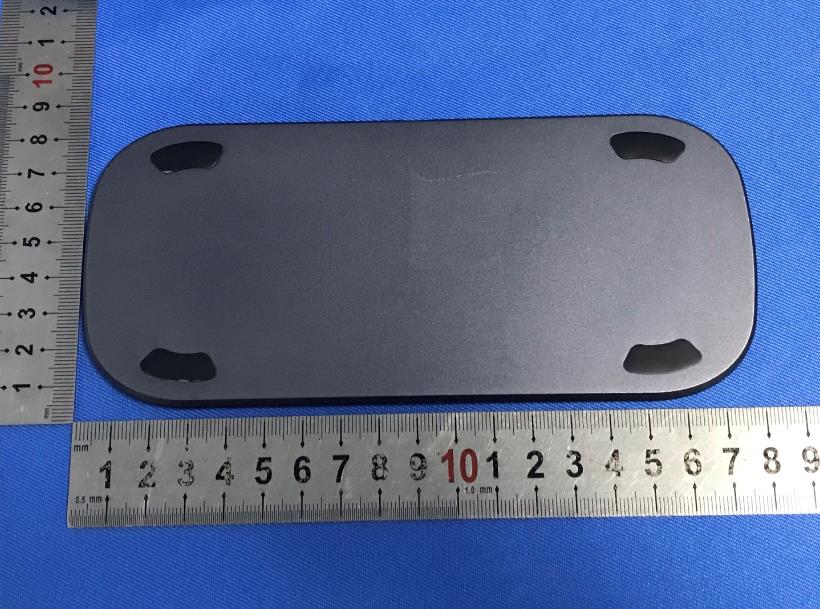

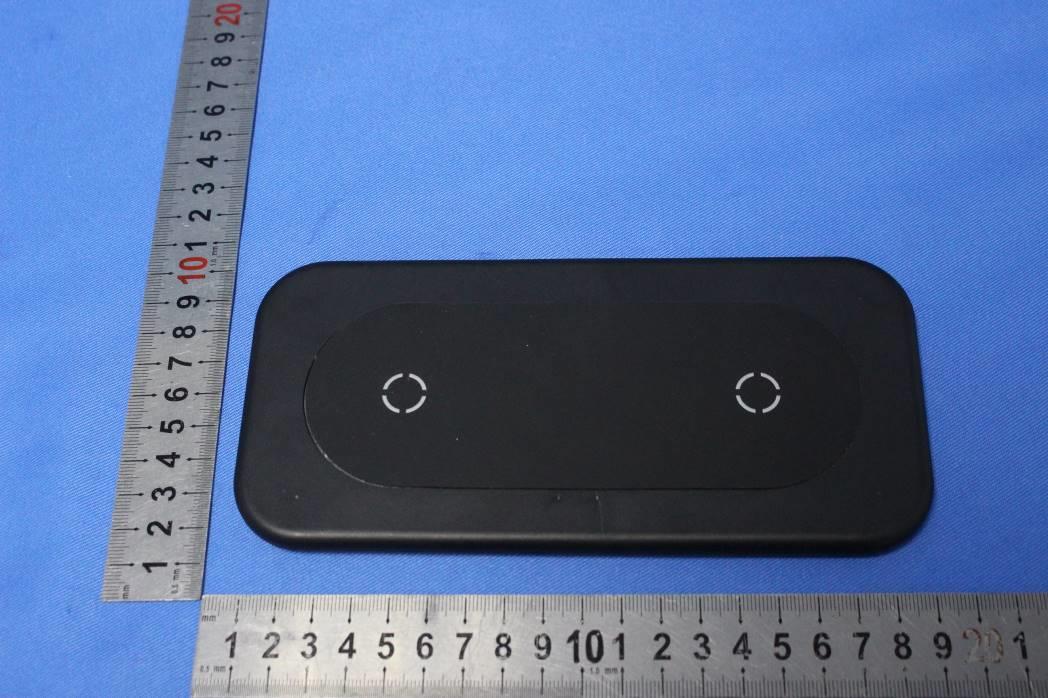

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 7 External Photos for SZEM2003001267CR FCC ID: ZBCWD24830W SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 7 1 EUT Constructional Details Test model No.: WD-248D (Enclosure shape code A) SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 7 model No.: WD-248F (Enclosure shape code B) SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 6 of 7 model No.: WD-224D (Enclosure shape code C) SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 7 of 7 Model number: WD-246D (Enclosure shape code D)
