© 2016 Winmate Inc. All rights reserved. Page 1 Product Name: Panel PC Model Name: Part Number: 98C010A000FD Approved by Checked By Formulated By Cathy Hsu David Chen Kent Ouyang Customer Confirmation Signature Date Company Name: Approved By: Stamp:  Customer signature is required for Winmate to continue with the sample and receive orders.  Orders received without customer signature will be regarded as agreement on the specifications. IronTwo Hemisphere GNSS, Inc. © 2016 Winmate Inc. All rights reserved. Page 2  Any changes in product specifications shall be approved by both parties and a new revision of specifications shall be released to reflect changes. © 2016 Winmate Inc. All rights reserved. Page 3 Document Revision History Item Revision Date Version Revised Page (s) Description of Changes Revised By 1 12 - Jan - 2021 1.0 N/A New document release Kent Ouyang 1. 4 1. 5 1. 6 1. 7 1. © 2016 Winmate Inc. All rights reserved. Page 4 Panel PC Part Number: Features • 10.1” 1024 x 600 Resolution with P-Cap Multi-touch screen • Intel® Celeron® N3350 Apollo Lake • Fanless cooling system and Ultra-low power consumption • IP65 Water and Dust Proof • 2 x RS232, 2 x CANBUS, 3 x DI, 2 x LAN, 2 x USB, • WiFi 802.11 a/b/g/n/ac • WWAN 4G/LTE Drawing © 2016 Winmate Inc. All rights reserved. Page 5 Technical Specifications Model Name W10FA3S-PCH1HB Part Number System Processor Intel® Celeron® N3350 Apollo Lake System Memory 1 x SO-DIMM, 4GB DDR3L 1600 MHz Storage 1 x M.2 2242 SSD 64GB OS Operation System Ubuntu 16.04 Display Size/Type 10.1" TFT (Widescreen) Resolution 1920 x 1200 Brightness 700 cd/m (typ.) Contrast Ratio 800 : 1 (typ.) Viewing Angle -89~89(H);-89~89(V) Max Colors 262K (6bit) Touch Projective-Capacitive Touch Input/ Output COM Port 2 x RS232 (4 Wires) USB Port 2 x USB 2.0 (one is on side) Ethernet 2 x 10/100 LAN Speaker 1 x 1 Watt Speaker CANBUS 2 x CANBUS Digital Input 3 x DI Ignition 1 x Ignition In Power Output 1 x Power Output, current limit at 1.5A Device Enable 1 x Device Enable Output base on Terminal Power State Wireless Communication WIFI 802.11 a/b/g/n/ac (up to 867 Mbps data rate) Bluetooth Bluetooth 4.1 WWAN 4G/LTE Power Specifications Power Input 9~36V DC Mechanical Cooling System Fanless Design © 2016 Winmate Inc. All rights reserved. Page 6 Specification Mounting RAM Mount (38.1x30mm) ; 4x M5-0.8 x 10mm phillips screws provided Dimensions (W x H x D) 263 x 172 x 40 (mm) Environment Considerations Operating Temperature -20 deg. C to +60 deg. C Operating Humidity 30% to 90% (non-condensing) Ingress Protection IP65 Mechanical Dimensions and I/O Layout © 2016 Winmate Inc. All rights reserved. Page 7 No. Description No. Description 1 RS232+CANBUS+DIN+PWR (M12, A-Coding, 12-pin Female) 6 Sim Slot x 1 (Sealed) 2 RS232+CANBUS+DIN (M12, Custom, 10-pin Male) 7 WiFi Main Antenna SMA Connector (Female SMA Type) 3 LAN x 2, USB 2.0 x 1 (M12, A-Coding, 12-pin Male) 8 WWAN Aux Antenna SMA Connector (Female SMA Type) 4 9-36V DC (M12, B-Coding, 4-pin Male) 9 Power Button(JWQ003-01 w/ Blue LED) 5 USB 2.0 x 1 © 2016 Winmate Inc. All rights reserved. Page 8 Connector Pin Definition Connector 1 (CN7 on-board): (12-Pin Female) - RS232+CANBUS+DIN+PWR (M12, A-Coding) Front View Pin No Signal Name Pin No Signal Name 1 CANH_2 7 GND 2 CANL_2 8 DI_2 3 RXB 9 +5V_OUT 4 TXB 10 VOUT+ 5 RTSB 11 DEV_EN 6 CTSB 12 VOUT- Connector 2 (CN5 on-board): (10-Pin Male) - RS232+CANBUS+DIN (M12, Custom) Front View Pin No Signal Name Pin No Signal Name 1 CANH_1 6 CTSA 2 CANL_1 7 GND 3 RXA 8 DI_0 4 TXA 9 DI_1 5 RTSA 10 +5V_OUT Connector 3 (CN6 on-board): (12-Pin Male) - LAN x 2, USB 2.0 x 1 (M12, A-Coding) Pin No Signal Name Pin No Signal Name 1 USB_DP1 7 LAN2_MDI0- 2 VUSB_VBUS2 8 LAN2_MDI1+ 3 LAN1_MDI0- 9 USB_DM1 4 LAN1_MDI1- 10 GND 5 LAN1_MDI1+ 11 LAN1_MDI0+ 6 LAN2_MDI0+ 12 LAN2_MDI1- © 2016 Winmate Inc. All rights reserved. Page 9 Connector 4 (CN4 on-board): (4-Pin Male) - 9-24V DC IN (M12, B-Coding) Front View Pin No Signal Name 1 VIN+ 2 VIN- 3 VIN- 4 IGN_IN FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. The manufacturer ensures that the frequency stability of this U-NII device can maintain transmission within the operating frequency band under all normal operating conditions.

Agent Authorization Company: Hemisphere GNSS Inc. Address: 8515 E. Anderson Drive, Scottsdale, AZ 85255, USA Product Name: Panel PC Model Number(s): IronTwo Product Description: Panel PC We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-04-12 Name: Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

Hemisphere GNSS Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-04-12 Subject; Request for Confidentiality FCC ID: ZC8IRONTWO To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES Part List In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

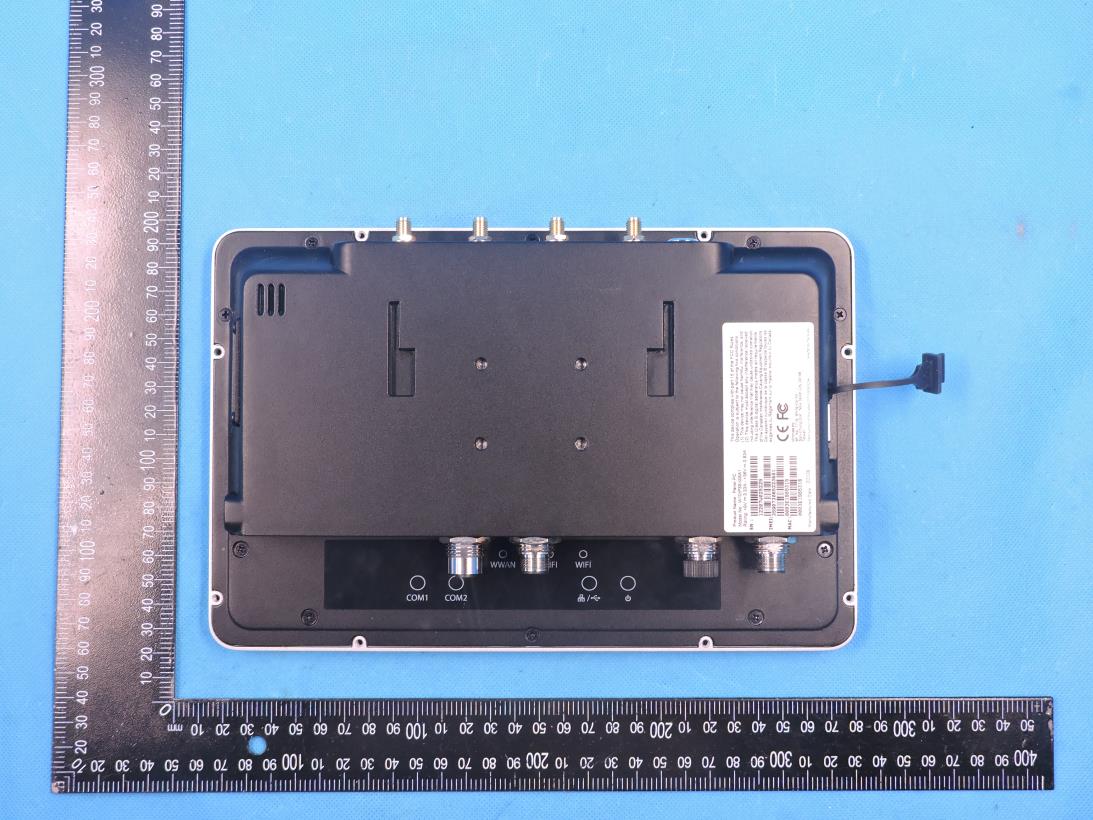

Page 1 of 6 Report No.: STS2102030 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: IronTwo Photo 1 Photo 2 Page 2 of 6 Report No.: STS2102030 Photo 3 Photo 4 Page 3 of 6 Report No.: STS2102030 Photo 5 Photo 6 Page 4 of 6 Report No.: STS2102030 Photo 7 Photo 8 Page 5 of 6 Report No.: STS2102030 Photo 9 Photo 10 Page 6 of 6 Report No.: STS2102030 Photo 11 Photo 12

Label Sticker: 4 * 10 cm Panel PC IronTwo 9-36Vdc FCC ID:ZC8IRONTWO

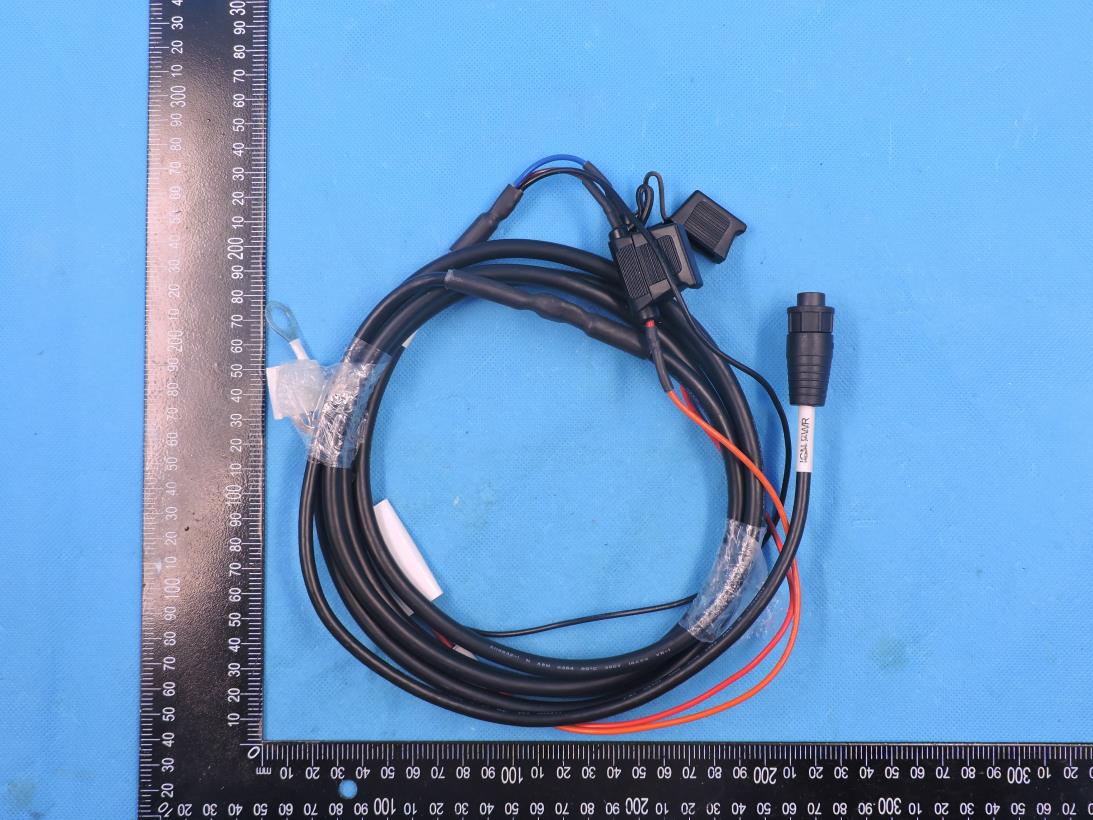

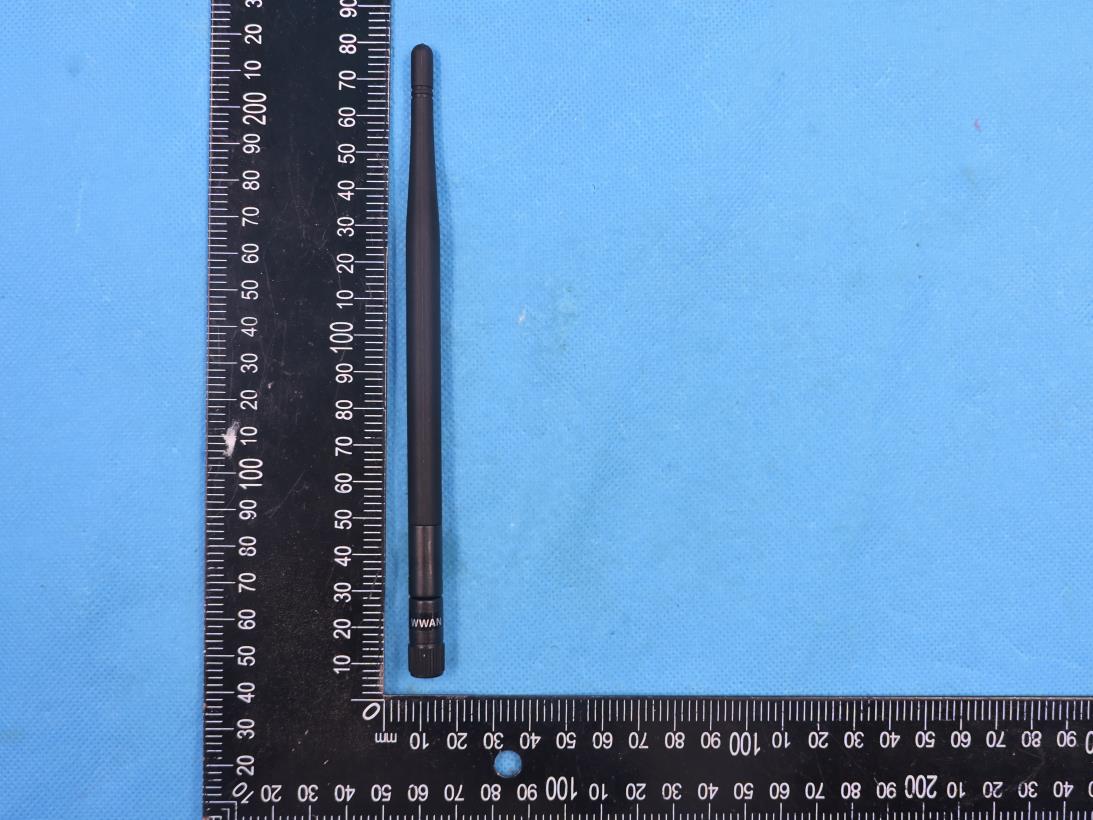

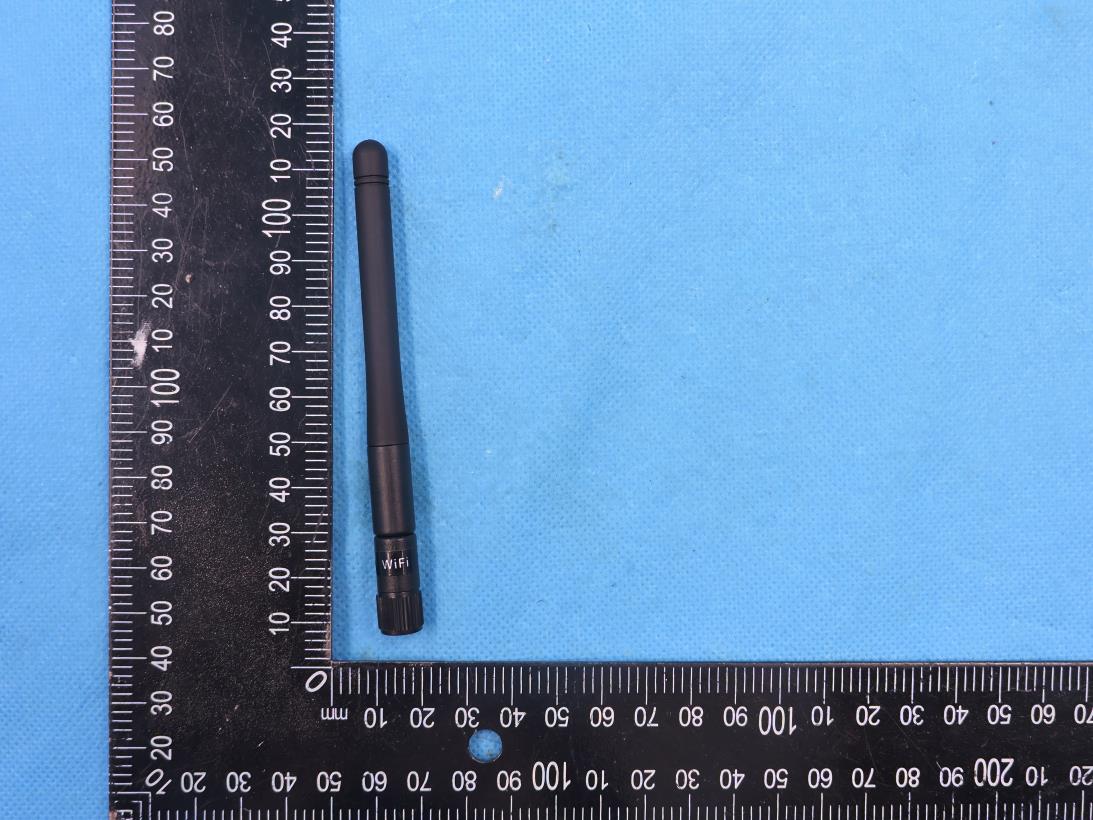

Page 1 of 14 Report No.: STS2102030 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: IronTwo Photo 1 Photo 2 Page 2 of 14 Report No.: STS2102030 Photo 3 Photo 4 Page 3 of 14 Report No.: STS2102030 Photo 5 Photo 6 Page 4 of 14 Report No.: STS2102030 Photo 7 Photo 8 Page 5 of 14 Report No.: STS2102030 Photo 9 Photo 10 Page 6 of 14 Report No.: STS2102030 Photo 11 Photo 12 Page 7 of 14 Report No.: STS2102030 Photo 13 Photo 14 Page 8 of 14 Report No.: STS2102030 Photo 15 Photo 16 Page 9 of 14 Report No.: STS2102030 Photo 17 Photo 18 Page 10 of 14 Report No.: STS2102030 Photo 19 Photo 20 Page 11 of 14 Report No.: STS2102030 Photo 21 Photo 22 Page 12 of 14 Report No.: STS2102030 Photo 23 Photo 24 Page 13 of 14 Report No.: STS2102030 Photo 25 Photo 26 Page 14 of 14 Report No.: STS2102030 Photo 27 Photo 28

RF Exposure Report FCC ID: ZC8IRONTWO RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. BT 4.0+EDR Mode 2402-2480MHz Detector AV GFSK 2±1dBm π/4-DQPSK -1±1dBm 8DPSK -1±1dBm Antenna gain: 5.47dBi (gain of antenna in linear scale=3.52) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) GFSK 3.52 2441 3 1.995262 0.001397 1 π/4-DQPSK 3.52 2441 0 1 0.0007 1 8DPSK 3.52 2441 0 1 0.0007 1 2.4G WIFI Mode 2412-2462MHz Detector AV Antenna ANT A ANT B 802.11 b 12±1dBm 12±1dBm 802.11 g 12±1dBm 12±1dBm 802.11 n20 12±1dBm 12±1dBm 802.11 40 12±1dBm 12±1dBm Antenna gain: 5.47dBi (gain of antenna in linear scale=3.52) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 802.11 b 3.52 2437 13 19.95262 0.013972 1 802.11 g 3.52 2437 13 19.95262 0.013972 1 802.11 n20 3.52 2437 13 19.95262 0.013972 1 802.11 n40 3.52 2437 13 19.95262 0.013972 1 5G WIFI: Band1 Mode WLAN(AVG) ANT A ANT B ANT A+B 802.11a 14±1dBm 14±1dBm N/A 802.11 n20-HT0 14±1dBm 14±1dBm N/A 802.11 n40-HT0 10±1dBm 10±1dBm N/A 802.11 ac20-VHT0 14±1dBm 14±1dBm N/A 802.11 ac40-VHT0 10±1dBm 10±1dBm N/A 802.11 ac80-VHT0 12±1dBm 11±1dBm N/A Antenna number: 2 Antenna A gain : 5.47dBi Antenna B gain : 5.47dBi Antenna gain: 5.47dBi (gain of antenna in linear scale=3.52) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 802.11 a 3.52 5180 15 31.62278 0.022145 1 802.11 n20 3.52 5180 15 31.62278 0.022145 1 802.11 n40 3.52 5190 11 12.58925 0.008816 1 802.11 ac20 3.52 5180 15 31.62278 0.022145 1 802.11 ac40 3.52 5190 11 12.58925 0.008816 1 802.11 ac80 3.52 5200 13 19.95262 0.013972 1 5G WIFI: Band2 Mode WLAN(AVG) ANT A ANT B ANT A+B 802.11a 8±1dBm 8±1dBm N/A 802.11 n20-HT0 8±1dBm 8±1dBm N/A 802.11 n40-HT0 9±1.5dBm 9±1dBm N/A 802.11 ac20-VHT0 7.5±1dBm 8±1dBm N/A 802.11 ac40-VHT0 9±1dBm 9±1dBm N/A 802.11 ac80-VHT0 15±1dBm 14±1dBm N/A Antenna number: 2 Antenna A gain : 5.47dBi Antenna B gain : 5.47dBi Antenna gain: 5.47dBi (gain of antenna in linear scale=3.52) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 802.11 a 3.52 5260 9 7.943282 0.005563 1 802.11 n20 3.52 5260 9 7.943282 0.005563 1 802.11 n40 3.52 5270 10.5 11.22018 0.007857 1 802.11 ac20 3.52 5260 9 7.943282 0.005563 1 802.11 ac40 3.52 5270 10 10 0.007003 1 802.11 ac80 3.52 5290 16 39.81072 0.027879 1 5G WIFI: Band3 Mode WLAN(AVG) ANT A ANT B ANT A+B 802.11a 8±1dBm 7±1dBm N/A 802.11 n20-HT0 8±1dBm 7±1dBm N/A 802.11 n40-HT0 8.5±1dBm 8±1dBm N/A 802.11 ac20-VHT0 8±1dBm 7±1dBm N/A 802.11 ac40-VHT0 8±1dBm 7±1dBm N/A 802.11 ac80-VHT0 13±1dBm 12±1dBm N/A Antenna number: 2 Antenna A gain : 5.47dBi Antenna B gain : 5.47dBi Antenna gain: 5.47dBi (gain of antenna in linear scale=3.52) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 802.11 a 3.52 5500 9 7.943282 0.005563 1 802.11 n20 3.52 5500 9 7.943282 0.005563 1 802.11 n40 3.52 5510 9.5 8.912509 0.006241 1 802.11 ac20 3.52 5500 9 7.943282 0.005563 1 802.11 ac40 3.52 5510 9 7.943282 0.005563 1 802.11 ac80 3.52 5530 14 25.11886 0.01759 1 5G WIFI: Band4 Mode WLAN(AVG) ANT A ANT B ANT A+B 802.11a 15±1dBm 14±1dBm N/A 802.11 n20-HT0 15±1dBm 14±1dBm N/A 802.11 n40-HT0 15±1dBm 13±1dBm N/A 802.11 ac20-VHT0 15±1dBm 13.5±1.5dBm N/A 802.11 ac40-VHT0 15±1dBm 14±1dBm N/A 802.11 ac80-VHT0 16±1dBm 16±1dBm N/A Antenna number: 2 Antenna A gain : 5.47dBi Antenna B gain : 5.47dBi Antenna gain: 5.47dBi (gain of antenna in linear scale=3.52) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.: STS2102030W07 Issued for Hemisphere GNSS Inc. 8515 E. Anderson Drive, Scottsdale, AZ 85255, USA Product Name: Panel PC Brand Name: Model Name: IronTwo Series Model: N/A FCC ID: ZC8IRONTWO Test Standard: FCC Part 22H and 24E, 27 S T L A B S Page 2 of 61 Report No.: STS2102030W07 TEST RESULT CERTIFICATION Applicant’s Name ................... : Hemisphere GNSS Inc. Address .................................. : 8515 E. Anderson Drive, Scottsdale, AZ 85255, USA Manufacturer's Name ............. : Winmate Inc. Address .................................. : 9F, No.111-6, Shing-De Rd.,San-Chung District,New Taipei City 24158, Taiwan. Product Description Product Name ........................ : Panel PC Brand Name ......................... : Model Name ........................... : IronTwo Series Model .......................... : N/A Test Standards ....................... : FCC Part 22H and 24E, 27 Test Procedure ....................... : KDB 971168 D01 v03r01,ANSI C63.26( 2015) This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document.. Date of Test ................................ : Date of receipt of test item .......... : 24 Feb. 2021 Date (s) of performance of tests . : 24 Feb. 2021 ~ 17 Mar. 2021 Date of Issue .............................. : 17 Mar. 2021 Test Result .................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 61 Report No.: STS2102030W07 Table of Contents Page 1 INTRODUCTION 6 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 PRODUCT INFORMATION 7 4 MEASUREMENT INSTRUMENTS 9 5 TEST ITEMS 10 5.1 CONDUCTED OUTPUT POWER 10 5.2 PEAK TO AVERAGE RATIO 11 5.3 TRANSMITTER RADIATED POWER (EIRP/ERP) 12 5.4 OCCUPIED BANDWIDTH 13 5.5 FREQUENCY STABILITY 14 5.6 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 15 5.7 BAND EDGE 16 5.8 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT 17 APPENDIX A.TESTRESULT 19 A1. CONDUCTED OUTPUT POWER 19 A2. PEAK-TO-AVERAGE RADIO 22 A3. TRANSMITTER RADIATED POWER (EIRP/ERP) 29 A4. OCCUPIED BANDWIDTH (99% OCCUPIED BANDWIDTH/26DB BANDWIDTH)31 A5. FREQUENCY STABILITY 38 A6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS 41 A7. BAND EDGE 47 A8. FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT 52 APPENDIX-PHOTOS OF TEST SETUP 61 Page 4 of 61 Report No.: STS2102030W07 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 17 Mar. 2021 STS2102030W07 ALL Initial Issue Page 5 of 61 Report No.: STS2102030W07 SUMMARY OF TEST RESULTS Test procedures according to the technical standards: The radiated emission testing was performed according to the procedures of KDB 971168 D01 v03r01 and ANSI C63.26( 2015) FCC Rules Test Description Test Limit Test Result Reference 2.1046 Conducted Output Power Reporting Only PASS 22.913d 24.232d Peak-to-Average Ratio < 13 dB PASS 2.1046 22.913 24.232 27.50 Effective Radiated Power/Equivalent Isotropic Radiated Power < 7 Watts max. ERP(Part 22) < 2 Watts max. EIRP(Part 24) <1 Watts max. EIRP(Part 27) PASS 2.1049 22.917 24.238 27.53 Occupied Bandwidth Reporting Only PASS 2.1055 22.355 24.235 27.54 Frequency Stability < 2.5 ppm (Part 22) Emission must remain in band (Part 24) Emission must remain in band (Part 27) PASS 2.1051 22.917 24.238 27.53 Spurious Emission at Antenna Terminals < 43+10log10(P[Watts]) PASS 2.1053 22.917 24.238 27.53 Field Strength of Spurious Radiation < 43+10log10(P[Watts]) PASS 2.1051 22.917 24.238 27.53 Band Edge < 43+10log10(P[Watts]) PASS Page 6 of 61 Report No.: STS2102030W07 1 INTRODUCTION 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The measurement uncertainties shown below were calculated in accordance with the requirements ofANSI C63.4-2014. All measurement uncertainty values are shown with a coverage factor of k = 2 toindicate a 95% level of confidence. The measurement data shown herein meets or exceeds the UCISPRmeasurement uncertainty values specified in CISPR 16-4-2 and, thus, can be compared directly tospecified limits to determine compliance. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.84dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB Page 7 of 61 Report No.: STS2102030W07 2 PRODUCT INFORMATION Product Name Panel PC Trade Name Model Name IronTwo Series Model N/A Model Difference N/A Tx Frequency: WCDMA: Band V: 824 MHz ~ 849 MHz Band II: 1850 MHz ~ 1910 MHz Band IV: 1710 MHz ~ 1755 MHz Rx Frequency: WCDMA: Band V: 869 MHz ~ 894 MHz Band II: 1930 MHz ~ 1990 MHz Band IV: 2110 MHz ~ 2155 MHz Max RF Output Power: WCDMA Band V:23.04dBm, WCDMA Band II:23.77dBm WCDMA Band IV:23.94dBm Type of Emission: WCDMA850: 4M14F9W WCDMA1900…

Text truncated - open the document above for the full version.

Page 35 of 61 Report No.: STS2102030W07 HSUPA_Band 4_Low HSUPA_Band 4_Middle HSUPA_Band 4_High Page 36 of 61 Report No.: STS2102030W07 WCDMA_Band 5_Low WCDMA_Band 5_Middle WCDMA_Band 5_High HSDPA_Band 5_Low HSDPA_Band 5_Middle HSDPA_Band 5_High Page 37 of 61 Report No.: STS2102030W07 HSUPA_Band 5_Low HSUPA_Band 5_Middle HSUPA_Band 5_High Page 38 of 61 Report No.: STS2102030W07 A5. FREQUENCY STABILITY UMTS Band 2 /1880MHz Temperature (°C) Voltage Freq. Dev. Freq. Dev. Limit Result (Volt) (Hz) (ppm) 50 Normal Voltage 21.45 0.011 Within Authorized Band PASS 40 36.24 0.019 30 32.76 0.017 20 17.61 0.009 10 31.53 0.017 0 32.81 0.017 -10 14.27 0.008 -20 28.29 0.015 -30 34.01 0.018 20 Maximum Voltage 22.73 0.012 20 BEP 25.16 0.013 HSDPA Band 2 /1880MHz Temperature (°C) Voltage Freq. Dev. Freq. Dev. Limit Result (Volt) (Hz) (ppm) 50 Normal Voltage 12.61 0.007 Within Authorized Band PASS 40 30.85 0.016 30 18.03 0.010 20 14.49 0.008 10 19.92 0.011 0 11.91 0.006 -10 21.32 0.011 -20 36.02 0.019 -30 26.23 0.014 20 Maximum Voltage 30.94 0.016 20 BEP 28.43 0.015 HSUPA Band 2 /1880MHz Temperature (°C) Voltage Freq. Dev. Freq. Dev. Limit Result (Volt) (Hz) (ppm) 50 Normal Voltage 14.82 0.008 Within Authorized Band PASS 40 34.05 0.018 30 11.68 0.006 20 33.36 0.018 10 17.14 0.009 0 25.06 0.013 -10 20.58 0.011 -20 27.64 0.015 -30 32.99 0.018 20 Maximum Voltage 15.05 0.008 20 BEP 27.37 0.015 Page 39 of 61 Report No.: STS2102030W07 UMTS Band 5 / 836.6MHz Temperature (°C) Voltage Freq. Dev. Freq. Dev. Limit Result (Volt) (Hz) (ppm) 50 Normal Voltage 20.95 0.025 2.5ppm PASS 40 23.60 0.028 30 20.56 0.025 20 16.31 0.019 10 15.27 0.018 0 15.40 0.018 -10 20.71 0.025 -20 19.27 0.023 -30 31.27 0.037 20 Maximum Voltage 25.13 0.030 20 BEP 15.31 0.018 HSDPA Band 5 / 836.6MHz Temperature (°C) Voltage Freq. Dev. Freq. Dev. Limit Result (Volt) (ppm) 50 Normal Voltage 30.70 0.037 2.5ppm PASS 40 16.70 0.020 30 18.45 0.022 20 26.99 0.032 10 36.23 0.043 0 12.39 0.015 -10 30.15 0.036 -20 19.44 0.023 -30 36.04 0.043 20 Maximum Voltage 31.55 0.038 20 BEP 24.15 0.029 HSUPA Band 5 / 836.6MHz Temperature (°C) Voltage Freq. Dev. Freq. Dev. Limit Result (Volt) (Hz) (ppm) 50 Normal Voltage 23.62 0.028 2.5ppm PASS 40 13.31 0.016 30 22.05 0.026 20 14.22 0.017 10 31.04 0.037 0 26.62 0.032 -10 16.87 0.020 -20 16.31 0.019 -30 20.20 0.024 20 Maximum Voltage 31.26 0.037 20 BEP 16.75 0.020 Page 40 of 61 Report No.: STS2102030W07 UMTS Band 4 /1740MHz Temperature (°C) Voltage Freq. Dev. Freq. Dev. Limit Result (Volt) (Hz) (ppm) 50 Normal Voltage 11.60 0.006 Within Authorized Band PASS 40 16.00 0.009 30 27.43 0.015 20 21.65 0.012 10 25.31 0.013 0 21.02 0.011 -10 20.11 0.011 -20 23.88 0.013 -30 31.18 0.017 20 Maximum Voltage 21.14 0.011 20 BEP 16.76 0.009 HSDPA Band 4 /1740MHz Temperature (°C) Voltage Freq. Dev. Freq. Dev. Limit Result (Volt) (Hz) (ppm) 50 Normal Voltage 24.82 0.013 Within Authorized Band PASS 40 18.29 0.010 30 18.33 0.010 20 26.14 0.014 10 34.84 0.019 0 33.42 0.018 -10 36.04 0.019 -20 19.24 0.010 -30 20.50 0.011 20 Maximum Voltage 13.89 0.007 20 BEP 24.82 0.013 HSUPA Band 4 /1740MHz Temperature (°C) Voltage Freq. Dev. Freq. Dev. Limit Result (Volt) (Hz) (ppm) 50 Normal Voltage 22.90 0.012 Within Authorized Band PASS 40 33.03 0.018 30 27.97 0.015 20 15.50 0.008 10 13.43 0.007 0 21.46 0.011 -10 17.82 0.009 -20 20.79 0.011 -30 23.80 0.013 20 Maximum Voltage 31.47 0.017 20 BEP 30.88 0.016 1. The frequency fundamental emissions stay within the authorized frequency block based on the frequency deviation measured is small. Page 41 of 61 Report No.: STS2102030W07 A6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS WCDMA_Band 2_Low WCDMA_Band 2_Middle WCDMA_Band 2_High HSDPA_Band 2_Low HSDPA_Band 2_Middle HSDPA_Band 2_High Page 42 of 61 Report No.: STS2102030W07 HSUPA_Band 2_Low HSUPA_Band 2_Middle HSUPA_Band 2_High Page 43 of 61 Report No.: STS2102030W07 WCDMA_Band 4_Low WCDMA_Band 4_Middle WCDMA_Band 4_High HSDPA_Band 4_Low HSDPA_Band 4_Middle HSDPA_Band 4_High Page 44 of 61 Report No.: STS2102030W07 HSUPA_Band 4_Low HSUPA_Band 4_Middle HSUPA_Band 4_High Page 45 of 61 Report No.: STS2102030W07 WCDMA_Band 5_Low WCDMA_Band 5_Middle WCDMA_Band 5_High HSDPA_Band 5_Low HSDPA_Band 5_Middle HSDPA_Band 5_High Page 46 of 61 Report No.: STS2102030W07 HSUPA_Band 5_Low HSUPA_Band 5_Middle HSUPA_Band 5_High Page 47 of 61 Report No.: STS2102030W07 A7. BAND EDGE WCDMA_Band 2_Low WCDMA_Band 2_Low WCDMA_Band 2_High WCDMA_Band 2_High HSDPA_Band 2_Low HSDPA_Band 2_Low Page 48 of 61 Report No.: STS2102030W07 HSDPA_Band 2_High HSDPA_Band 2_High HSUPA_Band 2_Low HSUPA_Band 2_Low HSUPA_Band 2_High HSUPA_Band 2_High Page 49 of 61 Report No.: STS2102030W07 WCDMA_Band 4_Low WCDMA_Band 4_Low WCDMA_Band 4_High WCDMA_Band 4_High HSDPA_Band 4_Low HSDPA_Band 4_Low Page 50 of 61 Report No.: STS2102030W07 HSDPA_Band 4_High HSDPA_Band 4_High HSUPA_Band 4_Low HSUPA_Band 4_Low HSUPA_Band 4_High HSUPA_Band 4_High Page 51 of 61 Report No.: STS2102030W07 WCDMA_Band 5_Low WCDMA_Band 5_High HSDPA_Band 5_Low HSDPA_Band 5_High HSUPA_Band 5_Low HSUPA_Band 5_High Page 52 of 61 Report No.: STS2102030W07 A8. FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT Note: (1) Spurious emissions which are attenuated by more than 20dB below the permissible value for frequeny below 1000MHz. (2) Above 3.5GHz amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value (3)Test is divided into three directions, X/Y/Z. X pattern for the worst. WCDMA Band 5: (30-9000)MHz The wost testresults channel 4132/826.4MHz Frequency(MHz) S G.Lev (dBm) Ant(dBi) Loss PMea Limit Margin Polarity (dBm) （dBm） (dBm) 1652.21 -41.47 9.40 4.75 -36.82 -13.00 -23.82 H 2479.24 -40.41 10.60 8.39 -38.20 -13.00 -25.20 H 3305.69 -30.92 12.00 11.79 -30.71 -13.00 -17.71 H 1652.26 -43.30 9.40 4.75 -38.65 -13.00 -25.65 V 2479.54 -45.28 10.60 8.39 -43.07 -13.00 -30.07 V 3305.50 -42.66 12.00 11.79 -42.45 -13.00 -29.45 V The Worst Test Results Channel 4183/836.6MHz Frequency(MHz) S G.Lev (dBm) Ant(dBi) Lo…
