ZCANP550XDACNotebook Computer

www.samsung.com User Manual NT55 0XDA/N T55 0XDZ/N T55 1XDA /NP55 0XDA/550XDA/550XDZ 2 Getting started 3 About this manual 7 Layout 12 Turning the computer on and off 14 Unlocking the screen 14 Windows Basics 16 Keyboard 18 Touchpad 21 M emory card slot 23 External display 25 W ired LAN 28 W ireless LAN 30 Bluetooth 32 U sing the security slot Applications 33 Using applications 34 S amsung Settings 35 Samsung Security 37 Online Support (S Service) 38 S amsung PC Help (Self- help application) 39 S amsung PC Cleaner 40 Quick Search Settings & Upgrade 41 LCD brightness 43 Volume 44 BIOS (Setup utility) 50 Battery Troubleshooting 53 Samsung Recovery 58 W indows recovery function 58 Q&A Appendix 61 Product specifications 62 Er gonomic tips 66 S afety precautions 76 I mportant safety information 79 Replacement parts and accessories 82 R egulatory compliance statements 90 WEEE symbol inf ormation 92 Samsung package Take- Back program (USA only) Table of contents 3 Getting started About this manual • This user manual is specially designed to detail the computer’s functions and features. • The user manual supplied with the computer may vary depending on the model. • Please read this manual before using the computer to ensure safe and proper use. • Optional accessories, some devices, and software referred to in this manual may not be provided or may not be subject to upgrades. Note that the computer environment referred in the user manual may not be the same as your environment. • Descriptions are based on the computer’s default settings and the Windows 10 operating system. Available features and additional services may vary depending on the computer or operating system. • This user manual describes procedures for using the touchpad, mouse and touch screen. Instructions for using the touch screen are for models with the touch screen feature. • Images and screenshots are those of the representative model of the series and may differ in appearance from the actual product. • Content may differ from the final product and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. Getting started 4 Copyright Copyright © 2020 Samsung Electronics Co., Ltd. This manual is protected under international copyright laws. No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system. Computer specifications or the contents of this manual may be changed without prior notice due to an upgrade of the computer’s functions. Instructional icons and expressions Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to the computer or other equipment Note: notes, usage tips, or additional information The path you should follow to carry out an instruction. For example, “select Settings → Devices” indicates that you should select Settings and then Devices. SelectClick the mouse or tap the touchpad or touch screen. Getting started 5 • HDMI, the HDMI logo, and the term High Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • All other trademarks and copyrights are the property of their respective owners. As an ENERGY STAR ® Partner, Samsung has determined that this product meets the ENERGY STAR ® guidelines for energy efficiency. • The ENERGY STAR Program has reduced greenhouse gas emissions and saved energy through voluntary labeling. • Power management setting of this product has been enabled by default, and has various timing settings from 1 minute to 5 hours. • The product can wake with a button press on the chassis from sleep mode. Trademarks • Samsung and the Samsung logo are trademarks or registered trademarks of Samsung Electronics Co., Ltd. • Intel and Core are trademarks or registered trademarks of the Intel Corporation. • Microsoft, MS-DOS, and Windows are trademarks or registered trademarks of the Microsoft Corporation. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Wi-Fi ® , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. Getting started 6 Product capacity representation Storage capacity representation The capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1 KB = 1,000 Bytes. However, the operating system (Windows) calculates the storage device capacity assuming that 1 KB = 1,024 Bytes. Therefore, the available capacity of the HDD in Windows is smaller than the actual capacity due to the difference in capacity calculation. For example, for an 80 GB HDD, Windows calculates the capacity as 74.5 GB, (80x1,000x1,000x1,000) Bytes/(1,024x1,024x1,024) Bytes = 74.505 GB. In addition, the capacity representation in Windows may be even smaller because some programs, such as Samsung Recovery, may reside in a hidden area of the HDD. Memory capacity representation The available memory capacity in Windows is less than the actual capacity of memory. This is because some memory is required for regular system operations. For example, for 1 GB (= 1,024 MB) memory installed, Windows may report the capacity as 1,022 MB or less. Data precautions Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and back up your data to prevent any such data loss. Operating system and software support If you change the product’s factory OS (Operating System) to another OS or if you install software which is not supported by the product’s original factory OS, you will not receive any technical support, product exchange or refund, and a fee will be charged when requesting a service. Please use your computer with the original factory OS. If you install an OS other than the factory OS, data may be deleted or the computer may not start. * …

Text truncated - open the document above for the full version.

Date:3November2020 To:FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 ToWhomItMayConcern: TheSamsungElectronicsCo.,Ltd.,theundersigned,herebyauthorizesMr.WuXuewenfrom ShenzhenBALUNTechnologyCo.,Ltd.,toactonthebehalfoftheSamsungElectronicsCo.,Ltd. solelyinmattersrelatingtotheapplicationforanFCCequipmentauthorizationforFCCID: ZCANP550XDACincludingthesigningofdocumentsinconnectionwiththisApplication. NecessaryactscarriedoutbyShenzhenBALUNTechnologyCo.,Ltd.inconnectionwiththe ApplicationshallhavethesameeffectasactsoftheSamsungElectronicsCo.,Ltd.. TheSamsungElectronicsCo.,Ltd.alsoherebycertifythatnopartytothisapplicationissubject toadenialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuse Actof1988,21U.S.C.Section862. YoursSincerely, ___________ JenniChun

Date:3November2020 To:FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 Re:SamsungElectronicsCo.,Ltd. FCCID:ZCANP550XDAC FCCCertificationConfidentialityRequest Gentlemen: Thisletteristocomplywith47CFR0.457and0.459pertainingtoconfidentiality material.SamsungElectronicsCo.,Ltd.requeststhatthefollowingdocuments regardingthissubmissionforFCCID:ZCANP550XDACbekeptconfidential: ExhibitTypeFileName BlockDiagramBlockDiagram.pdf SchematicsSchematics.pdf OperationalDescriptionOperationalDescription.pdf Tune-Up-ProcedureTuneupprocedure.pdf Andbelowexhibitkeptshort-termconfidential(180days): ExternalphotosExternalphotos.pdf Testsetupphotostestphoto.pdf InternalphotosInternalphotos.pdf UsermanualUsermanual.pdf Thosedocumentscontaindetailedsystemandequipmentdescriptionandrelated informationabouttheproductwhichSamsungElectronicsCo.,Ltd.considersto beconfidentialproprietary,acustomdesignand,otherwise,notreleasabletothe generalpublic.Sincethisdesignisabasisformwhichfuturetechnological productswillevolve,SamsungElectronicsCo.,Ltd.considersthisinformation wouldbeofbenefittoitscompetitors,andthatthedisclosureoftheinformationin thesedocumentswouldgivecompetitorsanunfairadvantageinthemarket. YoursSincerely, JenniChun

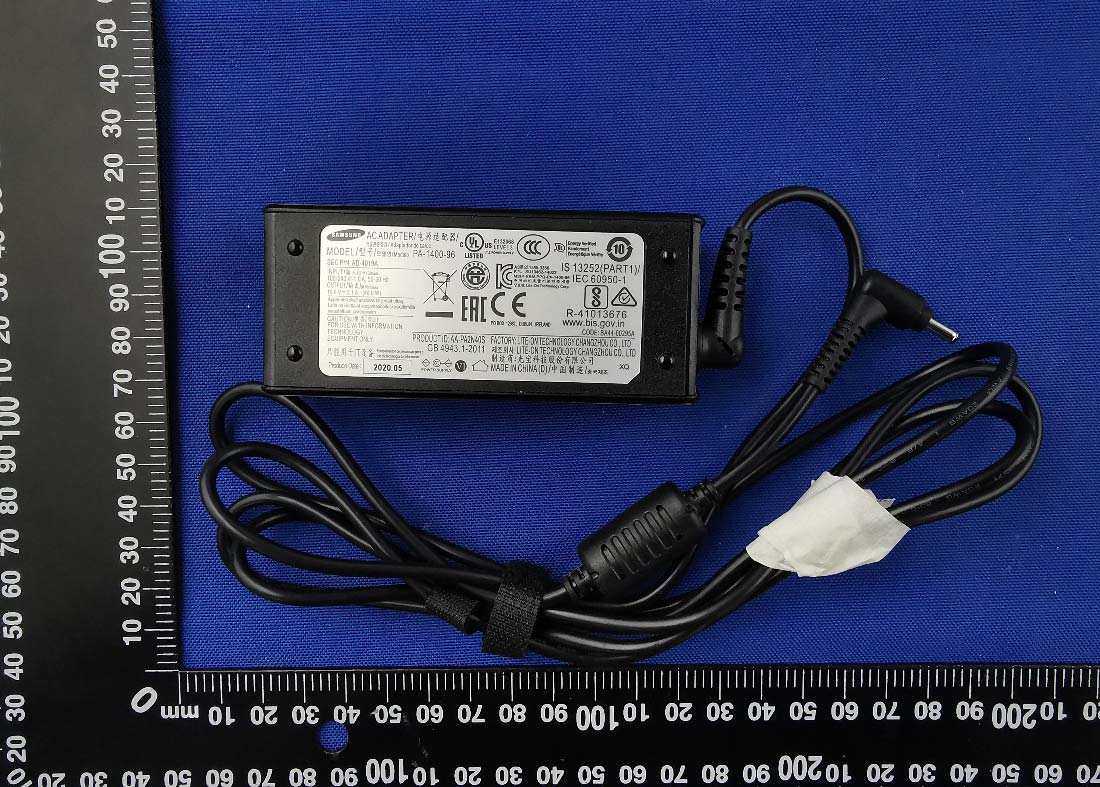

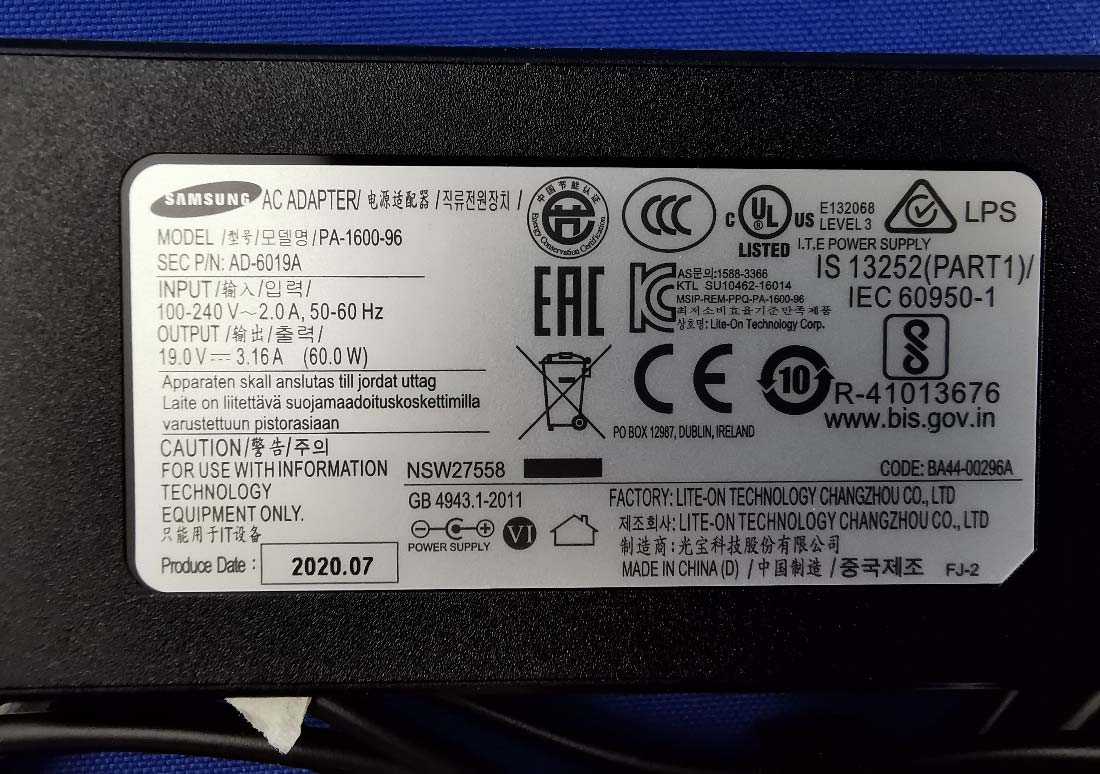

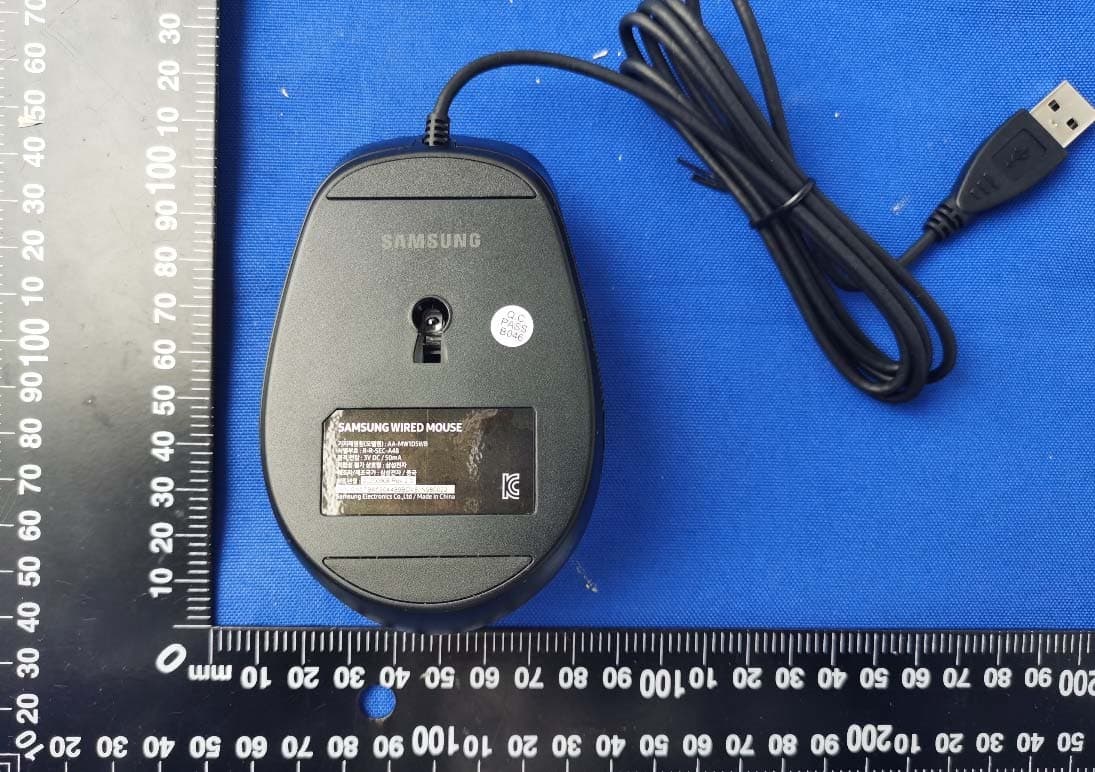

Annex No.: BL-SZ2090237-AW 1 / 7 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-SZ2090237-AW 2 / 7 LEFT SIDE VIEW OF EUT CLOSE-UP Annex No.: BL-SZ2090237-AW 3 / 7 RIGHT SIDE OF EUT CLOSE-UP Annex No.: BL-SZ2090237-AW 4 / 7 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-SZ2090237-AW 5 / 7 OPEN Accessory-Power Adapter(Model: PA-1600-96) Annex No.: BL-SZ2090237-AW 6 / 7 CLOSE-UP Accessory-Power Adapter(Model: PA-1400-96) Annex No.: BL-SZ2090237-AW 7 / 7 CLOSE-UP Accessory- Mouse

ARD3-LASER-60W-2*2 4mm Model:NP550XDA Input:19V 3.16A(60W) FCC ID:ZCANP550XDAC Made in China NP550XDA-XXXXX S/N:XXXXXXXXXXXXX XX.XXXX 44.088mm ARD3-LASER-40W-2*2 4mm Model:NP550XDA Input:19V 2.1A(40W) FCC ID:ZCANP550XDAC Made in China NP550XDA-XXXXX S/N:XXXXXXXXXXXXX XX.XXXX 44.088mm

Annex No.: BL-SZ2090237-AI-1 1 / 7 EUT INTERNAL PHOTOS EUT UNCOVER VIEW (With GPU Version) EUT UNCOVER VIEW (With GPU Version) \ Annex No.: BL-SZ2090237-AI-1 2 / 7 EUT UNCOVER VIEW (With GPU Version) EUT UNCOVER VIEW (With GPU Version) PIFA Antenna Annex No.: BL-SZ2090237-AI-1 3 / 7 EUT UNCOVER VIEW (Without GPU Version) EUT UNCOVER VIEW (Without GPU Version) Annex No.: BL-SZ2090237-AI-1 4 / 7 EUT UNCOVER VIEW (Without GPU Version) EUT UNCOVER VIEW (Without GPU Version) Annex No.: BL-SZ2090237-AI-1 5 / 7 MAIN BOARD TOP VIEW (WITH SHIELDING) MAIN BOARD TOP VIEW (WITHOUT SHIELDING) RF Chip Annex No.: BL-SZ2090237-AI-1 6 / 7 MAIN BOARD TOP VIEW (WITHOUT SHIELDING) MAIN BOARD REAR VIEW Annex No.: BL-SZ2090237-AI-1 7 / 7 Battery Photo

Report No.: BL-SZ2090237-701 2 / 58 Revision History Version Issue Date Revisions Content Rev. 01 Oct. 29, 2020 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ..................................................................................................................... 4 Identification of the Testing Laboratory ...................................................................................... 4 Identification of the Responsible Testing Location ..................................................................... 4 Test Environment Condition ....................................................................................................... 4 Announce ................................................................................................................................... 5 2 PRODUCT INFORMATION ..................................................................................................................... 6 Applicant Information .................................................................................................................. 6 Manufacturer Information ........................................................................................................... 6 Factory Information .................................................................................................................... 6 General Description for Equipment under Test (EUT) ............................................................... 6 Technical Information ................................................................................................................. 7 3 SUMMARY OF TEST RESULT ............................................................................................................... 8 Test Standards ........................................................................................................................... 8 Device Category and SAR Limit ................................................................................................. 9 Test Result Summary ............................................................................................................... 10 Test Uncertainty ....................................................................................................................... 11 4 MEASUREMENT SYSTEM ................................................................................................................... 12 Specific Absorption Rate (SAR) Definition ............................................................................... 12 DASY SAR System .................................................................................................................. 13 5 SYSTEM VERIFICATION ...................................................................................................................... 21 Purpose of System Check ........................................................................................................ 21 System Check Setup ................................................................................................................ 21 6 SYSTEM VALIDATION .......................................................................................................................... 22 7 TEST POSITION CONFIGURATIONS .................................................................................................. 23 Laptop Exposure Condition ...................................................................................................... 23 8 MEASUREMENT PROCEDURE ........................................................................................................... 24 Report No.: BL-SZ2090237-701 3 / 58 Measurement Process Diagram ............................................................................................... 24 SAR Scan General Requirement ............................................................................................. 25 Measurement Procedure .......................................................................................................... 26 Area & Zoom Scan Procedure ................................................................................................. 26 9 CONDUCTED RF OUPUT POWER ...................................................................................................... 27 WIFI .......................................................................................................................................... 27 Bluetooth (Aux. Antenna) ......................................................................................................... 32 Bluetooth (Main Antenna) ......................................................................................................... 32 10 TEST EXCLUSION CONSIDERATION ................................................................................................. 33 Laptop Mode antenna location sketch ...................................................................................... 33 SAR Test Consideration Table ................................................................................................. 34 11 TEST RESULT ...................................................................................................................................... 37 Bluetooth .................................................................................................................................. 37 WIFI 2.4GHz ............................................................................................................................. 37 WIFI 5GHz ................................................................................................................................ 38 12 SAR Measurement Variability ................................................................................................................ 39 13 SIMULTANEOUS TRANSMISSION ............................................................................................…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2090237-701&702 CALIBRATION REPORT F.1 E-Field Probe Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 F.2 Data Acquisition Electronics Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 F.3 2450 MHz Dipole Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 F.4 5GHz Dipole Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 Report No.: BL-SZ2090237-701&702 --END OF REPORT--

Report No.: BL-SZ2090237-604 2 / 394 Revision History Version Issue Date Revisions Content Rev. 01 Oct. 29, 2020 Initial Issue TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) .......................................................................... 4 1.1 Identification of the Testing Laboratory .............................................................................................. 4 1.2 Identification of the Responsible Testing Location ............................................................................. 4 1.3 Laboratory Condition .......................................................................................................................... 4 1.4 Announce ........................................................................................................................................... 5 2 PRODUCT INFORMATION ...................................................................................................................... 6 2.1 Applicant ............................................................................................................................................ 6 2.2 Manufacturer ...................................................................................................................................... 6 2.3 Factory ............................................................................................................................................... 6 2.4 General Description for Equipment under Test (EUT) ....................................................................... 6 2.5 Technical Information ......................................................................................................................... 7 2.6 Additional Instructions ........................................................................................................................ 9 2.7 Channel List ..................................................................................................................................... 12 3 SUMMARY OF TEST RESULTS ............................................................................................................ 15 3.1 Test Standards ................................................................................................................................. 15 3.2 Verdict .............................................................................................................................................. 15 4 GENERAL TEST CONFIGURATIONS ................................................................................................... 16 4.1 Test Environments ........................................................................................................................... 16 4.2 Test Equipment List ......................................................................................................................... 16 4.3 Measurement Uncertainty ................................................................................................................ 17 4.4 Description of Test Setup ................................................................................................................. 18 5 TEST ITEMS ........................................................................................................................................... 21 5.1 RF Output Power ............................................................................................................................. 21 5.2 Emission Bandwidth and 6 dB Bandwidth ........................................................................................ 22 5.3 Power Spectral density (PSD) .......................................................................................................... 23 5.4 Conducted Emission ........................................................................................................................ 24 5.5 Radiated Spurious Emissions and Band Edge (Restricted-band) .................................................... 25 Report No.: BL-SZ2090237-604 3 / 394 ANNEX A TEST RESULT .......................................................................................................................... 30 A.1 RF Output Power ............................................................................................................................. 30 A.2 Emission Bandwidth & 99% Bandwidth ........................................................................................... 36 A.3 6 dB Bandwidth ................................................................................................................................ 42 A.4 Power Spectral Density .................................................................................................................... 43 A.5 Conducted Emissions ...................................................................................................................... 49 A.6 Radiated Spurious Emissions and Band Edge (Restricted-band) .................................................... 53 ANNEX B TEST SETUP PHOTOS .......................................................................................................... 394 ANNEX C EUT EXTERNAL PHOTOS ..................................................................................................... 394 ANNEX D EUT INTERNAL PHOTOS ...................................................................................................... 394 Report No.: BL-SZ2090237-604 4 / 394 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) 1.1 Identification of the Testing Laboratory Company Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1st FL, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Identification of the Responsible Testing Location Test Location Shenzhen BALUN Technology Co., Ltd. Address Block B, 1st FL, Baisha Science and Technology…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2090237-604 362 / 394 U-NII-2A 11a CH52 Peak U-NII-2A 11a CH64 Peak U-NII-2A 11a CH64 AV U-NII-2A 11n20 CH52 Peak U-NII-2A 11n20 CH64 Peak Report No.: BL-SZ2090237-604 363 / 394 U-NII-2A 11n20 CH64 AV U-NII-2A 11n20 CH64 AV U-NII-2A 11n40 CH54 Peak U-NII-2A 11n40 CH62 Peak U-NII-2A 11n40 CH62 AV U-NII-2A 11n40 CH62 AV Report No.: BL-SZ2090237-604 364 / 394 U-NII-2A 11ac20 CH52 Peak U-NII-2A 11ac20 CH64 Peak U-NII-2A 11ac20 CH52 AV U-NII-2A 11ac20 CH64 AV U-NII-2A 11ac20 CH64 AV Report No.: BL-SZ2090237-604 365 / 394 U-NII-2A 11ac40 CH54 Peak U-NII-2A 11ac40 CH62 Peak U-NII-2A 11ac40 CH62 AV U-NII-2A 11ac40 CH62 AV U-NII-2A 11ac80 CH58 Peak U-NII-2A 11ac80 CH58 Peak Report No.: BL-SZ2090237-604 366 / 394 U-NII-2A 11ac80 CH58 AV U-NII-2A 11ac80 CH58 AV U-NII-2A 11ac80 CH58 AV U-NII-2C 11a CH100 Peak U-NII-2C 11a CH140 Peak Report No.: BL-SZ2090237-604 367 / 394 U-NII-2C 11a CH144 Peak U-NII-2C 11n20 CH100 Peak U-NII-2C 11n20 CH140 Peak U-NII-2C 11n20 CH144 Peak Report No.: BL-SZ2090237-604 368 / 394 U-NII-2C 11n40 CH102 Peak U-NII-2C 11n40 CH134 Peak U-NII-2C 11n40 CH102 AV U-NII-2C 11n40 CH102 AV U-NII-2C 11n40 CH142 Peak Report No.: BL-SZ2090237-604 369 / 394 U-NII-2C 11ac20 CH100 Peak U-NII-2C 11ac20 CH140 Peak U-NII-2C 11ac20 CH144 Peak U-NII-2C 11ac40 CH102 Peak U-NII-2C 11ac40 CH134 Peak Report No.: BL-SZ2090237-604 370 / 394 U-NII-2C 11ac40 CH102 AV U-NII-2C 11ac40 CH102 AV U-NII-2C 11ac40 CH142 Peak U-NII-2C 11ac80 CH106 Peak U-NII-2C 11ac80 CH122 Peak Report No.: BL-SZ2090237-604 371 / 394 U-NII-2C 11ac80 CH106 AV U-NII-2C 11ac80 CH138 Peak U-NII-3 11a CH144 Peak Report No.: BL-SZ2090237-604 372 / 394 U-NII-3 11a CH149 Peak U-NII-3 11a CH165 Peak U-NII-3 11n20 CH144 Peak U-NII-3 11n20 CH149 Peak U-NII-3 11n20 CH165 Peak Report No.: BL-SZ2090237-604 373 / 394 U-NII-3 11n40 CH142 Peak U-NII-3 11n40 CH151 Peak U-NII-3 11n40 CH159 Peak U-NII-3 11ac20 CH144 Peak Report No.: BL-SZ2090237-604 374 / 394 U-NII-3 11ac20 CH149 Peak U-NII-3 11ac20 CH165 Peak U-NII-3 11ac40 CH142 Peak U-NII-3 11ac40 CH151 Peak U-NII-3 11ac40 CH159 Peak Report No.: BL-SZ2090237-604 375 / 394 U-NII-3 11ac80 CH138 Peak U-NII-3 11ac80 CH155 Peak U-NII-3 11ac80 CH155 Peak Report No.: BL-SZ2090237-604 376 / 394 Aux. Antenna U-NII-1 11a CH36 Peak U-NII-1 11a CH48 Peak U-NII-1 11a CH36 AV U-NII-1 11n20 CH36 Peak U-NII-1 11n20 CH48 Peak Report No.: BL-SZ2090237-604 377 / 394 U-NII-1 11n20 CH36 AV U-NII-1 11n20 CH36 AV U-NII-1 11n40 CH38 Peak U-NII-1 11n40 CH46 Peak U-NII-1 11n40 CH38 AV U-NII-1 11n40 CH38 AV Report No.: BL-SZ2090237-604 378 / 394 U-NII-1 11ac20 CH36 Peak U-NII-1 11ac20 CH48 Peak U-NII-1 11ac20 CH36 AV U-NII-1 11ac20 CH36 AV U-NII-1 11ac20 CH48 AV Report No.: BL-SZ2090237-604 379 / 394 U-NII-1 11ac40 CH38 Peak U-NII-1 11ac40 CH46 Peak U-NII-1 11ac40 CH38 AV U-NII-1 11ac40 CH38 AV U-NII-1 11ac40 CH46 AV Report No.: BL-SZ2090237-604 380 / 394 U-NII-1 11ac80 CH42 Peak U-NII-1 11ac80 CH42 Peak U-NII-1 11ac80 CH42 AV U-NII-2A 11a CH52 Peak U-NII-2A 11a CH64 Peak Report No.: BL-SZ2090237-604 381 / 394 U-NII-2A 11a CH64 AV U-NII-2A 11n20 CH52 Peak U-NII-2A 11n20 CH64 Peak U-NII-2A 11n20 CH64 AV Report No.: BL-SZ2090237-604 382 / 394 U-NII-2A 11n40 CH54 Peak U-NII-2A 11n40 CH62 Peak U-NII-2A 11n40 CH62 AV U-NII-2A 11n40 CH62 AV U-NII-2A 11ac20 CH52 Peak U-NII-2A 11ac20 CH64 Peak Report No.: BL-SZ2090237-604 383 / 394 U-NII-2A 11ac20 CH64 AV U-NII-2A 11ac20 CH64 AV U-NII-2A 11ac40 CH54 Peak U-NII-2A 11ac40 CH62 Peak U-NII-2A 11ac40 CH62 AV U-NII-2A 11ac40 CH62 AV Report No.: BL-SZ2090237-604 384 / 394 U-NII-2A 11ac80 CH58 Peak U-NII-2A 11ac80 CH58 Peak U-NII-2A 11ac80 CH58 AV U-NII-2A 11ac80 CH58 AV U-NII-2A 11ac80 CH58 AV Report No.: BL-SZ2090237-604 385 / 394 U-NII-2C 11a CH100 Peak U-NII-2C 11a CH140 Peak U-NII-2C 11a CH144 Peak U-NII-2C 11n20 CH100 Peak U-NII-2C 11n20 CH140 Peak Report No.: BL-SZ2090237-604 386 / 394 U-NII-2C 11n20 CH144 Peak U-NII-2C 11n40 CH102 Peak U-NII-2C 11n40 CH134 Peak U-NII-2C 11n40 CH102 AV Report No.: BL-SZ2090237-604 387 / 394 U-NII-2C 11n40 CH142 Peak U-NII-2C 11ac20 CH100 Peak U-NII-2C 11ac20 CH140 Peak U-NII-2C 11ac20 CH144 Peak Report No.: BL-SZ2090237-604 388 / 394 U-NII-2C 11ac40 CH102 Peak U-NII-2C 11ac40 CH134 Peak U-NII-2C 11ac40 CH102 AV U-NII-2C 11ac40 CH142 Peak Report No.: BL-SZ2090237-604 389 / 394 U-NII-2C 11ac80 CH106 Peak U-NII-2C 11ac80 CH122 Peak U-NII-2C 11ac80 CH106 AV U-NII-2C 11ac80 CH138 Peak Report No.: BL-SZ2090237-604 390 / 394 U-NII-3 11a CH144 Peak U-NII-3 11a CH149 Peak U-NII-3 11a CH165 Peak U-NII-3 11n20 CH144 Peak Report No.: BL-SZ2090237-604 391 / 394 U-NII-3 11n20 CH149 Peak U-NII-3 11n20 CH165 Peak U-NII-3 11n40 CH142 Peak U-NII-3 11n40 CH151 Peak U-NII-3 11n40 CH159 Peak Report No.: BL-SZ2090237-604 392 / 394 U-NII-3 11ac20 CH144 Peak U-NII-3 11ac20 CH149 Peak U-NII-3 11ac20 CH165 Peak U-NII-3 11ac40 CH142 Peak Report No.: BL-SZ2090237-604 393 / 394 U-NII-3 11ac40 CH151 Peak U-NII-3 11ac40 CH159 Peak U-NII-3 11ac80 CH138 Peak U-NII-3 11ac80 CH155 Peak U-NII-3 11ac80 CH155 Peak Report No.: BL-SZ2090237-604 394 / 394 ANNEX B TEST SETUP PHOTOS Please refer the document “BL-SZ2090237-AR-1.PDF”. ANNEX C EUT EXTERNAL PHOTOS Please refer the document “BL-SZ2090237-AW.PDF”. ANNEX D EUT INTERNAL PHOTOS Please refer the document “BL-SZ2090237-AI-1.PDF”. --END OF REPORT--

Document No: BL-SZ2090237 Page 1 of 286 Annex A.2 26dB Bandwidth & 99% Bandwidth Document No: BL-SZ2090237 Page 2 of 286 26 dB Bandwidth Main Antenna 1. 802.11a_20M_U-NII-1_L 1.1. A.2-26dB Bandwidth(NTNV) Center Frequency (MHz) XdB Down RBW (MHz) Detecto r Limit (MHz) XdB BandWidth (MHz) Verdict 5180 26 0.2 Peak 0 23.76 Unkno w Document No: BL-SZ2090237 Page 3 of 286 2. 802.11a_20M_U-NII-1_M 2.1. A.2-26dB Bandwidth(NTNV) Center Frequency (MHz) XdB Down RBW (MHz) Detecto r Limit (MHz) XdB BandWidth (MHz) Verdict 5220 26 0.2 Peak 0 23.68 Unkno w Document No: BL-SZ2090237 Page 4 of 286 3. 802.11a_20M_U-NII-1_H 3.1. A.2-26dB Bandwidth(NTNV) Center Frequency (MHz) XdB Down RBW (MHz) Detecto r Limit (MHz) XdB BandWidth (MHz) Verdict 5240 26 0.2 Peak 0 23.4 Unkno w Document No: BL-SZ2090237 Page 5 of 286 4. 802.11n_20M_U-NII-1_L 4.1. A.2-26dB Bandwidth(NTNV) Center Frequency (MHz) XdB Down RBW (MHz) Detecto r Limit (MHz) XdB BandWidth (MHz) Verdict 5180 26 0.2 Peak 0 23.84 Unkno w Document No: BL-SZ2090237 Page 6 of 286 5. 802.11n_20M_U-NII-1_M 5.1. A.2-26dB Bandwidth(NTNV) Center Frequency (MHz) XdB Down RBW (MHz) Detecto r Limit (MHz) XdB BandWidth (MHz) Verdict 5220 26 0.2 Peak 0 23.92 Unkno w Document No: BL-SZ2090237 Page 7 of 286 6. 802.11n_20M_U-NII-1_H 6.1. A.2-26dB Bandwidth(NTNV) Center Frequency (MHz) XdB Down RBW (MHz) Detecto r Limit (MHz) XdB BandWidth (MHz) Verdict 5240 26 0.2 Peak 0 24.08 Unkno w Document No: BL-SZ2090237 Page 8 of 286 7. 802.11n_40M_U-NII-1_L 7.1. A.2-26dB Bandwidth(NTNV) Center Frequency (MHz) XdB Down RBW (MHz) Detecto r Limit (MHz) XdB BandWidth (MHz) Verdict 5190 26 0.5 Peak 0 45.1 Unkno w Document No: BL-SZ2090237 Page 9 of 286 8. 802.11n_40M_U-NII-1_H 8.1. A.2-26dB Bandw…

Text truncated - open the document above for the full version.
