ZCANP750XEDNotebook PC

www.samsung.com User Manual 2 Getting started 3 About this manual 7 Layout 14 Turning the computer on and off 16 Unlocking the screen 16 Windows Basics 18 Keyboard 20 Touchpad 23 Wired LAN 25 Wireless LAN 27 Bluetooth 29 F ingerprint recognition 31 Memory card slot 33 External display 34 Security slot Applications 35 Using applications 36 Samsung Settings 37 Samsung Notes 38 Samsung Security 41 Samsung Update 42 S amsung PC Cleaner 43 Samsung Flow 44 S amsung Studio Plus 44 Samsung Gallery 45 Bixby 46 G alaxy Book Smart Switch 47 G alaxy Book Experience 48 Online Suppor t(S Service) 49 S creen Recorder 50 Quick Search 51 SmartThings 51 Quick Share Settings & Upgrade 52 Display brightness 53 Volume 54 BIOS (S etup utility) 60 Battery Troubleshooting 63 Samsung Recovery 68 W indows recovery function 68 Q&A Appendix 71 Product specifications 72 Ergonomic tips 76 Safety precautions 86 I mportant safety information 89 R eplacement parts and accessories 92 R egulatory compliance statements 100 WEEE symbol inf ormation 102 Samsung package Take-Back program (USA only) Table of contents 3 Getting started About this manual • This user manual is specially designed to detail the computer’s functions and features. • The user manual supplied with the computer may vary depending on the model. • Please read this manual before using the computer to ensure safe and proper use. • Optional accessories, some devices, and software referred to in this manual may not be provided or may not be subject to upgrades. Note that the computer environment referred to in the user manual may not be the same as your environment. • Descriptions are based on the computer’s default settings and the Windows 11 operating system. Available features and additional services may vary depending on the computer or operating system. • This user manual describes procedures for using the touchpad, mouse and touch screen. Instructions for using the touch screen are for models with the touch screen feature. • Images and screenshots are those of the representative model of the series and may differ in appearance from the actual product. • Content may differ from the final product and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. Getting started 4 Copyright Copyright © 2021 Samsung Electronics Co., Ltd. This manual is protected under international copyright laws. No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system. Computer specifications or the contents of this manual may be changed without prior notice due to an upgrade of the computer’s functions. Instructional icons and expressions Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to the computer or other equipment Note: notes, usage tips, or additional information The path you should follow to carry out an instruction. For example, “select Settings → Bluetooth & devices” indicates that you should select Settings and then Bluetooth & devices. SelectClick the mouse or tap the touchpad or touch screen. Getting started 5 • Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories. • All other trademarks and copyrights are the property of their respective owners. Energy Star (USA only) As an ENERGY STAR ® Partner, Samsung has determined that this Product meets the ENERGY STAR Guidelines for energy efficiency. The ENERGY STAR Program has reduced greenhouse gas emissions and saved energy through voluntary labeling. Samsung is a proud ENERGY STAR Partner and commits to meet the guidelines for this product to be ENERGY STAR certified. By selecting an ENERGY STAR certified product, you reduce greenhouse emissions, save energy, and can lower operating cost. For more information, see http://www.energystar.gov/. • The Power Management setting of this product has been enabled by default and has various timing settings (of up to 300 minutes for energy saving. In case you don’t want the power management setting enabled, select “Never”). • To change this in Settings, go to the System menu > Power & sleep menu > Screen/Sleep timeout option. This product can be awakened from sleep mode by pressing the Power button. Trademarks • Samsung and the Samsung logo are trademarks or registered trademarks of Samsung Electronics Co., Ltd. • Intel and Core are trademarks or registered trademarks of the Intel Corporation. • Microsoft, MS-DOS, and Windows are trademarks or registered trademarks of the Microsoft Corporation. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Wi-Fi ® , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • HDMI, the HDMI logo, and the term High Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries. Getting started 6 Product capacity representation Storage capacity representation The capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1 KB = 1,000 Bytes. However, the operating system (Windows) calculates the storage device capacity assuming that 1 KB = 1,024 Bytes. Therefore, the available capacity of the HDD in Windows is smaller than the actual capacity due to the difference in capacity calculation. For example, for an 80 GB HDD, Windows calculates the capacity as 74.5 GB, (80x1,000x1,000x1,000) Bytes/(1,024x1,024x1,024) Bytes = 74.505 GB. In addition, the capacity representation in Windows may be even smaller because some programs, such as Samsung Recovery, may reside in a hidden area of the HDD. Memory capacity representation The ava…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 Authority to Act as Agent Date: __0329,2021_____ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______(CTTL,Telecommunication Technology Labs,CAICT)_ _____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____12 months_____ By: ____________ _____Jenni Chun_________ (Signature 1 ) (Print name) Title: ______General Manager________ On behalf of: __Samsung Electronics Co., Ltd. ___ (Company N ame) Telephone: ___973-808-6375____ 022818 – 11 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 Request for Confidentiality Date: _0118,2022__ Subject: Confidentiality Request for: ____ZCANP750XED____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐Short Term☒Permanent Block Diagrams ☒Short Term External Photos ☒Short Term☐Permanent * 2 Internal Photos ☐Short Term☒Permanent Operation Description/Theory of Operation ☐Short Term☒Permanent Parts List & Placement/BOM ☐Short Term☒Permanent Tune-Up Procedure ☐Short Term☒Permanent Schematics ☒Short Term Test Setup Photos ☒Short Term☐Permanent * 3 User’s Manual _____SAMSUNG Electronics______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: regarding specific information that must accompany these requests. 022818 – 11 Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: ______ /General Manager______ ___Jenni Chun____ (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. 022818 – 11

Intel Corporation S.A .S . 425 Rue de Goa – Le Cargo B6 – 06600 Antibes – France Tel. +33 (0)4 93 00 14 00 - Fax +33 (0)4 93 00 14 01 SAS au capital de 5 208 026,16 Euros – RCS Nanterre 302 456 199 – Siret 302 456 199 00256 - TVA FR54302456199 Letter of authorization INTEL CORPORATION SAS 425 route de Goa le Cargo B6 06600 Antibes, FRANCE With this letter we are authorizing Samsung to duplicate the initial modular test reports and the report numbers: 180717-03.TR01, 180717-03.TR02, 180717-03.TR03, 180717-03.TR04, 180717-03.TR05, 180717-03.TR06, 180717-03.TR07, 180717-03.TR08, 180717-03.TR09 of the INTEL module AX201D2W with FCC ID: PD9AX201D2 which was granted on 11/20/2018 and IC: 1000M-AX201D2 on 11/26/2018, for Samsung project request of FCC ID: ZCANP750XED and IC: 25314-NP750XED. Sincerely, ------------------------------------------------------ Date: January 11, 2022 Wireless Product Regulatory Engineer Mobile Wireless Group Intel Corporation

Date: Jan. 20, 22 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request permission to use Wi-Fi/BT/USB partial test results from model AX201D2W in our applications for model NP750XED FCC ID: ZCANP750XED To whom it may concern: We request permission to use Wi-Fi/BT/USB test results from model AX201D2W (FCC ID: PD9AX201D2) in our applications for model NP750XED (FCC ID: ZCANP750XED). The detail information of changes are as below. NP750XED is that host integrator for the module AX201D2W, the power class of NP750XED is not bigger than AX201D2W, no other change for the module. For the above, we performed the test which is as below for the required bands of all. The rest test results all come from AX201D2W. The detail information of Retest: Retest or not Comments 1、SAR Full test 2、part 15C BT/BLE/WIFI (2.4g/ 5g/5.8G) Spot check the conducted power. Radiated TCs full test Spot check results of the conducted power are shown in the SAR test report. 3、part 15B Full test 4、Part 22/24/27 N/A. 5、HAC、T-coil N/A 6、DFS Radiated TCs full test Sincerely yours, Yin Feng

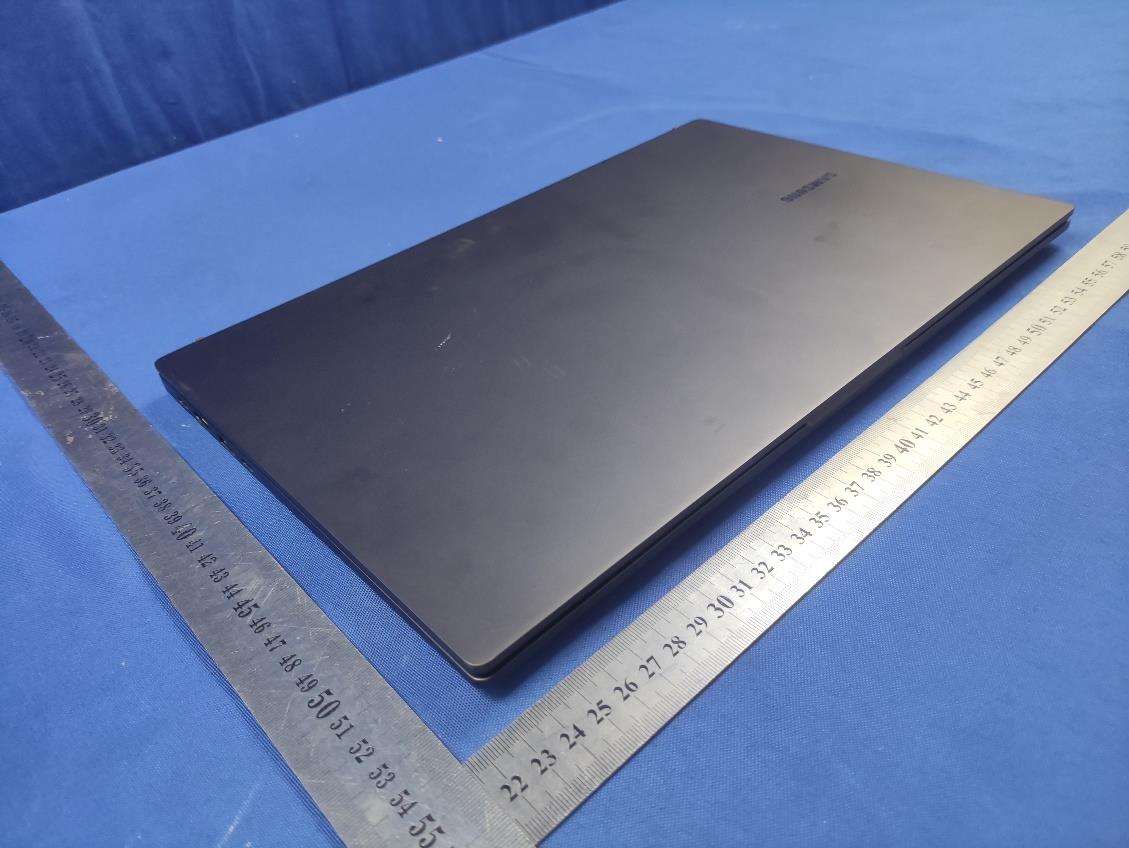

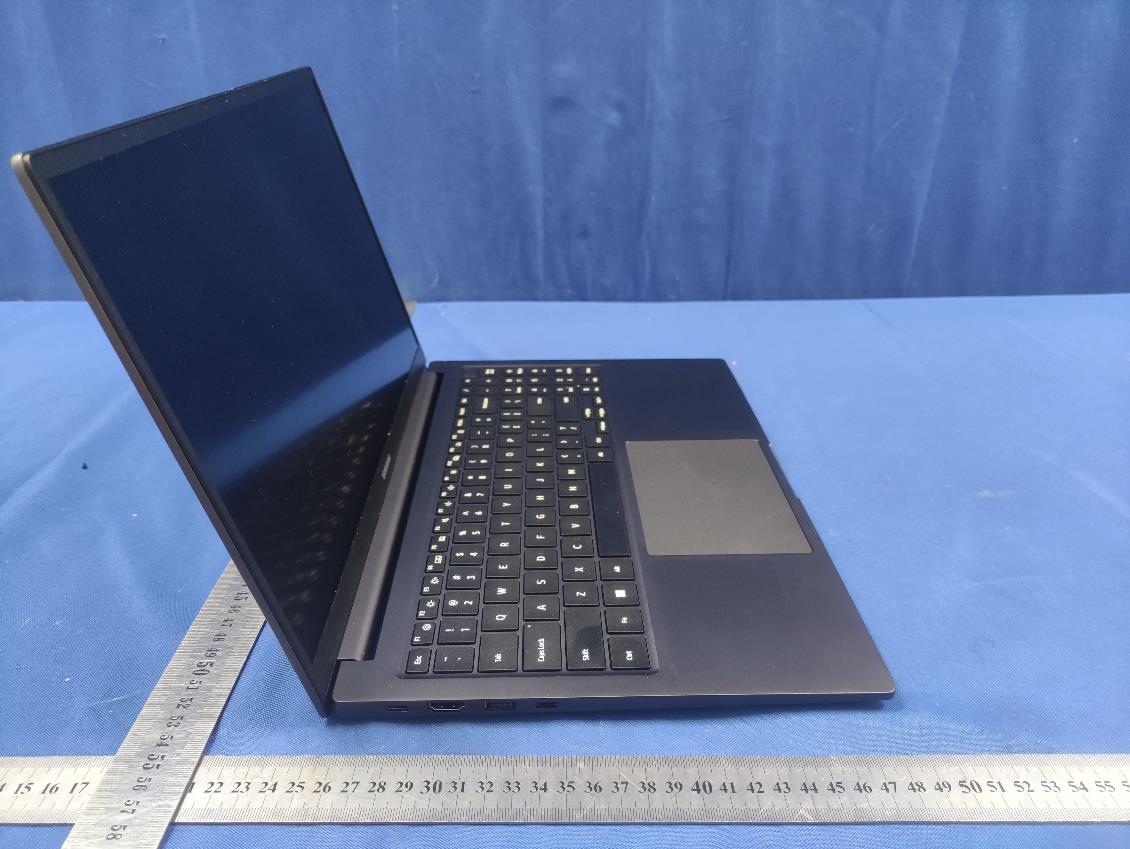

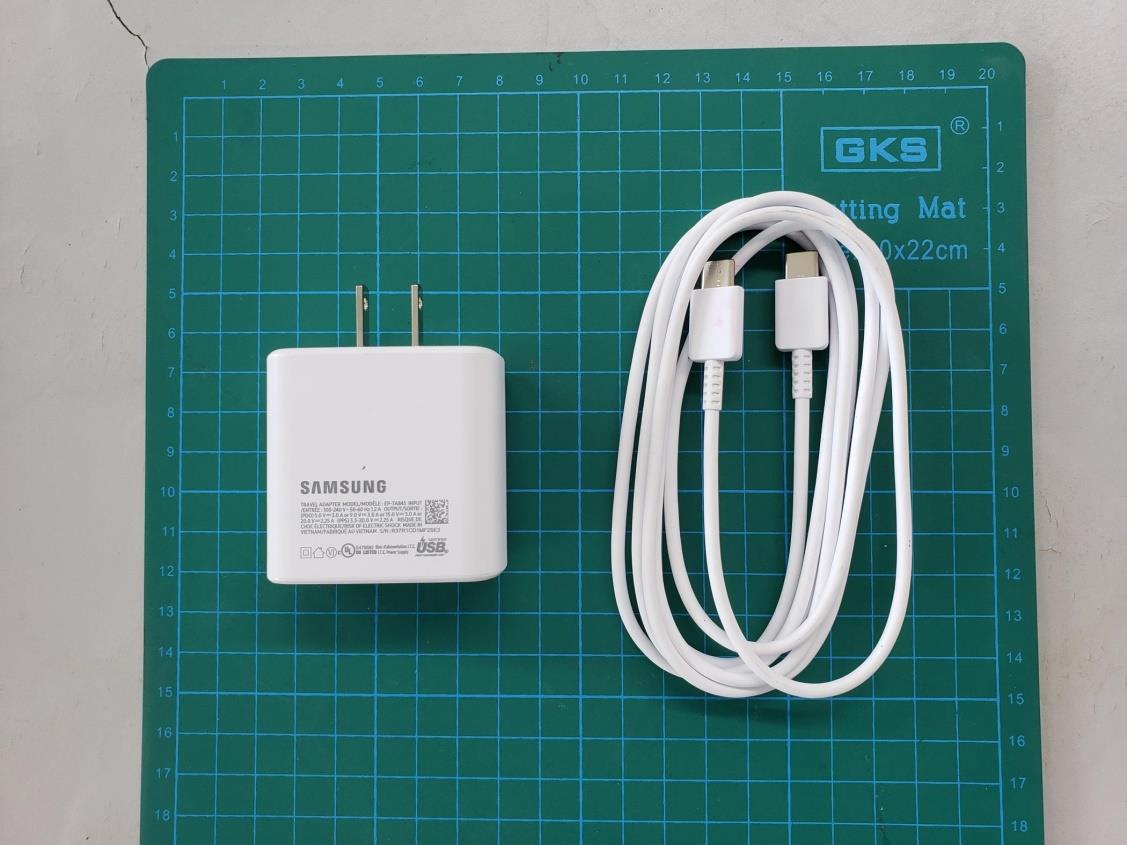

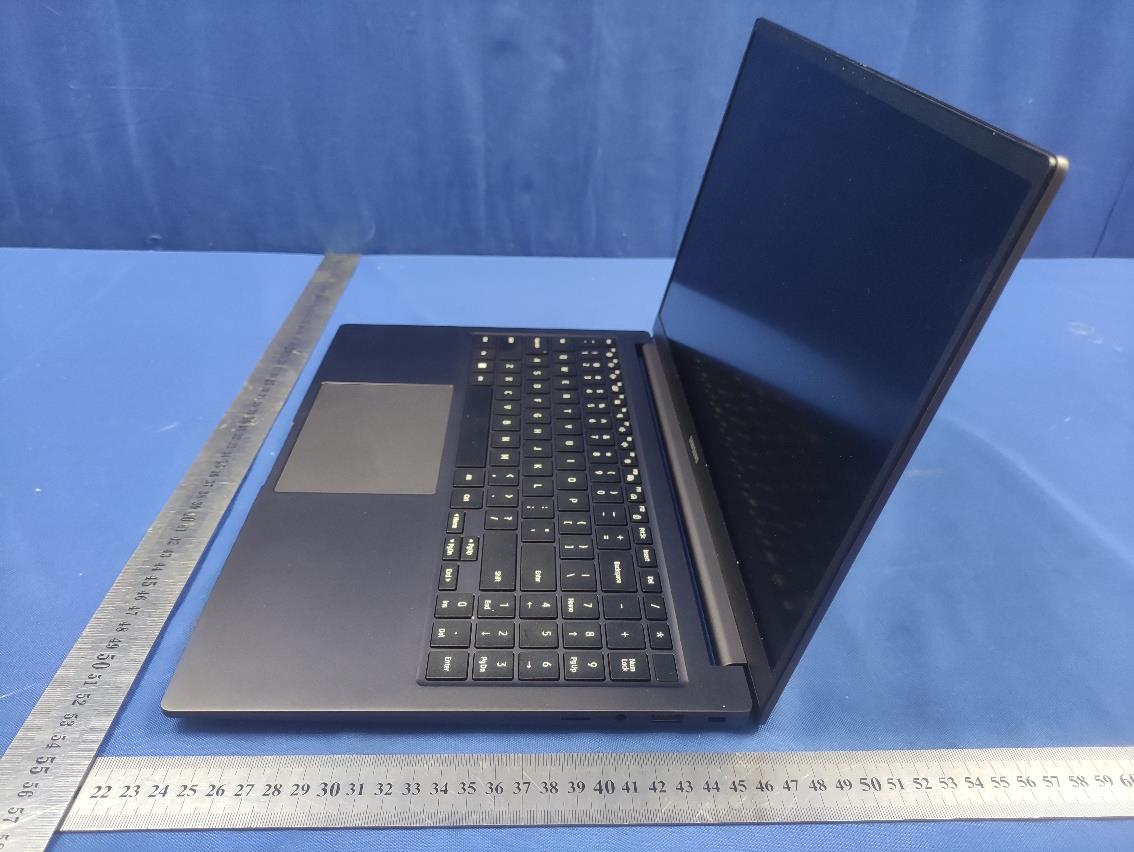

Photos Overall view Overall view Photos Overall view Overall view Photos Charger 1: US (FCC and IC) Photos Charger 2: US (FCC and IC)

Model:NP750XED Input:20V 2.25 A(45W) FCC ID:Z CANP750XED Designed by Samsung Manufactured in China NP750XED-XXXXX S/N:XXXXXXXXXXXXXXX XX.XXXX QR Code Location

Photos Internal view Overall view Photos Internal view Internal view Photos Internal view PWB view Photos PWB view PWB view Photos PWB view Photos Photos
