ZCASMA015T1

SAMSUNG Electronics Co., Ltd.

Multi-band GSM/WCDMA/LTE phone with Bluetooth, WLAN

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Mar 19, 2020
Application Purpose: Original Equipment
Date of Application: Mar 18, 2020
Equipment Note: Multi-band GSM/WCDMA/LTE phone with Bluetooth, WLAN
Frequency Range: 673.00000000 - 688.00000000
Company: SAMSUNG Electronics Co., Ltd.
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

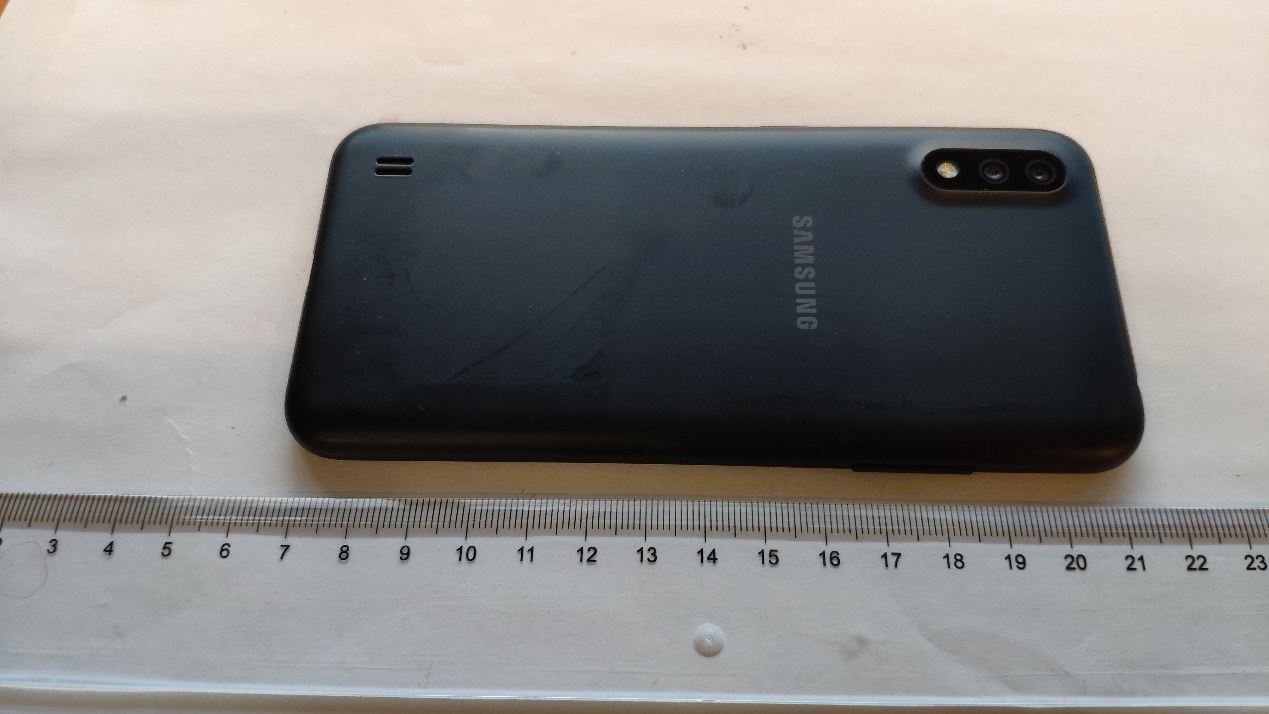

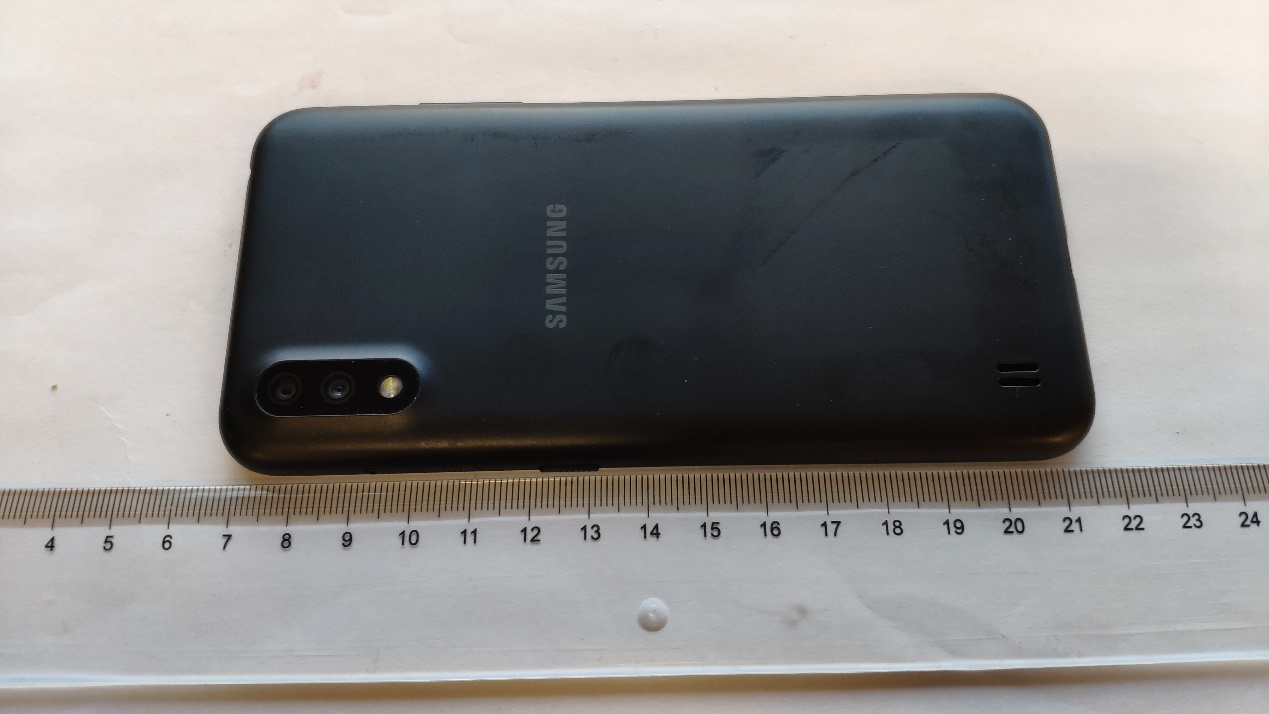

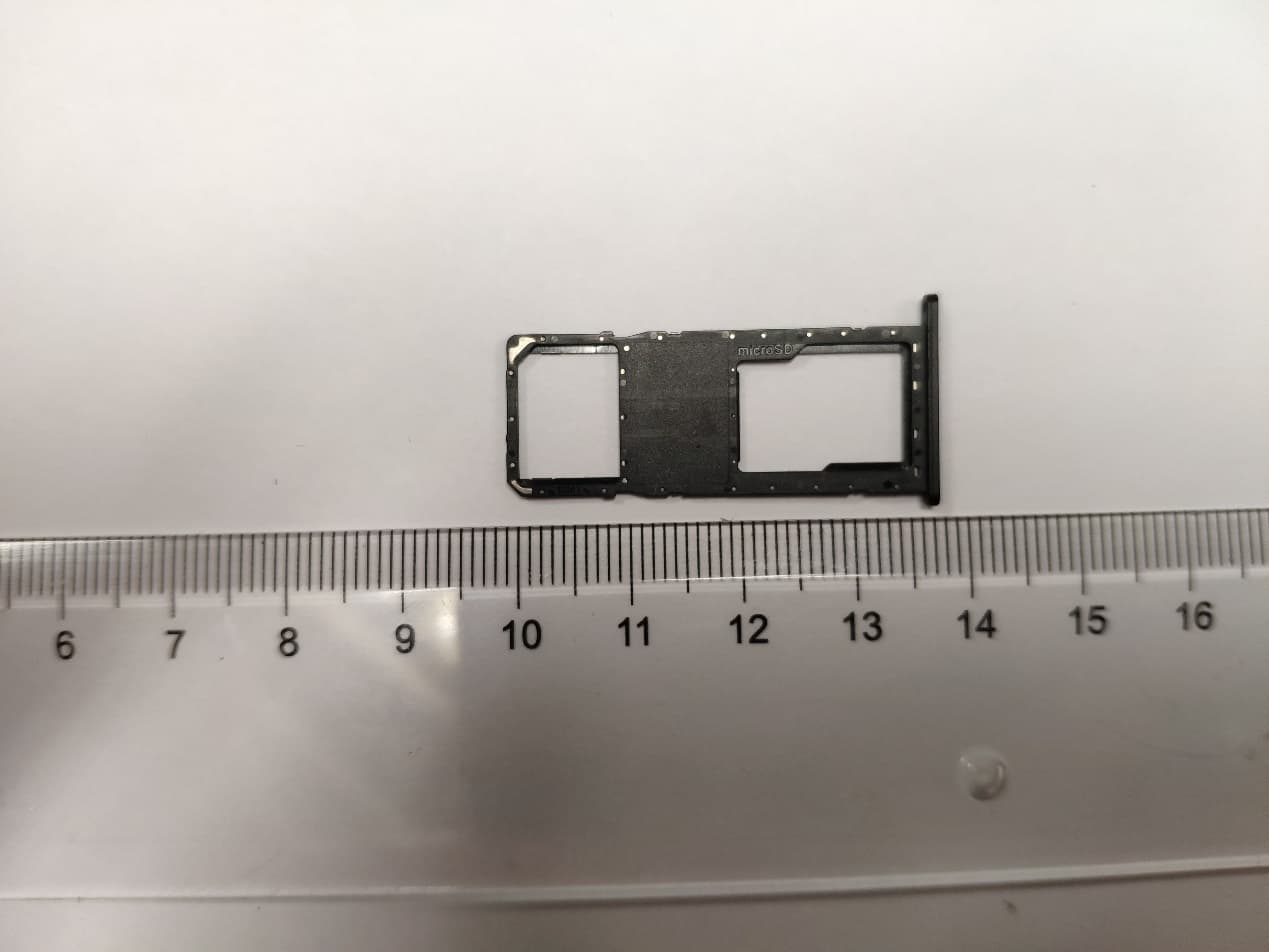

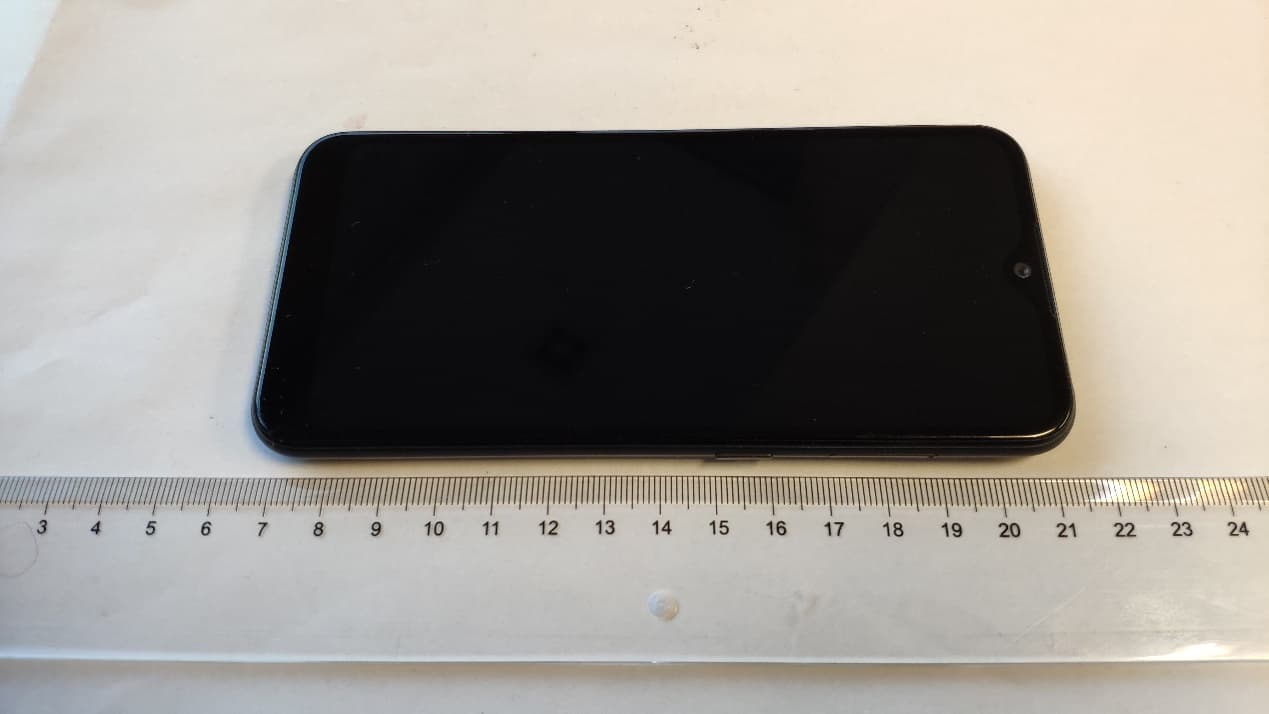

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Jenni Chun(Senior Engineer)

[email protected]9738086375Fax: 9738086361

Technical Contact

CTTL-Terminals Test Lab of China Academy of TelecYin Feng

[email protected]86-10-62304633

No. 52, Huayuan Bei Road, Haidian District, · Beijing · China

Test Firm

Telecommunication Technology Labs, CAICTYaqin Shen

[email protected]8610-62304633Fax: 8610-62300586

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
28	27	673 MHz - 688 MHz	75.00 mW	18M0W7D	0.1 ppm

Confidentiality

Long Term

Grant Notes

Power output is ERP for Parts 22/27 and EIRP for Parts 24/27. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 10 mm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router) and simultaneous transmission exposure conditions are 0.60 W/kg, 1.29 W/kg, 1.29 W/kg and 1.36 W/kg, respectively. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This filing is only applicable for 600 MHz, 700 MHz MBS, 850 MHz Cell, 1700 MHz AWS, 1900 MHz PCS and 2600 MHz IMT operations. This device has 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15MHz and 20 MHz bandwidth modes for LTE Bands 2/4/66; 1.4 MHz, 3 MHz, 5 MHz and 10 MHz bandwidth modes for LTE Bands 5/12; 5 MHz, 10 MHz, 15MHz and 20 MHz bandwidth modes for LTE Bands 7/71. This device also contains Bluetooth, BLE, 2.4GHz WLAN and 5GHz WLAN transmitters. HAC Rating: M3/T3-2011.
