ZCASMA045FMulti-band GSM/WCDMA/LTE mobile phone with Bluetooth, WLAN

Printed in Korea ev.. English. 0/20 Package contents • Device • USB cable • Ejection pin •USB power adaptor • Quick start guide The items supplied with the device and their images may vary by region. To turn on the device, press and hold the Side key for a few seconds. The charger should remain close to the electric socket and easily accessible while charging. Accessing more information QUICK START GUIDE If your device is frozen and unresponsive, press and hold the Side key and the Volume Down key simultaneously for more than 7 seconds to restart it. • It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods. Doing so may result in afterimages (screen burn-in) or ghosting. To prevent possible hearing damage when using a headset, do not lis ten to sound at high volume for long periods. The use of WLAN band is restrict ed to indoor use only. This restriction will be applied in all countries below. ATBEBGCHCYCZDEDKEEESEL FIFRHRHUIEISITLILTLULV MTNLNOPLPTROSESISKTRUK Depending on the region, you can view the regulatory information on the device. To view the information, launch the Settings app. Installing a nano-SIM card (sold separately) Single SIM models: 12 SIM Dual SIM models: 12 SIM 2 SIM 1 SM-A045F SM-A045F/DS • If any part of the device, such as the glass or acrylic body, is broken, smokes, or emits a burning odor, stop using the device immediately. Use the device again only after it has been repaired at a Samsung Service Centre. • Do not turn on or use the device when the battery compartment is exposed. • Do not disassemble or reuse the battery. • Do not allow children or animals to chew or suck the device. • The device can be used in locations with an ambient temperature of 0 °C to 35 °C. You can store the device at an ambient temperature of -20 °C to 50 °C. Using or storing the device outside of the recommended temperature ra nges may damage the device or reduce the battery’s lifespan. • Do not use your device in a hot environment or near fire. • Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle. Correct disposal This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste. This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste. PO BOX 12987, DUBLIN, IE Safety information Read all safety information before using the device to ensure safe and proper use. You can view more safety information in the safety information menu of the Settings app. Warning Your device contains magnets, whi ch may affect medical devices, such as pacemakers or implantable cardioverter defibrillators. If you are using any of these medical devices, keep your device a safe distance from them and consult with your physician before you use the device Follow the warnings below to prevent incidents, such as fires or explosions, injuries, or damage to the device • Do not expose the device to physical impact or damage. • Use only Samsung-approved batteries, chargers, and cables specifically des igned for your device. • Prevent the multipurpose jack and battery terminals from coming into contact with foreign materials such as metal, liquids, or dust. Specific Absorption Rate (SAR) certification information Your device conforms to U.S. Federal Communications Commission (FCC) standards that limit human exposure to radio frequency (RF) energy emitted by radio and telecommunications equipment. These standards prevent the sale of mobile devices that exceed a maximum exposure level (known as the Specific Absorption Rate, or SAR) of 1.6 W/ kg. In normal use, the actual SAR is likely to be much lower, as the d evice has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automatically emitting lower FCC RF exposure guidelines. Some devices are required to receive approval from the FCC. If your device required FCC approval, you can view the FCC certification by opening Settings About phone S ta tus. SAR information for this and other devices can be found on the FCC FCC Notice FCC Notice The device may cause TV or radio interference if The device may cause TV or radio interference if used in close used in close proximity to receiving equipment.proximity to receiving equipment. The FCC can require you to The FCC can require you to stop using the stop using the mobile device if such mobile device if such interference cannot be eliminated interference cannot be eliminated . . Information about the RF exposure from FCC In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both international and U.S. standards. The design of this tablet complies with FCC guidelines and these international standards. Body effects For body operation, this device has been tested and meets FCC RF exposure guidelines when used with any accessory that contains no metal and which provides a minimum separation distance of 15 mm between this device and the body of the user. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Class B Compliance under article 15 of the FCCClass B Compliance under article 15 of the FCC This device This device complies with Part 15 of the FCCcomplies with Part 15 of the FCC Rules. Operation is subject to Rules. Operation is subject to the condition thatthe condition that this device does not cause harmful this device does not cause harmful interference.inte…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 Authority to Act as Agent Date: __0628,2022_____ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: __ ____(CTTL,Telecommunication Technology Labs,CAICT)______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____12 months_____ By: ____________ _____Jenni Chun_________ (Signature 1 ) (Print name) Title: ______Gene ral Manager________ On behalf of: __Samsung Electronics Co., Ltd. ___ (Compan y Name) Telephone: ___973-808-6375____ 022818 – 11 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 Request for Confidentiality Date: _0628,2022__ Subject: Confidentiality Request for: ____ZCASMA045F____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐Short Term☒Permanent Block Diagrams ☒Short Term External Photos ☒Short Term☐Permanent * 2 Internal Photos ☐Short Term☒Permanent Operation Description/Theory of Operation ☐Short Term☒Permanent Parts List & Placement/BOM ☐Short Term☒Permanent Tune-Up Procedure ☐Short Term☒Permanent Schematics ☒Short Term Test Setup Photos ☒Short Term☐Permanent * 3 User’s Manual _____SAMSUNG Electronics______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: regarding specific information that must accompany these requests. 022818 – 11 Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: ______ /General Manager______ ___Jenni Chun____ (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. 022818 – 11

DeclarationofFrequencyStability WeSamsungElectronics.Co.,Ltd.ensurethattheproductmeetse-CFRTitle 47section15.407(g)andKDB789033D02v02r01frequencystabilitysuchthat theemissionsaremaintainedwithinthebandofoperationunderallconditions ofnormaloperationasspecifiedintheuser'smanual. SincerelyYours, PrintName:JenniChun Title:Manager CompanyName:SamsungElectronics.Co.,Ltd. Tel:+1-201-937-4203 Fax:N/A Email:[email protected]

V1.0 DFS Client Declaration Letter Date: 2022-06-28 We have declared below featured for device, FCC ID: ZCASMA045F (1) DFS Device Master Client with Radar detection capability Client without radar detection capability (2) Active / Passive Scanning, ad hoc mode access point capability Frequency Band (MHz) Scanning Plan Ad Hoc Mode Capability Access point Capability WiFi Direct Group Owner WiFi Direct Group Client 2412 - 2462 Active Yes Yes Yes Yes 5180 – 5240 Active Yes Yes Yes Yes 5260 – 5320 Passive No No No Yes 5500 – 5580 Passive No No No Yes 5660 – 5700 Passive No No No Yes 5745 - 5825 Active Yes Yes Yes Yes (3) Country code selection capability to end user- Yes, No If yes, please explain how it was implemented: (please also help to provide detail of options for each country selection) (4) Transmission in 5600 MHz to 5650 MHz is notched - Yes, No (5) Meet Part 15.202 requirement - Yes, No A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices. A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (6) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply, Not Apply, (If apply, please help to provide explanation on it was implement, and how software was controlled). V1.0 Signature ____________________________ Printed Name: Jenni Chun Position: 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Company: Samsung Electronics Co., Ltd.

PRODUCT EQUALITY DECLARATION We, Samsung Electronics Co., Ltd., declare that the “SM-A045F/DS” is the parent product of the “SM-A045F” And declare on our sole responsibility that the product (variant) SM-A045F HW version : REV1.0 SW version : A045F.001 is in all relevant parts identical to the product SM-A045F/DS HW version : REV1.0 SW version : A045F.001 The only difference between SM-A045F/DS and SM-A045F is: 1. H/W SM-A045F/DS is Dual SIM, SM-A045F is Single SIM SM-A045F/DS GSM850/900/1800;WCDMA B1/5/8;LTE B1/3/5/7/8/20/28/38/40/41 WIFI 2.4G 5G GPS BT . Without NFC Feature Dual SIM SM-A045F GSM850/900/1800;WCDMA B1/5/8;LTE B1/3/5/7/8/20/28/38/40/41 WIFI 2.4G 5G GPS BT . Without NFC Feature Single SIM - PCB layout is same. -Antenna is the same. - The other parts are same. 2. S/W 1) Protocol is same. 2) Applications of MMS、RCS、IMS、SUPL feature is same. Author Information Signature Name Lizhonggang Place of Protocol Certification part Duty Tel +86-18321929116 E-mail [email protected]

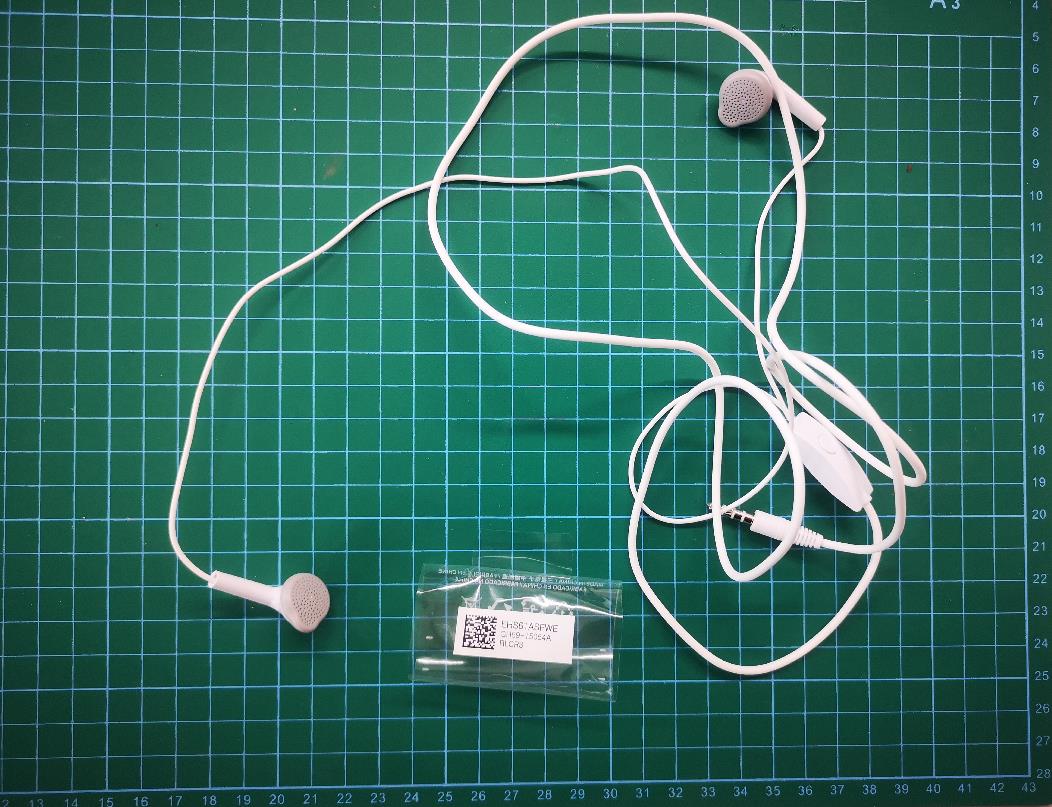

Sample01 Sample02 Sample03 Sample04 Sample05 Sample06 Dual SimTray： Single SimTray： SIM1 SIM2 Data Cable 1：KSD. (GH39-01999A) Data Cable 2：CRESYN. (GH39-01999A) HS01（EHS61ASFWE GH59-15054A YOUNGBO）： HS02（GH59-15054A Shenzhen Grandsound）： CH01: EP-TA200JWE HAEM CH02: EP-TA200JWE SoluM CH03: EP-TA200JWE RFT

Labellocation

Labellocation

PCB01 PCB02 PCB03 PCB04 PCB05 PCB06 PCB07 Battery:

No.I22Z70093-SEM01 ©Copyright. All rights reserved by CTTL. Page 1 of 53 SAR TEST REPORT No. I22Z70093-SEM01 For Samsung Electronics Co., Ltd Multi-band GSM/WCDMA/LTE phone with Bluetooth, WLAN Model Name: SM-A045F/DS, SM-A045F with Hardware Version: REV1.0 Software Version: A045F.001 FCC ID: ZCASMA045F Issued Date: 2022-07-04 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I22Z70093-SEM01 ©Copyright. All rights reserved by CTTL. Page 2 of 53 REPORT HISTORY Report Number Revision Issue Date Description I22Z70093-SEM01 Rev.0 2022-06-27 Initial creation of test report I22Z70093-SEM01 Rev.1 2022-07-04 Update information for the Equipment Class on page 6 No.I22Z70093-SEM01 ©Copyright. All rights reserved by CTTL. Page 3 of 53 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................................................ 10 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .......................................................................... 10 5 TEST METHODOLOGY .............................................................................................................. 11 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 11 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 11 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 12 6.1 INTRODUCTION ............................................................................................................................................. 12 6.2 SAR DEFINITION .......................................................................................................................................... 12 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 13 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 13 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 13 8 SYSTEM VERIFICATION ............................................................................................................ 16 8.1 SYSTEM SETUP ............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION ................................................................................................................................. 17 9 MEASUREMENT PROCEDURES .............................................................................................. 18 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 18 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 20 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 21 9.4 SAR MEASUREMENT FOR LTE ..................................................................................................................... 22 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 24 9.6 POWER DRIFT ............................................................................................................................................... 24 10 AREA SCAN BASED 1-G SAR ......................................................................…
