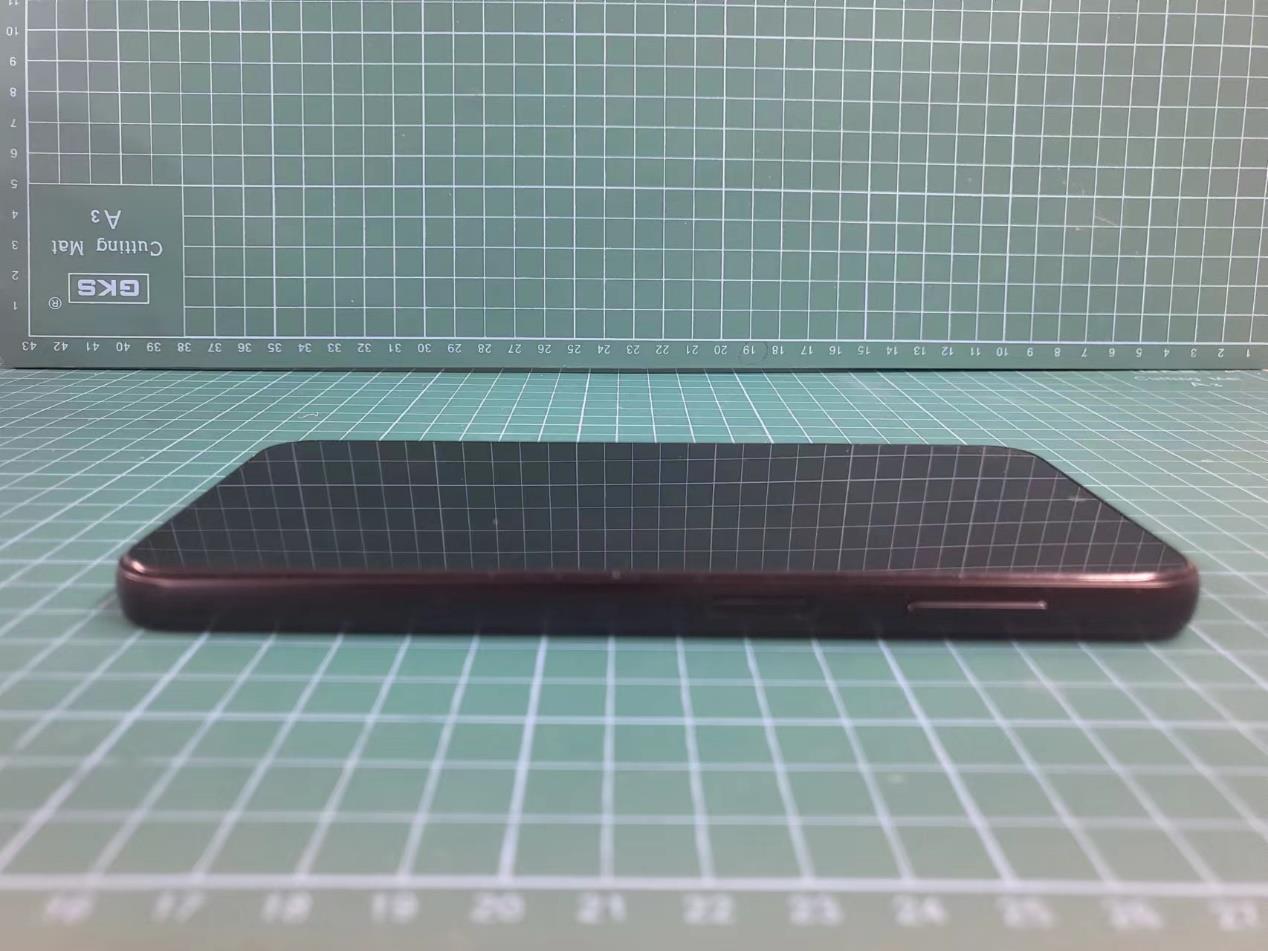

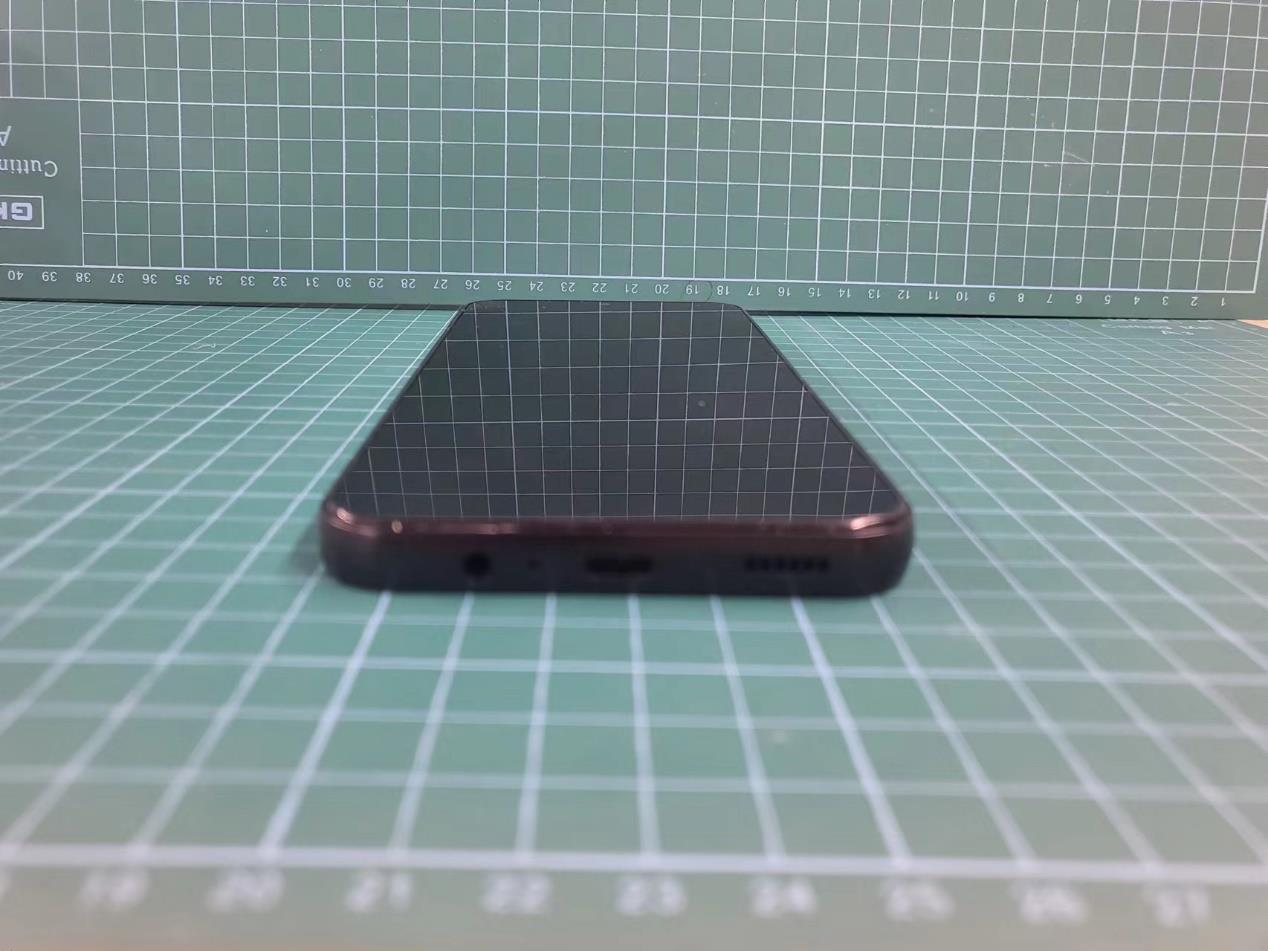

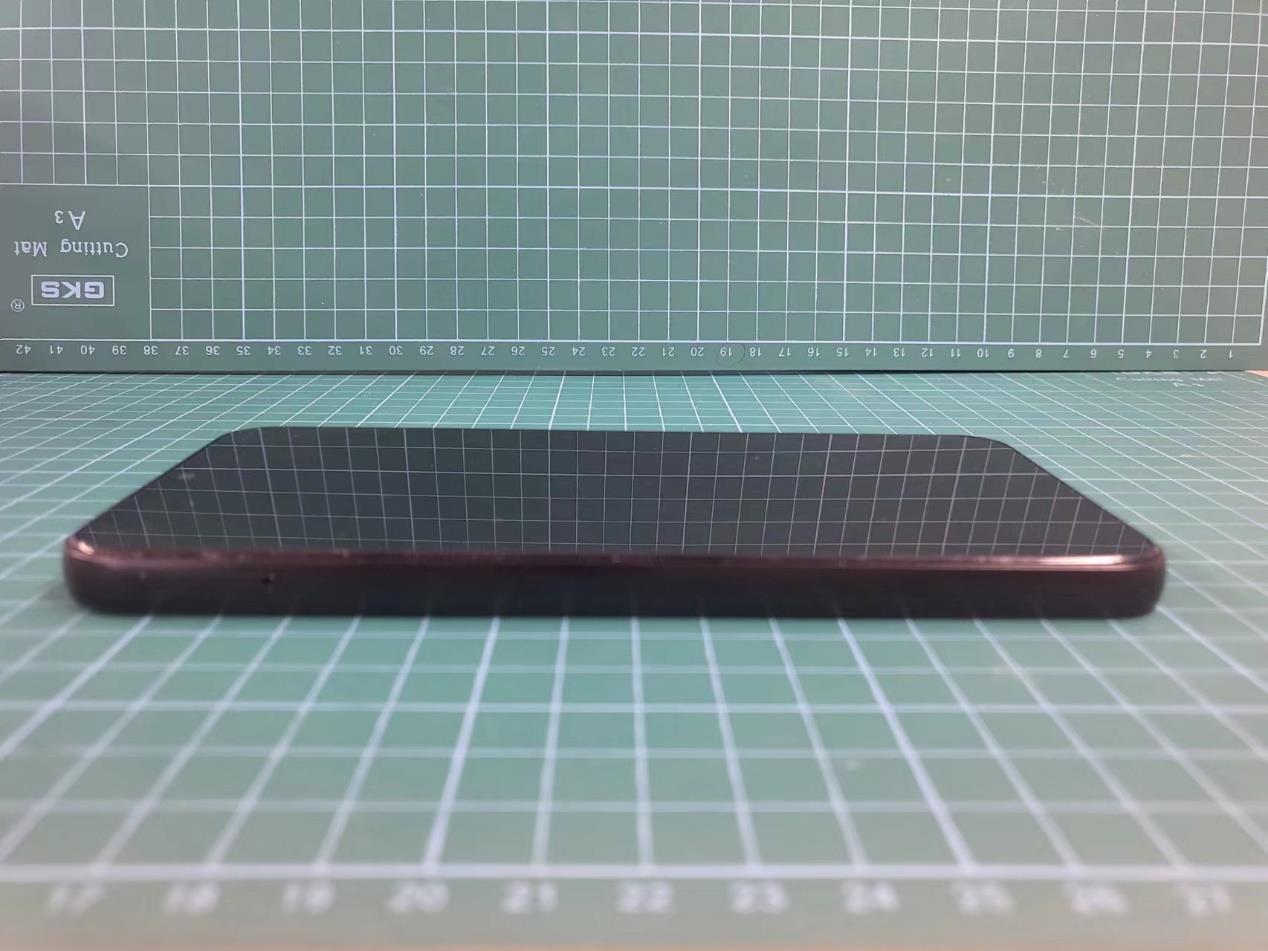

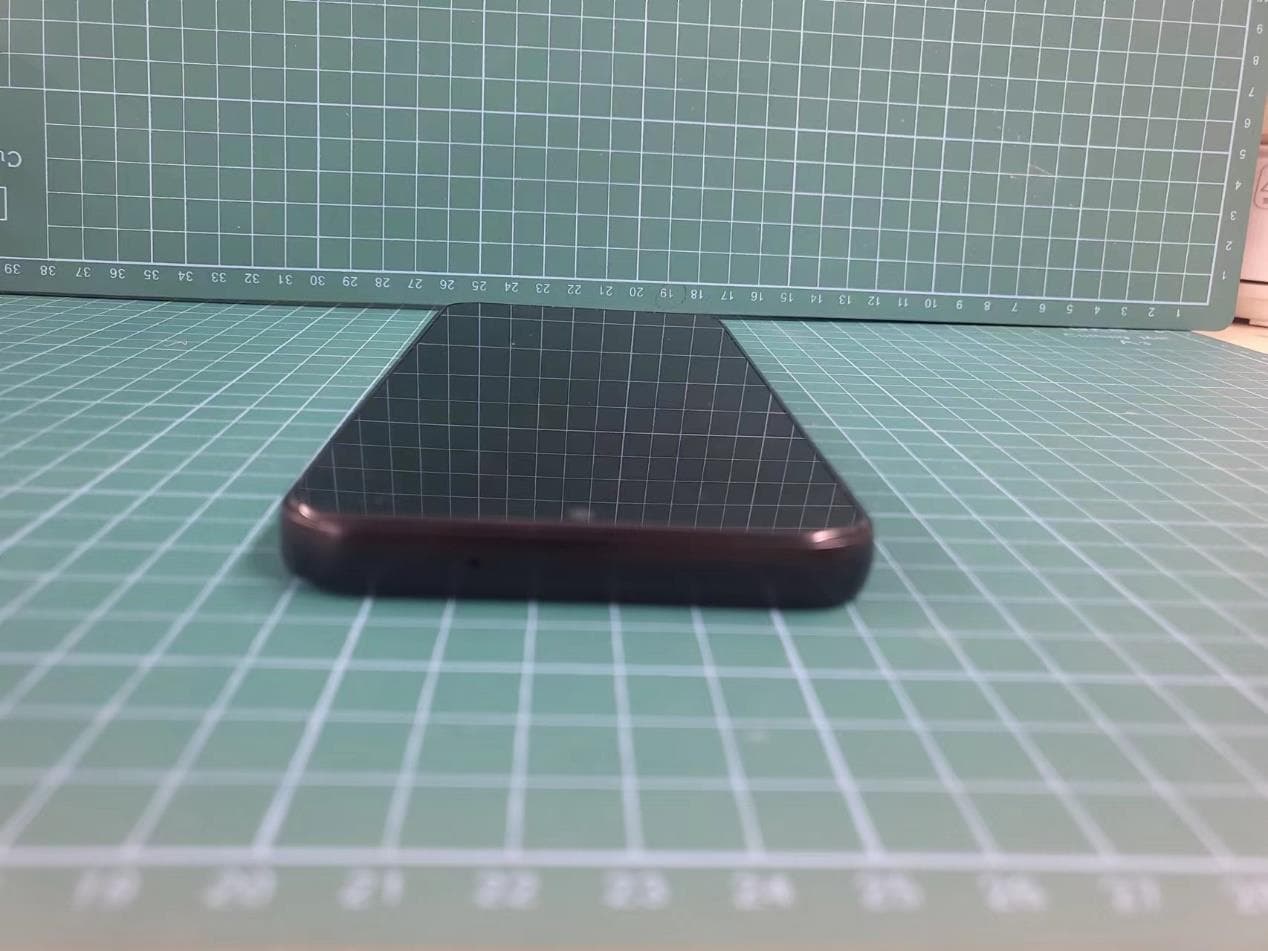

ZCASMA146PNMulti-band GSM/WCDMA/LTE/5GNR Phone with Bluetooth,WLAN

The charger should remain close to the electric socket and easily accessible while charging. Printed in Korea
()99


3ev.9.9 English. 0  /20 Package contents • Device • USB cable • Ejection pin •USB power adaptor • Quick start guide The items supplied with the device and their images may vary by region. To turn on the device, press and hold the Side key for a few seconds. Accessing more information 7JTJU
XXXTBNTVOHDPN
UP
WJFX
EFWJDF
JOGPSNBUJPO
UIF
VTFS
NBOVBM
BOE
NPSF t:PV
NBZ
JODVS
BEEJUJPOBM
DIBSHFT
GPS BDDFTTJOH
UIF
*OUFSOFU If your device is frozen and unresponsive, press and hold the Side key and the Volume Down key simultaneously for more than 7 seconds to restart it. • It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods. Doing so may result in afterimages (screen burn-in) or ghosting. To prevent possible hearing damage when using a headset, do not listen to sound at high volume for long periods. Depending on the region, you can view the regulatory information on the device. To view the information, launch the Settings app. QUICK START GUIDE SM-A146P/DSN SM-A146P/N • If any part of the device, such as the glass or acrylic body, is broken, smokes, or emits a burning odor, stop using the device immediately. Use the device again only after it has been repaired at a Samsung Service Centre. • Do not turn on or use the device when the battery compartment is exposed. • Do not disassemble or reuse the battery. • Do not allow children or animals to chew or suck the device. • Do not use your device in a hot environment or near fire. • Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle. Correct disposal This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste. This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste. PO BOX 12987, DUBLIN, IE Safety information Read all safety information before using the device to ensure safe and proper use. You can view more safety information in the safety information menu of the Settings app. Warning Your device contains magnets, which may affect medical devices, such as pacemakers or implantable cardioverter defibrillators. If you are using any of these medical devices, keep your device a safe distance from them and consult with your physician before you use the device Follow the warnings below to prevent incidents, such as fires or explosions, injuries, or damage to the device • Do not expose the device to physical impact or damage. • Use only Samsung-approved batteries, chargers, and cables specifically designed for your device. • Prevent the multipurpose jack and battery terminals from coming into contact with foreign materials such as metal, liquids, or dust. Specific Absorption Rate (SAR) certification information Your device conforms to U.S. Federal Communications Commission (FCC) standards that limit human exposure to radio frequency (R F) energy emit ted by rad io and telecommunications equipment. These standards prevent the sale of mobile devices that exceed a maximum exposure level (known as the Specific Absorption Rate, or S AR) of 1.6 W/kg . In norma l use, the actual SAR is likely to be much lower, as the d evice has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automati cally emitting lower FCC RF exposure guidelines. Some devices are required to receive approval from the FCC. If your device required FCC approval, you can view the FCC certification by opening Settings About phone S ta tus. SAR information for this and other devices can be found on the FCC FCC Notice FCC Notice The device may cause TV or radio interference if The device may cause TV or radio interference if used in close used in close proximity to receiving equipment. proximity to receiving equipment. The FCC can require you to The FCC can require you to stop using the stop using the mobile device if such mobile device if such interference cannot be eliminated interference cannot be eliminated . . Information about the RF exposure from FCC In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC96-326,adopted anupdatedsafetystandardforhuman exposure toradiofrequency(RF)electromagneticenergy emittedbyFCCregulatedtransmitters.Thoseguidelinesare consistentwiththesafetystandard previouslysetbyboth internationalandU.S.standards.Thedesignofthistablet complies withFCCguidelinesandtheseinternational standards. Bodyeffects Forbodyoperation,thisdevicehasbeentestedandmeets FCCRFexposureguidelineswhen usedwithanyaccessory thatcontainsnometalandwhichprovidesaminimum separationdistanceof15mmbetweenthisdeviceandthe bodyoftheuser.Useofotheraccessoriesmaynotensure compliancewithFCCRFexposureguidelines.Useofother accessoriesmaynotensurecompliancewithFCCRF exposure guidelines. Class B Compliance under article 15 of the FCCClass B Compliance under article 15 of the FCC This device This device complies with Part 15 of the FCCcomplies with Part 15 of the FCC Rules. Operation is subject to Rules. Operation is subject to the condition thatthe condition that this device does not cause harmful this device does not cause harmful interference.interference. Operation is subject to the following twoOperation is subject to the following two conditions: (1) this device may not cause harmfulconditions: (1) this device may not cause harmful interference,interference, and (2) this device must accept anyand (2) this device must accept any interference received, interference received, including interference thatincluding interference that may cause undesired operation.may cause undesired operation. CautionCaution The user is cautioned that changes orTh…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 Authority to Act as Agent Date: __1115,2022_____ American Certification Body, Inc. 6731 Whit tier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______(CTTL,Telecommunication Technology Labs,CAICT)_ _____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject t o denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____12 months_____ By: ____________ _____Jenni Chun_________ (Signature 1 ) (Print name) Title: ______General M anager________ On behalf of: __Samsung Electronics Co., Ltd. ___ (Company Na me) Telephone: ___973-808-6375____ 022818 – 11 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 Request for Confidentiality Date: _1115,2022__ Subject: Confidentiality Request for: ____ZCASMA146PN____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐Short Term☒Permanent Block Diagrams ☒Short Term External Photos ☒Short Term☐Permanent * 2 Internal Photos ☐Short Term☒Permanent Operation Description/Theory of Operation ☐Short Term☒Permanent Parts List & Placement/BOM ☐Short Term☒Permanent Tune-Up Procedure ☐Short Term☒Permanent Schematics ☒Short Term Test Setup Photos ☒Short Term☐Permanent * 3 User’s Manual _____SAMSUNG Electronics______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: regarding specific information that must accompany these requests. 022818 – 11 Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: ______ /General Manager______ ___Jenni Chun____ (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. 022818 – 11

Declaration of Frequency Stability We Samsung Electronics. Co., Ltd. ensure that the product FCC ID: ZCASMA146P N, Model: SM-A146P/DSN, SM-A146P/N meets e-CFR Title 47 section 15.407(g) and KDB 789033 D02v02r01 frequency stability such that the emissions are maintained within the band of operation under all conditions of normal operation as specified in the user's manual. Sincerely Yours, Print Name:Jenni Chun Title:Manager Company Name:Samsung Electronics. Co., Ltd. Tel:+1-201-937-4203 Fax: N/A Email: [email protected]

V1.0 DFS Client Declaration Letter Date: 2022-11-15 We have declared below featured for device, FCC ID: ZCASMA146PN (1) DFS Device Master Client with Radar detection capability Client without radar detection capability (2) Active / Passive Scanning, ad hoc mode access point capability Frequency Band (MHz) Scanning Plan Ad Hoc Mode Capability Access point Capability WiFi Direct Group Owner WiFi Direct Group Client 2412 - 2462 Active Yes Yes Yes Yes 5180 – 5240 Active Yes Yes Yes Yes 5260 – 5320 Passive No No No Yes 5500 – 5580 Passive No No No Yes 5660 – 5700 Passive No No No Yes 5745 - 5825 Active Yes Yes Yes Yes (3) Country code selection capability to end user- Yes, No If yes, please explain how it was implemented: (please also help to provide detail of options for each country selection) (4) Transmission in 5600 MHz to 5650 MHz is notched -Yes, No (5) Meet Part 15.202 requirement -Yes, No A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices. A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (6) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply, Not Apply, (If apply, please help to provide explanation on it was implement, and how software was controlled). V1.0 Signature ____________________________ Printed Name: Jenni Chun Position: 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Company: Samsung Electronics Co., Ltd.

GARI PRODUCT EQUALITY DECLARATION We, Samsung Electronics Co., Ltd., declare that the “SM-A146P/DSN” is the parent product of the “ SM- A146P/N”. And declare on our sole responsibility that the product (variant) The only difference between the SM-A146P/DSN and the SM-A146P/N is: 3.2.1 Hardware Information SM-A146P/DSN is Dual SIM, SM-A146P/N is Single SIM - PCB layout is same. The SIM tray been reserved 1. H/W SM-A146P/DSN is Dual SIM, SM-A146P/N is Single SIM -PCB layout is same. -Antenna is the same. - The other parts are same. 2. S/W 1) Protocol is same. 2) Applications of MMS、RCS、IMS、SUPL feature is same. -t 3.2.2 Mobility and Dexterity Features - Nothing changed 3.2.3 Vision Features - Nothing changed 3.2.4 Hearing and Speech Features - Nothing changed 3.2.5 Cognition Features - Nothing changed 3.2.6 Additional Features - Nothing changed Author Information Signature Name Dragon Li Place of Duty Certification Manager Tel +86-21-53529900 E-mail [email protected]

Sample01 Sample02 Sample03 Sample04 Sample05 Sample06 Dual SimTray： Single SimTray： SIM1 SIM2 Data Cable 1：RFT. (EP-DT725BWE) Data Cable 2：RFT. (EP-DN980BWZ) Data Cable 3：CRESYN. (EP-DT725BWE) Data Cable 4：Broad. (EP-DN980BWE) HS01（GH59-15054A Shenzhen Grandsound）： CH01: EP-T1510 HAEM

Label location SAMSUNG

PCB01 PCB02 PCB03 PCB04 PCB05 PCB06 PCB07 Battery1: Battery2:

No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 1 of 385 SAR TEST REPORT No. I22Z70343-SEM01 For SAMSUNG Electronics Co., Ltd. Multi-band GSM/WCDMA/LTE/5GNR Phone with Bluetooth, WLAN Model Name: SM-A146P/DSN,SM-A146P/N with Hardware Version: REV1.0 Software Version: A146P.001 FCC ID: ZCASMA146PN Issued Date: 2022-11-30 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 2 of 385 REPORT HISTORY Report Number Revision Issue Date Description I22Z70343-SEM01 Rev.0 2022-11-14 Initial creation of test report I22Z70343-SEM01 Rev.1 2022-11-30 1. Revise the frequency range of WCDMA B2 and WCDMA B4 on page9. 2. Revise the distance for body SAR in the file of test setup. No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 3 of 385 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................................................ 10 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .......................................................................... 10 5 TEST METHODOLOGY .............................................................................................................. 11 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 11 5.2 APPLICABLE MEASUREMENT STANDARDS ................................................................................................... 11 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 12 6.1 INTRODUCTION ............................................................................................................................................. 12 6.2 SAR DEFINITION .......................................................................................................................................... 12 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 13 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 13 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 13 8 SYSTEM VERIFICATION ............................................................................................................ 18 8.1 SYSTEM SETUP ............................................................................................................................................. 18 8.2 SYSTEM VERIFICATION ................................................................................................................................. 19 9 MEASUREMENT PROCEDURES .............................................................................................. 20 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 20 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 22 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 23 9.4 SAR MEASUREMENT FOR LTE ..................................................................................................................... 24 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 26 9.6 POWER DRIFT ............................................................................................................................................... 26 10 AREA SCAN…

Text truncated - open the document above for the full version.

No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 229 of 385 N38 Head ANT4 Date: 10/10/2022 Electronics: DAE4 Sn1331 Medium: H700-6000M Medium parameters used: f = 2575 MHz; σ = 1.984 S/m; ε r = 40.222; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: 5G NR 2575 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(7.12, 7.12, 7.12) Area Scan (101x171x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.55 W/kg Zoom Scan (9x9x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.494 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 2.02 W/kg SAR(1 g) = 0.784 W/kg; SAR(10 g) = 0.318 W/kg Maximum value of SAR (measured) = 1.48 W/kg No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 230 of 385 N38 Body ANT4 Date: 10/10/2022 Electronics: DAE4 Sn1331 Medium: H650-7000M Medium parameters used: f = 2575 MHz; σ = 1.984 S/m; ε r = 40.222; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: 5G NR 2575 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(7.12, 7.12, 7.12) Area Scan (51x121x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.25 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.95 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.52 W/kg SAR(1 g) = 0.733 W/kg; SAR(10 g) = 0.347 W/kg Maximum value of SAR (measured) = 1.22 W/kg No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 231 of 385 N38 Head ANT0 Date: 10/10/2022 Electronics: DAE4 Sn1331 Medium: H700-6000M Medium parameters used: f = 2595 MHz; σ = 1.998 S/m; ε r = 40.134; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: 5G NR N38 2595 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(7.12, 7.12, 7.12) Area Scan (101x171x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.0924 W/kg Zoom Scan (8x10x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.671 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.0560 W/kg SAR(1 g) = 0.025 W/kg; SAR(10 g) = 0.012 W/kg Maximum value of SAR (measured) = 0.0420 W/kg No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 232 of 385 N38 Body ANT0 Date: 10/10/2022 Electronics: DAE4 Sn1331 Medium: H700-6000M Medium parameters used: f = 2595 MHz; σ = 1.998 S/m; ε r = 40.134; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: 5G NR 2595 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(7.12, 7.12, 7.12) Area Scan (61x151x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.06 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.79 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 1.33 W/kg SAR(1 g) = 0.622 W/kg; SAR(10 g) = 0.285 W/kg Maximum value of SAR (measured) = 1.06 W/kg No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 233 of 385 N41 Head ANT4 Date: 9/29/2022 Electronics: DAE4 Sn1331 Medium: H700-6000M Medium parameters used: f = 2501.01 MHz; σ = 1.81 S/m; ε r = 40.08; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: 5G NR 2501.01 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(7.32, 7.32, 7.32) Area Scan (101x171x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.35 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.449 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.93 W/kg SAR(1 g) = 0.767 W/kg; SAR(10 g) = 0.301 W/kg Maximum value of SAR (measured) = 1.43 W/kg No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 234 of 385 N41 Body ANT4 Date: 9/29/2022 Electronics: DAE4 Sn1331 Medium: H700-6000M Medium parameters used: f = 2501.01 MHz; σ = 1.81 S/m; ε r = 40.08; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: 5G NR 2501.01 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(7.32, 7.32, 7.32) Area Scan (101x171x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.36 W/kg Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.880 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 1.55 W/kg SAR(1 g) = 0.721 W/kg; SAR(10 g) = 0.312 W/kg Maximum value of SAR (measured) = 1.19 W/kg No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 235 of 385 N77 Head ANT5 Date: 10/20/2022 Electronics: DAE4 Sn1331 Medium: H700-6000M Medium parameters used: f = 3500.01 MHz; σ =2.845 S/m; ε r =37.45; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: 5G NR 3500.01 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(6.61, 6.61, 6.61) Area Scan (121x211x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.09 W/kg Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 13.54 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 1.35 W/kg SAR(1 g) = 0.533 W/kg; SAR(10 g) = 0.224 W/kg Maximum value of SAR (measured) = 0.982 W/kg No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 236 of 385 N77 Body ANT5 Date: 10/20/2022 Electronics: DAE4 Sn1331 Medium: H700-6000M Medium parameters used: f = 3540 MHz; σ = 2.902 S/m; ε r = 37.373; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: 5G NR 3540 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(6.61, 6.61, 6.61) Area Scan (61x211x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.07 W/kg Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 10.18 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 0.614 W/kg; SAR(10 g) = 0.307 W/kg Maximum val…

Text truncated - open the document above for the full version.

No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 287 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 288 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 289 of 385 900 MHz Dipole Calibration Certificate No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 290 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 291 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 292 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 293 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 294 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 295 of 385 1800 MHz Dipole Calibration Certificate No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 296 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 297 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 298 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 299 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 300 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 301 of 385 1900 MHz Dipole Calibration Certificate No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 302 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 303 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 304 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 305 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 306 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 307 of 385 2300 MHz Dipole Calibration Certificate No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 308 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 309 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 310 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 311 of 385

No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 312 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 313 of 385 2450 MHz Dipole Calibration Certificate No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 314 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 315 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 316 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 317 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 318 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 319 of 385 2600 MHz Dipole Calibration Certificate No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 320 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 321 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 322 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 323 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 324 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 325 of 385 3300 MHz Dipole Calibration Certificate No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 326 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 327 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 328 of 385 No.I22Z70343-SEM01 ©Copyright. All rights reserved by CTTL. Page 329 of 385 N…
