ZCASMA146UMulti-band GSM/WCDMA/LTE/5GNR Phone with Bluetooth,WLAN

The charger should remain close to the electric socket and easily accessible while charging. Printed in Korea
()99


3ev.9.9 English. 0  /20 Package contents • Device • USB cable • Ejection pin •USB power adaptor • Quick start guide The items supplied with the device and their images may vary by region. To turn on the device, press and hold the Side key for a few seconds. Accessing more information 7JTJU
XXXTBNTVOHDPN
UP
WJFX
EFWJDF
JOGPSNBUJPO
UIF
VTFS
NBOVBM
BOE
NPSF t:PV
NBZ
JODVS
BEEJUJPOBM
DIBSHFT
GPS BDDFTTJOH
UIF
*OUFSOFU If your device is frozen and unresponsive, press and hold the Side key and the Volume Down key simultaneously for more than 7 seconds to restart it. • It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods. Doing so may result in afterimages (screen burn-in) or ghosting. To prevent possible hearing damage when using a headset, do not listen to sound at high volume for long periods. Depending on the region, you can view the regulatory information on the device. To view the information, launch the Settings app. QUICK START GUIDE SM-A146U SM-A146U1/DS SM-S146VL SM-A146W • If any part of the device, such as the glass or acrylic body, is broken, smokes, or emits a burning odor, stop using the device immediately. Use the device again only after it has been repaired at a Samsung Service Centre. • Do not turn on or use the device when the battery compartment is exposed. • Do not disassemble or reuse the battery. • Do not allow children or animals to chew or suck the device. • The device can be used in locations with an ambient temperature of 0 °C to °C. You can store the device at an ambient temperatur C to °C. Using or storing the device outside of the recommended temperature ranges may damage the device or reduce the battery ’s lifespan. • Do not use your device in a hot environment or near fire. • Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle. Correct disposal This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste. This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste. PO BOX 12987, DUBLIN, IE Safety information Read all safety information before using the device to ensure safe and proper use. You can view more safety information in the safety information menu of the Settings app. Warning Your device contains magnets, which may affect medical devices, such as pacemakers or implantable cardioverter defibrillators. If you are using any of these medical devices, keep your device a safe distance from them and consult with your physician before you use the device Follow the warnings below to prevent incidents, such as fires or explosions, injuries, or damage to the device • Do not expose the device to physical impact or damage. • Use only Samsung-approved batteries, chargers, and cables specifically designed for your device. • Prevent the multipurpose jack and battery terminals from coming into contact with foreign materials such as metal, liquids, or dust. Specific Absorption Rate (SAR) certification information Your device conforms to U.S. Federal Communications Commission (FCC) standards that limit human exposure to radio frequency (R F) energy emit ted by rad io and telecommunications equipment. These standards prevent the sale of mobile devices that exceed a maximum exposure level (known as the Specific Absorption Rate, or S AR) of 1.6 W/kg . In norma l use, the actual SAR is likely to be much lower, as the d evice has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automati cally emitting lower FCC RF exposure guidelines. Some devices are required to receive approval from the FCC. If your device required FCC approval, you can view the FCC certification by opening Settings About phone S ta tus. SAR information for this and other devices can be found on the FCC FCC Notice FCC Notice The device may cause TV or radio interference if The device may cause TV or radio interference if used in close used in close proximity to receiving equipment. proximity to receiving equipment. The FCC can require you to The FCC can require you to stop using the stop using the mobile device if such mobile device if such interference cannot be eliminated interference cannot be eliminated . . Information about the RF exposure from FCC In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both international and U.S. standards. The design of this tablet complies with FCC guidelines and these international standards. Body effects For body operation, this device has been tested and meets FCC RF exposure guidelines when used with any accessory that contains no metal and which provides a minimum separation distance of 15mm between this device and the body of the user. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Class B Compliance under article 15 of the FCCClass B Compliance under article 15 of the FCC This device This device complies with Part 15 of the FCCcomplies with Part 15 of the FCC Rules. Operation is subject to Rules. Operation is subject to the condition thatthe condition that this device does not cause harmful this device does not cause harmful interference.interference. Operation is subject to the following twoOperation is subject to the following two conditions: (1) this device …

Text truncated - open the document above for the full version.

www.samsung.com USER MANUAL SM-A146U SM-A146U1/DS SM-S146VL SM-A146W English. 11/2022. Rev.1.0 2 Table of Contents Basics 4 Read me first 6 Devic e overheating situations and solutions 9 Device layout and functions 14 Charging the battery 16 SIM or USIM card (nano-SIM card) 18 Memor y card (microSD card) 20 Turning the device on and off 21 Initial setup 21 Samsung ac count 22 Tr ansferring data from your previous device (Smart Switch) 24 Understanding the screen 33 Notification panel 35 Entering text Apps and features 37 Installing or uninstalling apps 38 P hone 41 Contacts 43 Messages 44 I nternet 45 C amera 56 Gallery 60 Multi window 62 Samsung Not es 63 Samsung Members 63 Galax y Shop 63 Calendar 64 Reminder 65 Voice Recorder 65 My Files 65 Clock 66 C alculator 66 Game Launcher 67 Sharing c ontent 68 Samsung Global Goals 68 Google apps Table of Contents 3 91 Advanced features 92 Motions and gestures 93 Dual M essenger 94 Digital Wellbeing and parental controls 94 Batt ery and device care 94 Optimising your device 95 Ba ttery 95 S torage 95 Memory 96 Devic e protection 96 Ultra da ta saving 96 Apps 96 Gener al management 98 A ccessibility 99 Sof tware update 99 Remot e support 100 About phone Appendix 101 Troubleshooting 106 Remo ving the battery Settings 69 Introduction 69 Samsung account 69 C onnections 70 Wi-Fi 72 Bluetooth 73 NFC and con tactless payments (NFC-enabled models) 74 Data sa ver 75 Mobile data only apps 75 Mobile Hotspot 76 Mor e connection settings 77 Sounds and vibr ation 78 Sound qualit y and effects 78 Notifications 79 Displa y 80 Motion smoothness 80 W allpaper 80 T hemes 80 Home screen 81 Lock screen 81 Smart L ock 82 Biometrics and secur ity 83 Face recognition 85 Finger print recognition 89 P rivacy 89 L ocation 89 G oogle 90 Accounts and backup 90 Samsung Cloud 4 Basics Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, model specifications, or device’s software. • The device may require a connection to a Wi-Fi or mobile network when using some apps or features. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing software from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Basics 5 • Depending on the region or service provider, a screen protector is attached for protection during production and distribution. Damage to the attached screen protector is not covered by the warranty. • You can see the touchscreen clearly even in strong outdoor sunlight by automatically adjusting the contrast range based on the surrounding environment. Due to the nature of the product, displaying fixed graphics for extended periods may result in afterimages (screen burn-in) or ghosting. – It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods and turn off the touchscreen when not using the device. – You can set the touchscreen to turn off automatically when you are not using it. Launch the Settings app, tap Display → Screen timeout, and then select the length of time you want the device to wait before turning off the touchscreen. – To set the touchscreen to automatically adjust its brightness based on the surrounding environment, launch the Settings app, tap Display, and then tap the Adaptive brightness switch to activate it. • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, launch the Settings app and tap About phone → Status information. If your device does not have an FCC ID, it means that the device has not been authorised for sale in the U.S. or its territories and may only be brought to the U.S. for the owner’s personal use. • The use of mobile devices on aeroplanes or ships may be subject to federal and local guidelines and restrictions. Check with the appropriate authorities and always follow crew instructions regarding when and how you may use your device. • Depending on the region, you can view the regulatory information on the device. To view the information, launch the Settings app and tap About phone → Regulatory information . • Your device contains magnets. Keep a safe distance between your device and objects that may be affected by magnets such as credit cards and implantable medical …

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 Authority to Act as Agent Date: __1115,2022_____ American Certification Body, Inc. 6731 Whit tier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______(CTTL,Telecommunication Technology Labs,CAICT)_ _____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject t o denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____12 months_____ By: ____________ _____Jenni Chun_________ (Signature 1 ) (Print name) Title: ______General M anager________ On behalf of: __Samsung Electronics Co., Ltd. ___ (Company Na me) Telephone: ___973-808-6375____ 022818 – 11 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 Request for Confidentiality Date: _1115,2022__ Subject: Confidentiality Request for: ____ZCASMA146U____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐Short Term☒Permanent Block Diagrams ☒Short Term External Photos ☒Short Term☐Permanent * 2 Internal Photos ☐Short Term☒Permanent Operation Description/Theory of Operation ☐Short Term☒Permanent Parts List & Placement/BOM ☐Short Term☒Permanent Tune-Up Procedure ☐Short Term☒Permanent Schematics ☒Short Term Test Setup Photos ☒Short Term☐Permanent * 3 User’s Manual _____SAMSUNG Electronics______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: regarding specific information that must accompany these requests. 022818 – 11 Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: ______ /General Manager______ ___Jenni Chun____ (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. 022818 – 11

Declaration of pre-install of OTT voice service We, [Samsung Electronics. Co., Ltd.], as the manufacturer of FCC ID: ZCASMA146U（Model: SM-A146U）, declares that this model supports Wi-Fi Calling and only pre-installs Google DUO of OTT service with Android OS， and doesn’t support any other OTT services. We tested DUO using the software from Google according to KDB 285076 D02v04 Guidance for performing T-Coil tests for air interfaces supporting VOIP to support CMRS based telephone services. APPROVED BY: Projects Manager: JP KIM Signature: Company name: Samsung Electronics. Co., Ltd. Date: 2022-11-15

Date: 2022-11-15 Subject：5G Sub-6GHz HAC Attestation FCC ID： ZCASMA146U To Whom it May Concern We attest the handset as designed is expected to exhibit similar audio intensity levels between a voice call placed over a VoLTE connection and over a 5G Sub-6GHz connection. The combination of ABM1 values from a VoLTE connection and ABM2 values from the 5G Sub-6GHz connection, while maintaining a S+N/N margin of 3 dB or greater from the rating threshold, is expected to represent the HAC performance when operating in 5G Sub-6GHz bands. Sincerely Signature: Printed Name: Jenni Chun Position: General Manager Company Name: Samsung Electronics. Co., Ltd. Address: 19 Chapin Rd.,Building D Pine Brook, NJ 07058

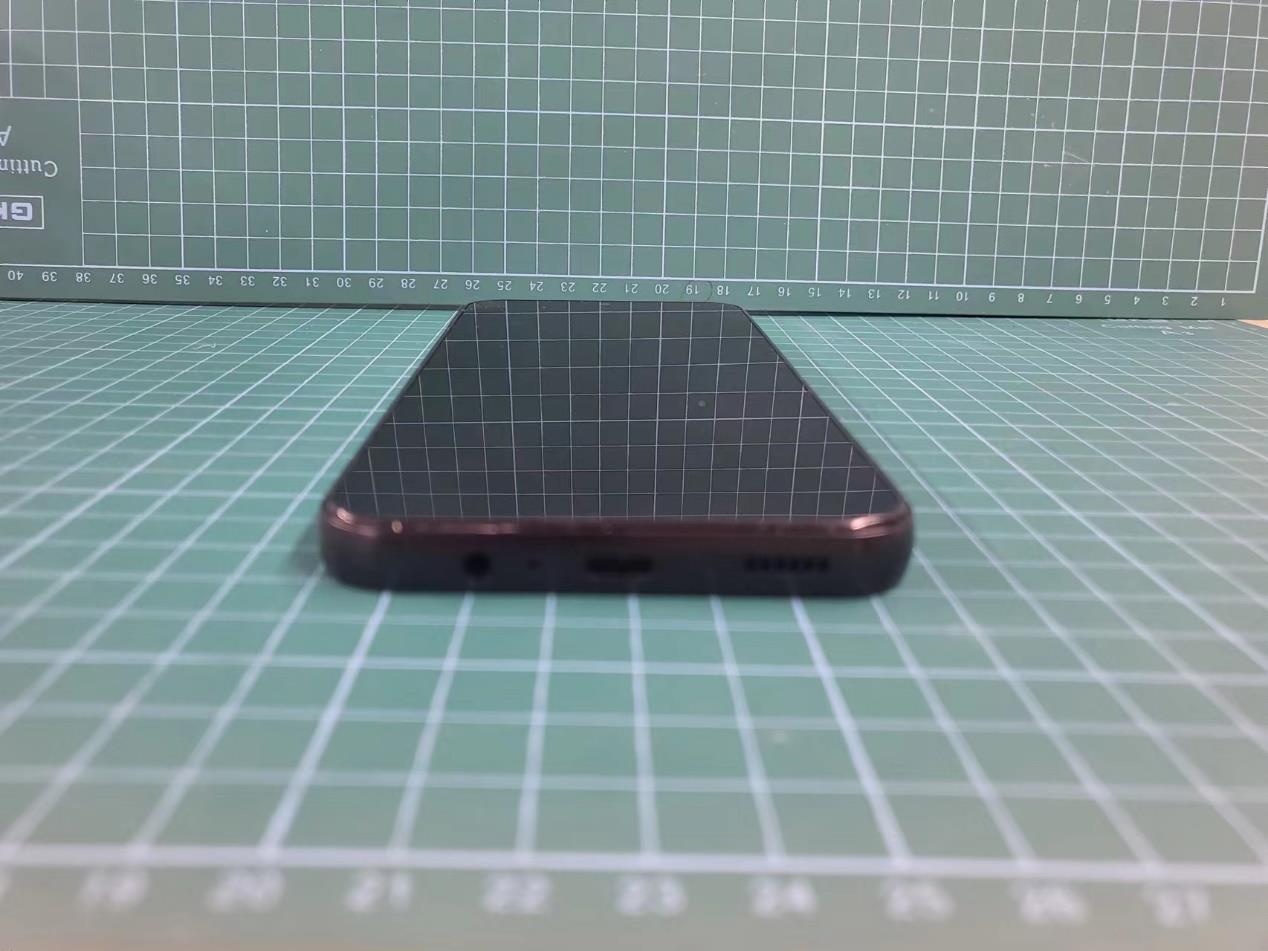

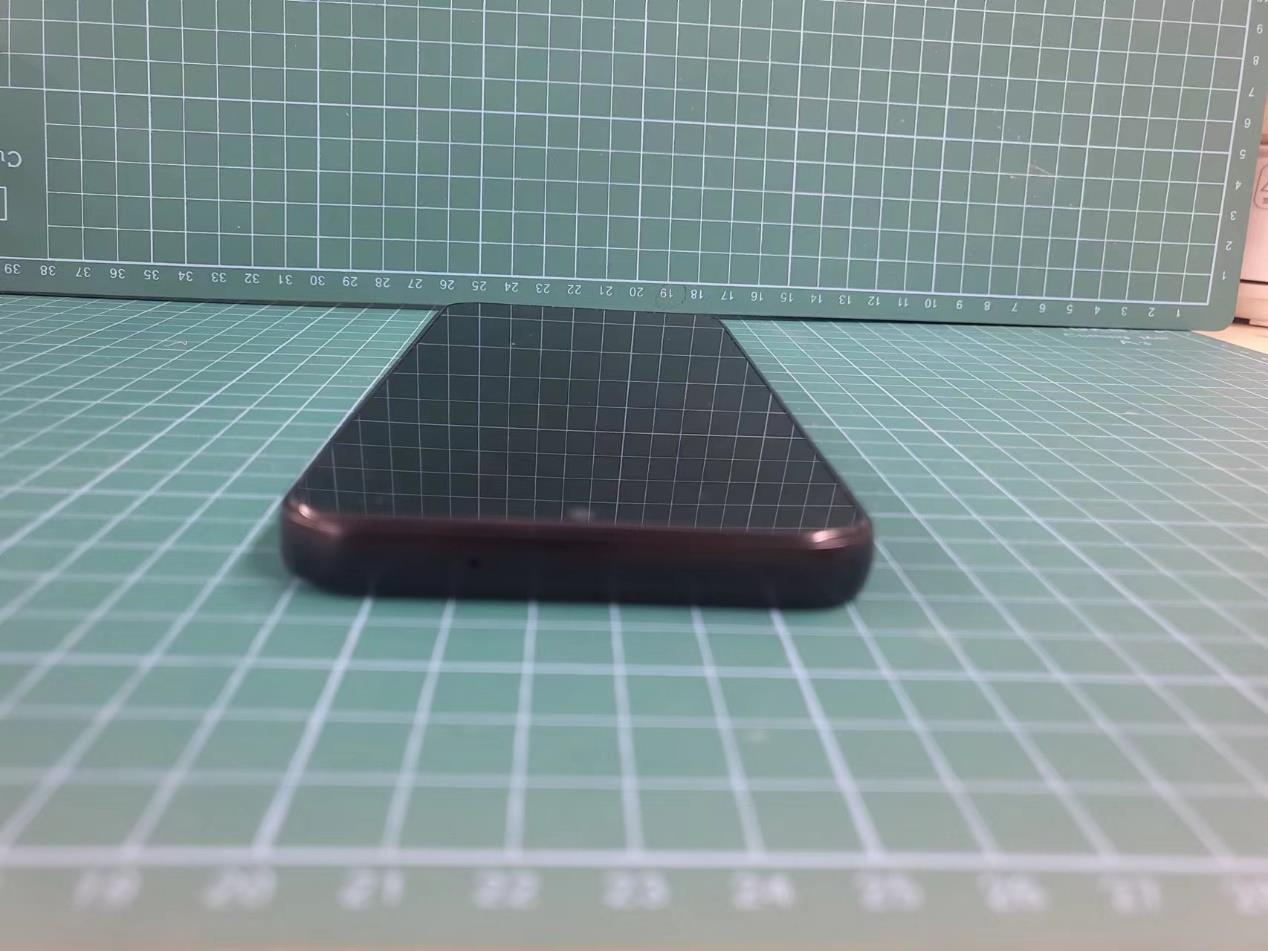

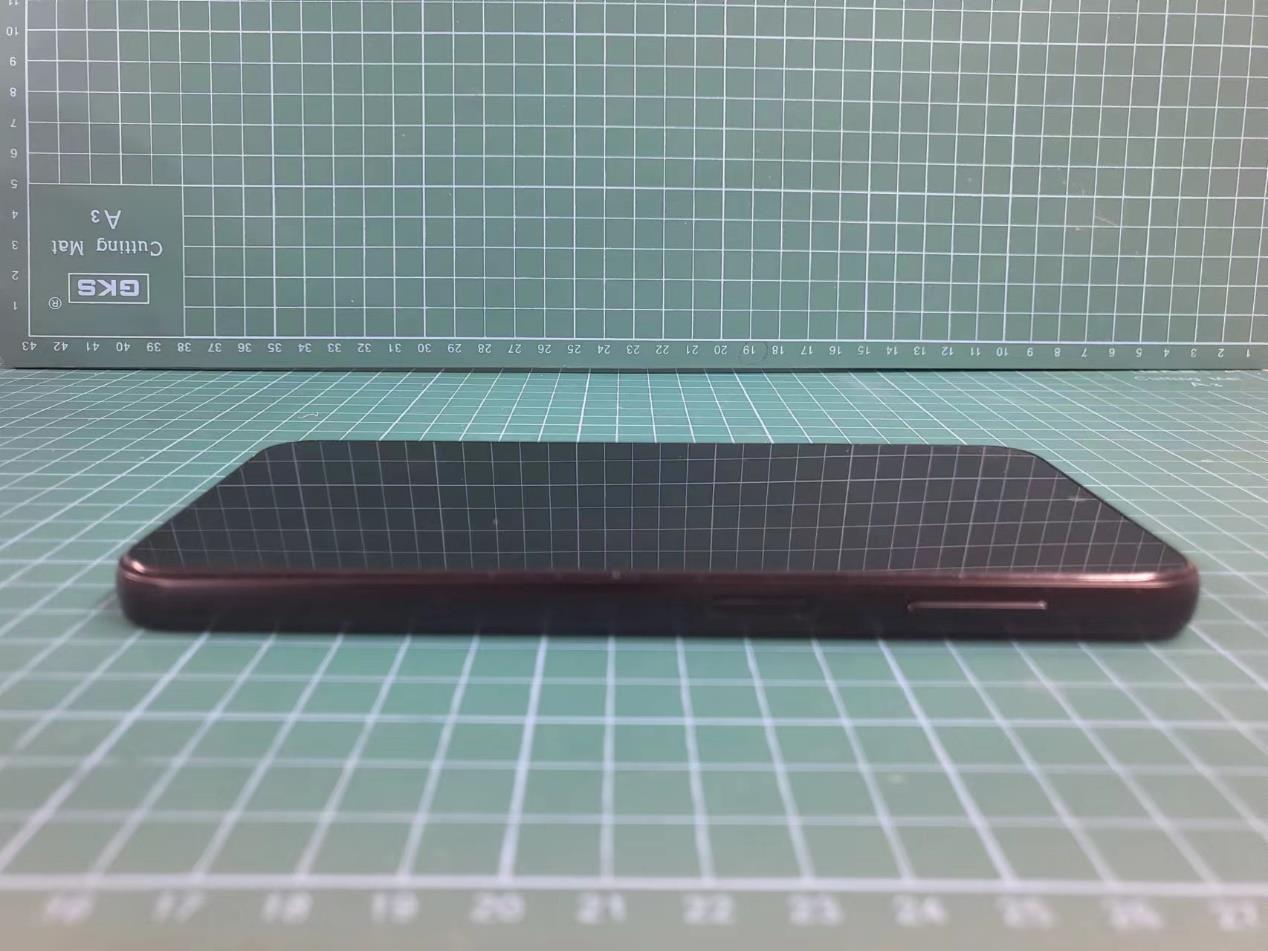

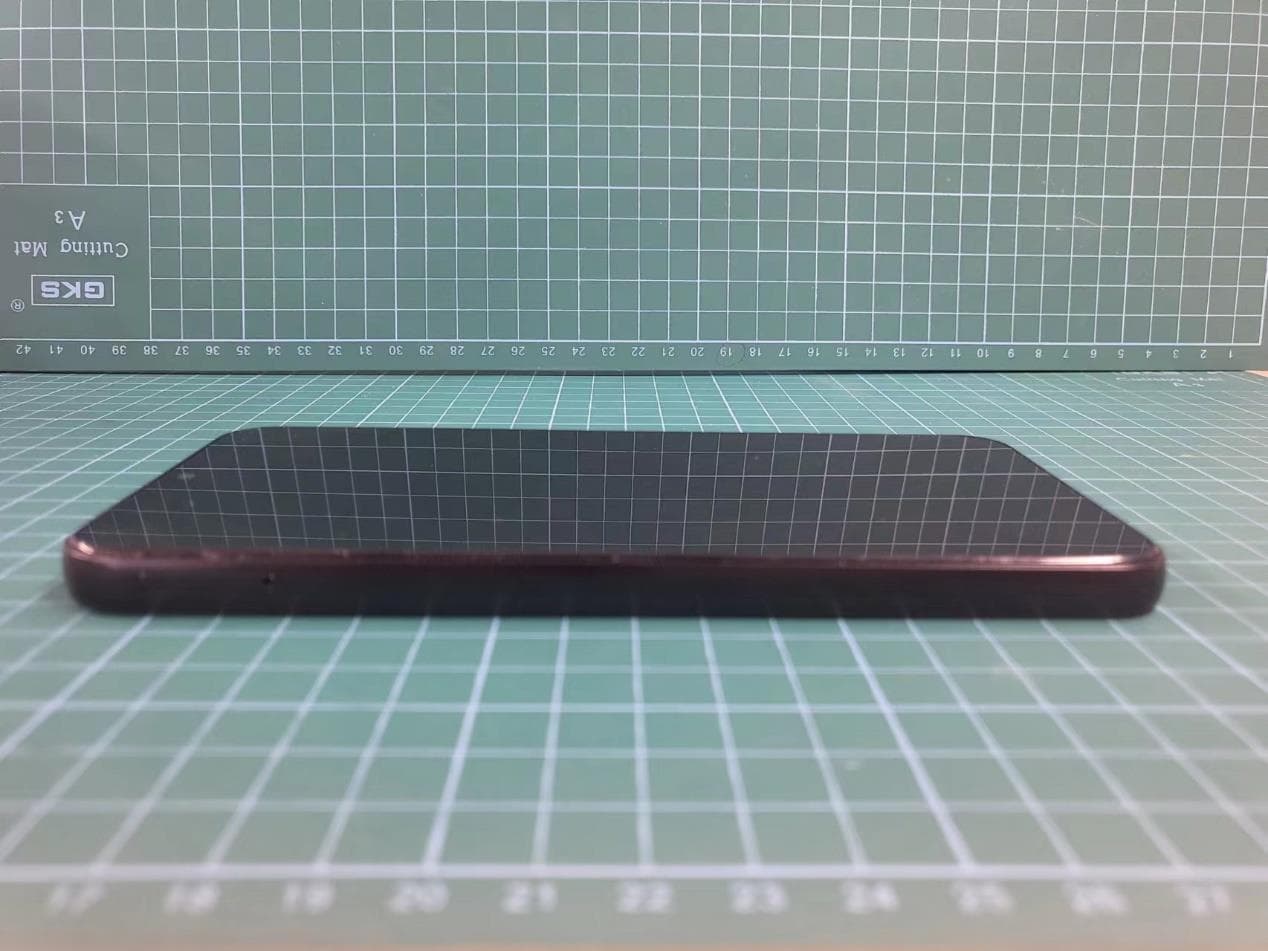

Sample01 Sample02 Sample03 Sample04 Sample05 Sample06 SimTray： Data Cable 1：RFT. (EP-DT725BWE) Data Cable 2：RFT. (EP-DN980BWZ) Data Cable 3：CRESYN. (EP-DT725BWE) Data Cable 4：Broad. (EP-DN980BWE) HS01（GH59-15054A Shenzhen Grandsound）： CH01: EP-T1510 HAEM

Label location SAMSUNG

U U

PCB01 PCB02 PCB03 PCB04 PCB05 PCB06 PCB07 Battery1:

No.I22Z70331-SEM01 ©Copyright. All rights reserved by CTTL. Page 1 of 475 SAR TEST REPORT No. I22Z70331-SEM01 For SAMSUNG Electronics Co., Ltd. Multi-band GSM/WCDMA/LTE/5GNR Phone with Bluetooth,WLAN Model Name: SM-A146U with Hardware Version: REV1.0 Software Version: A146U.001 FCC ID: ZCASMA146U Issued Date: 2022-11-22 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I22Z70331-SEM01 ©Copyright. All rights reserved by CTTL. Page 2 of 475 REPORT HISTORY Report Number Revision Issue Date Description I22Z70331-SEM01 Rev.0 2022-11-07 Initial creation of test report I22Z70331-SEM01 Rev.1 2022-11-18 Update the information on section 2. Update the information on section 4.1. Update the information for duty cycle on page 229. I22Z70331-SEM01 Rev.2 2022-11-22 Update the information on section 4.1. Update the information for DLCA on page 181/182. No.I22Z70331-SEM01 ©Copyright. All rights reserved by CTTL. Page 3 of 475 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................................................ 10 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .......................................................................... 10 5 TEST METHODOLOGY .............................................................................................................. 11 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 11 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 11 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 12 6.1 INTRODUCTION ............................................................................................................................................. 12 6.2 SAR DEFINITION .......................................................................................................................................... 12 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 13 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 13 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 13 8 SYSTEM VERIFICATION ............................................................................................................ 15 8.1 SYSTEM SETUP ............................................................................................................................................. 15 8.2 SYSTEM VERIFICATION ................................................................................................................................. 16 9 MEASUREMENT PROCEDURES .............................................................................................. 17 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 17 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 20 9.4 SAR MEASUREMENT FOR LTE ..................................................................................................................... 21 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 23 9.6 POWER DRIFT ......................................................…

Text truncated - open the document above for the full version.

No.I22Z70331-SEM01 ©Copyright. All rights reserved by CTTL. Page 292 of 475 LTE B41 PC2 Head ANT4 DSI1 Date: 10/23/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 2680 MHz; σ = 2.097 S/m; ε r = 38.854; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: LTE Band41 2680 MHz Duty Cycle: 1:2.309 Probe: EX3DV4 - SN7600 ConvF(7.62, 7.62, 7.62) Area Scan (81x121x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.918 W/kg Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.452 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.452 W/kg; SAR(10 g) = 0.184 W/kg Maximum value of SAR (measured) = 0.811 W/kg No.I22Z70331-SEM01 ©Copyright. All rights reserved by CTTL. Page 293 of 475 LTE B41 PC2 Body ANT4 DSI2 Date: 10/23/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 2680 MHz; σ = 2.097 S/m; ε r = 38.854; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: LTE Band41 (0) Frequency: 2680 MHz Duty Cycle: 1:2.309 Probe: EX3DV4 - SN7600 ConvF(7.62, 7.62, 7.62) Area Scan (111x161x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.01 W/kg Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.038 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 1.25 W/kg SAR(1 g) = 0.597 W/kg; SAR(10 g) = 0.300 W/kg Maximum value of SAR (measured) = 0.986 W/kg No.I22Z70331-SEM01 ©Copyright. All rights reserved by CTTL. Page 294 of 475 LTE B48 Head ANT5 DSI1 Date: 10/24/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 3560 MHz; σ = 2.849 S/m; ε r = 37.997; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: LTE Band48 3560 MHz Duty Cycle: 1:1.5787 Probe: EX3DV4 - SN7600 ConvF(7.34, 7.34, 7.34) Area Scan (81x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.63 W/kg Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 11.40 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 2.26 W/kg SAR(1 g) = 0.717 W/kg; SAR(10 g) = 0.314 W/kg Maximum value of SAR (measured) = 1.61 W/kg No.I22Z70331-SEM01 ©Copyright. All rights reserved by CTTL. Page 295 of 475 LTE B48 Body ANT5 DSI2 Date: 10/24/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 3625 MHz; σ = 3.04 S/m; ε r = 36.991; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: LTE Band48 3625 MHz Duty Cycle: 1:1.5787 Probe: EX3DV4 - SN7600 ConvF(7.34, 7.34, 7.34) Area Scan (91x131x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.14 W/kg Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 1.655 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 1.52 W/kg SAR(1 g) = 0.607 W/kg; SAR(10 g) = 0.261 W/kg Maximum value of SAR (measured) = 1.08 W/kg No.I22Z70331-SEM01 ©Copyright. All rights reserved by CTTL. Page 296 of 475 LTE B66 Head ANT4 DSI1 Date: 10/1/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 1770 MHz; σ = 1.408 S/m; ε r = 41.534; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: LTE Band66 1770 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7600 ConvF (8.93, 8.93, 8.93) Area Scan (81x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.01 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.60 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.55 W/kg SAR(1 g) = 0.722 W/kg; SAR(10 g) = 0.336 W/kg Maximum value of SAR (measured) = 1.29 W/kg No.I22Z70331-SEM01 ©Copyright. All rights reserved by CTTL. Page 297 of 475 LTE B66 Body ANT4 DSI2 Date: 10/1/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 1770 MHz; σ = 1.408 S/m; ε r = 41.534; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: LTE Band66 1770 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7600 ConvF(8.93, 8.93, 8.93) Area Scan (91x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.955 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.46 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 1.20 W/kg SAR(1 g) = 0.615 W/kg; SAR(10 g) = 0.332 W/kg Maximum value of SAR (measured) = 0.959 W/kg No.I22Z70331-SEM01 ©Copyright. All rights reserved by CTTL. Page 298 of 475 LTE B71 Head ANT0 Date: 10/2/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 688 MHz; σ = 0.86 S/m; ε r = 43.793; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: LTE Band71 688 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7600 ConvF(10.74, 10.74, 10.74) Area Scan (101x151x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.248 W/kg Zoom Scan (7x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.233 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.274 W/kg SAR(1 g) = 0.215 W/kg; SAR(10 g) = 0.174 W/kg Maximum value of SAR (measured) = 0.252 W/kg No.I22Z70331-SEM01 ©Copyright. All rights reserved by CTTL. Page 299 of 475 LTE B71 Body ANT0 Date: 10/2/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 688 MHz; σ = 0.86 S/m; ε r = 43.793; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liquid Temperature: 22.5 o C Communication System: LTE Band71 688 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7600 ConvF(10.74, 10.74, 10.74) Area Scan (91x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.441 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm…
