Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 Authority to Act as Agent Date: __0220,2021_____ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______(CTTL,Telecommunication Technology Labs,CAICT)_ _____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____12 months_____ By: ____________ _____Jenni Chun_________ (Signature 1 ) (Print name) Title: ______Gen eral Manager________ On behalf of: __Samsung Electronics Co., Ltd. ___ (Compa ny Name) Telephone: ___973-808 -6375____ 022818 – 11 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 Request for Confidentiality Date: _0220,2021__ Subject: Confidentiality Request for: ____ZCASMT225____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐Short Term☒Permanent Block Diagrams ☒Short Term External Photos ☒Short Term☐Permanent * 2 Internal Photos ☐Short Term☒Permanent Operation Description/Theory of Operation ☐Short Term☒Permanent Parts List & Placement/BOM ☐Short Term☒Permanent Tune-Up Procedure ☐Short Term☒Permanent Schematics ☒Short Term Test Setup Photos ☒Short Term☐Permanent * 3 User’s Manual _____SAMSUNG Electronics______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: regarding specific information that must accompany these requests. 022818 – 11 Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: ______ /General Manager______ ___Jenni Chun____ (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. 022818 – 11

Statement We, __ Samsung Electronics Co., Ltd _____ declared that our device with FCC ID: ZCASMT225, is a multi-band mobile phone which supports 2G : 850/ 900/ 1800/ 1900 3G : B1/ B2/ B4/ B5/ B8 LTE FDD : B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B17/ B20/ B28/ B66 LTE TDD : B38/ B40 WiFi 11a/11b/11g/11n/11ac, Bluetooth 5.0 Contact Person: Jenni Chun E-mail: [email protected]

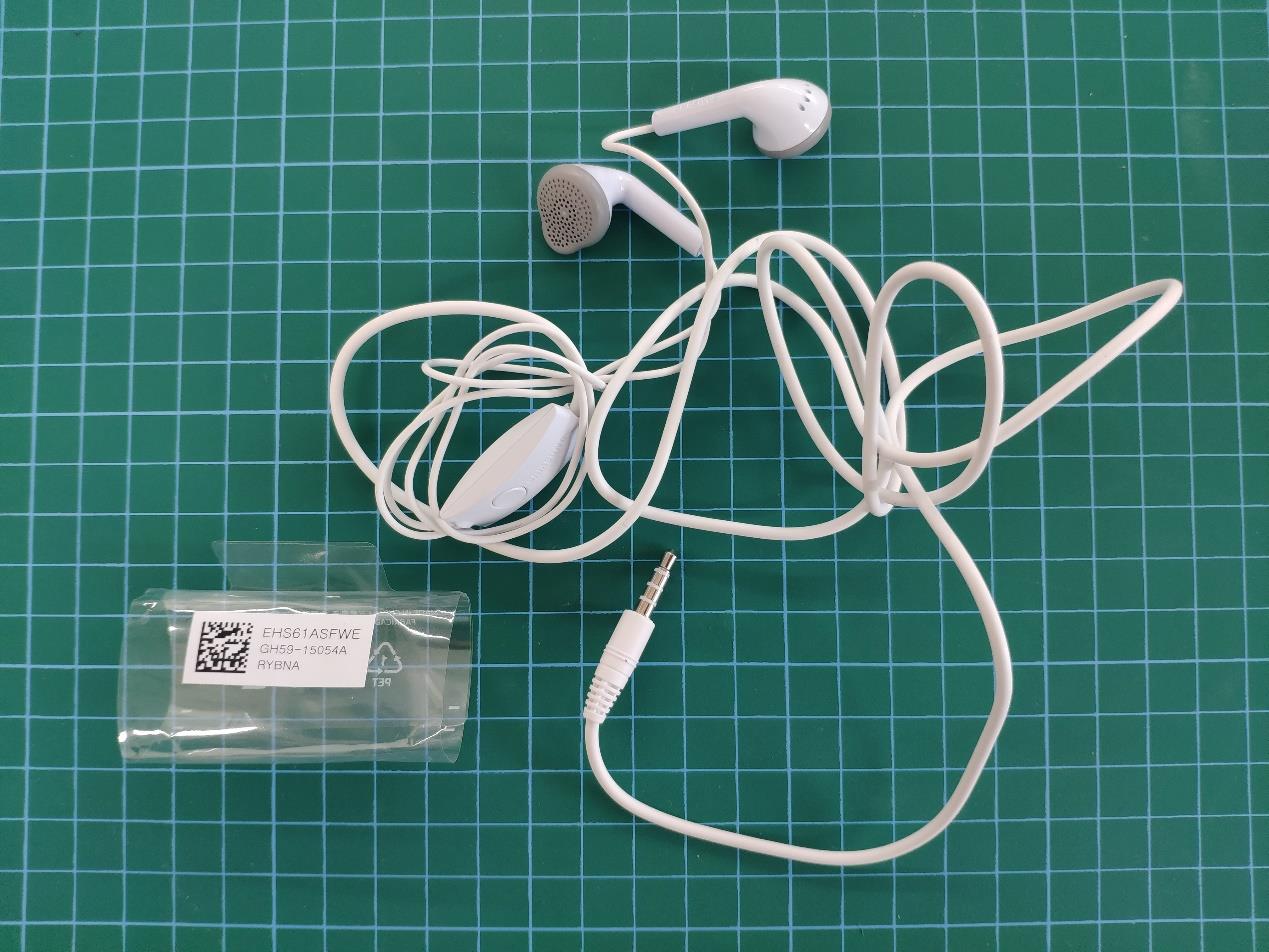

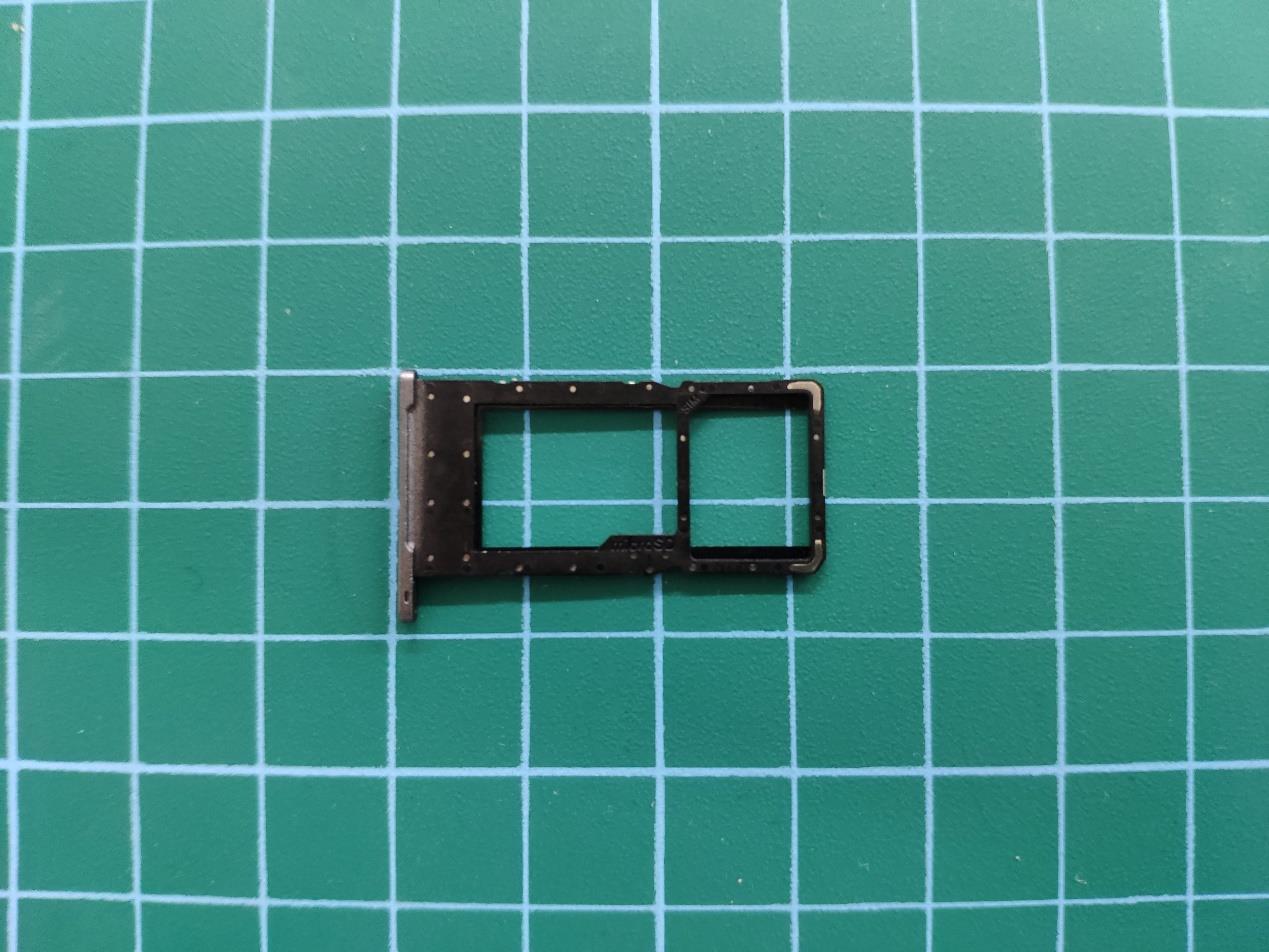

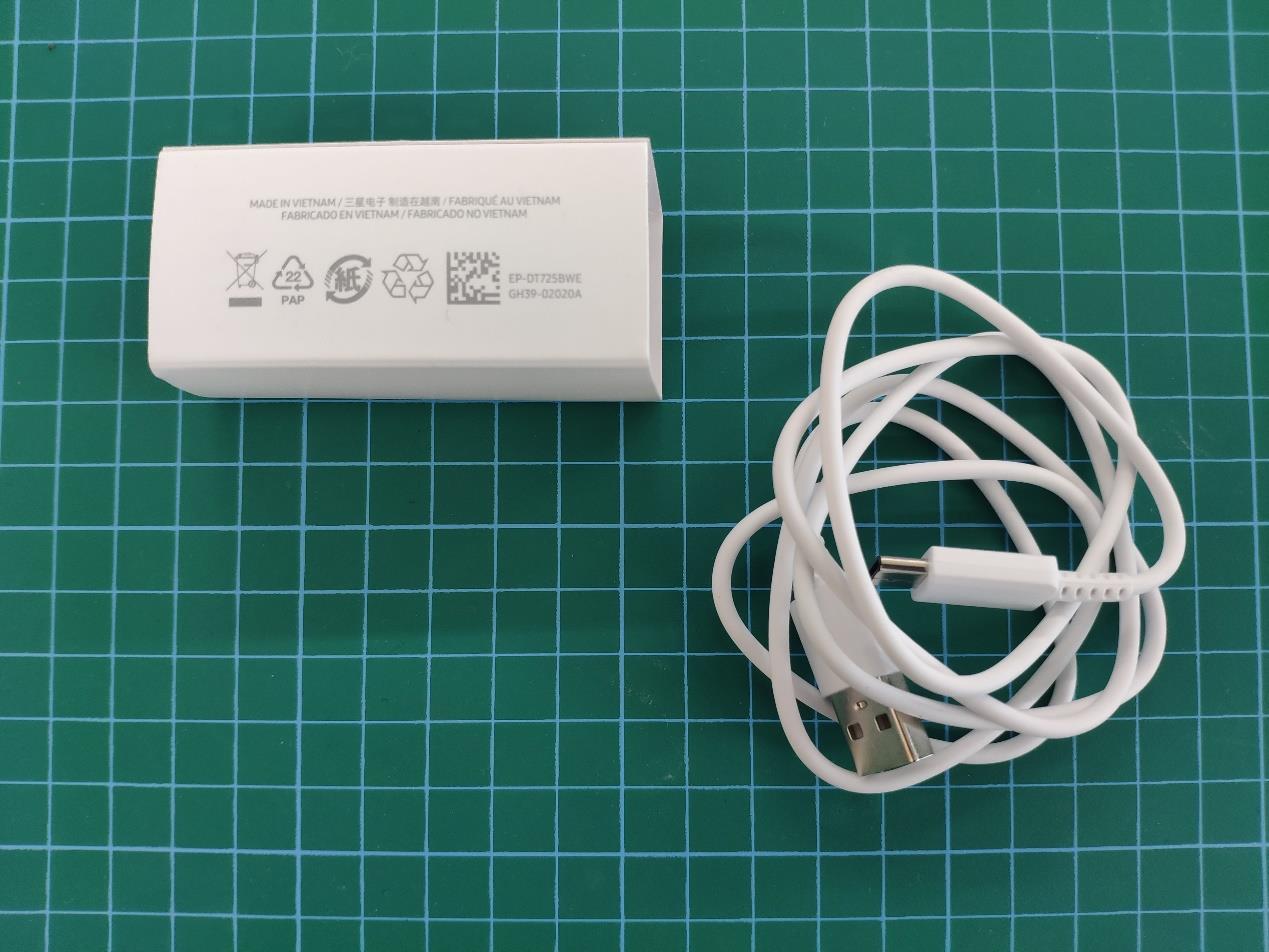

Sample01 Sample02 Sample03 Sample04 Sample05 Sample06 Sing SIM tray & Micro SD tray: HS01: ALMUS（EHS61ASFWE） HS02: Crysn（EHS61ASFWE） Data Cable1：Samsung Electronics Co., Ltd. (EP-DT725BWE) CH01: R.F. Tech (EP-TA50JWE) CH02: HAEM (EP-TA50JWE) CH03: DongYang (EP-TA200) CH04: HAEM (EP-TA200) CH05: Solu-M (EP-TA200) CH06: R.F. Tech (EP-TA200)

PCB01 PCB02 PCB03 PCB04 PCB05 PCB06 PCB07 PCB08: Battery:

No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 1 of 267 SAR TEST REPORT No. I20Z70378-SEM01 For Samsung Electronics Co Ltd Tablet PC Modelname: SM-T225 With Hardware Version: REV1.0 Software Version: T225.001 FCC ID: ZCASMT225 Issued Date: 2021-3-29 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 51, Xueyuan Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 2 of 267 REPORT HISTORY Report Number Revision Issue Date Description I20Z70378-SEM01 Rev.0 2021-2-24 Initial creation of test report I20Z70378-SEM01 Rev.1 2021-2-26 Update the information on section 5.2 of test report. Update the information on section 11.2 and 11.3 of test report. I20Z70378-SEM01 Rev.2 2021-3-29 Update the information on page86 of test report. No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 3 of 267 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS ................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 17 8.1 SYSTEM SETUP ............................................................................................................................................. 17 8.2 SYSTEM VERIFICATION ................................................................................................................................. 18 9 MEASUREMENT PROCEDURES .............................................................................................. 19 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 19 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 20 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 22 9.4 SAR MEASUREMENT FOR LTE ..................................................................................................................... 23 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 25 9.6 POWER DRIFT ............................................................................................................................................... 25 10 AREA SCAN BASED…

Text truncated - open the document above for the full version.

No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 168 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 169 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 170 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 171 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 172 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 173 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 174 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 175 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 176 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 177 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 178 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 179 of 267

No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 180 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 181 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 182 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 183 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 184 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 185 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 186 of 267

No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 187 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 188 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 189 of 267 ANNEX H Dipole Calibration Certificate 750 MHz Dipole Calibration Certificate No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 190 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 191 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 192 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 193 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 194 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 195 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 196 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 197 of 267 835 MHz Dipole Calibration Certificate No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 198 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 199 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 200 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 201 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 202 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 203 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 204 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 205 of 267 1750 MHz Dipole Calibration Certificate No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 206 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 207 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 208 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 209 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 210 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 211 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 212 of 267

No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 213 of 267 1900 MHz Dipole Calibration Certificate No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 214 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 215 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 216 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 217 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 218 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 219 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 220 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 221 of 267 2450 MHz Dipole Calibration Certificate No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 222 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 223 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 224 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 225 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 226 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 227 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 228 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 229 of 267 2600 MHz Dipole Calibration Certificate No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 230 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 231 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 232 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 233 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 234 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 235 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 236 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 237 of 267 5G Dipole Calibration Certificate No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 238 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 239 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 240 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 241 of 267

No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 242 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 243 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 244 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 245 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 246 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 247 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 248 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 249 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 250 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 251 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 252 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 253 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 254 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 255 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 256 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 257 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 258 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 259 of 267 No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 260 of 267 ANNEX I Sensor Triggering Data Summary Main Antenna: SAR Sensor Back(mm) 26(mm) SAR Sensor Front(mm) 22(mm) SAR Sensor Top(mm) 26(mm) SAR Sensor Left(mm) 13(mm) WIFI Atenna(2.4G&5G): SAR Sensor Back(mm) 8(mm) SAR Sensor Front(mm) 14(mm) SAR Sensor Top(mm) 12(mm) According to the above description, this device was tested by the manufacturer to determine the SAR sensor triggering distances for the front, rear, left edge and top edge for main antenna and front,rear ,top edge for WIFI antenna of the device. The measured power state within ±5mm of the triggering points (or until touching the phantom) is included for rear and each applicable edge. To ensure all production units are compliant it is necessary to test SAR at a distance 1mm less than the smallest distance from the device and SAR phantom with the device at maximum output power without power reduction. We tested the level and got the different proximity sensor triggering distances for front, rear, left edge and top edge. But the manufacturer has declared 22mm(front),26mm (rear), 26mm (top) / 13mm (left edge) are the most conservative triggering distance for main antenna and 8mm (rear) / 12mm (top edge) , 14mm(for front) for WiFi antenna. Therefore base on the most conservative triggering distances as above, additional SAR measurements were required at 21mm(front),25mm (rear), 25mm (top),12mm (left edge) for main antenna and 7mm (rear) / 11mm (top edge) , 13mm(for front)for wifi antenna. Main antenna Rear Moving device toward the phantom: The power state Distance [mm] 31 30 29 28 27 26 25 24 23 22 21 Main antenna Normal Normal Normal Normal Normal Low Low Low Low Low Low Moving device away from the phantom: The power state Distance [mm] 21 22 23 24 25 26 27 28 29 30 31 Main antenna Low Low Low Low Low Low Normal Normal Normal Normal Normal No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 261 of 267 Front Moving device toward the phantom: The power state Distance [mm] 27 26 25 24 23 22 21 20 19 18 17 Main antenna Normal Normal Normal Normal Normal Low Low Low Low Low Low Moving device away from the phantom: The power state Distance [mm] 17 18 19 20 21 22 23 24 25 26 27 Main antenna Low Low Low Low Low Low Normal Normal Normal Normal Normal Top Edge Moving device toward the phantom: The power state Distance [mm] 31 30 29 28 27 26 25 24 23 22 21 Main antenna Normal Normal Normal Normal Normal Low Low Low Low Low Low Moving device away from the phantom: The power state Distance [mm] 21 22 23 24 25 26 27 28 29 30 31 Main antenna Low Low Low Low Low Low Normal Normal Normal Normal Normal Left Edge Moving device toward the phantom: The power state Distance [mm] 18 17 16 15 14 13 12 11 10 9 8 Main antenna Normal Normal Normal Normal Normal Low Low Low Low Low Low Moving device away from the phantom: The power state Distance [mm] 8 9 10 11 12 13 14 15 16 17 18 Main antenna Low Low Low Low Low Low Normal Normal Normal Normal Normal No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 262 of 267 WIFI antenna Rear Moving device toward the phantom: The power state Distance [mm] 13 12 11 10 9 8 7 6 5 4 3 Main antenna Normal Normal Normal Normal Normal Low Low Low Low Low Low Moving device away from the phantom: The power state Distance [mm] 3 4 5 6 7 8 9 10 11 12 13 Main antenna Low Low Low Low Low Low Normal Normal Normal Normal Normal Top Edge Moving device toward the phantom: The power state Distance [mm] 18 17 16 15 14 13 12 11 10 9 8 Main antenna Normal Normal Normal Normal Normal Low Low Low Low Low Low Moving device away from the phantom: The power state Distance [mm] 8 9 10 11 12 13 14 15 16 17 18 Main antenna Low Low Low Low Low Low Normal Normal Normal Normal Normal Front Moving device toward the phantom: The power state Distance [mm] 19 18 17 16 15 14 13 12 11 10 9 Main antenna Normal Normal Normal Normal Normal Low Low Low Low Low Low Moving device away from the phantom: The power state Distance [mm] 9 10 11 12 13 14 15 16 17 18 19 Main antenna Low Low Low Low Low Low Normal Normal Normal Normal Normal The influence of table tilt angles to proximity sensor triggering is determined by positioning each edge that contains a transmitting antenna, perpendicular to the flat phantom, at the smallest sensor triggering test distance by rotating the device around the edge next to the phantom in ≤ 10° increments until the tablet is ±45° or more from the vertical position at 0°. No.I20Z70378-SEM01 ©Copyright. All rights reserved by CTTL. Page 263 of 267 The rear evaluation for main antenna The top edge e…

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. TEST REPORT No. I20Z70378-WMD01 for Samsung Electronics Co., Ltd Tablet PC Model Name: SM-T225 FCC ID: ZCASMT225 with Hardware Version: REV1.0 Software Version: T225.001 Issued Date: 2021-02-26 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel: +86(0)10-62304633-2512, Fax: +86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn I20Z70378-WMD01 ©Copyright. All rights reserved by CTTL. Page 2 of 62 REPORT H…
