www.samsung.com USER MANUAL English. 06/2019. Rev.1.0 SM-T500 SM-T505 2 Table of Contents Basics 4 Read me first 6 Devic e overheating situations and solutions 10 Device layout and functions 13 Battery 16 SIM or USIM card (nano-SIM card) (SM-T505) 18 Memory card (microSD card) 22 Tur ning the device on and off 23 Initial setup 24 Samsung account 26 Tr ansferring data from your previous device (Smart Switch) 28 Understanding the screen 39 Notification panel 41 Entering text Apps and features 44 Installing or uninstalling apps 46 Phone (SM-T505) 51 Contacts 56 Messages (SM-T505) 59 I nternet 61 Email 62 Camera 70 Gallery 76 Multi windo w 79 Samsung Members 79 Samsung Not es 80 Calendar 81 My Files 82 Clock 84 Calculator 84 Kids Home 86 Sharing c ontent 87 Google apps Table of Contents 3 113 Device care 113 Optimising your device 114 Batt ery 115 Storage 115 Memory 115 Secur ity 116 Apps 116 General management 117 Accessibility (SM-T505) 118 Software update 118 User manual 119 About tablet Appendix 120 Troubleshooting 127 Removing the battery Settings 89 Introduction 89 Connections 90 Wi-F i 92 Bluetooth 94 Data saver (SM-T505) 94 Mobile data only apps (SM-T505) 95 Mobile Hotspot and Tethering (SM-T505) 96 More connection settings 98 Sounds and vibration 98 Dolby Atmos (surround sound) (SM-T505) 99 Notifications 99 Display 100 Night mode 101 Changing the screen mode or adjusting the display colour (SM-T500) 102 Scr eensaver 103 Wallpaper 103 Lock screen 104 Smart Lock 104 Secur ity 105 Acc ounts and backup 106 Users 108 Samsung Cloud 109 Google 110 Advanc ed features 110 Motions and gestures 111 Digital wellbeing 4 Basics Read me first Please read this manual before using the device to ensure safe and proper use. •D escriptions are based on the device’s default settings. •S ome content may differ from your device depending on the region, service provider, model specifications, or device’s software. •C ontent (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. •S amsung is not liable for performance issues caused by apps supplied by providers other than Samsung. •S amsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. •S oftware, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. •Y ou may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. (SM-T505) •D efault apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. Basics 5 • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. • Depending on the region or service provider, a screen protector is attached for protection during production and distribution. Damage to the attached screen protector is not covered by the warranty. • You can see the touchscreen clearly even in strong outdoor sunlight by automatically adjusting the contrast range based on the surrounding environment. Due to the nature of the product, displaying fixed graphics for extended periods may result in afterimages (screen burn-in) or ghosting. – It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods and turn off the touchscreen when not using the device. – You can set the touchscreen to turn off automatically when you are not using it. Launch the Settings app, tap Display → Screen timeout, and then select the length of time you want the device to wait before turning off the touchscreen. – To set the touchscreen to automatically adjust its brightness based on the surrounding environment, launch the Settings app, tap Display, and then tap the Adaptive brightness switch to activate it. • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, launch the Settings app and tap About tablet → Status. • Depending on the region, you can view the regulatory information on the device. To view the information, launch the Settings app and tap About tablet → Regulatory information . Basics 6 Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Notice: notes, usage tips, or additional information Device overheating situations and solutions When the device heats up while charging the battery While charging, the device and the charger may become hot. During wireless charging or fast charging, the device may feel hotter to the touch. This does not affect the device’s lifespan or performance and is in the device’s normal range of operation. If the battery becomes too hot, the charger may stop charging. Do the following when the device heats up: • Disconnect the charger from the device and close any running apps. Wait for the device to cool down and then begin charging the device again. • If the lower part of the device overheats, it could …

Text truncated - open the document above for the full version.

Printed in Korea GH68-XXXXXA Rev.1.0 English. 06/2020 SM-T505 QUICK START GUIDE 2 English ......................................................................3 English 3 QUICK START GUIDEEnglish Package contents • Device • USB cable • Ejection pin • USB power adaptor • Quick start guide The items supplied with the device and their images may vary by region. Device layout To turn on the device, press and hold the Power key for a few seconds. Power key Volume key Multipurpose jack (USB Type-C) Front camera SIM card / Memory card tray 4 Rear camera The charger should remain close to the electric socket and easily accessible while charging. Installing a nano-SIM card Nano-SIM cards are sold separately. 231 Nano-SIM card English 5 Correct disposal This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste. This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste. Safety information Read all safety information before using the device to ensure safe and proper use. Warning Follow the warning information provided below to prevent LQFLGHQWVVXFKDVͅUHRUH[SORVLRQ Follow the warnings below to prevent injury topeople or damage to the device • Do not expose the device to physical impact or damage. • Do not turn on or use the device when the battery compartment is exposed. • Do not allow children or animals to chew or suck the device. • The device can be used in locations with an ambient temperature of 0 °C to 35 °C. You can store the device at an ambient temperature of -20 °C to 50 °C. • If the device has a camera ash or light, do not use it close to the eyes of people or animals. • Use manufacturer-approved batteries, chargers, accessories, and supplies. • Prevent the multipurpose jack and battery terminals from contacting conductive elements, such as metal or liquids. • If any part of the device, such as the glass or acrylic body, is broken, smokes, or emits a burning odor, stop using the device immediately. Use the device again only after it has been repaired at a Samsung Service Centre. 6 Using or storing the device outside of the recommended temperature ranges may damage the device or reduce the battery’s lifespan. To prevent possible hearing damage when using a headset, do not listen to sound at high volume for long periods. • • for extended periods. Doing so may result in afterimages (screen burn-in) or ghosting. • Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle. Specic Absorption Rate (SAR) certication information www.sar-tick.com Your mobile is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. The guidelines were developed by an independent scien organisation (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The radio wave exposure guidelines use a unit of measurement known as the S c Absorption Rate, or SAR. The SAR limit for mobile devices is 1.6W/kg . The highest SAR value under the ICNIRP guidelines for this device model are: SAR values for American countries: The SAR values below are only for devices developed for use in American countries. Maximum SAR for this model and conditions under which it was recorded Body-worn SAR1.02 W/kg For SAR values for all other countries: For SAR va c to your model, visit www.samsung.com/sar and search for your region and device with the model number. You can view more safety information, including device and battery disposal instructions, in the safety information menu of the Settings app. English 7 Removing the battery • To remove the battery, contact an authorised service centre. To obtain battery removal instructions, please visit www.samsung.com/global/ecodesign_energy. • For your safety, you must not attempt to remove the battery. If the battery is not properly removed, it may lead to damage to the battery and device, cause personal injury, and/or result in the device being unsafe. • Samsung does not accept liability for any damage or loss (whether in contract or tort, including negligence) which may arise from failure to precisely follow these warnings and instructions, other than death or personal injury caused by Samsung’s negligence. Band and mode Band and modeOutput power EGSM90033 dBm DCS180030 dBm WCDMA 900/210024 dBm LTE 1/3/7/8/20/28/38/4023 dBm Wi-Fi 2.4 GHz20 dBm Bluetooth 2.4 GHz20 dBm Wi-Fi 5.1–5.7 GHz23 dBm Wi-Fi 5.8 GHz25 mW The use of WLAN band is restricted to indoor use only. This restriction will be applied in all countries below. ATBEBGCHCYCZDEDKEEESEL FIFRHRHUIEISITLILTLULV MTNLNOPLPTROSESISKTRUK 8 Declaration of Conformity Samsung declares that this device complies with the essential requirements and relevant provisions of Directive 2014/53/EU. Go to www.samsung.com/mobile_doc to view the Declaration of Conformity. Some content may differ from your device depending on the region, service provider, or software version, and is subject to change without prior notice. Copyright © 2020 Samsung Electronics Co., Ltd. If your device is frozen and unresponsive, press and hold the Power key and the Volume Down key simultaneously for more than 7 seconds to restart it. • For information on Samsung’s environmental commitments and product regulatory obligations, e.g. REACH, WEEE or Batteries, visit our sustainability page available via www.samsung.com. • It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods. Doing so may result in afterimages (screen burn-in) or ghosting. To prevent possible hearing damage when using a headset, do not listen to sound at high volume for long periods. Visit www.samsung.com to view device information, the user manual, and more. You may incur additional…

Text truncated - open the document above for the full version.

THIS MUST BE SIGNED BY THE APPLICANT AND SHOULD BE PLACED ON APPLICANTS LETTERHEAD ONLY IF AGENT IS SUBMITTING APPLICATION 022818 – 11 Authority to Act as Agent Date: __0411,2020_____ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______(CTTL,Telecommunication Technology Labs,CAICT)______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____12 months_____ By: ____________ _____Jenni Chun_________ (Signature 1 ) (Print name) Title: ______General Manager________ On behalf of: __Samsung Electronics American,Inc___ (Company Name) Telephone: ___973-808-6375____ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD 022818 – 11 Request for Confidentiality Date: _0411,2020__ Subject: Confidentiality Request for: ____ZCASMT505____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☒ Short Term External Photos ☒ Short Term ☐ Permanent * 2 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☒ Permanent Parts List & Placement/BOM ☐ Short Term ☒ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☒ Short Term Test Setup Photos ☒ Short Term ☐ Permanent * 3 User’s Manual _____SAMSUNG Electronics______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: ______/General Manager______ ___Jenni Chun____ (Signature/Title 3 ) (Print name) 2 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Wingtech Mobile Communications Co.,Ltd. 4F,Building 4 of Juxin Yuan,No.188 Pingfu Road,Xuhui District,Shanghai,China Statement We Wingtech Mobile Communications Co.,Ltd declared that our device with FCC ID: ZCASMT505, is a multi-band mobile phone which supports GSM850/900/1800/1900, WCDMA Band 1/2/4/5/8, LTE Band 1/2/3/4/5/7/8/12/17/20/28/66/ ,WiFi 11a/11b/11g/11n/11ac , Bluetooth 5.0. However, LTE band 40 is not available in US market and Canada market, and will be disabled by software. Contact Person: Lizhonggang E-mail: [email protected]

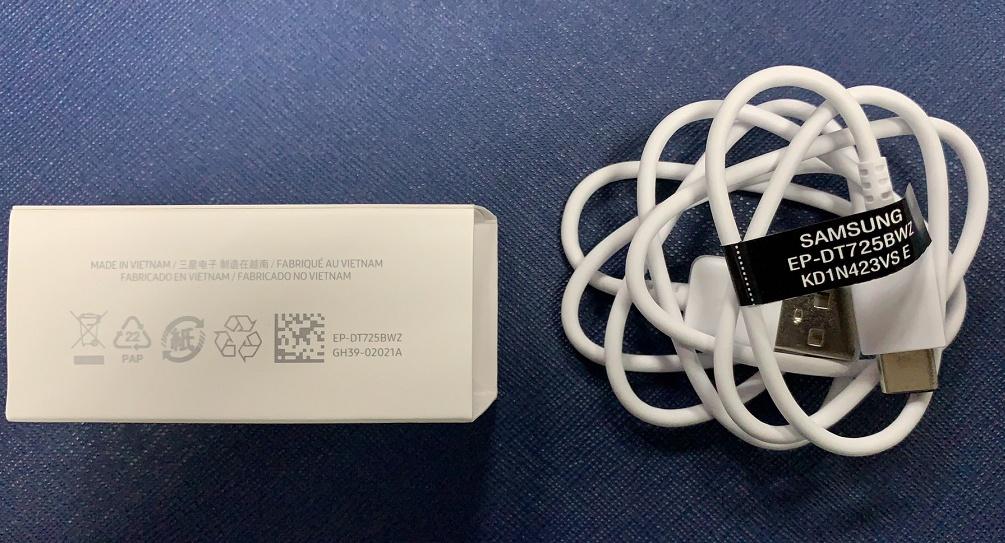

Label: Sample01 Sample02 Sample03 Sample04 Sample05 Sample06 Sim tray 1: HS01: Data Cable1：R.F.Tech (EP-DT725BWE) Data Cable2：R.F.Tech (EP-DT725BWZ) Data Cable3: KSD (EP-DT725BWE) Data Cable4: KSD (EP-DT725BWZ) CH01: R.F.Tech (EP-TA50JWE) CH02: R.F.Tech (EP-TA50JWS) CH03: R.F.Tech (EP-TA50EWE) CH04: Dongwon (EP-TA50JWE) CH05: Dongwon (EP-TA50EWE) CH06: Dongwon (EP-TA50JWS) CH02: Dongwon (EP-TA50EWE CHILE) CH07: Dong Yang (EP-TA50RWS) CH08: Dong Yang (EP-TA50EWE CHILE)
