ZCASMX218UMulti-band GSM/WCDMA/LTE/5GNR Tablet with Bluetooth, WLAN

The charger should remain close to the electric socket and easily accessible while charging. Printed in Korea
()99


3ev.9.9 Package contents • Device • USB cable • Ejection pin • Quick start guide The items supplied with the device and their images may vary by region. To turn on the device, press and hold the Side key for a few seconds. Accessing more information 7JTJU
XXXTBNTVOHDPN
UP
WJFX
EFWJDF
JOGPSNBUJPO
UIF
VTFS
NBOVBM
BOE
NPSF t:PV
NBZ
JODVS
BEEJUJPOBM
DIBSHFT
GPS BDDFTTJOH
UIF
*OUFSOFU If your device is frozen and unresponsive, press and hold the Side key and the Volume Down key simultaneously for more than 7 seconds to restart it. • It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods. Doing so may result in afterimages (screen burn-in) or ghosting. To prevent possible hearing damage when using a headset, do not listen to sound at high volume for long periods. Depending on the region, you can view the regulatory information on the device. To view the information, launch the Settings app. QUICK START GUIDE English 1.0/2023 SM-X218U • If any part of the device, such as the glass or acrylic body, is broken, smokes, or emits a burning odor, stop using the device immediately. Use the device again only after it has been repaired at a Samsung Service Centre. • Do not turn on or use the device when the battery compartment is exposed. • Do not disassemble or reuse the battery. • Do not allow children or animals to chew or suck the device. • The device can be used in locations with an ambient temperature of 0 °C to °C. You can store the device at an ambient temperatur C to °C. Using or storing the device outside of the recommended temperature ranges may damage the device or reduce the battery ’s lifespan. • Do not use your device in a hot environment or near fire. • Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle. Correct disposal This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste. This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste. PO BOX 12987, DUBLIN, IE Safety information Read all safety information before using the device to ensure safe and proper use. You can view more safety information in the safety information menu of the Settings app. Warning Your device contains magnets, which may affect medical devices, such as pacemakers or implantable cardioverter defibrillators. If you are using any of these medical devices, keep your device a safe distance from them and consult with your physician before you use the device Follow the warnings below to prevent incidents, such as fires or explosions, injuries, or damage to the device • Do not expose the device to physical impact or damage. • Use only Samsung-approved batteries, chargers, and cables specifically designed for your device. • Prevent the multipurpose jack and battery terminals from coming into contact with foreign materials such as metal, liquids, or dust. Specific Absorption Rate (SAR) certification information Your device conforms to U.S. Federal Communications Commission (FCC) standards that limit human exposure to radio frequency (R F) energy emit ted by rad io and telecommunications equipment. These standards prevent the sale of mobile devices that exceed a maximum exposure level (known as the Specific Absorption Rate, or S AR) of 1.6 W/kg . In norma l use, the actual SAR is likely to be much lower, as the d evice has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automati cally emitting lower FCC RF exposure guidelines. Some devices are required to receive approval from the FCC. If your device required FCC approval, you can view the FCC certification by opening Settings About phone S ta tus. SAR information for this and other devices can be found on the FCC FCC Notice FCC Notice The device may cause TV or radio interference if The device may cause TV or radio interference if used in close used in close proximity to receiving equipment. proximity to receiving equipment. The FCC can require you to The FCC can require you to stop using the stop using the mobile device if such mobile device if such interference cannot be eliminated interference cannot be eliminated . . Information about the RF exposure from FCC In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both international and U.S. standards. The design of this tablet complies with FCC guidelines and these international standards. Body effects For body operation, this device has been tested and meets FCC RF exposure guidelines when used with any accessory that contains no metal and which provides a minimum separation distance of mm between this device and the body of the user. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Class B Compliance under article 15 of the FCCClass B Compliance under article 15 of the FCC This device This device complies with Part 15 of the FCCcomplies with Part 15 of the FCC Rules. Operation is subject to Rules. Operation is subject to the condition thatthe condition that this device does not cause harmful this device does not cause harmful interference.interference. Operation is subject to the following twoOperation is subject to the following two conditions: (1) this device may not cause harmfulconditions: (1) this device may no…

Text truncated - open the document above for the full version.

47 CFR §2.903 and §2.911 (d)(5) Attestation Date: 02-11-2023 FCC ID: ZCASMX218U To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA 1. Samsung Electronics Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. Samsung Electronics Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Ms. Jenni Chun Job Title: Head of Regulatory & Environmental Affairs Company Name: Samsung Electronics Co., Ltd.

47 CFR §2.911 (d)(7) Agent Designation Attestation Date: 02-11-2023 FCC ID: ZCASMX218U To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Samsung Electronics Co., Ltd. (“the applicant”) as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. U. S. Agent Information: Contact Person : Ms. Jenni Chun Company Name : Samsung Electronics America, Inc. Company Address : 19 Chapin Rd., Building D, Pine Brook, NJ 07058 Email : [email protected] Grantee Code: ZCA FRN #: 0027908797 Telephone No: 1-973-808-6375 Sincerely yours, Name: Ms. Jenni Chun Job Title: Head of Regulatory & Environmental Affairs Company Name: Samsung Electronics Co., Ltd.

Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 Authority to Act as Agent Date: __1102,2023_____ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______(CTTL,Telecommunica tion Technology Labs,CAICT)_ _____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject t o denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____12 months_____ By: ____________ _____Jenni Chun_________ (Signature 1 ) (Print name) Title: ______General Manag er ________ On behalf of: __Samsung Electronics Co., Ltd. ___ (Company Name) Telephone: ___973-808-6375____ 022818 – 11 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 Request for Confidentiality Date: _1102,2023__ Subject: Confidentiality Request for: ____ZCASMX218U____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐Short Term☒Permanent Block Diagrams ☒Short Term External Photos ☒Short Term☐Permanent * 2 Internal Photos ☐Short Term☒Permanent Operation Description/Theory of Operation ☐Short Term☒Permanent Parts List & Placement/BOM ☐Short Term☒Permanent Tune-Up Procedure ☐Short Term☒Permanent Schematics ☒Short Term Test Setup Photos ☒Short Term☐Permanent * 3 User’s Manual _____SAMSUNG Electronics______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: regarding specific information that must accompany these requests. 022818 – 11 Samsung Electronics Co., Ltd. 19 Chapin Rd.,Building D Pine Brook, NJ 07058 Tel: +1-201-937-4203 IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: ______ /General Manager______ ___Jenni Chun____ (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. 022818 – 11

Statement We, __ Samsung Electronics Co., Ltd _ declared that our device with FCC ID: ZCASMX218U, is a multi-band mobile phone which supports 2G : not support 3G : B1/ B2/ B4/ B5/ B8 LTE FDD : B1/ B2/ B3/ B4/ B5/ B7/ B12/ B13/ B14/B20/ B25/ B26/ B28/ B29/ B30/ B66/ B71 LTE TDD : B40/B41 NR SA: FDD: n2/ n5/ n25/ n26(MR) / n29(MR) /n30/ n66/ n70/ n71 TDD: n41/ n77/ n78 NSA WiFi 11a/11b/11g/11n/11ac, Bluetooth 5.1 However, LTE band 40 is not available in US market and Canada market, and will be disabled by software. Contact Person: Jenni Chun E-mail: [email protected]

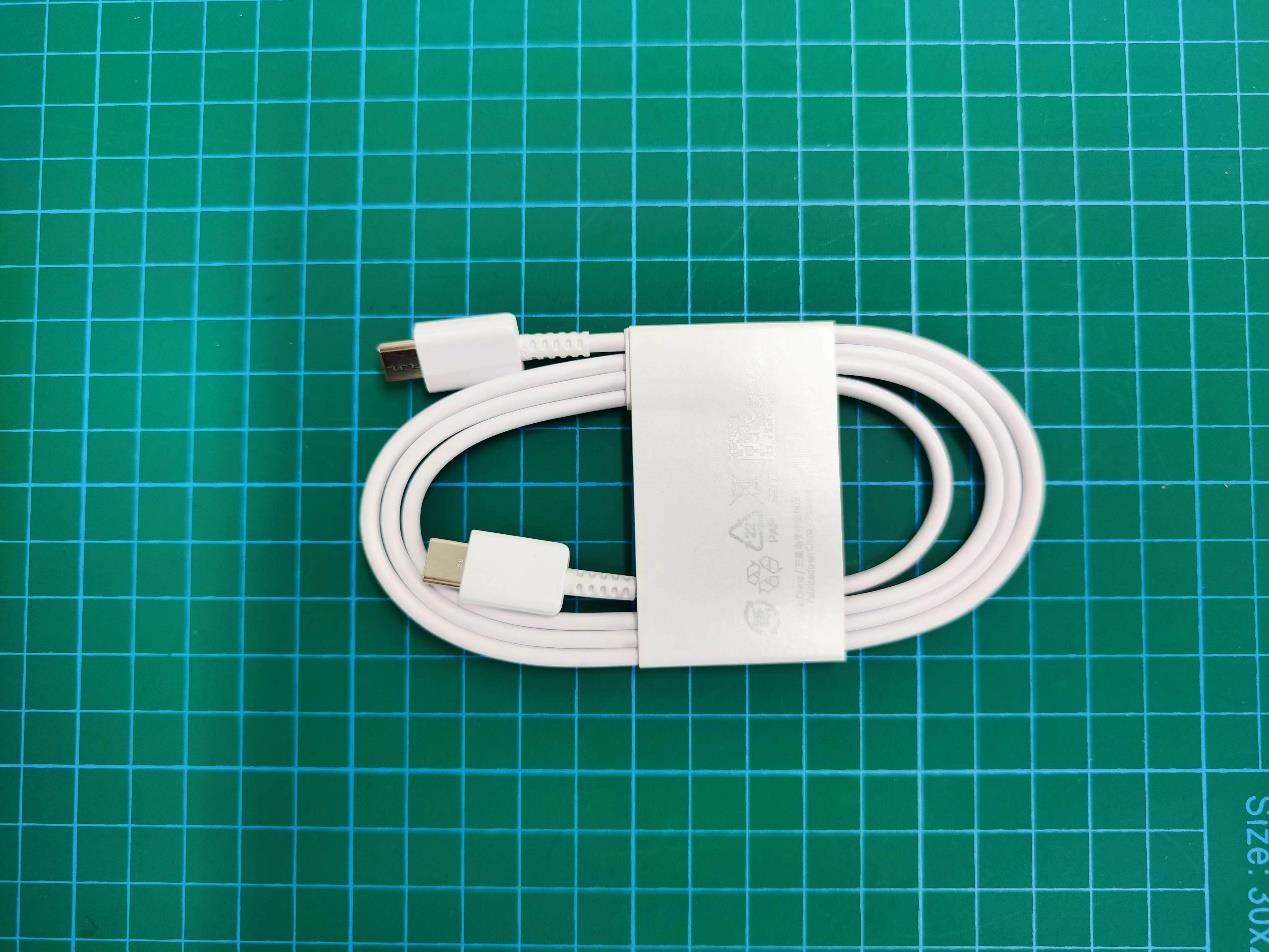

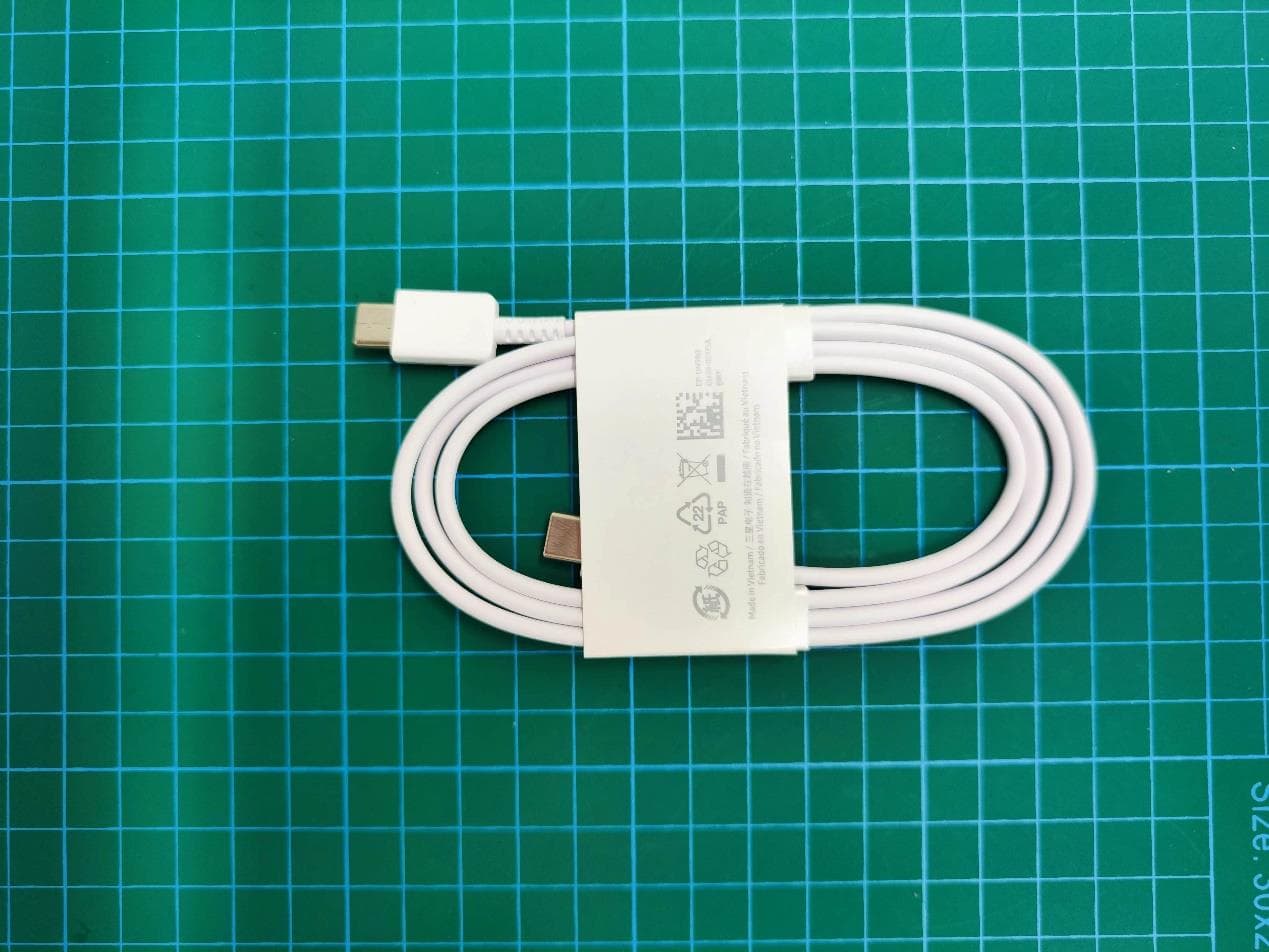

Sample01 Sample02 Sample03 Sample04 Sample05 Sample06 SimTray： Data Cable 1：R.F.tech. (EP-DN980BWE) Data Cable 2：CRESYN. (EP-DN980BWE) Data Cable 3：Broad. (EP-DN980BWE)

FCC ID: ZCASMX218U SM-X218U

PCB01 PCB02 PCB03 PCB04 PCB05 PCB06 PCB07 PCB08 Battery1:

ANNEX A GRAPH RESULTS

ANNEX B SYSTEM VALIDATION RESULTS 750 MHz Date: 2023/10/1 Electronics: DAE4 Sn1525 Medium: H700-6000M Medium parameters used: f = 750 MHz; σ = 0.855 S/m; εr =44.62; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: CW (0) Frequency: 750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7673 ConvF(10.5, 10.5, 10.5) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.81 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.65 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 3.11 W/kg SAR(1 g) = 2.21 W/kg; SAR(10 g) = 1.34 W/kg Maximum value of SAR (measured) = 2.83 W/kg 0 dB = 2.83 W/kg = 4.52 dBW/kg 835 MHz Date: 2023/10/3 Electronics: DAE4 Sn1525 Medium: H700-6000M Medium parameters used: f = 835 MHz; σ =0.8886 mho/m; εr = 44.54; ρ = 1000 kg/m3 Ambient Temperature: 22.5oC Liquid Temperature: 22.3oC Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7673 ConvF(10.5,10.5,10.5) Area Scan (81x191x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 3.2 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =63.45 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.7 W/kg SAR(1 g) = 2.38 W/kg; SAR(10 g) = 1.64 W/kg Maximum value of SAR (measured) = 3.21 W/kg 0 dB = 3.21 W/kg = 5.07 dB W/kg 1800MHz Date: 2023/10/6 Electronics: DAE4 Sn1525 Medium: H700-6000M Medium parameters used: f = 1800 MHz; σ = 1.453 S/m; εr = 42.18; ρ = 1000 kg/m3 Ambient Temperature:22.2°C Liquid Temperature: 22°C Communication System: CW Frequency: 1800 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7673 ConvF(8.46, 8.46, 8.46) Area Scan (51x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 14.7 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 75.45 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 18.2 W/kg SAR(1 g) = 8.81 W/kg; SAR(10 g) = 4.71 W/kg Maximum value of SAR (measured) = 14.5 W/kg 0 dB = 14.5 W/kg = 11.61 dBW/kg 1900 MHz Date: 2023/10/9 Electronics: DAE4 Sn1525 Medium: H700-6000M Medium parameters used: f = 1900 MHz; σ =1.48 mho/m; εr = 41.92; ρ = 1000 kg/m3 Ambient Temperature: 22.5oC Liquid Temperature: 22.3oC Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7673 ConvF(8.2,8.2,8.2) Area Scan (81x191x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 15.41 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =110.67 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 18.05 W/kg SAR(1 g) = 5.18 W/kg; SAR(10 g) = 10.2 W/kg Maximum value of SAR (measured) = 14.91 W/kg 0 dB = 14.91 W/kg = 11.73 dB W/kg 2300MHz Date: 2023/10/12 Electronics: DAE4 Sn1525 Medium: H700-6000M Medium parameters used: f = 2300MHz; σ =1.693 mho/m; ε r = 38.59; ρ = 1000 kg/m 3 Ambient Temperature: 22.2 o C Liquid Temperature: 22 o C Communication System: CW Frequency: 2300MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7673 ConvF(7.9,7.9,7.9) Area Scan (81x191x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.38 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =119.02 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 23.94 W/kg SAR(1 g) = 12.3 W/kg; SAR(10 g) = 5.81 W/kg Maximum value of SAR (measured) = 20.14 W/kg 0 dB = 20.14 W/kg = 13.04 dB W/kg 2450MHz Date: 2023/10/12 Electronics: DAE4 Sn1525 Medium: H700-6000M Medium parameters used: f = 2450MHz; σ =1.916 mho/m; εr = 40.78; ρ = 1000 kg/m3 Ambient Temperature: 22.9°C Liquid Temperature: 22.5°C Communication System: CW Frequency: 2450MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7673 ConvF(7.65,7.65,7.65) Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 22.14 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =117.78 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 25.85 W/kg SAR(1 g) = 13.1 W/kg; SAR(10 g) = 6.11 W/kg Maximum value of SAR (measured) = 21.56 W/kg 0 dB = 21.56 W/kg = 13.33 dB W/kg 2600MHz Date: 2023/10/14 Electronics: DAE4 Sn1525 Medium: H700-6000M Medium parameters used: f = 2600MHz; σ =2.107 mho/m; εr = 40.38; ρ = 1000 kg/m3 Ambient Temperature: 22.9°C Liquid Temperature: 22.5°C Communication System: CW Frequency: 2600MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7673 ConvF(7.45,7.45,7.45) Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 24.33 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =121.36 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 25.27 W/kg SAR(1 g) = 13.9W/kg; SAR(10 g) = 6.50 W/kg Maximum value of SAR (measured) = 24.76 W/kg 0 dB = 24.76 W/kg = 13.94 dB W/kg 3500 MHz Date: 2023/10/17 Electronics: DAE4 Sn1525 Medium: H700-6000M Medium parameters used: f = 3500 MHz; σ = 2.911 S/m; εr = 38.21; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: CW Frequency: 3500 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7673 ConvF(6.78, 6.78, 6.78) Area Scan (91x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 12.5 W/kg Zoom Scan :Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 72.21 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 16.4 W/kg SAR(1 g) = 6.72 W/kg; SAR(10 g) = 2.44 W/kg Maximum value of SAR (measured) = 12.4 W/kg 0 dB = 12.4 W/kg = 10.93 dBW/kg 3700MHz Date: 2023/10/19 Electronics: DAE4 Sn1525 Medium: H700-6000M Medium parameters used: f = 3700MHz; σ = 3.095 mho/m; εr = 37.81; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: CW Frequency: 3700MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7673 ConvF(6.63, 6.63, 6.63) Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum…

Text truncated - open the document above for the full version.

2450 MHz Dipole Calibration Certificate 2600 MHz Dipole Calibration Certificate 3500 MHz Dipole Calibration Certificate 3700 MHz Dipole Calibration Certificate

835 MHz Dipole Calibration Certificate 1800 MHz Dipole Calibration Certificate 1900 MHz Dipole Calibration Certificate 2300 MHz Dipole Calibration Certificate

3900 MHz Dipole Calibration Certificate 4200 MHz Dipole Calibration Certificate 5 GHz Dipole Calibration Certificate

ANNEX I Sensor Triggering Data Summary Per FCC KDB Publication 616217 D04v01r02, this device was tested by the manufacturer to determine the proximity sensor triggering distances for the rear and bottom edge of the device. The measured output power within ±5mm of the triggering points (or until touching the phantom) is included for rear and each applicable edge. To ensure all production units are compliant it is necessary to test SAR at a distance 1mm less than the smallest distance from the device and SAR phantom (determined from these triggering tests according to the KDB 616217 D04v01r02) with the device at maximum output power without power reduction. These SAR tests are included in addition to the SAR tests for the device touching the SAR phantom, with reduced power. ANT0/1/5： Rear Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 30 29 28 27 26 25 24 23 22 21 20 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 20 21 22 23 24 25 26 27 28 29 30 Main antenna Near Near Near Near Near Near Far Far Far Far Far Top Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 30 29 28 27 26 25 24 23 22 21 20 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 20 21 22 23 24 25 26 27 28 29 30 Main antenna Near Near Near Near Near Near Far Far Far Far Far Right Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 13 12 11 10 9 8 7 6 5 4 3 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 3 4 5 6 7 8 9 10 11 12 13 Main antenna Near Near Near Near Near Near Far Far Far Far Far ANT4： Rear Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 30 29 28 27 26 25 24 23 22 21 20 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 20 21 22 23 24 25 26 27 28 29 30 Main antenna Near Near Near Near Near Near Far Far Far Far Far Top Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 30 29 28 27 26 25 24 23 22 21 20 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 20 21 22 23 24 25 26 27 28 29 30 Main antenna Near Near Near Near Near Near Far Far Far Far Far Left Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 16 15 14 13 12 11 10 9 8 7 6 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 6 7 8 9 10 11 12 13 14 15 16 Main antenna Near Near Near Near Near Near Far Far Far Far Far ANT6： Rear Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 30 29 28 27 26 25 24 23 22 21 20 Main antenna Far Far Far Far Near Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 20 21 22 23 24 25 26 27 28 29 30 Main antenna Near Near Near Near Near Near Near Far Far Far Far Top Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 30 29 28 27 26 25 24 23 22 21 20 Main antenna Far Far Far Far Near Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 20 21 22 23 24 25 26 27 28 29 30 Main antenna Near Near Near Near Near Near Near Far Far Far Far Per FCC KDB Publication 616217 D04v01r02, the influence of table tilt angles to proximity sensor triggering is determined by positioning each edge that contains a transmitting antenna, perpendicular to the flat phantom, at the smallest sensor triggering test distance by rotating the device around the edge next to the phantom in ≤ 10° increments until the tablet is ±45° or more from the vertical position at 0°. The front/rear evaluation The top/bottom edge evaluation The right edge evaluation Based on the above evaluation, we come to the conclusion that the sensor triggering is not released and normal maximum output power is not restored within the ±45°range at the smallest sensor triggering test distance declared by manufacturer. ANNEX J Accreditation Certificate

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. 23T04Z70506-01 For SAMSUNG Electronics Co., Ltd. Multi-band WCDMA/LTE/5GNR Tablet with Bluetooth, WLAN Model Name: SM-X218U with Hardware Version: REV1.0 Software Version: X218U.001 FCC ID: ZCASMX218U Issued Date: 2023-11-28 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL-Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.23T04Z70506-01 ©Copyright. All rights reserved by CTTL. Page 2 of 219 REPORT HISTORY Report Number Revision Issue Date Description 23T04Z70506-01 Rev.0 2023-11-6 Initial creation of test report 23T04Z70506-01 Rev.1 2023-11-9 Update ANT0 to ANT1 of LTE B30 TX antenna on page 6;delete information for the GSM on page 9;update information for the NR power level B1 and C1;update tune up power of WIFI2.4G;update information for the 41C in section 14.1;Add RF power of DLCA in section 11.2;Add LTEB41 ANT1 TEST data in section 11.2 and 14. 23T04Z70506-01 Rev.2 2023-11-28 Delete Power level C1 from LTEB26 on Chapter 11.2 ;Update Tune up for the LTEB12/N41/N70 on Chapter 14; No.23T04Z70506-01 ©Copyright. All rights reserved by CTTL. Page 3 of 219 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1. INTRODUCTION & ACCREDITATION ................................................................................ 5 1.2. TESTING LOCATION .......................................................................................................... 5 1.3. TESTING ENVIRONMENT .................................................................................................. 5 1.4. PROJECT DATA ................................................................................................................. 5 1.5. SIGNATURE ........................................................................................................................ 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................................................ 10 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ........................................................................... 10 5 TEST METHODOLOGY ............................................................................................................ 11 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 11 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 11 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 12 6.1 INTRODUCTION ............................................................................................................................................. 12 6.2 SAR DEFINITION .......................................................................................................................................... 12 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 13 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 13 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 13 8 SYSTEM VERIFICATION .......................................................................................................... 15 8.1 SYSTEM SETUP ............................................................................................................................................. 15 8.2 SYSTEM VERIFICATION ................................................................................................................................. 16 9 MEASUREMENT PROCEDURES ............................................................................................ 17 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 17 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 20 9.4 SAR MEASUREMENT FOR LTE ..................................................................................................................... 21 9.5 BLUE…
