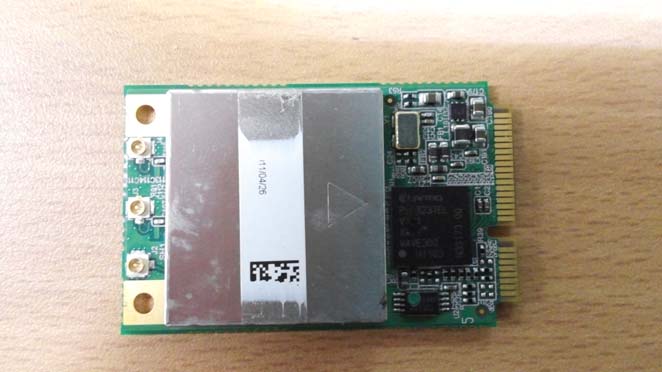

ZD7-WIMI300MINI-PCIE WIFI MODULE

OEM/I t t I t ll ti M lOEM/I n t egra t ors I ns t a ll a ti on M anua l Version 1.1 April 07. 2014 This document is confidential and subject to change 1 The RF module limited to OEM installation ONLY • 1 . The RF module limited to OEM installation ONLY . • The OEM integrator is responsibl e for the compliance to all the rules that apply to the product into which this certified • RF module is integrated. • 2. This device complies with par t 15 of the FCC Rules. Operatio n is subject to the following two conditions: (1) This device m ay • not cause harmful interference, and (2) this device must accept any interference received, in cluding interference that may • cause undesired operation. • 3. This equipment has been tested and found to comply with the limits for a Class B digital devi ce, pursuant to part 15 of the • FCC Rules. These limits are desi gned to provide reasonable prot ection against harmful interfere nce in a residential installati on. • This e q ui p ment g enerates uses and can radiate radio fre q uenc y ener gy and , if not installed and used in accordance with the qp g q y gy , • instructions, may cause harmful interference to radio communica tions. However, there is no guarantee that interference will • not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, wh ich • can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or • more of the following measures: • Reorient or relocate the receiving antenna • - Reorient or relocate the receiving antenna . • - Increase the separation between the equipment and receiver. • - l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • - l Consult the dealer or an experienced radio/TV technician for help. • FCC Caution • Any changes or modifications not expressly approved by the part y responsible for comp liance could void the user's authority to operate this equipment. This tran smitter must not be co-located or operating in conjunction with any other antenna or ransmitt er. • Radiation Exposure Statement • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be • installed and operated with minim um distance 20cm between the r adiator & your body. 2010-01-08 This document is confidential and subject to change 2 This device is intended only for OEM integrators under the following condi tions: • This device is intended only for OEM integrators under the following conditions: • The antenna must be installed such that 20 cm is maintained bet ween the antenna and users, and The transmitter module may • not be co-located with any other transmitter or antenna. As lon g as 2 conditions abov e are met, further transmitter test will not • be required. However, the OEM in tegrator is still responsible f or testing their end-product f or any addition al compliance • requirements required with this module installed. •• IMPORTANT NOTE: • In the event that these conditions cannot be met (for example c ertain laptop configurations or colocation with another • transmitter), then the FCC author ization is no longer considere d valid and the FCC ID cannot be used on the final product. In • these circumstances , the OEM inte g rator will be res p onsible for re-evaluatin g the end p roduct ( includin g the transmitter ) and ,g p gp(g ) • obtaining a separate FCC authorization. • End Product Labeling • This transmitter module is author ized only for use in device wh ere the antenna may be insta lled such that 20 cm may be • maintained between the antenna and users The final end product must be labe led in a visible area with the following: • maintained between the antenna and users . The final end product must be labeled in a visible area with the following: • “Contains FCC ID: ZD7-WiMi300”. • The grantee's FCC ID can be used only when all FCC/ IC complian ce requirements are met. • Manual Information To the End User • The OEM integrator has to be awa re not to provide information t o the end user regarding how to • install or remove this RF module in the user's manual of the en d product which integrates this module. • The end user manual shall include all required regulatory infor mation/warning as show in this manual. • O p erations in 5.15-5.25GHz band are for indoor use onl y . p y 2010-01-08 This document is confidential and subject to change 3 Features Key Features :• 3x3 antenna Configuration • 802.11n Network Standards (HT 40 only)• Modulation modes: BPSK, QPSK, 16QAM and 64QAM • WPS Certified- Wire less Protected Setu p for eas y set u p and securit y confi g uration pyp yg • Optimal channel selection and connection management• Seamless channel switch under interference • 40 MHz bandwidth support.• 300MHz PHY Rate Support and ST BC Support for Extended Range • Antenna: 3x IPex Connectors (3T/3R) - UFL • Antenna: 3x IPex Connectors (3T/3R) U . FL • MAC Filtering - No Restriction Mode, White List Mode, Black Li st Mode; Up to 32 connections • WDS Enables network management units to collect statistics an d manage the device remotely • Support Low Power Mode St d d & C tifi tiSt an d ar d & C er tifi ca ti ons : • FCC• RoHS Compliance 2014-04-07 4 This document is confidential and subject to change Specification ChipsetMac/BB Processor Lantiq PSB8231 RF Chip Lantiq PSB8301 RadioStandards 2009 IEEE 802.11a, IEEE 802.11n Antenna U.FL 3 x Ipex Connectors (3T/3R) RF connector impedance 50 ohm Operating Frequency 802.11n : 5.190 ~ 5.230GHz, 5.755 ~ 5.795GHz Modulation IEEE 802.11n : OFDM CtifitiC er tifi ca ti ons Output Power (Per Antenna @ -25dB EVM) 802.11n HT40 : 5.190 ~ 5.230G Hz 17.0 +/- 1dBm (Avg) 5.755 ~ 5.795GHz 25.0 +/- 1dBm (PK) 802.11a 64QAM 5/6 <= -75dBm802.11a BPSK ½ <= -88dBm802.11n HT40 , 64 Q AM 5 / 6 <= -75dBm (@ 3 antennas ) Receive Sensitivity (PER <10%) ,Q / (@ ) 802.11n HT20, …

Text truncated - open the document above for the full version.

Date: Apr, 2 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize KT Kang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jehwan Lee / Chief researcher REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Date: Apr. 2, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZD7-WIMI300 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX _Part List_WiMi300.PDF Schematics Diagram(s) CONF APPENDIX _Schemetics_WiMi300.PDF Block diagram CONF APPENDIX _Block diagram_WiMi300.PDF Operation description CONF APPENDIX _Operation description_WiMi300.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name: Jehwan Lee Title: Chief researcher Company Name: Nimbus, Inc.

Applicant / Grantee Nimbus, Inc. FCC ID ZD7-WIMI300 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The device is equipped with Metal shielding to cover RF section. Refer to the external photos Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. All inputs to the modules are buffered through logic or microprocessor inputs. Y 3 The modular transmitter must have its own power supply regulation.. Power supply regulation built into module. Refer to the circuit diagram. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Connector is unique. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters The modular transmitter be tested in a stand-alone configuration. Refer to the test report and setup photo. Y to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A Label is to be placed on front of the EUT, and other label is to be placed in the User Manual. Refer to the FCC ID label format. Y c i a 7 T a t t p t r m e 8 T a i Title: C Compa Name: copy of these in the applica authorization The modular any specific that ordinaril transmitter an provide adeq the module to requirements must be inclu equipment au The modular any applicab its final conf Chief rese any Name : Jehwan L e instructions ation for equ n. r transmitter rules or ope r ly apply to a nd the manu quate instruct o explain any s. A copy of t uded in the a uthorization. r transmitter le RF expos u figuration. earcher e: Nimbus Lee s must be inc uipment must comply rating require complete ufacturer mus tions along w y such these instruc application fo must comply ure requirem , Inc. cluded y with ements st with ctions or R e y with ments in It c req efer to the Us complies wit quirement. ser manual th RF exposuure Y Y

www.kes.co.kr Model No.: WiMi300 Page 1 of 2 EUT External photographs www.kes.co.kr Model No.: WiMi300 Page 2 of 2 Antenna

WiMi300 Label Label Size : 25.4 x 10.0 mm M d l WiMi300 QR Code M o d e l : WiMi300 FCCID: ZD7-WIMI300SN : WM30000001MAC : 80:64:59:A0:00:00 1

www.kes.co.kr Model No.: WiMi300 Page 1 of 1 EUT Internal photographs

Model No.: WiMi300 Page 1 of 1 RF exposure According to FCC part 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f= frequency in ㎒ Friis transmission formula: Pd = (Pout×G)/(4×pi×R 2 ) Where, Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, f/1500 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Results - 15.247C Operation mode / Data RateFrequency (㎒) Peak output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) 802.11n(HT40) / MCS0 5 755 25.20 7.23 0.330 715 1 802.11n(HT40) / MCS0 5 795 25.40 7.23 0.346 301 1 - 15.407E Operation mode / Data RateFrequency (㎒) output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) 802.11n(HT40) / MCS0 5 190 16.20 5.62 0.028 738 1 802.11n(HT40) / MCS0 5 230 16.37 5.62 0.029 885 1 Result: The power density does NOT exceed the limit Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- f/300 6 1 500 - 100000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- f/1500 6 1 500 – 100 000 -- -- 1 30

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0019 Page (2 ) of (46) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Revision history Revision Date of issue Test report No. Description - 2014.04.15 KES-RF-14T0019Initial KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0019 Page (3 ) of (46) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 TABLE OF CONTENTS 1. General information ................................................................................................................................................... 4 1.1. EUT description ........................................................................................................................................ 4 1.2. Test frequency ........................................................................................................................................... 4 1.3. Information about derivative model .......................................................................................................... 4 1.4. Device modifications ................................................................................................................................. 4 1.5 Device information .................................................................................................................................... 4 1.6. Test facility ................................................................................................................................................ 5 1.7. Laboratory accreditations and listings ....................................................................................................... 5 1.8. Directional antenna gain for MIMO (uncorrelated) .................................................................................. 5 2. Summary of tests ........................................................................................................................................................ 6 3. Test results .................................................................................................................................................................. 7 3.1 Radiated spurious emissions...................................................................................................................... 7 3.2 Conducted spurious emissions & band edge ........................................................................................... 13 3.3. 6 ㏈ bandwidth ...................................................................................................................................... 26 3.4. Peak Output power .................................................................................................................................. 31 3.5. Power spectral density ............................................................................................................................. 34 3.6. AC conducted emissions ......................................................................................................................... 39 Appendix A. Measurement equipment ......................................................................................................................... 42 Appendix B. Test setup photo ....................................................................................................................................... 43 Appendix C. Duty Cycle............................................................................................................................................... 46 KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0019 Page (4 ) of (46) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1. General information 1.1. EUT description Equipment under test mini-PCIe WiFi Module Model name WiMi300 Serial number N/A Frequency range 5190 ㎒ ~ 5230 ㎒(802.11an HT40), 5755 ㎒ ~ 5795 ㎒(802.11n HT40) Modulation technique OFDM (BPSK, QPSK, 16QAM, 64QAM) Number of channels 5190 ㎒ ~ 5230 ㎒ : 2 ch, 5755 ㎒ ~ 5795 ㎒ : 2ch Antenna type & gain Dipole antenna // 7.23 ㏈i Power source Power Adapter (AC 100-240 V 50/60 Hz // DC 12 V) 1.2. Test frequency Low channel Middle channel High channel Frequency (㎒) 5 755 - 5 795 1.3. Information about derivative model N/A 1.4. Device modifications N/A 1.5 Device information - The device shall be used only 802.11n (HT 40). KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0019 Page (5 ) of (46) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1.6. Test facility C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do,431-716, Korea 473-29, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea The open area test site is constructed in conformance with the requirements ANSI C63.4-2003/2009. 1.7. Laboratory accreditations and listings Country Agency Scope of accreditation Certificate No. USA FCC 3 & 10 meter Open Area Test Sites and one conducted site to perform FCC Part 15/18 measurements. 343818 KOREA KC EMI (10 me…

Text truncated - open the document above for the full version.

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0019 Page (43 ) of (46) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Appendix B. Test setup photo Radiated Emission (30MHz~1GHz) KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0019 Page (44 ) of (46) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Radiated Emission (Above 1GHz) KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0019 Page (45 ) of (46) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 AC conducted Emission
