ZDP27T1101Toy-R/C Monster V-Blk Wheel

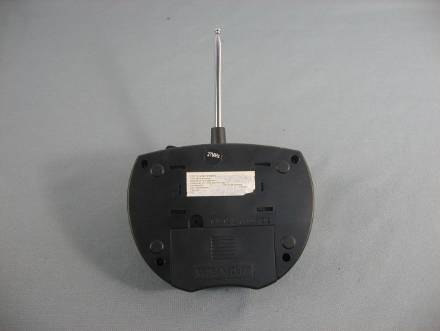

Toy-R/C Monster V-Blk Wheel Model N.O.: 1641331 Please read these instructions carefully before using this product and keep in a safe place for future reference. We advise using this product under adult supervision. Do not use this toy on the road or in crowded areas and keep away from animals and young children. Do not attempt to modify this product in any way or lift it fr om the ground whilst it is in motion. Keep moving parts away from hair, clothes and hands. Handle with care at all times and only when the motor is off. Always switch on the transmitter before the vehicle. CHARACTERISTICS 5 Functions: Forwards, Backwards, Turn Right & Left and Stop. BATTERY INSTALLATION HANDSET 1. Unscrew the battery cover on the underside of the handset controller w ith a screwdriver. 2. Insert a 9V “6F22”size battery with the polarities show inside t he battery compartment. 3. Replace the battery cover and screw shut . VEHICLE 1. Unscrew the roof with a screwdriver to expose the battery compartment. 2. Unscrew the battery door and insert 4-AA batteries with polarit ies shown inside the battery compartment. 3. Replace the battery cover and screw shut. 4. Replace the roof and screw shut. 5. Turn switch on to start your car . 6. The LED headlights will light up while the vehicle was switched on the power. 1. When the car is running ,do not try to touch the 4 wheels by hand to avoid damages. 2. Do not play in a place with another R/C car being controlled with t he same frequency. 3. Do not bend the antenna or point it at other people or articles to avoid hurts. 4. Do not play by the roads or in any other dangerous places to avoid accidents. 5. Do not play in a place with puddle, mud or sand. TRANSMITTER FUNCTION 1. To make the vehicle move forwards or backwards push on or pull back the trigger respectively; 2. To make the car turn left or right turn the steering wheel t o the front or back respectively; 3. To stop the vehicle release both the trigger and steering wheel. 4. For best performance ensure that the antenna is pointing towards t he vehicle at all times. CLEANING 1. Do not submerge this item in water, use a damp cloth and dry before use. 2. Do not leave this item in direct sunlight for a long period. NOTICE 1. Non-rechargeable batteries are not to be recharged. 2. Different types of batteries or new and used batteries are not to be mixed. 3. Batteries are to be inserted with correct polarity. 4. Remove exhausted batteries from the toy and remove batteries w hen not in use for an extended period of time. 5. The manufracturer is not responsible for the possible interferences from radio or TV owing to non-permitted modifications of this appliance. This toy is not suitable for children under the age of 6 years as it contains small parts that could be swallowed. We reccomend using this product under the supervision of an adult. Remove all packaging before giving to the child. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Sketch Sketch Sketch Sketchof of of ofthe the the thediagram diagram diagram diagramof of of ofthe the the thetransmitter transmitter transmitter transmitter 27Moscillation Modulate&amplifyTransmitterwith antenna DIP-14Coding Operationinput

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Amison Photoelectricity Technology Development CO.LTD. May 16 ,2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Amison Photoelectricity Technology Development CO.LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: Toy-R/C Monster V-Blk Wheel Model: 1641331 We affirm that between SIEMIC and Amison Photoelectricity Technology Development CO.LTD. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Amison Photoelectricity Technology Development CO.LTD. Contact information / address: Kada Industrial Zone Development Zone Zhaoan County Zhangzhou City Fujian Province China

“This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Report No.: SZEMO11040144801 Page : 12 of 14 SGS-CSTC Standards Technical Services Ltd. 7 Photographs - EUT Construction Details (Test Model No.: 1641331)

2.2cm 10.5cm

“This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Report No.: SZEMO11040144801 Page : 13 of 14 SGS-CSTC Standards Technical Services Ltd. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Report No.: SZEMO11040144801 Page : 14 of 14 SGS-CSTC Standards Technical Services Ltd.

OperationalDescription OperationalDescriptionOperationalDescription OperationalDescription Transmitter: Transmitter: Transmitter: Transmitter: 1 Voltage: 1x9.0V "6F22" sizs batteries for controller 2 Press KEY control to fine tuning the turning direction. 3 Q2/XTAL/L1/R4 components create 27.145MHz carrier wave. 4 SOP14/Q1/L2 components amplify the carrier wave signal and transmit via antenna.

AMISON Photoelectricity Co.,ltd. DO NOT SCALE DRAWING UNLESS DRTHERWISE SPECIFIED DEC+/-0.1ANGLE+/- 1' GENERAL DRAFT UNLESS DRTHERWISE SPECIFIED WALL THICKENESS TITLE MATERAL MODEL DRAWNCHECKEDAPPROVRD PART NO: DRAWN FILE NAME SIDE SCALE UNITQ'TY A3 ISSUECHANGE DETAILDATECHECKEDAPP. L2C2C1L3C4L1Y1(mHZ) 27.1452.2uH3.6uH5.6uH82PF150PF82PF C7 82PF C9C6 47PF Monster CAR TX for 27mHZ 15PF A02011-0311 AMS-TEL:0596 3301776 FAX:0596 3301226 Q1 S8050D Q2 C1815 L1 2.2uH R1 5.1 R3 5.1 R4 220R R5 22K R6 150K L2 5.6uH D1 3.9V C11 475 R8 200K L3 3.6uH R9 100 SW1 SW2 SW3 SW4 1 2 3 4 5 6 7 14 13 12 11 10 9 8 IC1 SOP14 R2 1k LED1 D2D3 SW6 1 2 3 4 5 S1 SS-12F49 1 2 J1 BATT 9V XTAL1 27mHZ C1 150PF C2 82PF C3 102 C4 82PF C5 104 C615PF C7 82PF C8 104 C9 47PF C10 102 R7 0OHM R10 220R ANT-27.145MHZ

Report No.: SZEMO11040144801 Page : 1 of 14 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” ” SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] 1 Cover Page FCC REPORT Application No. : SZEMO110401448RF Applicant: Fujian Amison Photoelectricity CO. LTD. Product Name: Toy-R/C Monster V-Blk Wheel Model Name: 1641331 Operation Frequency: 27.145MHz FCC ID: ZDP27T1101 Standards: FCC PART 15, SUBPART-C Section 15.227: 2009 Date of Receipt 2011-04-01 Date of Test 2011-04-06 to 2011-04-07 Date of Issue 2011-04-13 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above.. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Report No.: SZEMO11040144801 Page : 2 of 14 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE .............................................................................................................................................. 1 2 CONTENTS..................................................................................................................................................... 2 3 TEST SUMMARY........................................................................................................................................... 3 4 GENERAL INFORMATION........................................................................................................................... 4 4.1 CLIENT INFORMATION.................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................. 4 4.3 E.U.T. ENVIRONMENT AND TEST MODES....................................................................................................... 4 4.4 TEST LOCATION............................................................................................................................................. 5 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 5 4.6 TEST FACILITY............................................................................................................................................... 5 4.7 TEST INSTRUMENTS LIST............................................................................................................................... 6 5 TEST RESULT & MEASUREMENT DATA.....................................................................…

Text truncated - open the document above for the full version.

“This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Report No.: SZEMO11040144801 Page : 11 of 14 SGS-CSTC Standards Technical Services Ltd. 6 Photographs - Test Setup (Test Model No.: 1641331) Radiated Emission
