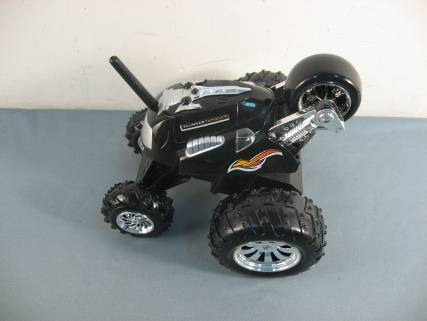

ZDP49R1101Toy-R/C Monster V-Blk Wheel

Toy-R/C Monster V-Blk Wheel Model N.O.: 1641331 Please read these instructions carefully before using this product and keep in a safe place for future reference. We advise using this product under adult supervision. Do not use this toy on the road or in crowded areas and keep away from animals and young children. Do not attempt to modify this product in any way or lift it fr om the ground whilst it is in motion. Keep moving parts away from hair, clothes and hands. Handle with care at all times and only when the motor is off. Always switch on the transmitter before the vehicle. CHARACTERISTICS 5 Functions: Forwards, Backwards, Turn Right & Left and Stop. BATTERY INSTALLATION HANDSET 1. Unscrew the battery cover on the underside of the handset controller w ith a screwdriver. 2. Insert a 9V “6F22”size battery with the polarities show inside t he battery compartment. 3. Replace the battery cover and screw shut . VEHICLE 1. Unscrew the roof with a screwdriver to expose the battery compartment. 2. Unscrew the battery door and insert 4-AA batteries with polarit ies shown inside the battery compartment. 3. Replace the battery cover and screw shut. 4. Replace the roof and screw shut. 5. Turn switch on to start your car . 6. The LED headlights will light up while the vehicle was switched on the power. 1. When the car is running ,do not try to touch the 4 wheels by hand to avoid damages. 2. Do not play in a place with another R/C car being controlled with t he same frequency. 3. Do not bend the antenna or point it at other people or articles to avoid hurts. 4. Do not play by the roads or in any other dangerous places to avoid accidents. 5. Do not play in a place with puddle, mud or sand. TRANSMITTER FUNCTION 1. To make the vehicle move forwards or backwards push on or pull back the trigger respectively; 2. To make the car turn left or right turn the steering wheel t o the front or back respectively; 3. To stop the vehicle release both the trigger and steering wheel. 4. For best performance ensure that the antenna is pointing towards t he vehicle at all times. CLEANING 1. Do not submerge this item in water, use a damp cloth and dry before use. 2. Do not leave this item in direct sunlight for a long period. NOTICE 1. Non-rechargeable batteries are not to be recharged. 2. Different types of batteries or new and used batteries are not to be mixed. 3. Batteries are to be inserted with correct polarity. 4. Remove exhausted batteries from the toy and remove batteries w hen not in use for an extended period of time. 5. The manufracturer is not responsible for the possible interferences from radio or TV owing to non-permitted modifications of this appliance. This toy is not suitable for children under the age of 6 years as it contains small parts that could be swallowed. We reccomend using this product under the supervision of an adult. Remove all packaging before giving to the child. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

二．SketchofthediagramoftheReceiver： Receiver with antenna super-regenerator receiver demodulation RX6Aamplify& decode Amplify/drivercircuitLeftmotor Rightmotor Motorfortransformer function

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Amison Photoelectricity Technology Development CO.LTD. May 16 ,2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Amison Photoelectricity Technology Development CO.LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: Toy-R/C Monster V-Blk Wheel Model: 1641331 We affirm that between SIEMIC and Amison Photoelectricity Technology Development CO.LTD. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Amison Photoelectricity Technology Development CO.LTD. Contact information / address: Kada Industrial Zone Development Zone Zhaoan County Zhangzhou City Fujian Province China

SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEMO11040144702 Page: 11 of 14 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 7.2 EUT Constructional Details Test Model No.: 1641331RX

4.2cm 8.5cm

SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEMO11040144702 Page: 12 of 14 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEMO11040144702 Page: 13 of 14 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEMO11040144702 Page: 14 of 14 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only

Operational Description Receiver: 1. Voltage: 6.0V 2. ANT/Q1/U1 components receive, amplify and modulate 49.86MHz carrier wave and output to U2 3. U2 decodes the encoded signal and output to corresponding controlling engine.

C1C2C3C4L2U1 49.86mHz8P18P15P2222.2uRF5E-7 Amison 2011-0311 Fre. 1 2 3 4 5 U1 RF5E7-1/2T C1 * C2 *** C3 ** C4 ***** Q1 380GR L2 **** R1 220K R2 680R C5 475 R3 2.2K R4 1K C8 223 C9 104 R5 1K Q4 C3279Y 1 VO2 2 GND 3 SI 4 OSC1 5 OSC0 6 RIG 7 LEFT 8 RDB 16 V12 15 VD1 14 V11 13 VDD 12 TUB 11 FOR 10 BACK 9 LDB U2 RX2 R6 2.2M R8 2.2M R9 2.2K C11 470 C13 332 R14 220K Q5 C3279Y R17 1K R18 1K Q2 8550D A1300Y Q3 8550D A1300Y R10 33 R11 33 C17 223 R12 2.2K C10 104 C14 220uF Q7 NPN C1815Y Q10 NPN C1815Y C18 104 Q6 NPN C1815Y Q9 NPN C1815Y R13 33 R16 33 Q11 8550D Q12 8550D Q13 C3279Y Q14 C3279Y R20 1K R21 1K R7 180 D1 3.3V D2 5mmLED/LAMP C6 475 C7 NC R22 220 C12 472 C15 472 D3 5mmLED/LAMP LED R15 220 1 2 J2 CONT-2P 1 2 J1 CONT-2P 1 2 J3 CONT-2P 1 2 J4 CONT-2P 1 2 J5 CONT-2P 1 2 J6 CONT-2P 1 2 J7 CONT-2P 1 2 J8 CONT-2P 12 J9 CONT-2P 12 J10 CONT-2P 12 J15 CONT-2P 1 2 J16 CONT-2P 12 M1 MOTOR 12 M2 MOTOR 1 2 J11 CONT-2P 1 2 J12 CONT-2P 12 J13 CONT-2P 12 J14 CONT-2P VCC6.0V ANT-49.860MHZ

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle Section, Science & Technology Park, District Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEMO11040144702 Page: 1 of 14 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only FCC Test Report Application No.: SZEMO110401447RF Applicant: Fujian Amison Photoelectricity CO. LTD Address of Applicant: Kada Industrial Zone Development Zone Zhaoan County Zhang zhou City Fujian Province P.R. China FCC ID: ZDP49R1101 Equipment Under Test (EUT): EUT Name: Toy-R/C Monster V-Blk Wheel Model No.: 1641331 Operation Frequency: 49.860MHz Standards: FCC PART 15, SUBPART B: 2009 Date of Receipt: 2011-04-01 Date of Test: 2011-04-06 to 2011-04-11 Date of Issue: 2011-04-13 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEMO11040144702 Page: 2 of 14 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 2 Test Summary Test Test Requirement Test Method Class / Severity Result Radiated Emission FCC PART 15, SUBPART B: 2009 ANSI C63.4:2009 Class B PASS SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEMO11040144702 Page: 3 of 14 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY...................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEMO11040144702 Page: 10 of 14 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 7 Photographs (Test Model No.: 1641331RX) 7.1 Radiated Emission Test Setup
