ZDSMM516Module Operates as a Bluetooth transceiver for wirelessly controlling musical instruments and audio equipment.

MM516 User's Manual 1 Revision 1.4 7-8-2011 Hardware Description Manual JULY 2011 MM516 Bluetooth QD ID : B018234 (End Product Listing) FCC ID : ZDSMM516 IC : 9583A-MM516 Class 2 BC05-ext Multimedia Module Wireless Modules User's Manual Hardware Description Revision 1.4 MM516 User's Manual 2 Revision 1.4 7-8-2011 Hardware Description Manual Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Table of Contents 1. General Device Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1.2 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.3 Pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1.4 Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 7 1.5 Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 2 Basic Operating Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 2.1 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 2.2 Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3 Physical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1 RF Receive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1.1 Low Noise Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1.2 Analog to Digital Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2 RF Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2.1 IQ Modulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2.2 Power Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.3 RF Synthesizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.4 Clock Input and Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.5 Baseband and Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.5.1 Memory Management Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.5.2 Burst Mode Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.5.3 Physical Layer Hardware Engine DSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.5.4 System RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.5.5 External Memory Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.5.6 USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.5.7 Synchronous Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.5.8 UART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.6 Microcontroller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.6.1 Programmable I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.6.2 802.11 Coexistence Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 4 Bluetoo…

Text truncated - open the document above for the full version.

MM516 User's Manual 54 Revision 1.0 4-21-2011 Hardware Description Manual approved by Industry Canada to operate with the antenna types listed in Table 13 with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés en Table 13 et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. 8.10 Label Design of the Host Product The following information is required either on a label attached to the host product or silkscreened onto the product itself: If the device is less than 4” x 4” the lower text may be omitted. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Contains Modular Transmitter FCC ID: ZDSMM516 IC: 9583A-MM516 MM516 User's Manual 55 Revision 1.0 4-21-2011 Hardware Description Manual 8.11 End User Product Manual Requirements The printed or electronic manual provided to the end user needs to contain the following: This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by 1 or more of the following measures: • Reorient or relocate the antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio or television technician for help Caution: Caution:Caution: Caution: Changes or modifications not expressly approved by Gibson could void the user's authority to operate this equipment.

Page 1 of 5 Report No: 91254-20A MAXIMUM PERMISSIBLE EXPOSURE ADDENDUM REPORT TO 91254-20 FOR THE MODEL NUMBER: MM-516 FCC ID: ZDSMM516 IC: 9583A-MM516 DATE OF ISSUE: MAY 18, 2011 PREPARED FOR: Gibson Guitar Corporation 641 Massman Drive Nashville, TN 37210 PREPARED BY: E. Wong CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 W.O. No.: 91254 Report No.: 91254-20A Page 2 of 5 Report No: 91254-20A Revision History / Purpose: Original: To demonstrate compliance with United States and Canada RF Exposure exemption for Portable Equipment (devices used < 20cm from the body), where Specific Absorbtion Rate (SAR) Evaluations apply. Addendum A: To correct the “Report Prepared For” section from Echo Digital Audio Corporation to Gibson Guitar Corporation. United States Exemption in accordance with FCC document, KDB 447498 Thresholds for TCB SAR Exposure category low threshold high threshold general population (60/fGHz) mW, d < 2.5 cm (120/fGHz) mW, d ≥ 2.5 cm (900/fGHz) mW, d < 20 cm occupational (375/fGHz) mW, d < 2.5 cm l (900/fGHz) mW, d ≥ 2.5 cm (2250/fGHz) mW, d < 20 cm Page 3 of 5 Report No: 91254-20A Canadian exemption in accordance with RSS-102 sub clause 2.5 2.5 Exemption from Routine Evaluation Limits All transmitters are exempt from routine SAR and RF exposure evaluations provided that the output power complies with the power levels of sections 2.5.1 or 2.5.2. If the equipment under test (EUT) meets the requirements of sections 2.5.1 or 2.5.2, applicants are required to submit only a properly signed declaration of compliance. The information contained in the RF exposure technical brief may be limited to information that demonstrates how the output power of the transmitter was derived. If the EUT does not meet the appropriate exemption limit, a complete SAR or RF exposure evaluation shall be performed. It must be emphasized that the above exemption from routine evaluation is not an exemption from compliance. 2.5.1 Exemption from Routine Evaluation Limits – SAR Evaluation SAR evaluation is required if the separation distance between the user and the device’s radiating element is less than or equal to 20 cm, except when the device operates: from 3 kHz up to 1 GHz inclusively and its output power (i.e. the higher of the conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power) is less than or equal to 200 mW for general public use and 1000 mW for controlled use; above 1 GHz up to 2.2 GHz inclusively and its output power (i.e. the higher of the conducted or radiated (e.i.r.p.) source-based, time-averaged output power) is less than or equal to 100 mW for general public use and 500 mW for controlled use; above 2.2 GHz up to 3 GHz inclusively and its output power (i.e. the higher of the conducted or radiated (e.i.r.p.) source-based, time-averaged output power) is less than or equal to 20 mW for general public use and 100 mW for controlled use; above 3 GHz up to 6 GHz inclusively and its output power (i.e. the higher of the conducted or radiated (e.i.r.p.) source-based, time-averaged output power) is less than or equal to 10 mW for general public use and 50 mW for controlled use. Page 4 of 5 Report No: 91254-20A In these cases, the information contained in the RF exposure technical brief may be limited to information that demonstrates how the output power of the device was derived. 2.5.2 Exemption from Routine Evaluation Limits – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and the device’s radiating element is greater than 20 cm, except when the device operates as follows: below 1.5 GHz and its maximum e.i.r.p. is equal to or less than 2.5 W; at or above 1.5 GHz and the maximum e.i.r.p. of the device is equal to or less than 5 W. In these cases, the information contained in the RF exposure technical brief may be limited to information that demonstrates how the e.i.r.p. was derived. Page 5 of 5 Report No: 91254-20A Equipment operational details: Operating Frequency (MHz) Measured Output Power (dBm) Maximum Mobile Antenna Gain (dBi) Maximum EIRP (dBm) 2402-2408 5.8 4.9 10.7 Measurements based from EMC Test Report: 91254-13B Device and Antenna Operating Configuration: Device operating at maximum output power with continuous transmission of modulated data. Power measured conducted at the antenna port Max antenna gain is 4.9 dBi ( 3.1 linear) . Statemetn of Exemption: At maximum measured conducted output power of 5.8 dBm (0.004W, 4mW), the device is exempted from routineSAR evaluation in accordance with the FCC ’s RF exposure regulations. At maximum measured conducted output power of 5.8 dBm (0.004W, 4mW), the device is exempted from routine SAR evaluation in accordance with the the Industry Canada’s RF exposure regulations.

This report c written cons e TE S CERT #803 803.05 ontains a total of ent of CKC Laborat FCC P STING 3.01, 803.02, 5, 803.06 59 pages and ma tories, Inc. Gibso ADDE B Te Part 15 Subp This test rep testing perfo of ISO/IEC 1 CKC Laborato We strive t o sound, adapt our custome processes, bu ay be reproduced on Guit ENDUM TO T Bluetooth ested To The part C Sectio Report Date of is port bears th ormed herein 17025 under ories, Inc. o create long‐t tive, customer ers’ unique EM ut rather as th in full only. Partia tar Cor TEST REPOR Module, M e Following S ons 15.207, 1 No.: 91254‐1 ssue: May 18, e accreditati o meets the tes the applicab term, trust ba r first testing MC challenges, e reason we a al reproduction m rporati RT 91254‐13 MM516 Standards: 15.247 & RS 13B 2011 on symbol ind st and reporti ble scope of sed relations h services. We , not as an int are in business may only be done ion A SS‐210 Issue dicating that ing requireme EMC testing hips by provid embrace each terruption to . with the 8 the ents for ding h of set Page 2of 59 Report No.: 91254‐13B TABLE OF CONTENTS Administrative Information ........................................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing ......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 15 Subpart C .................................................................................................................................................... 7 15.207 AC Conducted Emissions................................................................................................................................ 7 15.247(a)(1) Frequency Separation ......................................................................................................................... 14 15.247(a)(1) Number of Hopping Channels & Average Time of Occupancy ........................................................... 19 15.247(b)(1) RF Power Output ................................................................................................................................ 26 15.247(c) Spurious Emissions .................................................................................................................................. 28 Bandedge ................................................................................................................................................................. 48 ‐20dB & 99% Occupied Bandwidth .......................................................................................................................... 53 Supplemental Information .......................................................................................................................................... 58 Measurement Uncertainty ...................................................................................................................................... 58 Emissions Test Details .............................................................................................................................................. 58 Page 3of 59 Report No.: 91254‐13B ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Gibson Guitar Corporation 309 Plus Park Blvd. Nashville TN, 37217 Joyce Walker CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 REPRESENTATIVE: Milo Street Project Number: 91250 Customer Reference Number: 110a+PO000076650 DATE OF EQUIPMENT RECEIPT: November4, 2010 DATE(S) OF TESTING: November4‐17, 2010 April 6, 2011 Revision History Original: To perform the testing of the Bluetooth Module, MM516 with the requirements for FCC Part 15 Subpart C Section 15.247 & RSS‐210 devices. Addendum A: To add FCC Subpart C 15.207 AC Conducted Emissions test data of the Bluetooth Module, MM516 performed April 6, 2011. Addendum B: In the Bandedge testing sections a horn antenna has been added to the equipment list that had been left off in error. Also the setup picture in this section has been corrected as well. Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4of 59 Report No.: 91254‐13B Test Facility Information Our laboratories are configured…

Text truncated - open the document above for the full version.

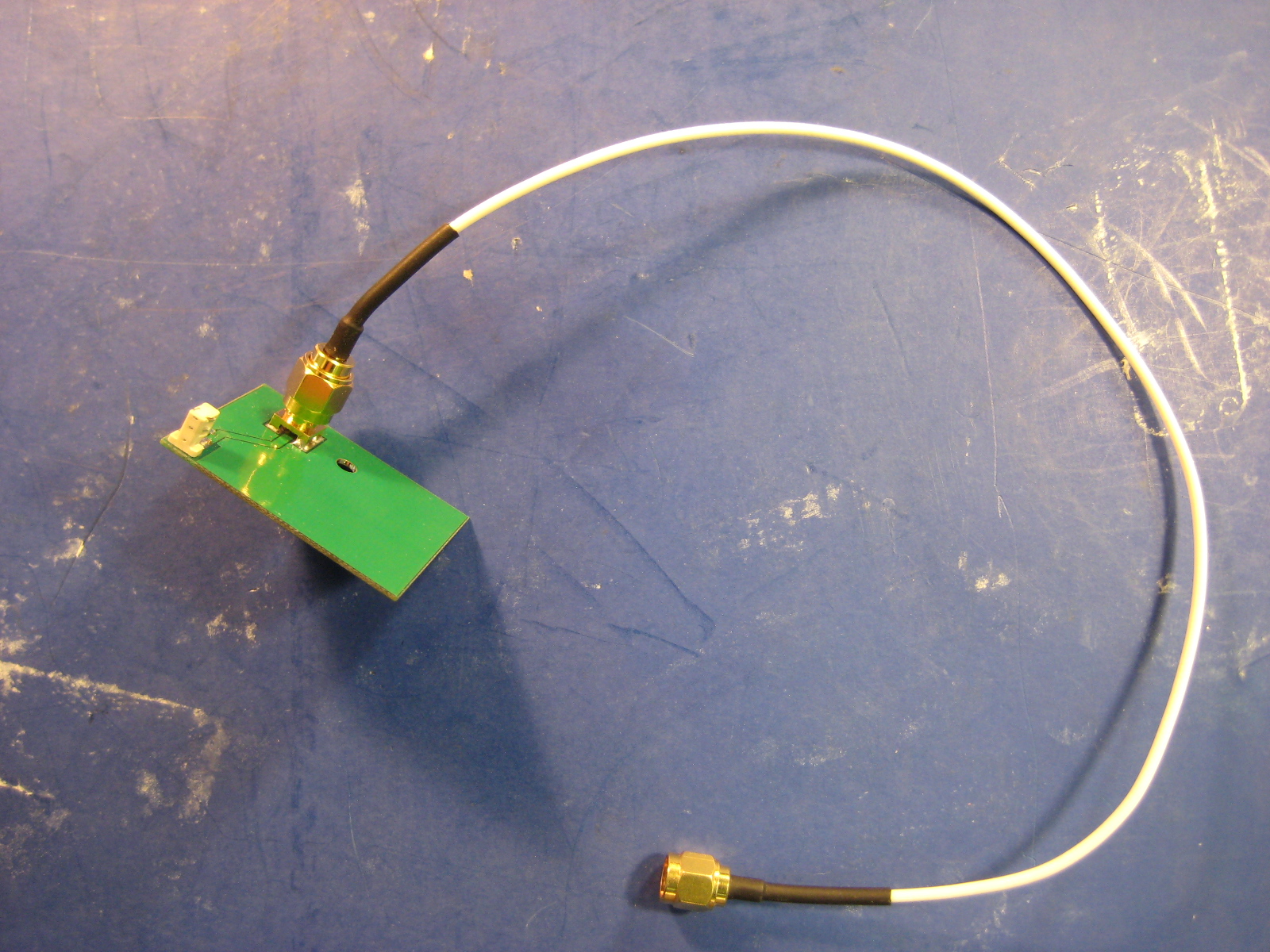

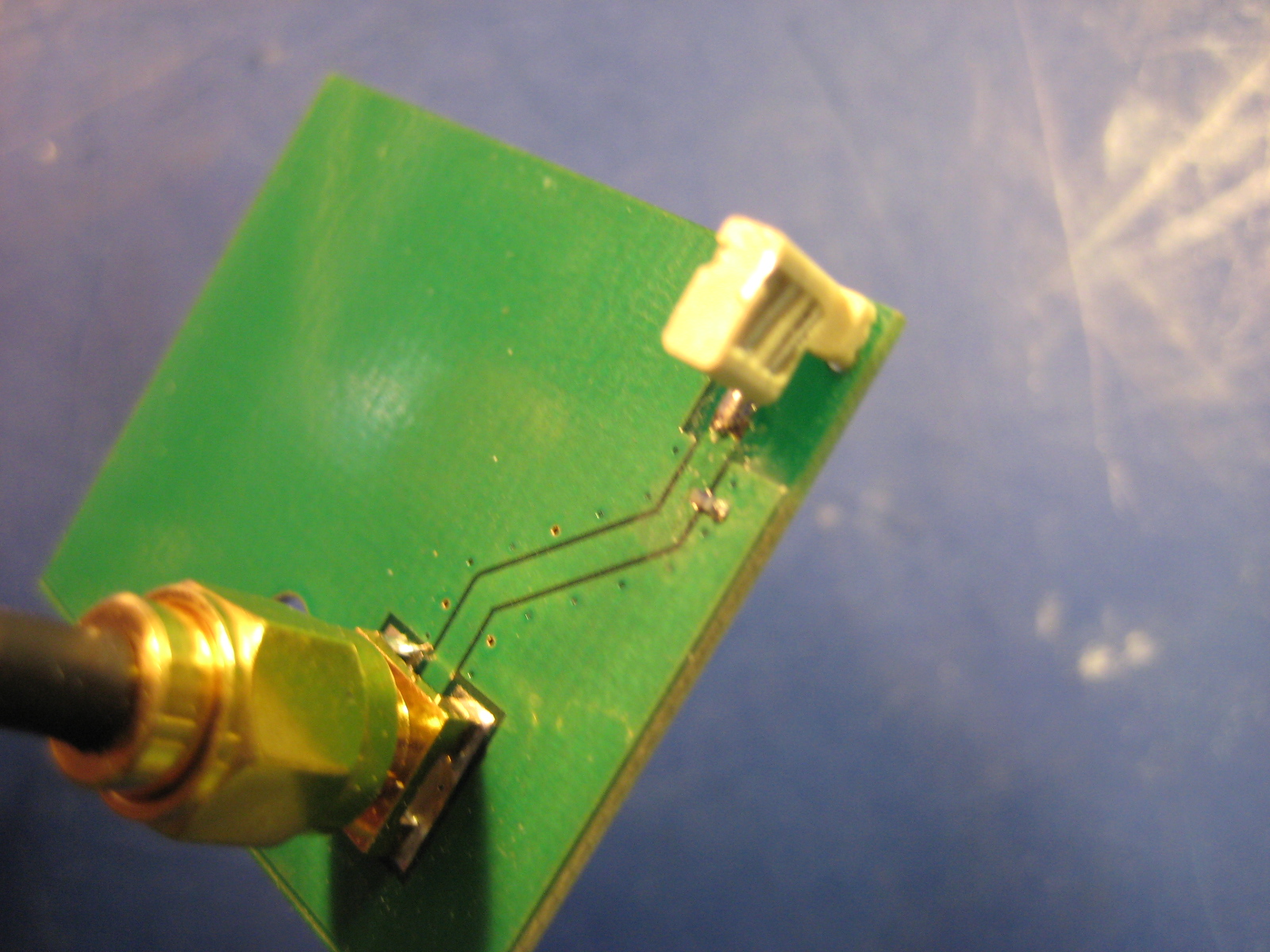

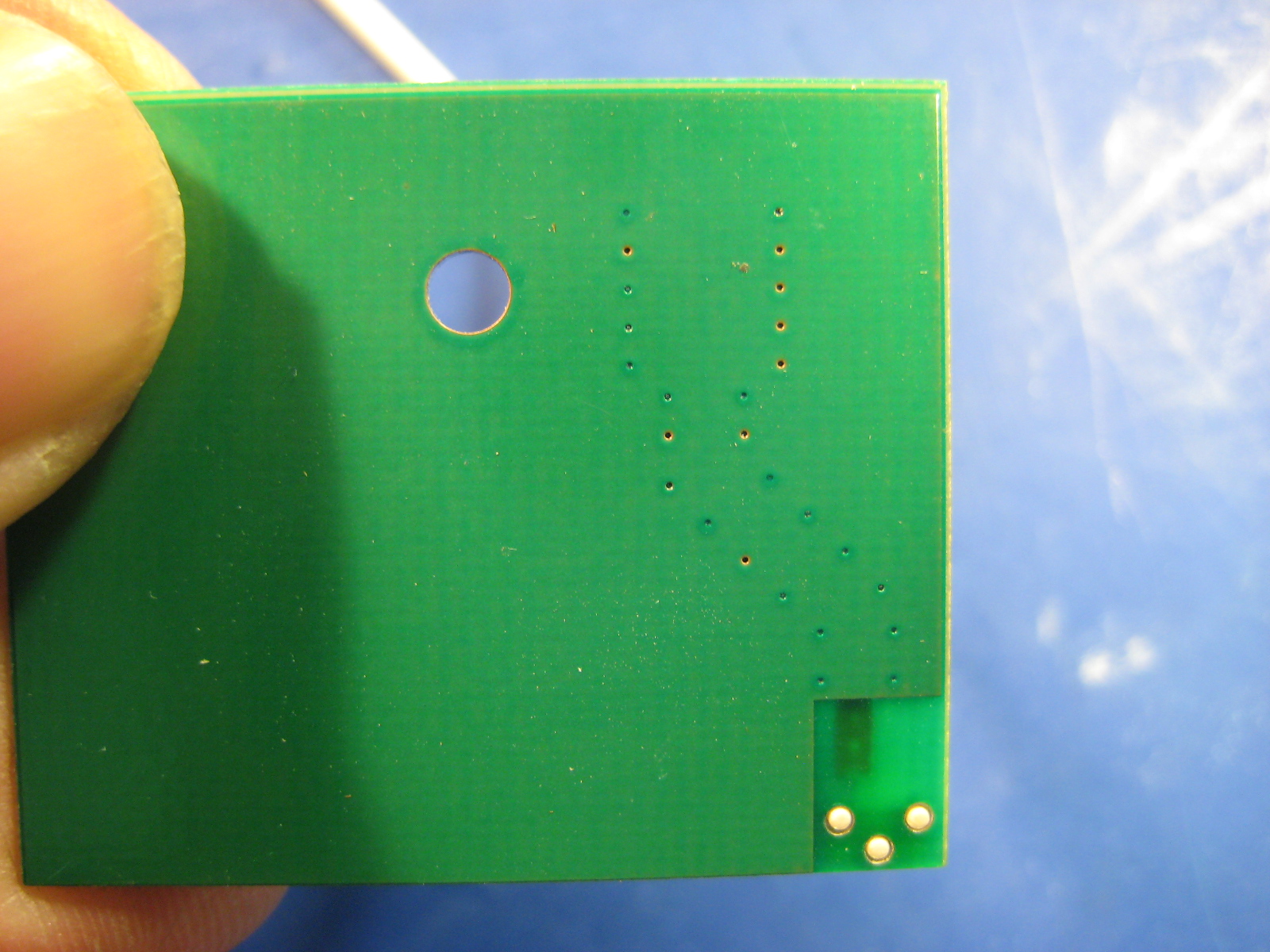

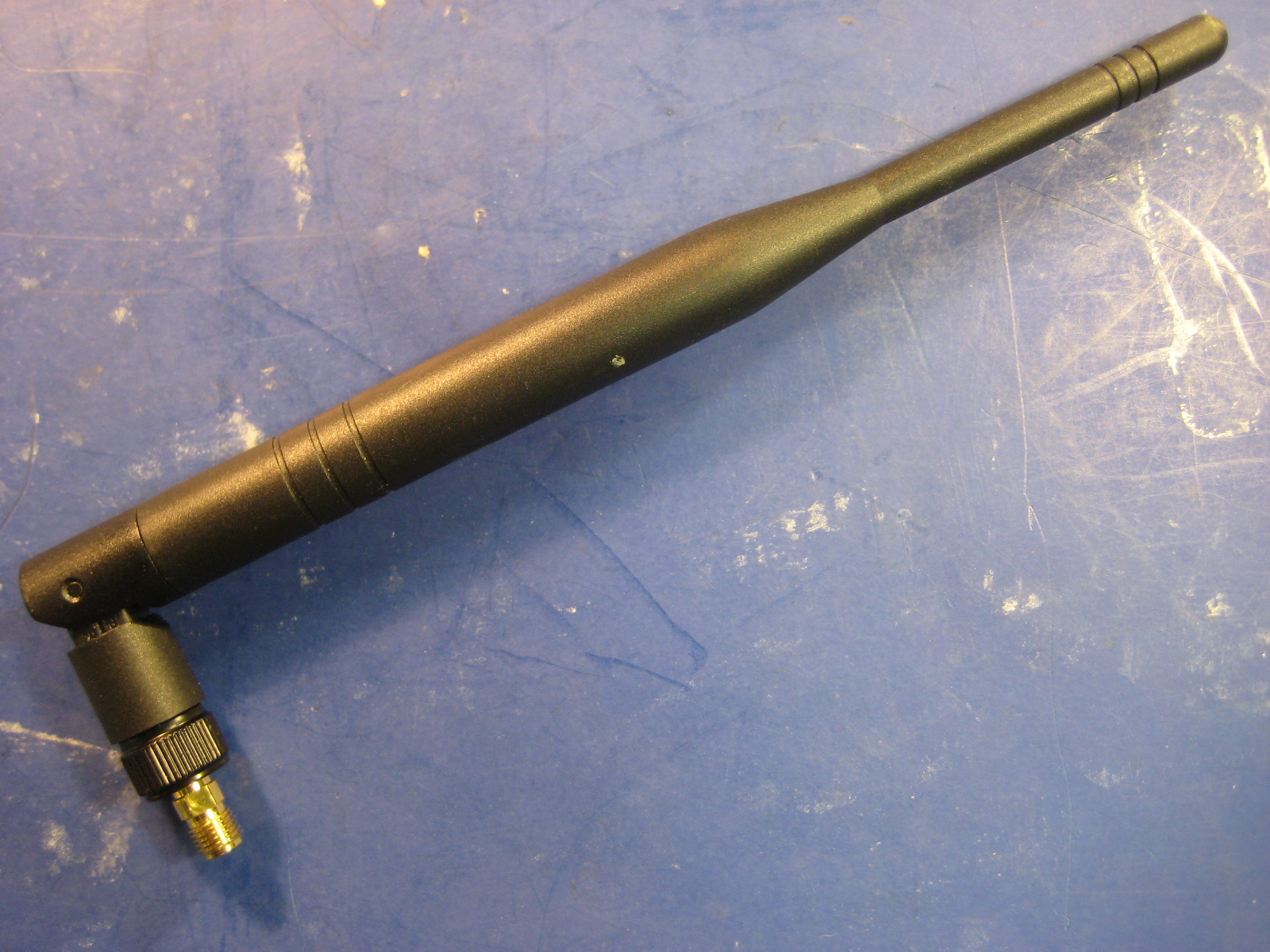

Helical Antenna Helical Antenna Helical Antenna in X Axis Orientation Helical Antenna in Y Axis Orientation Helical Antenna in Z Axis Orientation Close up of Helical Configuration (3.3V) Whip Antenna Whip Antenna Whip Antenna in X Axis Orientation Whip Antenna in Y Axis Orientation Whip Antenna in Z Axis Orientation Close up of Whip Configuration (3.3V)
