ZF8-PC-217237Bluetooth Stereo Headset

Bluetooth stereo headset User’s manual PC-217237 Contents „ Brief introduction.......................................................... 1 1. Bluetooth wireless communication technology...........................1 2. About PC-0217237...........................................................1 „ Before use....................................................................2 1. Overview......................................................................2 2. Charging the headset........................................................3 „ Getting started..............................................................3 1. Turning on/off the headset..................................................3 2. Pairing the headset with Bluetooth devices...............................4 How to enter pairing mode.................................................4 Pairing the headset with a Bluetooth cell phone.............................4 Pairing the headset with a Bluetooth transmitter........................5 Multi-pairing.................................................................6 3. Re-connecting with a Bluetooth device...................................6 4. Wearing the headset.........................................................7 5. Making a call with the headset.............................................7 6. Music playback...............................................................9 7. LED indicator...............................................................10 8. Indication tone................................................................11 „ Care and maintenance....................................................11 „ FAQs..........................................................................11 „ Specifications.................................................................13 Welcome to use this Bluetooth stereo headset, BTH015. Please read this user’s manual carefully before use. „ Brief introduction 1. Bluetooth wireless communication technology Bluetooth is a standard of close range wireless communication technology that was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba. With Bluetooth technology, we can achieve the highest transmission rate among cell phones, computers, printers, PDAs and other devices. The max transmission range of class II is 10 meters while the max transmission range of class I can reach up to 100 meters. 2. About PC-217237 BTH015 is a Bluetooth stereo headset. It’s foldable and retractable design is very easy to take with you. It supports the following Bluetooth profiles: HSP —— Headset Profile HFP —— Hands-free Profile A2DP—— Advanced Audio Distribution Profile AVRCP——Audio/Video Remote Control Profile You can enjoy music wirelessly by using BTH015. It has the following features: 1) Pairing with a Bluetooth cell phone or PDA supporting HFP profile. ‹ Answer a call, end a call and reject a call ‹ Redial last number ‹ Voice dial ‹ Adjust the volume ‹ Call transfer between the headset and your Bluetooth cell phone ‹ Microphone mute 2) Pairing with a Bluetooth music device or Bluetooth transmitter supporting A2DP profile. ‹ Enjoy music wirelessly ‹ Adjust the volume ‹ Remote control pause/play ‹ Remote control previous/next track 1 headset, PC-217237. Please read this You can enjoy music wirelessly by using PC-217237. It has the following PC-217237 is a Bluetooth stereo headset. It 3) Easy to switch between the call and music, you will not miss the incoming call during listening to music. 4) Every time the headset is turned on, it will connect to last connected device automatically. Note: Even though the paired device and the headset support the same Bluetooth profiles, functions may vary due to specification differences of the paired devices. „ Before use 1. Overview 2 1 Foldable and retractable headhand 2 + button: Volume up 3 ﹤button: Previous track 4 ﹥button: Next track 5 Built-in microphone 6 LED indicator 7 Multi-function button (MFB): Power on/power off/answer a call/end a call/reject a call/microphone mute/call transfer/redial last number/voice dial/pause/play 8 Charging jack 9 – button: Volume down 2. Charging the headset The headset comes with a built-in rechargeable battery, prior to using it, it is recommended to charge the battery fully for the first time. When the headset is low power, red LED flashes twice and the headset emits three “Dong” tones every 20 seconds. Please recharge the battery of the headset. Connect the USB cable to a computer USB port and the USB cable plug to the charging jack of the headset. Red LED is on while charging. It takes about 3 hours to charge the battery fully. When charging has completed, red LED will be off. Remarks: 1) The battery is recyclable. 2) Batteries (battery pack or batteries installed) shall not be exposed to excessive heat place, such as sunshine, fire or the like. „ Getting started 1. Turning on/off the headset Function Operation LED indicator Power on Press and hold MFB button for 3～5 seconds until blue LED flashes Blue LED is on for 1 second Power off Press and hold MFB button for 3～5 seconds until red LED flashes Red LED is on for 1 second 3 Remark: In order to save power, the headset will turn off automatically if no devices can be connected after 5 minutes. 2. Pairing the headset with Bluetooth devices How to enter pairing mode Function Operation LED indicator Entering pairing mode Ensure the headset is turned off, otherwise turn it off first and then press and hold MFB button for 6～7 seconds until LED flashes red and blue alternately LED flashes red and blue alternately Remark: Pairing mode will last 2 minutes. If no devices can be connected after 2 minutes, it will return to standby mode automatically . Pairing the headset with a Bluetooth cell phone Prior to using the headset for the first time, you have to pair it with a Bluetooth-enabled cell phone. The pairing procedures are subject to different models of cell phones. Please refer to your cell phone user’s manual for further inf…

Text truncated - open the document above for the full version.

Schematic BLOCK-DIAGRAM NO：C07 Fequency range 2.400GHz-2.4835GHz X1

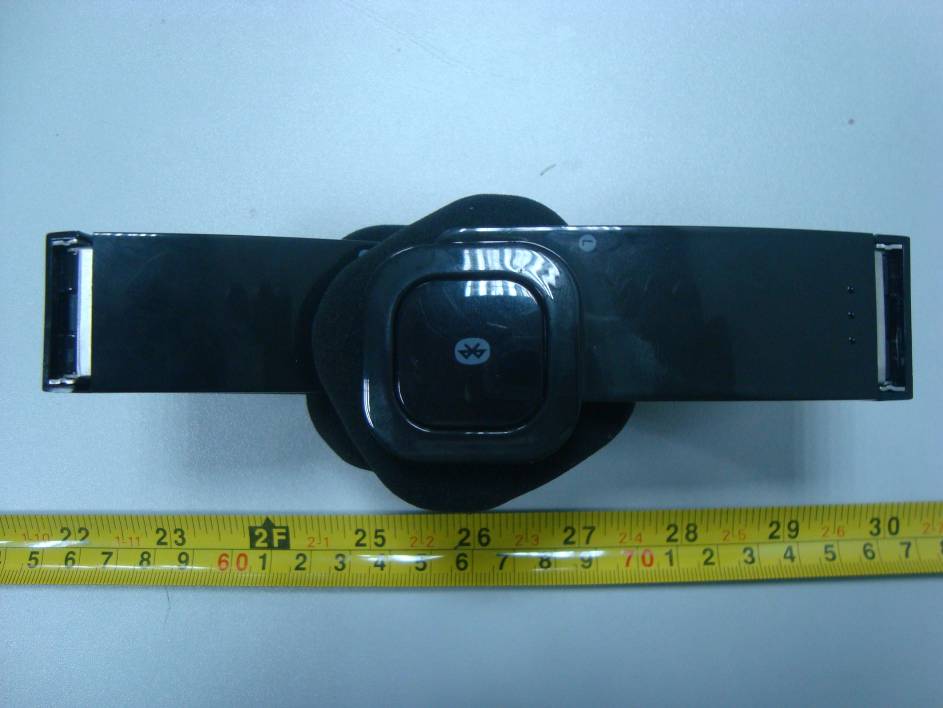

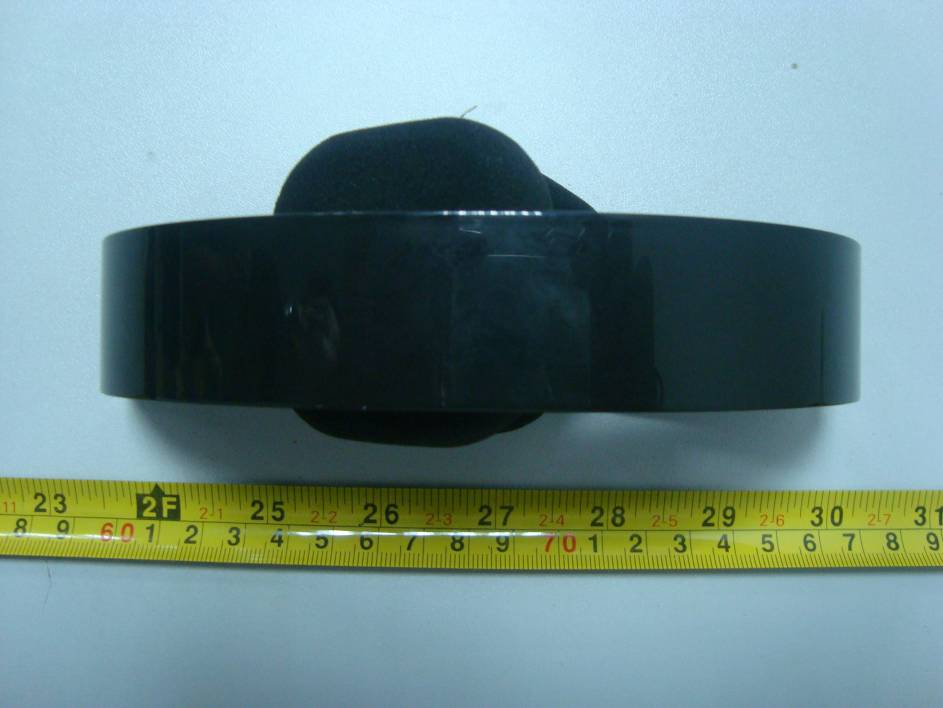

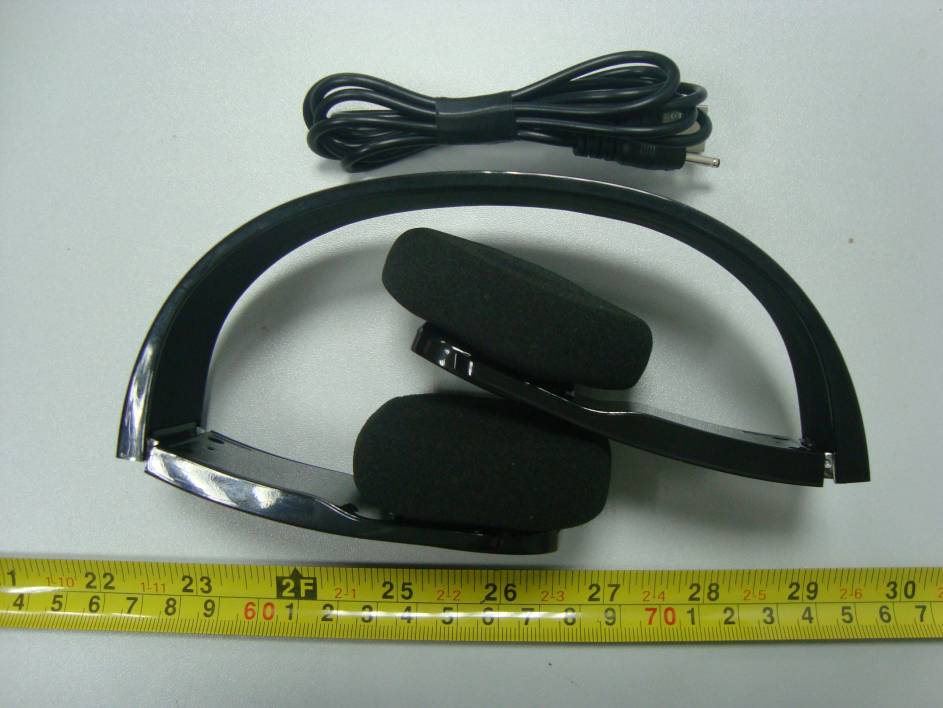

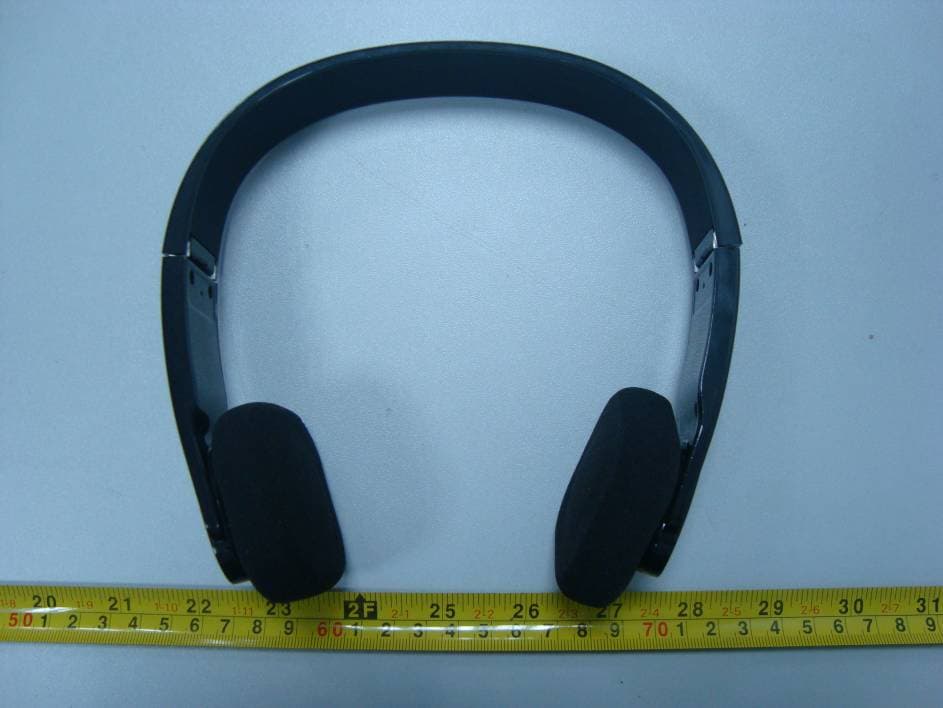

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Front View 1 EUT – Front View 2 EUT – Rear View EUT – Left Side View EUT – Right Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View EUT – Left Side Cover off View EUT – Right Side Cover off View EUT – Main Board Top View EUT – Main Board Bottom View Antenna EUT – Speaker View

Operational Description Model No.: PC-217237 Basic Description: Bluetooth requires one of the Bluetooth communication between devices must be a main role, the other one is from the role in order to communicate. Communication must be carried ou t by the main terminal to find. It initiates pairing, when connected, the two sides can send and receive data. A Bluetooth communication device that can switch between the two roles, usually working in sla ve mode, waiting for the other main equipment to connect, if necessary, convert the main mode, a call to the other devices. When you want to give a call with the bluetooth device, you need to know each other's Bluetooth address, password and other information. When the pairing is completed, you can dir ectly initiate the call. U1 is the main chip, which supports the bluetooth profiles HSP, HFP, A2DP and AVRCP. The working frequency is 2402MHz ~ 2480MHz in total of 79 channels.The master crystal frequency is 26.000MHz. There is the charge management in the chip. the battery is charged through 3.5mm Jack. EEPROM U2, which is used to store software, some IO、LED status, audio and other information also stored in this chip. High-fidelity music and high-quality call is issued from the speaker unit. The battery is lithium polymer battery 230mAH, It provides power for the product. U3 is the control chip of touch key. It can control the touch keys.

PC-217237 Hopping Information 1 Hopping Range Hereby we declare that the maximum range frequency of this device is: 2400-2483.5MHz. This is according the Bluetooth core Specification BT 2.1 for device which will be operated in the USA 2 Hopping Sequence Example of a 79 hopping sequence in data mode: 35,14,21,44,23,42,53,46,55,48,40,59,72,29,76,31,08,73, 07,65,09,45,60,39,58,13,47,11,77,52,35,50,65,54,67,56, 69,62,71,64, 37,25,27,66,57,70,24,61,78,63,10,41,05,43, 19,43,64,68,02,71,06,01,51,03,55,05,03,66,53,49,26,46 3 Receiver input bandwidth The input bandwidth of the receiver is 1MHz.

SHEET:1 Of 1 BH-PD-70 WI-3885 MIC1 -44dB 1 GND 2 PIO_2 3 PIO_3 4 PIO_1 5 PIO_O 6 AIO_1 7 AIO_0 8 UART_TX 9 UART_RX 10 PIO_9 11 PIO_11 12 PIO_12 13 PIO_13 14 PIO_14 15 GND 16 PIO_5 17 PIO_4 18 RESET 19 SPI_MOSI 20 SPI_CLK 21 SPI_CSB 22 SPI_MISO 23 GND 24 LED_0 25 LED_1 26 PWR 27 VCC 28 V_BAT 29 V_CHG 30 GND 31 MIC_BIAS 32 MIC_R+ 33 MIC_R- 34 MIC_L+ 35 MIC_L- 36 GND 37 SPK_R- 38 SPK_R+ 39 SPK_L- 40 SPK_L+ 41 GND 42 RF_IO 43 GND U1 BC05ROM-Stereo SPI_CSB SPI_MOSI SPI_MISO SPI_CLK UART_TX UART_RX C67 10UF C68 NC C69 100NF L15 1nH C72 NC R62 120K R66 560R R67 470R RF-TEST BAT+ R72 10K 1 2 LED2 BLUE 1 2 LED1 RED Q4 3904 ANT1 R56 10K R35 10K R32 20K C15 220NF C3 100NF C4 100NF M1 MIC_BIAS C2 15PF C5 15PF L1 15NH R1 470R R3 1K C23 10UF R+ R- C1 100NF C7 10UF R2 2.2R VDD 12 SW2 L+ L- DC+ 1 GVD 2 G 3 DC+ R4 10K R5 10K 5 VOUT 2 GND 3 SHDN 4 NC 1 VIN U2 XC6204B323MR C32 1UF C28 4.7UFUF 3V3 1 S4 2 S5 3 S6 4 AVSS 5 CREF 6 IADJ 7 S7 8 BP 9 IFMD 10 SLEEP 11 ENC 12 INTN 13 D5 14 D4 15 D3 16 D2 18 0D 17 D1 19 SDA 20 SCL 21 DVDD 22 DVSS 23 ADD0 24 ADD1 25 D6 26 D7 27 ASS 28 HWMD 29 S0 30 S1 31 S2 32 S3 33 VSS U3 SMT_QFN32 R7 51K C6 1UF C8 NC C9 1UF C10 4.7UF R6 10K R8 10K R9 10K VOL+ BACKVOL-FORW C11 100NF C12 4.7UF R10 6.8K D2 1N4148WT R11 1K D1 1N4148WT R12 1M PWR PWR VDD VDD BATT+ BATT+ MIC_BIAS SPK_L+ SPK_L- SPK_R+SPK_R- MIC_BIAS VDD BATT+ VOL+ VOL- BACK FORW 3V3 BATT+ S3 S2 S1 S0 3V3 VOL+ BACK 3V3 VOL- FORW 3V3 3V3 PIO4 PIO4 PIO4 Frequency range: 2400-2483.5 MHz 26MHz PC-217237

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15.247 TEST REPORT For MASTER CHOICE, S.A. de C.V. Magallanes #1155, Col Santa Anita, Tlaquepaque, Jalisco, 45603, México FCC ID: ZF8-PC-217237 Report Type: Original Report Product Type: Bluetooth Stereo Headset Test Engineer: Ivan Cao Report Number: R1DG111220002-00 Report Date: 2012-02-14 Reviewed By: Merry Zhao EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1DG111220002-00 FCC Part 15.247 Page 2 of 59 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 FCC §15.247 (I) & §2.1093 – RF EXPOSURE............................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 RESULT: .......................................................................................................................................................................8 FCC §15.203 - ANTENNA REQUIREMENT.............................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................9 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS.............................................................................10 APPLICABLE STANDARD............................................................................................................................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 EUT SETUP................................................................................................................................................................10 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP..............................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................11 TEST RESULTS SUMMARY..........................................................................................................................................12 TEST DATA................................................................................................................................................................12 FCC §15.247(a) (1) - CHANNEL SEPARATION TEST .........................................................................................14 APPLICABLE STANDARD......................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Below 1GHz: Radiated Emissions - Front View Below 1GHz: Radiated Emissions - Rear View Above 1GHz: Radiated Emissions
