ZF9RCS-J02D2-way sensor plug socket

Shenzhen Sailwider Electronics Co., Ltd. Tel: +86-755-82828526/82933134 Fax: +86-755-82933109 Email: [email protected] 1 2-way Sensor Plug Socket RCS-J02D Specification 1. General Information The 2-way sensor plug socket detects the energy consumption status of its load and transmits such information to the controller via 433.92MHz transmission so that the controller can monitor the load’s energy consumption. At the same time, the 2-way sensor plug socket receives and executes the commands from the controller wirelessly to switch on/off its load. 2. Main Parameters 1) Power Supply: AC110V-AC230V 50/60HZ 2) Working Temperature: 0-50°C 3) Wireless Frequency: 433.92MHz. 4) Maximum Load: 15A （120V/ 1.8KW） 5) Standby Power Consumption: less than 0.5w 3. Function Instruction 1) Pairing: Press the pairing key for about 6 seconds. When the LED indicator is flashing, the sensor plug socket enters into pairing mode. If the controller is also in pairing mode, it will receive the pairing data from the sensor plug socket and finish the successful pairing. After the successful pairing, the LED indicator stops flashing. If the pairing fails in one minute, the pairing will stop automatically. Please restart the pairing again. 2) Data Transmission After successfully pairing, the sensor plug socket sends its load’s energy consumption Shenzhen Sailwider Electronics Co., Ltd. Tel: +86-755-82828526/82933134 Fax: +86-755-82933109 Email: [email protected] 2 data to the Controller so that its data can be viewed on the Controller’s LCD screen. 3) Remote Control: After successfully pairing, the controller can send command to the sensor plug sockets wirelessly to remotely switch on/off the sensor plug sockets. 4) Manual Control The Switch Key on the sensor plug socket allows the user to switch on/off the sensor plug socket manually. 4. Drawing and Structure Shenzhen Sailwider Electronics Co., Ltd. Tel: +86-755-82828526/82933134 Fax: +86-755-82933109 Email: [email protected] 3 5. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions： (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

Shenzhen Sailwider Electronics Co., Ltd. 2012-03-31 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint China Certification & Inspection Services Co., Ltd.; 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China； Bruce.Zhang , to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shenzhen Sailwider Electronics Co., Ltd. Unit Y-Z, 25th Floor, Bldg. A, Fortune Plaza, No.7002 Shennan Road, Futian District, Shenzhen 518040, China. Dated this 2012-03-31 By: Hongbo Li Signature Printed Title: General Manager On behalf of : Shenzhen Sailwider Electronics Co., Ltd. Telephone: 0755-82828526

Shenzhen Sailwider Electronics Co., Ltd. 2012-03-31 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: ZF9RCS-J02D Product Name: 2-way sensor plug socket Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors.

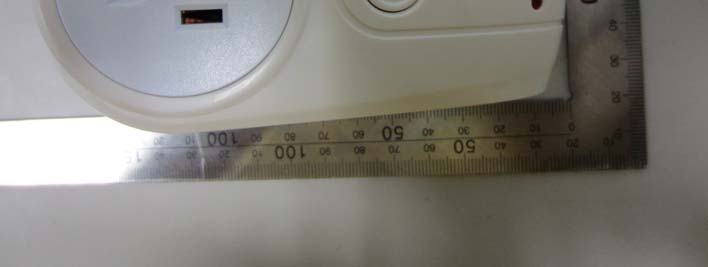

Report No: CCIS12030003501 China Certification & Inspection Services Co., Ltd. Project No.:CCIS120300035RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Page 26 of 28 8 Photographs - EUT Constructional Details

Label Location

Report No: CCIS12030003501 China Certification & Inspection Services Co., Ltd. Project No.:CCIS120300035RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Page 27 of 28 Report No: CCIS12030003501 China Certification & Inspection Services Co., Ltd. Project No.:CCIS120300035RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Page 28 of 28 ------End------

China Certification & Inspection Services Co., Ltd. Report No: CCIS12030003501 Authorized Signature: Stephen Guo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of CCIS International Electrical Approvals or testing done by CCIS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by CCIS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page FCC REPORT Applicant: Shenzhen Sailwider Electronics Co., Ltd. Address of Applicant: Unit Y-Z, 25th Floor, Bldg. A, Fortune Plaza, No.7002 Shennan Road, Futian District, Shenzhen 518040, China Equipment Under Test (EUT) Product Name: 2-way Sensor Plug Socket Model No.: RCS-J02D，RCS-S01D Trade mark: Sailwider Electronics FCC ID: ZF9RCS-J02D Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231:2010 Date of sample receipt: Mar. 19, 2012 Date of Test: Mar. 21 to Apr.19, 2012 Date of report issue: Apr.19, 2012 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: CCIS12030003501 China Certification & Inspection Services Co., Ltd. Project No.:CCIS120300035RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Page 2 of 28 2 Version Version No. Date Description 00 Apr.19, 2012 Original Prepared By: Date: Apr.19, 2012 Project Engineer Check By: Date: Apr.19, 2012 Reviewer Report No: CCIS12030003501 China Certification & Inspection Services Co., Ltd. Project No.:CCIS120300035RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Page 3 of 28 3 Contents Page 1 COVER PAGE......................................................................................................................................................... 1 2 VERSION.................................................................................................................................................................. 2 3 CONTENTS.............................................................................................................................................................. 3 4 TEST SUMMARY.................................................................................................................................................... 4 5 GENERAL INFORMATION................................................................................................................................... 5 5.1 CLIENT INFORMATION....................................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF E.U.T................................................................................................................... 5 5.3 TEST MODE....................................................................................................................................................... 5 5.4 IDENTIFICATION OF ACCESSORY EQUIPMENT.................................................................................................. 6 5.5 TEST FACILITY................................................................................................................................................... 6 5.6 TEST LOCATION................................................................................................................................................ 6 5.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 6 5.8 TEST INSTRUMENTS LIST.................................................................................................................................. 7 6 TEST RESULTS AND MEASUREMENT DATA................................................................................................ 8 6.1 ANTENNA REQUIREMENT:................................................................................................................................. 8 6.2 CONDUCTED EMISSIONS................................................................................................................................... 9 6.3 RADIATED EMISSION....................................................................................................................................... 12 6.3.1 Field Strength Of The Fundamental Signal......................................................................................... 14 6.3.2 Spurious Emissions................................................................................................................................. 16 6.4 20DB BANDWIDTH........................................................................................................................................... 18 6.5 DWELL TIME:................................................................................................................................................... 20 6.6 SIL…

Text truncated - open the document above for the full version.

Report No: CCIS12030003501 China Certification & Inspection Services Co., Ltd. Project No.:CCIS120300035RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Page 24 of 28 7 Photographs-test setup photo Radiated Emission(below 1G) Radiated Emission(above 1G) Report No: CCIS12030003501 China Certification & Inspection Services Co., Ltd. Project No.:CCIS120300035RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Page 25 of 28 Conducted emissions
