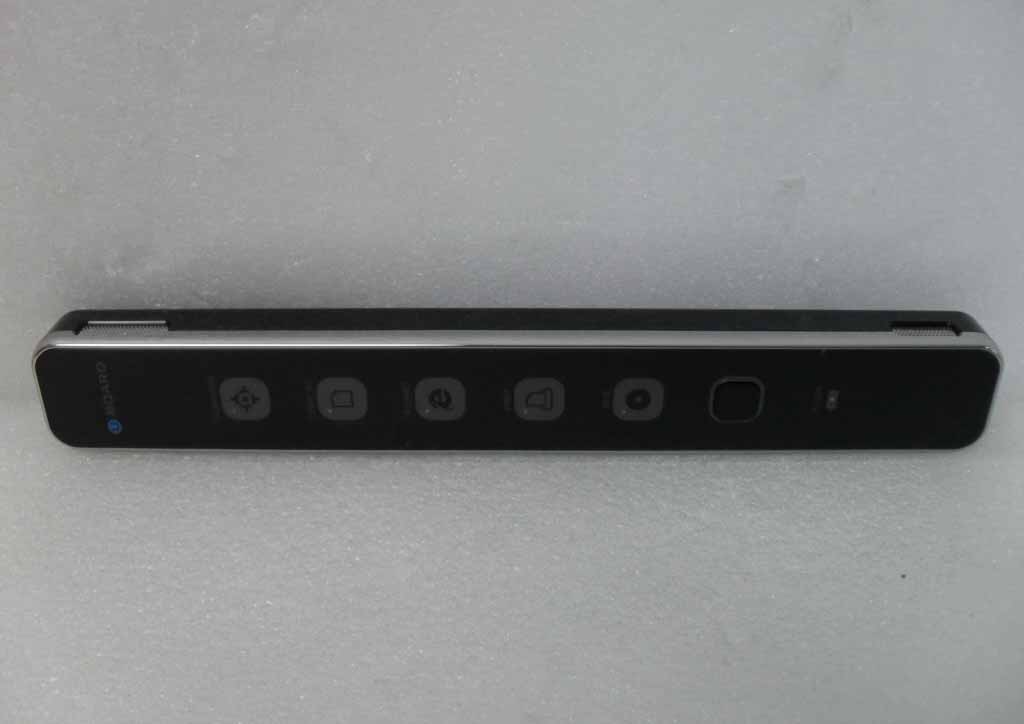

ZGB-WB-859-01U-Board wired

uBoard Installation Guide (V4.1) 2011. 5 PenAndFree Co.,Ltd uBoard Installation Guide (V4.1) Information to user : This equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment can generates, uses, and radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause unacceptable interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. ᆞReorient or relocate the receiving antenna. ᆞIncrease the separation between the equipment and receiver. ᆞConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ᆞConsult the dealer or an experienced Radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. uBoard Installation Guide (V4.1) 3 | P a g e Contents [1] Overview of uBoard ---- 4 [2] Installation ---- 5 1. Preparation ---- 5 1.1 Verify components before Installation. ---- 5 1.2 Understanding uBoard station operation ---- 5 1.3 Understanding the digital pen operation ---- 6 1.4 Check environment ---- 9 2. Install uBoard Station ---- ..10 3. Install Software for MS Windows ---- ..12 3.1 Preparation ---- ..12 3.2 Install pre-requisite SWs ---- ..12 3.3 Install uBoard driver (MINT Control) and . ..the annotation SW (MINT Interactive) ---- ..15 3.4 Option for uBoard setup ---- ..21 4. Install Software for Mac OS ---- ..25 4.1 Preparation ---- ..25 4.2 Install pre-requisite SWs ---- ..25 4.3 Install uBoard driver (MINT Control) and . ..the annotation SW (MINT Interactive) ---- ..28 4.4 Option for uBoard setup ---- ..31 uBoard Installation Guide (V4.1) 4 | P a g e [1] Overview of uBoard uBoard is an innovative portable interactive whiteboard system which provides full features of tablet functions and excellent performance as well as maximum user convenience. Thanks to uBoard’s differentiated features, user can enjoy powerful digital interactive functions at the most cost-effective way. The uBoard’ s unique advantages are as follows;  Automatic pop-up virtual keyboard or character recognition input panel at every input field without using vendor supplied software.  Support handwritten character recognition engine by Microsoft (some languages are not supported by MS engine).  Use digital ink supported by Microsoft without using vendor-supplied software.  Save MS office document including annotation with same input file format.  Support virtual pressure features on the digital pen.  Easy mode switch between pen and eraser with one touch button click.  Support up to practically 120 inches working space.  Smooth pen touch and excellent inking speed by dedicated ASIC chipset.  Lithium polymer rechargeable battery for the digital pen and the station (for wireless model).  Available Bluetooth wireless model.  Fully support mouse and pen functions on Mac OS. uBoard Installation Guide (V4.1) 5 | P a g e [2] Installation 1. Preparation 1.1. Verify Components before Installation. Before hardware installation, firstly, check whether all components listed below are included in the package. If you find a part to be missed, please contact the store you purchased the product. . 1.2. Understanding uBoard station operation. When to use uBoard well in real environment, understanding the function of uBoard system is highly required. uBoard mainly consists of the station, the digital pen and the Active-link. Among them, this section describes main function of uBoard station. uBoard station consists of function keys on the front of it, power button, led status indicator, mini USB port and two receivers. The wireless model has same shape but it has an additional LED indicator to show the connection status on it. The power for uBoard station is supplied by USB cable which is connected to the computer. But wireless model includes Lithium polymer rechargeable battery inside the station which can be charged by USB cable. Its full charging time requires about 2 hours and can last above 8 hours in continuous operating time. As the power saving algorithm is applied to uBoard wireless mode, it automatically shuts off the power after 20 minutes idle time. But pressing the power button wakes all activities and automatically resumes everything quickly. Station Station Digital pen Spare pentip Station Holder Active-Link Station Laser pointer USB cable/ Station rechargeable cable[wireless model] Pen Rechargeable cable uBoard Installation Guide (V4.1) 6 | P a g e The function of front touch panel is as follows. Note:  Do not block receiver holes located on the right side of the station.  All function keys on the uBoard station except ‘Calibrate’ can be workable in only annotation SW mode (later, you will see the name of annotation SW is MINT Interactive.) (see 1.3.2) [For wireless model] When the battery recharging level is below 20%, ‘connect status indicator’ lamp starts to blink fast. Then please charge the station by connecting the station and the computer with USB cable or USB charger immediately. However, when the ‘connect status indicator’ lamp blinks slowly, it means uBoard station is trying to establish pairing between…
