ZGL-MT101-3Bluetooth Headset

STEREO Bluetooth Headset USER GUIDE Model Name:MT101 FCC ID:ZGL-MT101- 3 Product Features: Name of Product: bluetooth headset . Ty pe: lifensoul STEREO Bluetooth headset Constituent Part: 1. The indicator light 2. Power Button 3. Speaker 4. Charger connector 5. ear hook Noted: Some Bluetooth headset part have magnetic, don’t put it with your credit card or other storage medium. Prevent information to be deleted. Means of Charging: ■ Travel Charger DC5V 300mA ■ USB Charger USB +5V Battery Standard: ■ High-capability Rechargeable Lithium Polymer Battery ■ Battery Voltage:3.7V Additional Function to Protect Battery Product Standard: ■ Class 2 Operation ■ Talk Time: 4 hours. Except N6,N8, BCK08. N6 Talk time : 4.5 hours. N8 Talk time is 12 hours, BCK08 Talk time :5 hours. ■Standby Time: 110 hours .Except N6.N8.BCK08 N6 Standby time : 130 hours. N8 Standby time is 12 hours, BCK08 Standby time : 160 hours. NOTED: *Standby time and talking time may be different subject to network situation* Light Description: ■ The indicator light turn to blue and red when pairing ■ Flashing once rapidly in 2 second when connecting ■ Flashing once slowly every 2 second when waiting for connection ■ The red indicator flashing 3 times every 2 second when power status is low. ■ The light is red when charging. Bluetooth headset is closed. ■ The red light turn to Blue when charging completed Pair to your Mobile Phone: 1. The distance between the Bluetooth headset and your mobile phone would be better within 1 meter when pairing, the closer is better. 2. Ensuring the headset is off. 3.Pressing still the Multifunctional Button , sustain 6 seconds , frist the blue light glimmer, until you see the blue light and red light glimmers , then release the button. 4. Set your Bluetooth phone to "discover" the headstet by following your phone's instruction guide. The steps involve going to a " setup ", " connect ",or "Bluetooth" menu on your phone and then selecting the option to "discover" a Bluetooth device. 5. Your phone will find the "AVF2" headset and ask if you want to pair with it. Confirming this by pressing " yes " or "ok". 6. Enter password "0000", then press "yes" or "ok". Note: The pairing generally takes about 60 seconds. If unsuccessful, the blue indicator light flashes slowly, and then you need to reattempt pairing (see steps 4-6). Turning off the headset by pressing the button sustain 4 seconds. Important and Noted: 1. Before charging, please check the charger suit for Bluetooth headset . 2. Please used original battery and original charger, if you used other charger and charging, maybe you will damage headset. That is DANGEROUS and You have violate the plan regulation. 3. Bluetooth headset ‘s battery is Li-ion battery inside. Don’t take it out. Protect the goods against spoilage. 4. Keep your headset off when you don't use it. You need to charging each month, if you don’t use it. 5. Don’t throw it into fire. Answering a Call When you hear the ring tone, press the Multifunction Button once or press the button on your phone's keypad, but you may then need to transfer the call to your headset by pressing and releasing the Multifunction Button once(depending on your phone). Ending a Call Press and release the Multifunction Button once or end call from phone keypad. Answering or Rejecting a Call when Listening to Music: If there is ring tone of incoming call when you are listening to music, in your phone or PC or other Bluetooth enabled devices, press still either "Power ON / OFF / Answer a call" button for 2 second to reject the call or press the Multifunction Button to answer the call. Multimedia Feature: If the pairing is successful with the phone which supports 1.2 , A2DP profile, it allows you to enjoy the real stereo sound music from your phone. When there is an incoming call, the headset will automatically switch to phone mode and resume to music mode when the call ends. This feature works same with PC. Redialing the Previous Call: Press still the Multifunctional Button for 2 seconds, and then it will make a call to the previous number you called. Playing Music: When you are listening to the music from PC (Music format recommended: Windows Media Player),you can press Play,Pause,Previous Song,Next Song,(refer to the"Button's Feature") to select your optimal performance. Volume Control: Volume will be up when press the Volume Control (+)3seconds, and will be down when press the volume Control (-)3seconds. ! lmportant: Please kindly note that the functions or operations stated in this User Manual is only applicable to mobile phones which support Bluetooth . Please carefully read your phone's instruction guide because the operation might be different. Correct disposal of this product (Waste Electrical & Electrionic Equipment) This marking shown on the product or its literature, indicates that it should not be disposes with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from unco -ntrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household user should contact either the retailer where they purchased this product, or their local government office, fordetails of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Sep.30, 2013 Federal Communication Commission Authorization and Evaluation Division FCC ID: ZGL-MT101-3 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, G-BLUE Technology Limited Contact person: Jack Fang Title: Manager

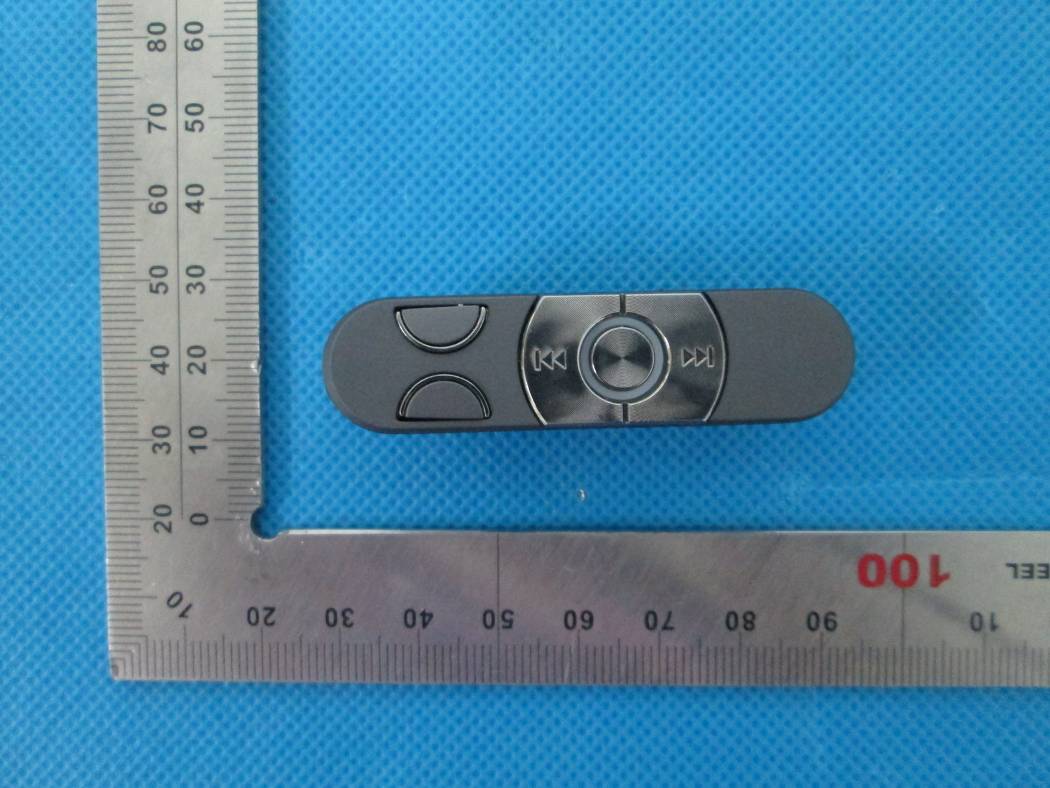

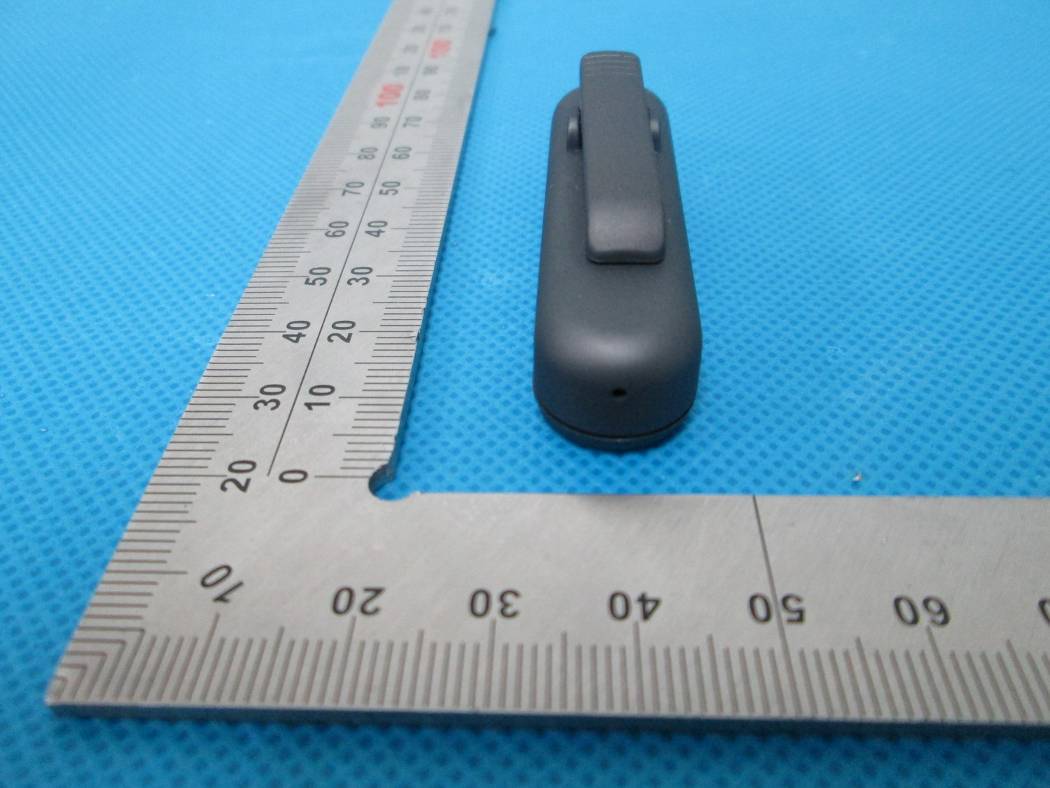

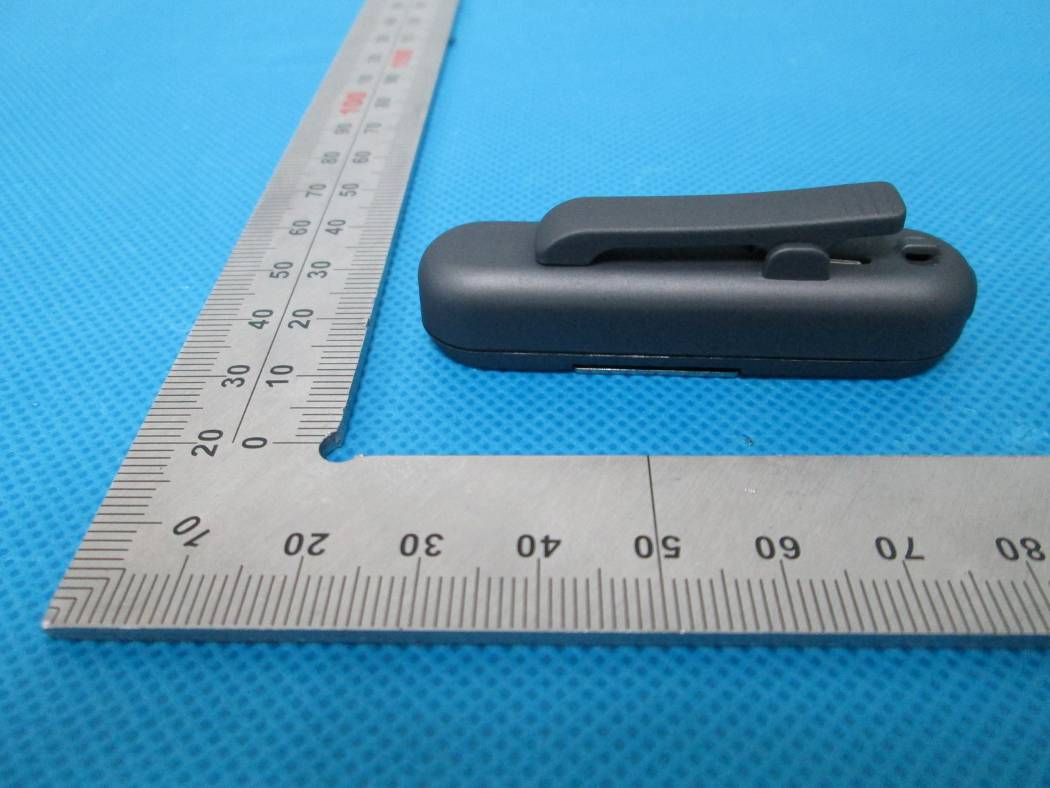

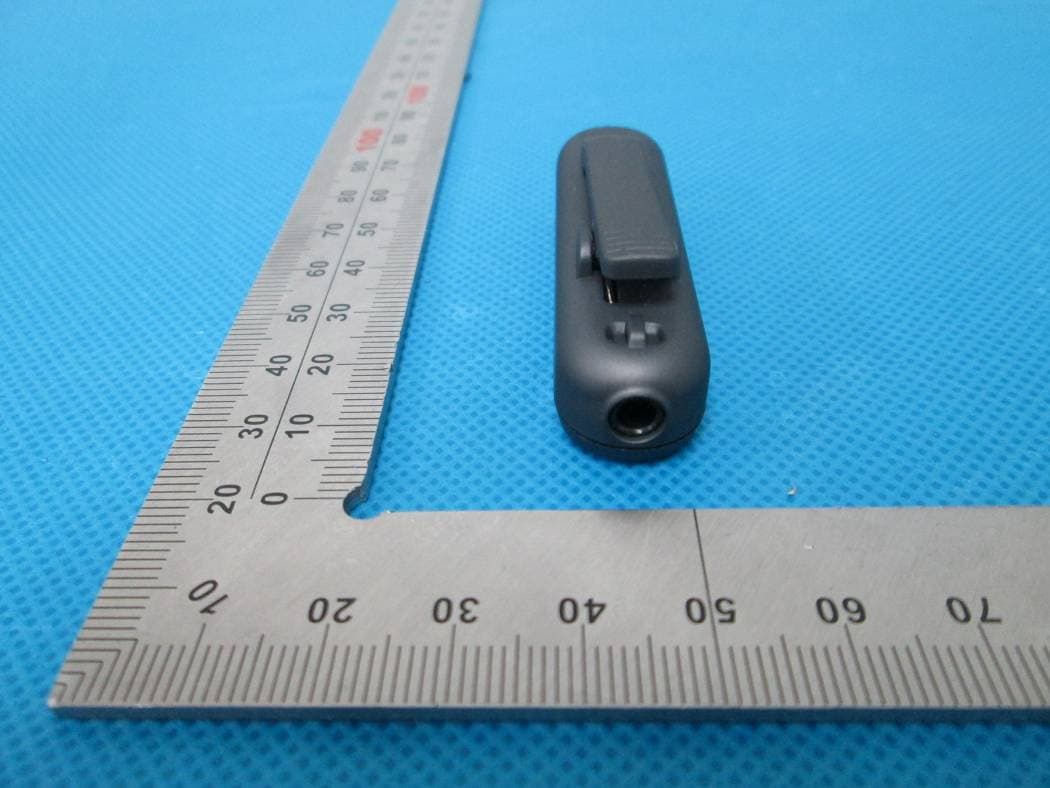

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location bluetooth headset Model: MT101 Brand Name: lifensoul FCC ID: ZGL-MT101-3 MT102,MT103,H6,N7,KT807, N6,S10,R16,K20, G1.R3,G3S, G3 , W-8, G22, K17, K20,G25 gblue

Internal Photos INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna

Report No.: AGC00012130901FE03 Page 1 of 52 FCC Test Report Report No.: AGC00012130901FE03 FCC ID : ZGL‐MT101‐3 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : bluetooth headset BRAND NAME : lifensoul, gblue MODEL NAME : MT101, MT102, MT103, H6, N7, KT807, N6, S10, R16, K20, G1.R3, G3S, G3, W‐8, G22, K17, K20, G25 CLIENT : Shenzhen Gblue Technology Co., Ltd DATE OF ISSUE : Sep.29, 2013 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00012130901FE03 Page 2 of 52 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Sep.29, 2013Valid Original Report Report No.: AGC00012130901FE03 Page 3 of 52 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ................................................................................................ 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 19 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 26 9.1. MEASUREMENT PROCEDURE ................................................................................................ 26 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 26 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 26 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 26 10. RADIATED EMISSION ..................................................................................................... 30 10.1. MEASUREMENT PROCEDURE .............................................................................................. 30 10.2. TEST SETUP ............................................................................................................................ 32 Report No.: AGC00012130901FE03 Page 4 of 52 10.3. TEST RESULT .......................................................................................................................... 33 11. BAND EDGE EMISSION .................................................................................................. 37 11.1. MEASUREMENT PROCEDURE .............................................................................................. 37 11.2. TEST SET-UP ........................................................................................................................... 37 11.3. TEST RESULT .......................................................................................................................... 38 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 42 12.1. MEASUREMENT PROCEDURE ...............................…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC RADIATED EMISSION TEST SETUP
